Wind Power Active Carton 1, 035 X 700 365 mm Growatt Inverter Huawei Inverters

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

01

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC SAA

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

02

Product Description

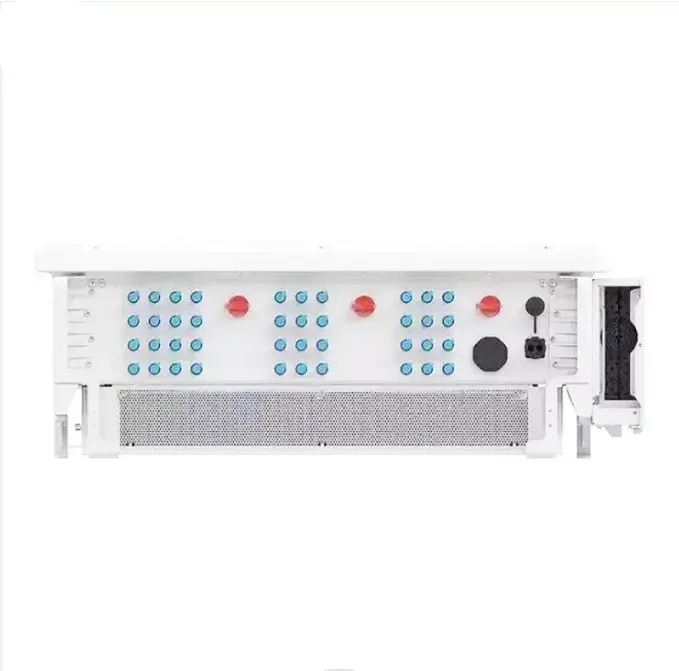

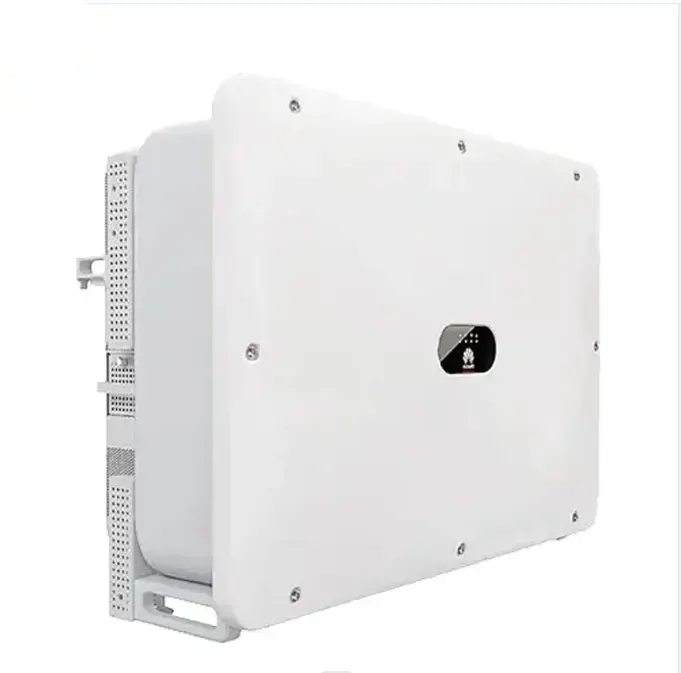

SUN2000-100KTL-M2

Smart PV Controller

03

Technical Specifications

Parameter	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Max. input number per MPPT	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
DC/AC Surge Arrester	Type II
Protection Degree	IP66
General Data
Dimensions (W x H x D)	1,035 x 700 x 365 mm
Weight (with mounting plate)	90 kg
Cooling Method	Smart Air Cooling

04

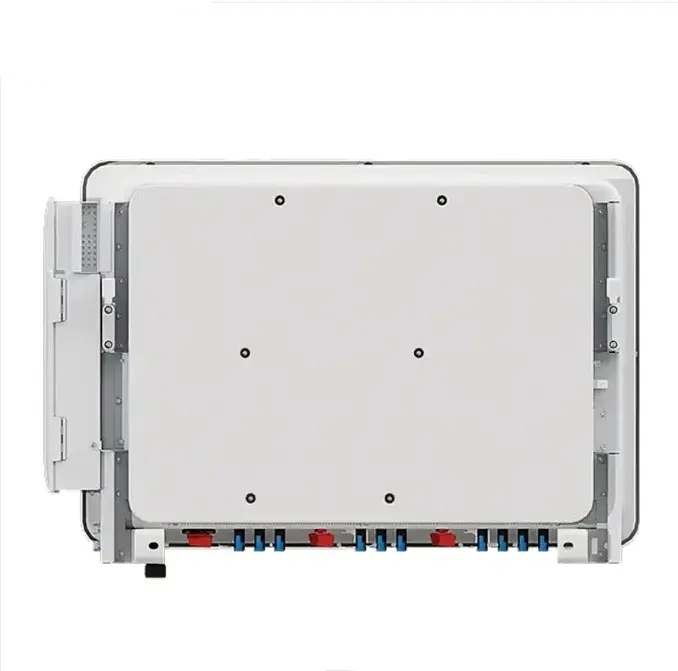

Product Details

05

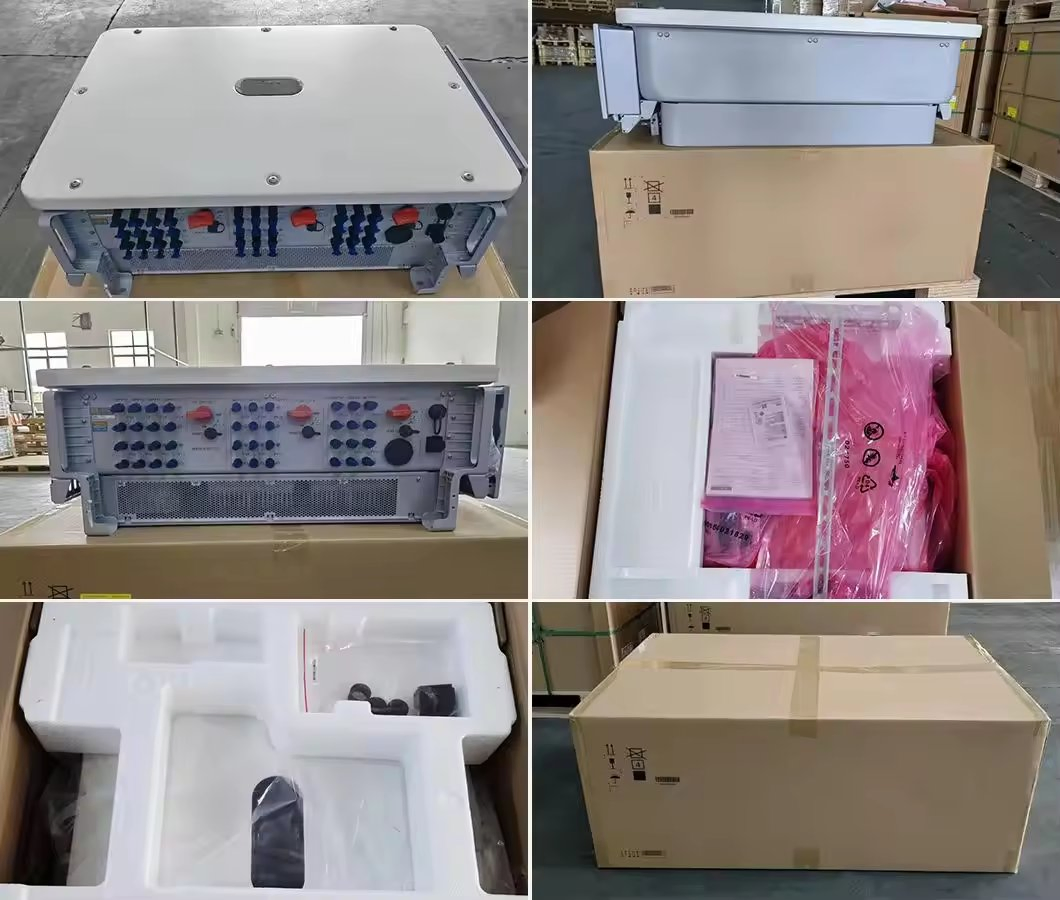

Packing & Delivery

06

Project Show

?

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480 V and 98.6% at 380 V/400 V, ensuring optimal energy conversion for solar power systems.

How many MPPT trackers are available in this model?

This smart PV controller features 10 independent MPP trackers, with 2 inputs per tracker, allowing for flexible string configurations and better performance in complex site conditions.

What kind of protection does the inverter offer?

It includes comprehensive protection features such as DC Reverse-Polarity Protection, Anti-islanding Protection, AC Overcurrent Protection, and Type II Surge Arresters for both DC and AC sides.

Is this inverter suitable for outdoor installation?

Yes, it comes with an IP66 protection degree, making it highly resistant to dust and high-pressure water jets, suitable for various outdoor environments.

What cooling method is used?

The SUN2000-100KTL-M2 utilizes Smart Air Cooling technology to maintain optimal operating temperatures even in high-demand conditions.

What monitoring options are available?

It supports LED indicators, RS485 communication, USB connectivity, and optional 4G/3G/2G Smart Dongles. It is also compatible with the FusionSolar APP via WLAN adaptor.
