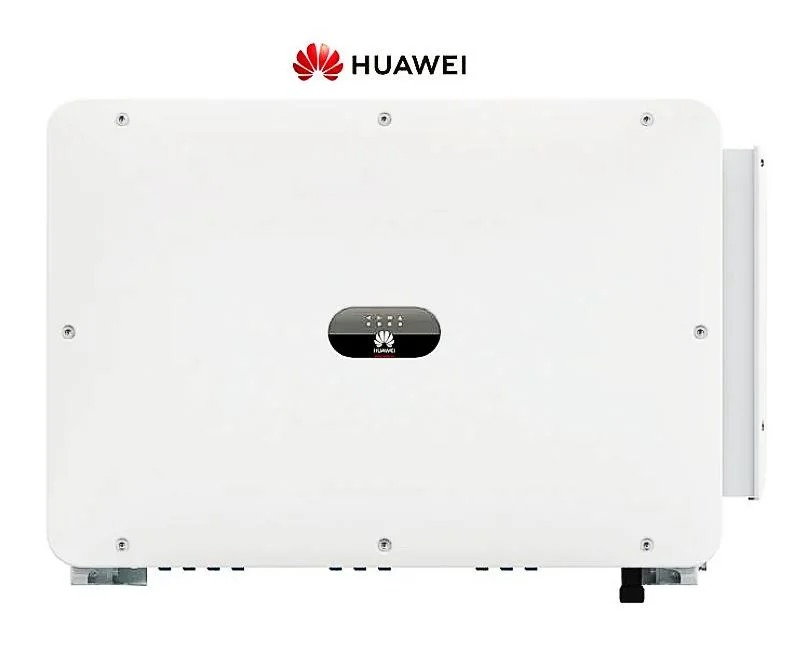

Original Huawei Sun2000-110ktl-M2 115kw 125kw with WiFi Grid Connected Inverter for Industrial Commercial Solar Power System

1 / 5

Original Huawei Sun2000-110ktl-M2 115kw 125kw with WiFi Grid Connected Inverter for Industrial Commercial Solar Power System

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

🚀 Basic Information

Model NO.

SUN2000-110KTL-M2

Source Flow

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar/Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

Capacity

10000PCS Per Month

📦 Product Description

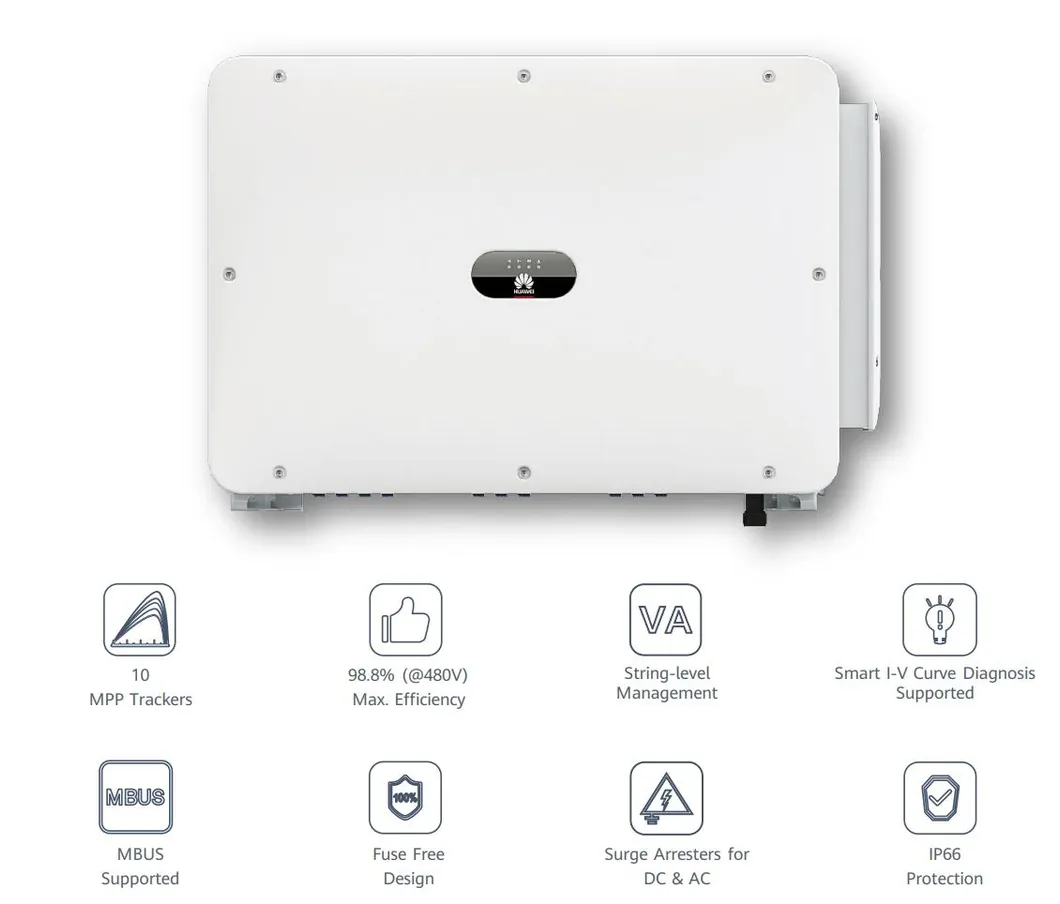

SUN2000-100KTL-M2 Smart PV Controller

⚙️ Technical Specifications

Category	Specification Details (SUN2000-100KTL-M2)
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
Max. Input Voltage	1,100 V
Number of MPP Trackers	10
Nominal AC Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Frequency	50 Hz / 60 Hz
Protection Degree	IP66
Cooling Method	Smart Air Cooling
Weight	90 kg (with mounting plate)

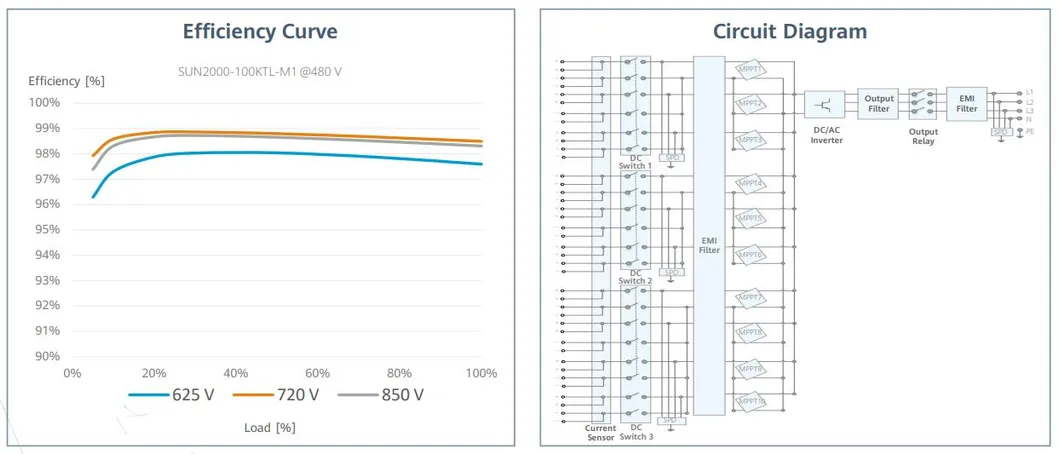

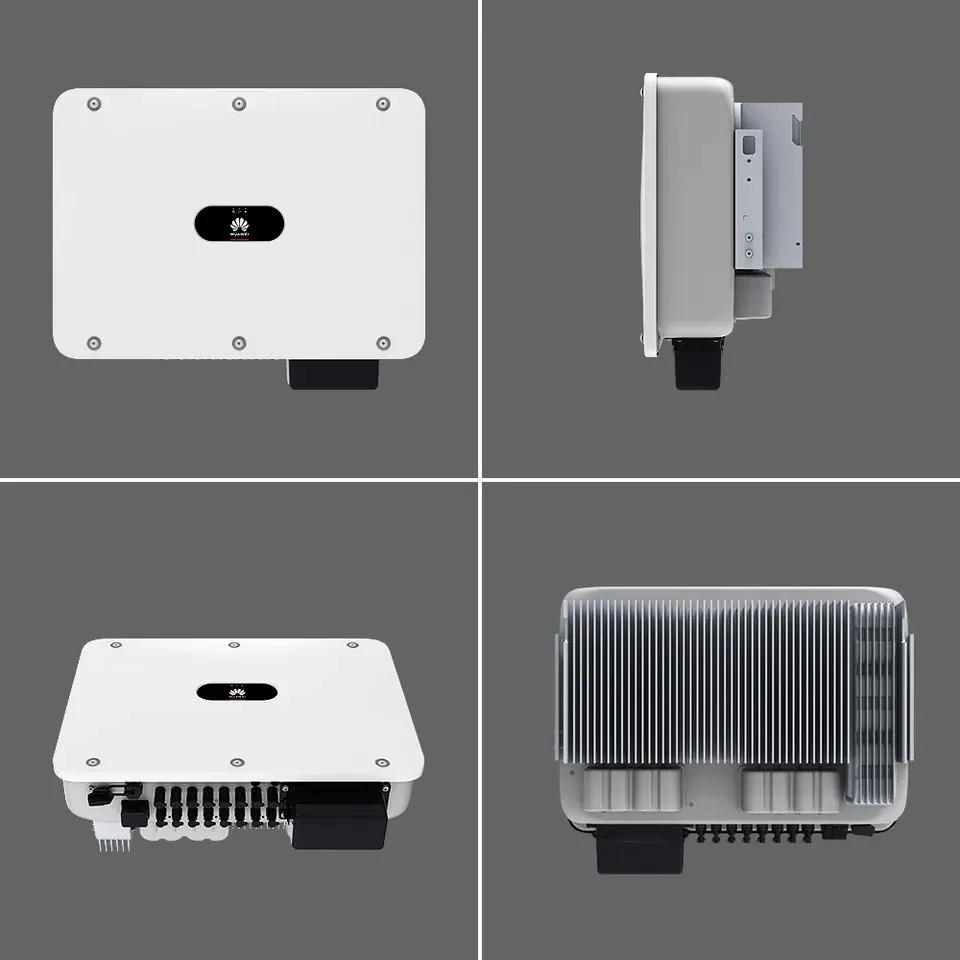

🔍 Product Details

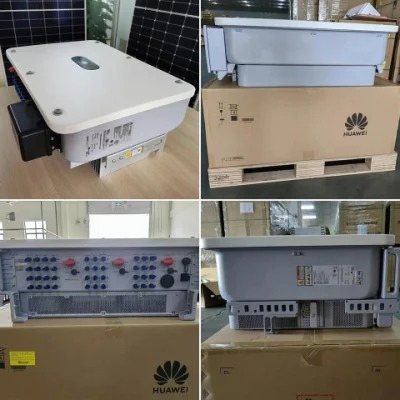

🚚 Packing & Delivery

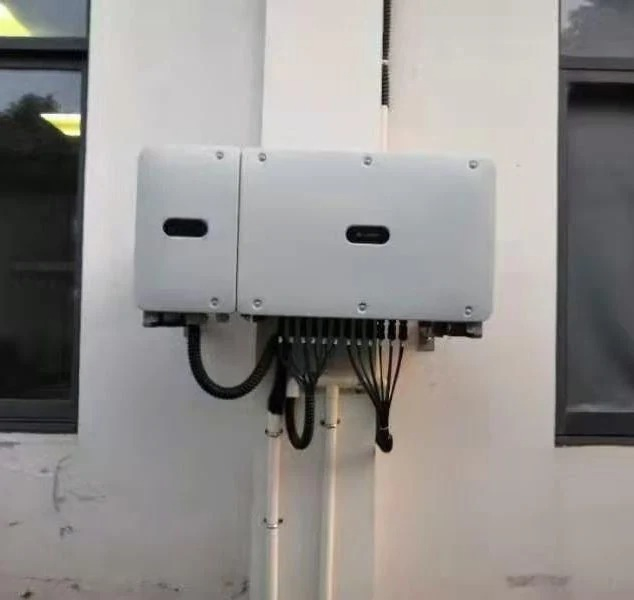

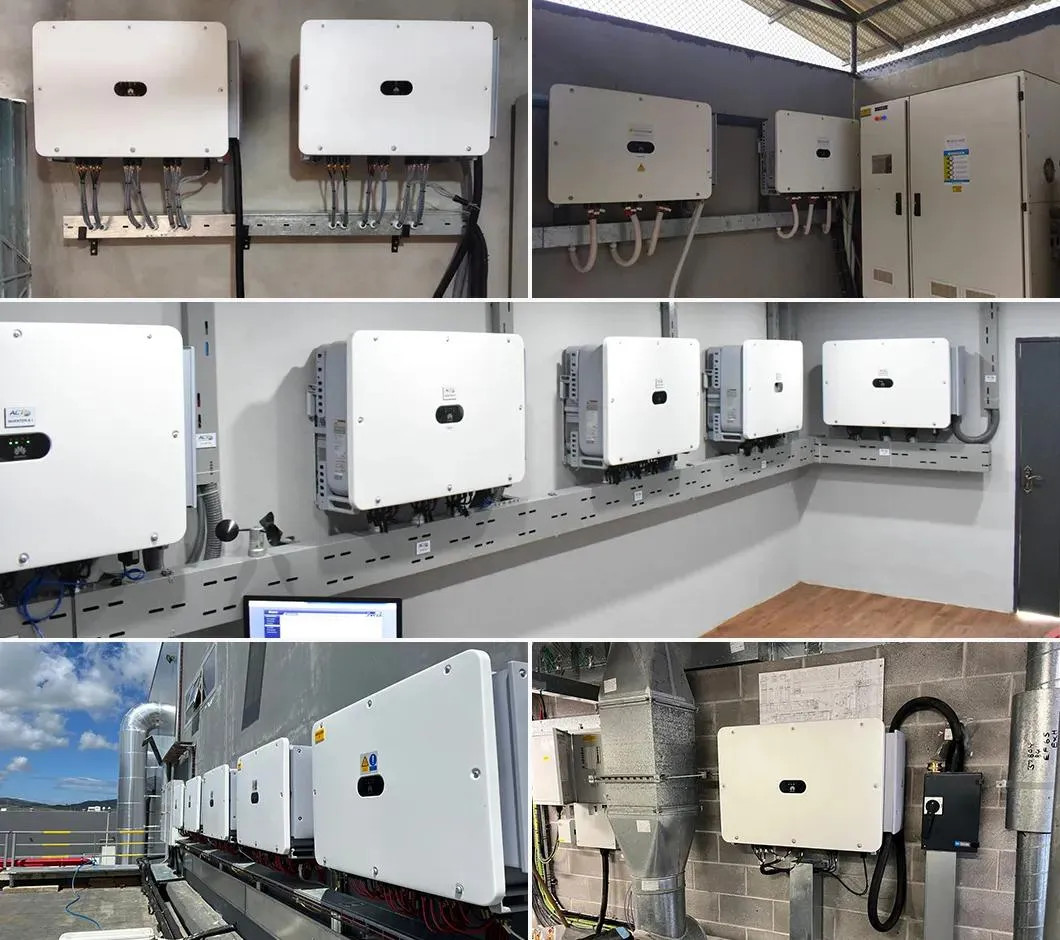

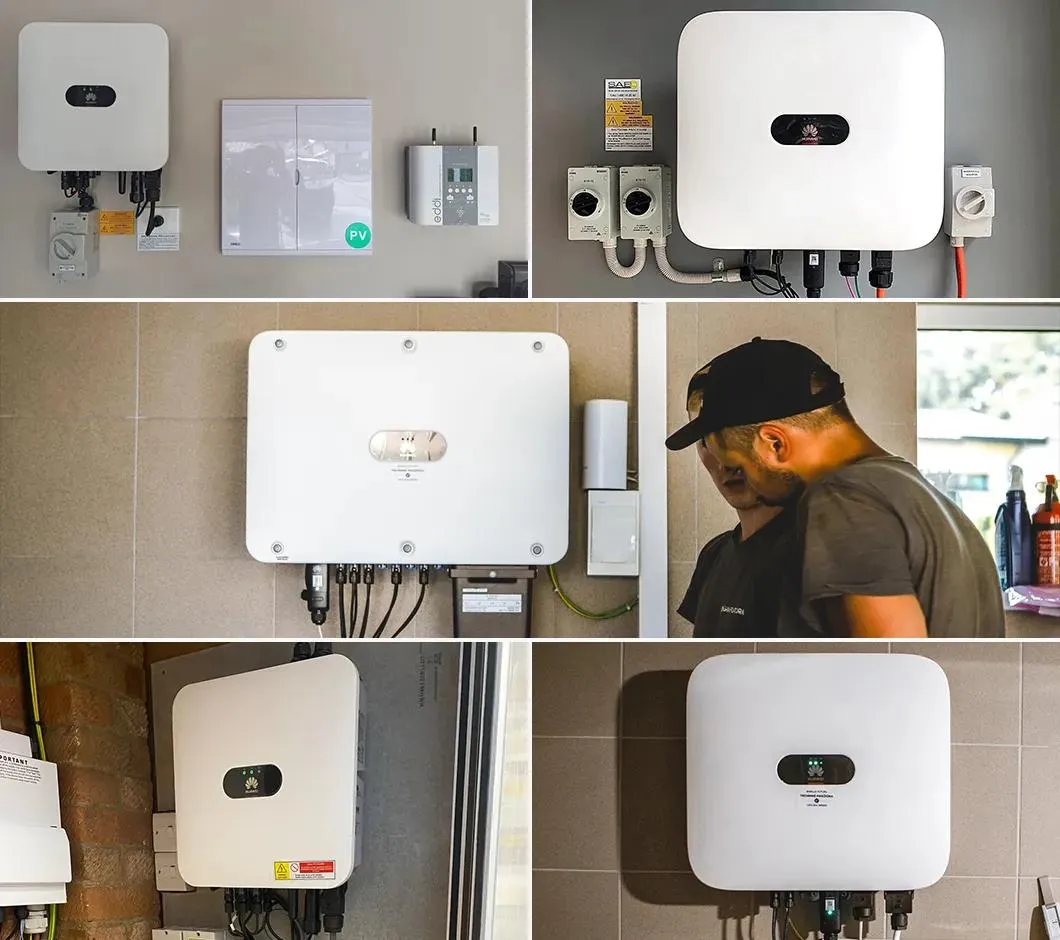

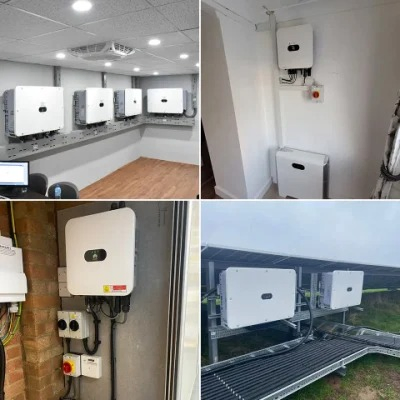

🏢 Project Showcase

❓ Frequently Asked Questions

How do you ensure the quality of the solar inverters?

We maintain strict quality control through pre-production samples before mass production and a comprehensive final inspection of every unit before shipment.

What is the maximum efficiency of the SUN2000-110KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V, and 98.6% when operating at 380V/400V.

Is this inverter suitable for outdoor installation?

Yes, it features an IP66 protection rating, making it highly resistant to dust and high-pressure water jets, ideal for industrial and commercial outdoor environments.

What communication methods are supported?

The system supports LED indicators, RS485, USB, and can be used with a WLAN adaptor + FusionSolar App. 4G/3G/2G communication via a Smart Dongle is optional.

Does the inverter include built-in protection features?

Absolutely. It includes input-side disconnection, anti-islanding protection, AC overcurrent protection, DC reverse-polarity protection, and Type II surge arresters for both DC and AC.

What payment and delivery terms are available?

We support various delivery terms including FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, and PayPal, handled in USD, EUR, or CNY.
