Carton RoHS Approved Huawei 1, 035 X 700 365 mm Converter Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

i

Overview & Basic Info

Model NO.

SUN2000-100KTL-M2

Brand

Huawei

Nature of Source

Active Inverter

Phase

Three

Output Power

100kw

Type

DC/AC Inverters

Weight

85kg

Specification

1,035 x 700 x 365 mm

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Origin

China

P

Product Description

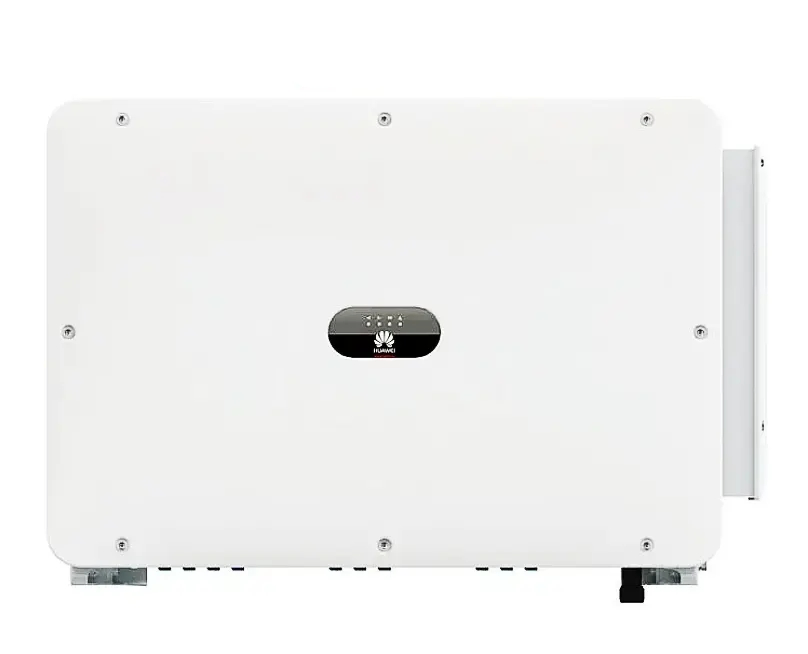

SUN2000-100KTL-M2 Smart PV Controller

T

Technical Specifications

Parameter	Specification (SUN2000-100KTL-M2)
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Number of MPP trackers	10
Max. input number per MPP tracker	2
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection Degree	IP66
Cooling Method	Smart Air Cooling
Operating Temperature Range	-25°C ~ 60°C

D

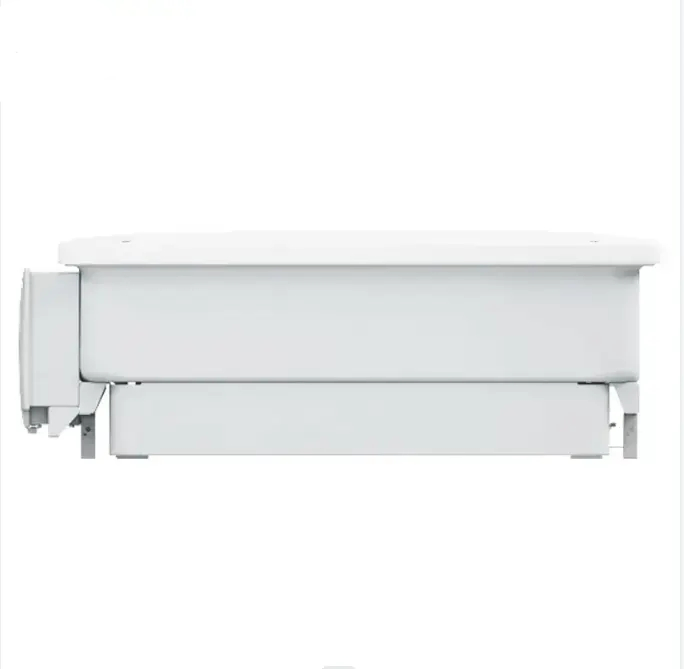

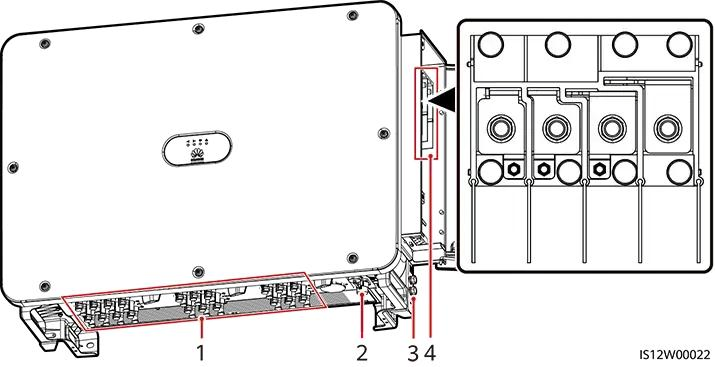

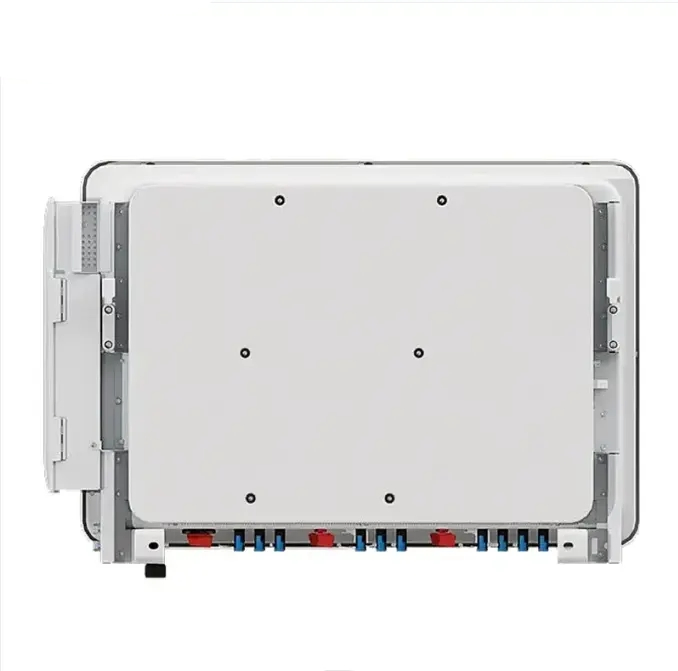

Product Details

L

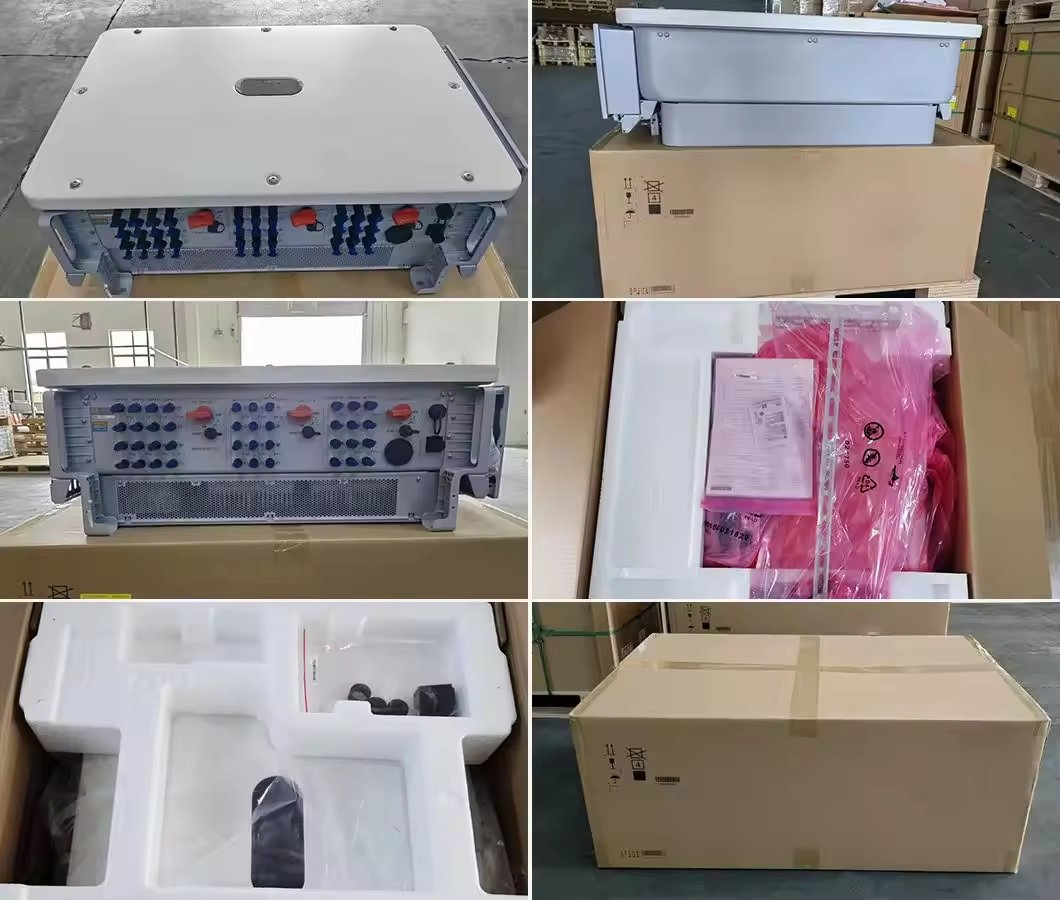

Packing & Delivery

S

Project Show

F

Frequently Asked Questions

What is the maximum efficiency of this inverter?

The SUN2000-100KTL-M2 achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V.

How many MPPT trackers are available?

This model is equipped with 10 independent MPP trackers to ensure optimal power harvesting even in complex installation environments.

Is this inverter suitable for outdoor installation?

Yes, the device features an IP66 protection degree, making it highly resistant to dust and water, and suitable for demanding outdoor conditions.

What types of protection are integrated into the system?

It includes integrated Anti-Islanding, AC Overcurrent, DC Reverse-Polarity, DC and AC Surge Protection (Type II), and PV-array String Fault Monitoring.

What communication interfaces are supported?

It supports LED indicators, RS485, USB, and WLAN via a dedicated app. Optional 4G/3G/2G connectivity is also available through a Smart Dongle.

How is the cooling managed for the 100kW output?

The inverter utilizes a Smart Air Cooling system to maintain optimal operating temperatures between -25°C and 60°C.
