Huawei on Grid Solar Inverter 110kw Sun2000-110ktl-M2 for Commercial and Industrial Use

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊

Basic Information Overview

Model NO.

SUN2000-110KTL-M2

Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw / 110kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Circuit Topology

Push-pull Type

Weight

85kg - 90kg

Specification

1,035 x 700 x 365 mm

Origin

China

Protection Degree

IP66

⭐

Product Description

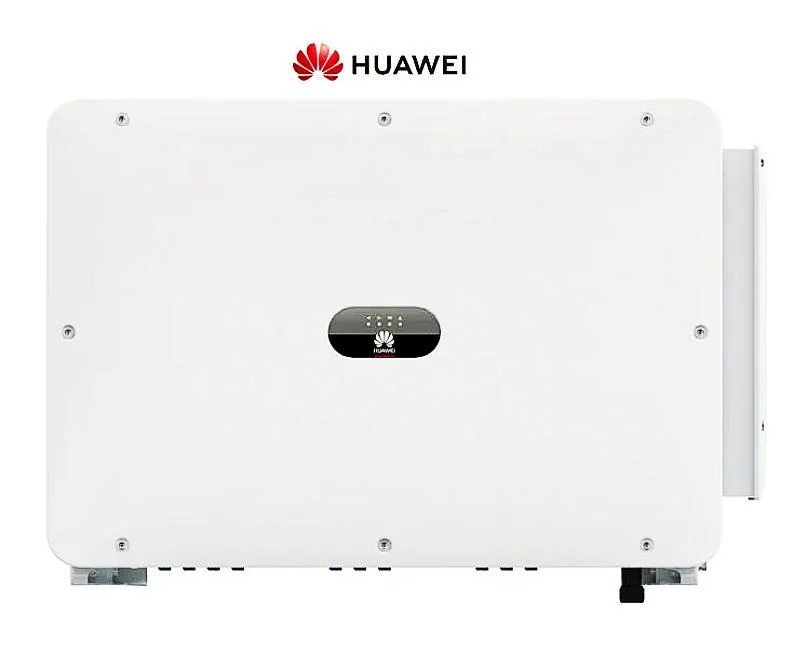

SUN2000-100KTL-M2 Smart PV Controller

⚙️

Technical Specifications

Feature	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input Details
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Start Voltage	200 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output Details
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Max. Output Current	168.8 A @380 V
Protection & Communication
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Anti-Islanding Protection	Yes
Communication	LED indicators; WLAN + FusionSolar APP; RS485; USB
General Data
Dimensions (W x H x D)	1,035 x 700 x 365 mm
Operating Temperature	-25°C ~ 60°C
Cooling Method	Smart Air Cooling

📦

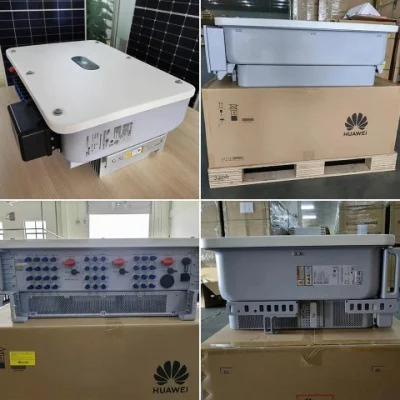

Product Details & Packing

🏢

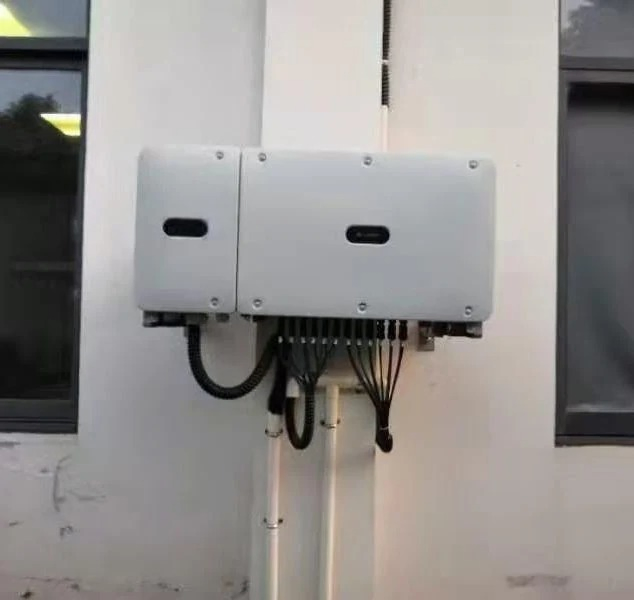

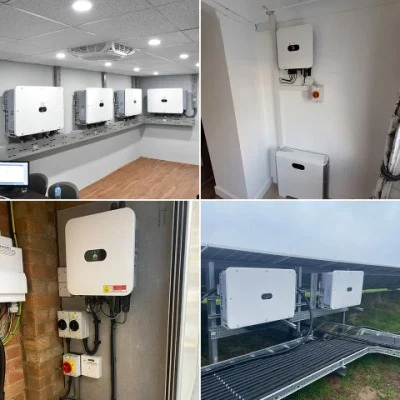

Project Show

❓

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2 inverter?

The inverter achieves a maximum efficiency of 98.8% at 480V and approximately 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPP trackers are available in this model?

This model is equipped with 10 independent MPP trackers (MPPT), with 2 inputs per tracker, providing excellent flexibility for large-scale solar arrays with different orientations.

Is the inverter suitable for outdoor installation in harsh environments?

Yes, the SUN2000-110KTL-M2 features an IP66 protection rating, making it highly resistant to dust and water, suitable for demanding industrial and commercial outdoor environments.

What cooling technology is used for temperature management?

The system utilizes Smart Air Cooling technology to maintain optimal operating temperatures between -25°C and 60°C, ensuring stable performance even in hot climates.

Does this inverter support smart monitoring and 4G connectivity?

The inverter supports various communication methods including RS485 and USB. It can also be integrated with a Smart Dongle-4G (optional) for mobile network monitoring via the FusionSolar APP.

What safety protections are integrated into the device?

It includes a comprehensive suite of safety features: DC/AC Surge Protection (Type II), Anti-Islanding Protection, DC Reverse-Polarity Protection, and optional Arc Fault Protection (AFCI).
