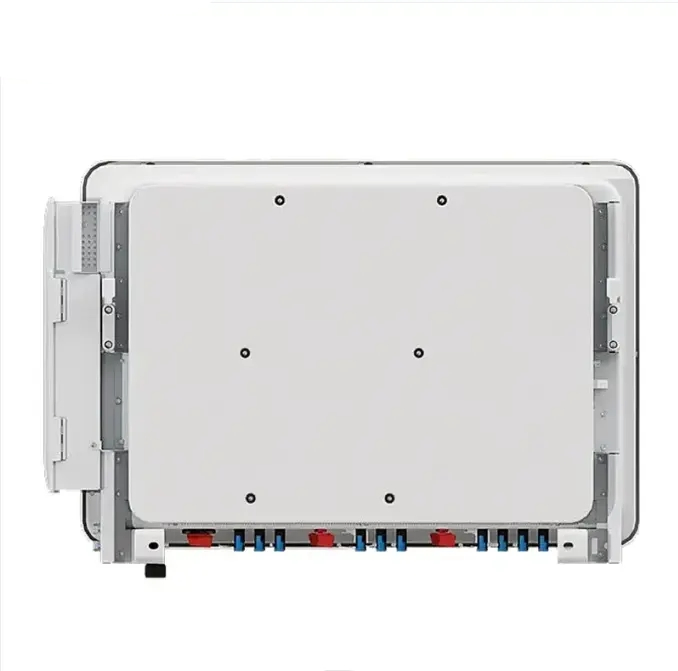

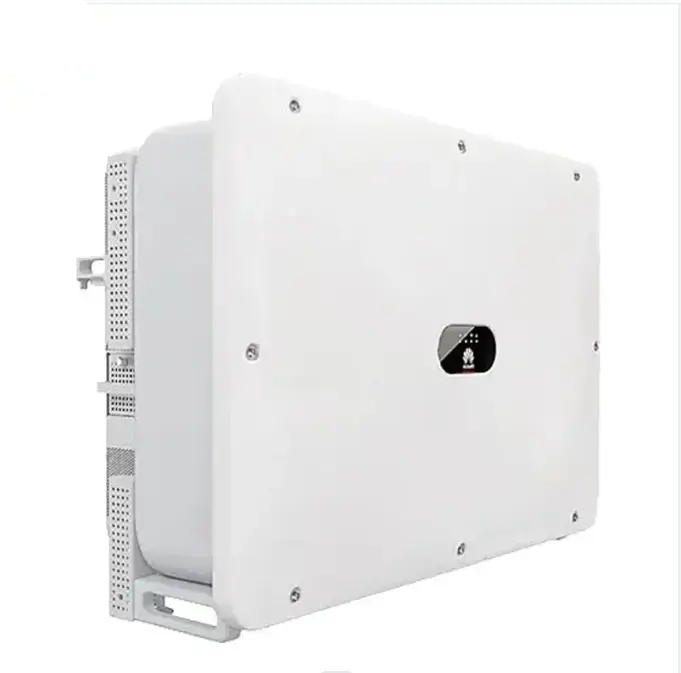

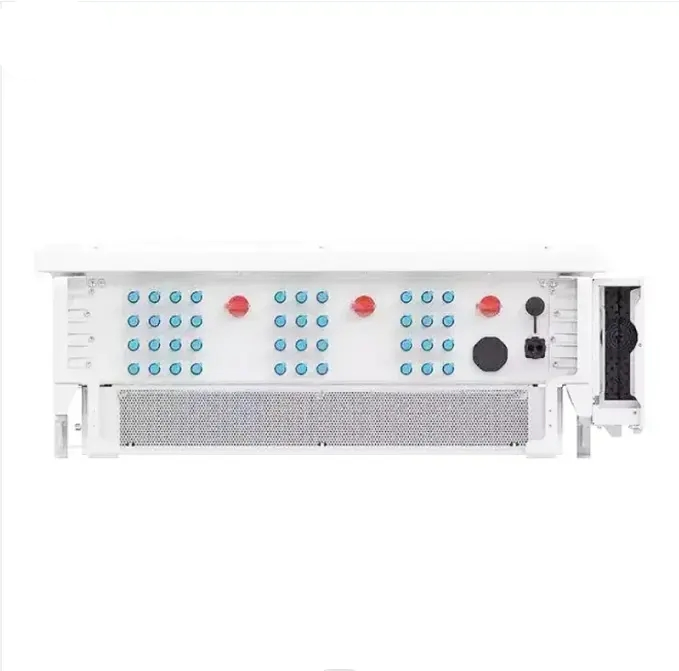

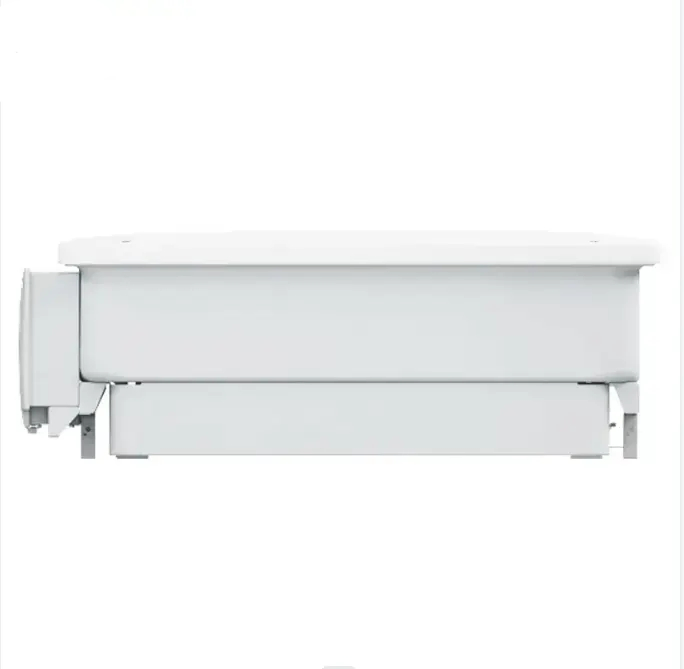

1, 035 X 700 365 mm Pure Sine Wave Inverter Huawei Inverters

1 / 5

1, 035 X 700 365 mm Pure Sine Wave Inverter Huawei Inverters

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

Protection Degree

IP66

💡 Product Description

SUN2000-100KTL-M2

Smart PV Controller

⚙️ Technical Specifications

Technical Category	SUN2000-100KTL-M2 Data
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Number of MPP Trackers	10
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Protection Degree	IP66
Cooling Method	Smart Air Cooling
Nighttime Power Consumption	< 3.5 W

📦 Product Details & Logistics

🏗️ Project Show

❓ Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPTs does this smart PV controller support?

This model features 10 independent MPP trackers with 2 inputs per tracker, allowing for flexible string design and optimized power yield in complex environments.

Is this inverter suitable for outdoor installation?

Yes, it comes with an IP66 protection rating, making it highly resistant to dust and high-pressure water jets, ideal for various outdoor environmental conditions.

What safety protections are integrated into the system?

It includes comprehensive protection features such as DC Reverse-Polarity Protection, Anti-Islanding Protection, AC Overcurrent Protection, and Type II Surge Arresters for both DC and AC sides.

What communication options are available for monitoring?

The system supports LED indicators, RS485, USB, and optional 4G/3G/2G connectivity via a Smart Dongle, compatible with the FusionSolar App.

What is the operating temperature range?

The inverter is designed to operate reliably in temperatures ranging from -25°C to 60°C (-13°F to 140°F) using a Smart Air Cooling method.
