Huawei Active Carton Inverters for Industrial Solar Power System Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

i

Basic Info

Model NO.

SUN2000-100KTL-M2

Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

HS Code

8504403090

Dimensions

1,035 x 700 x 365 mm

★

Product Description

SUN2000-100KTL-M2 Smart PV Controller

⚙

Technical Specifications

Feature	Specification (SUN2000-100KTL-M2)
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Number of MPP trackers	10
MPPT Voltage Range	200 V ~ 1,000 V
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection
Anti-Islanding Protection	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Protection Degree	IP66
General Data
Cooling Method	Smart Air Cooling
Operating Temperature	-25°C ~ 60°C

🔍

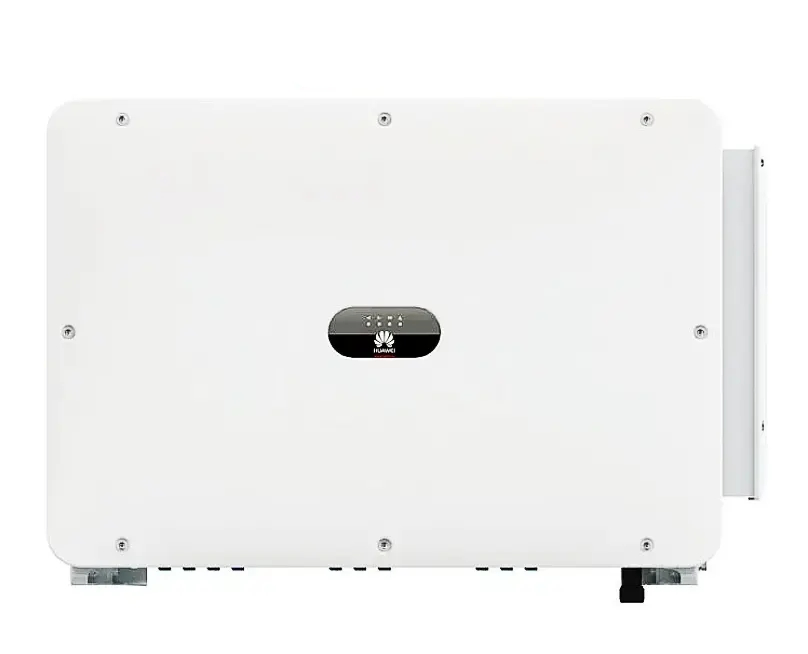

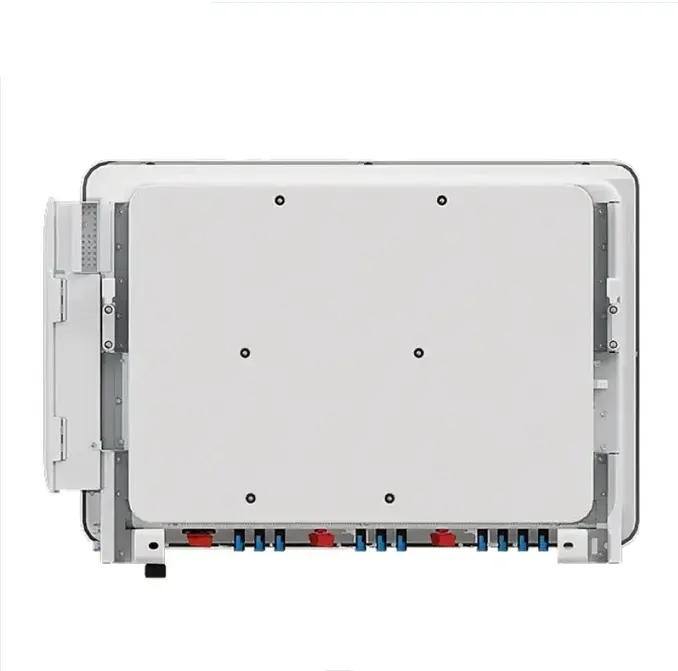

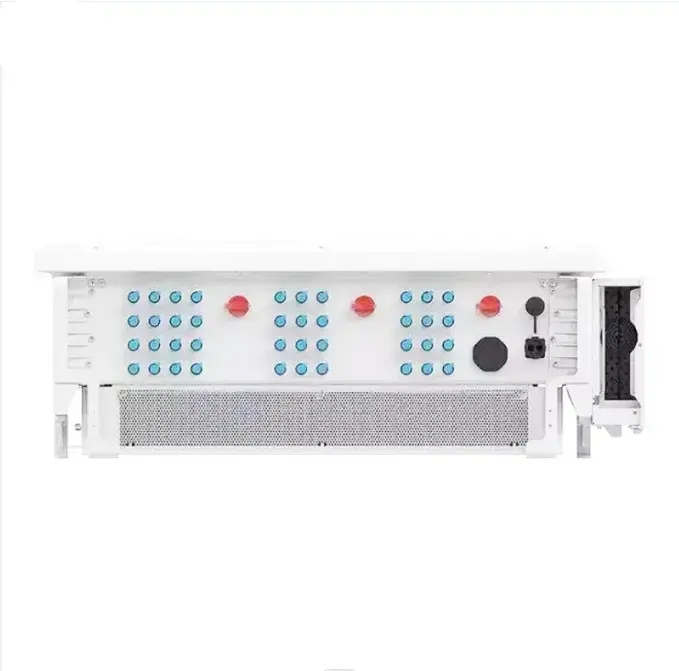

Product Details

📦

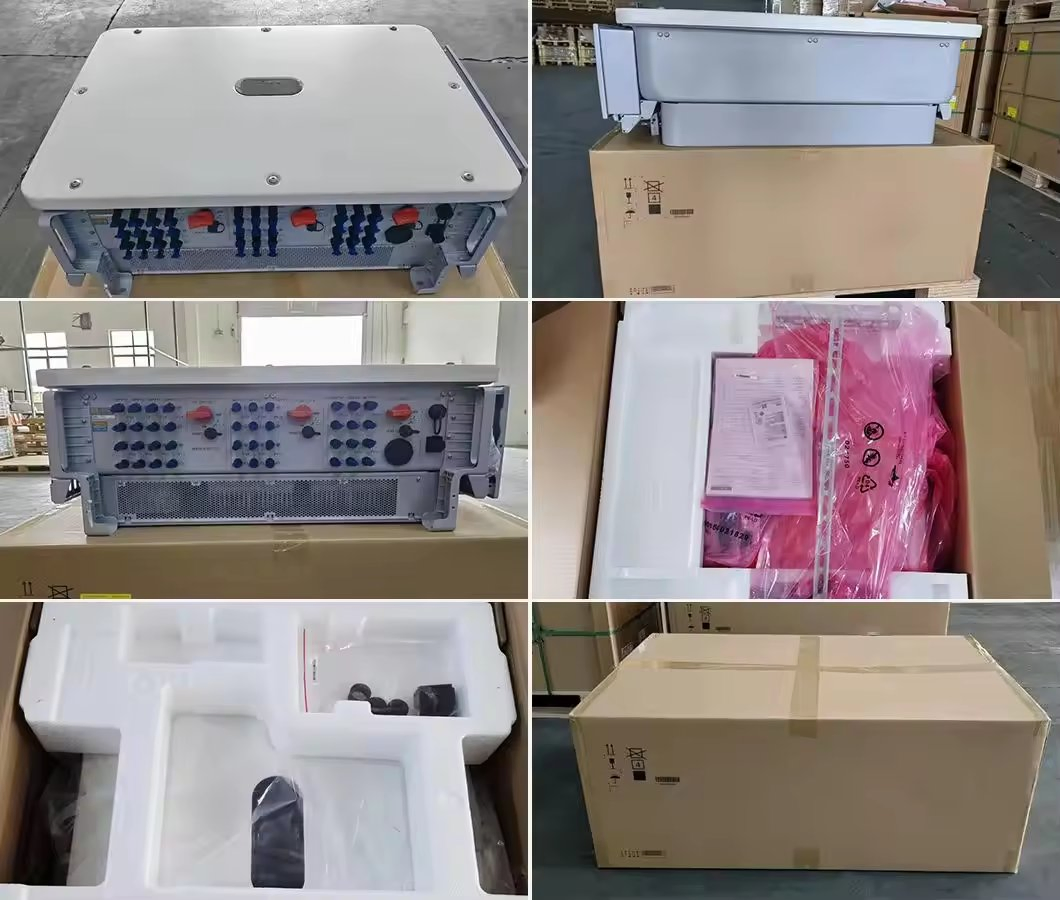

Packing & Delivery

🏗

Project Show

?

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480 V and 98.6% at 380 V/400 V.

How many MPP trackers does this model have?

This model is equipped with 10 MPP trackers to ensure optimal power harvest from solar arrays.

What kind of protection does the inverter provide?

It includes Type II surge arresters for both DC and AC, anti-islanding protection, AC overcurrent protection, DC reverse-polarity protection, and IP66 protection degree.

What is the cooling method used?

The system utilizes Smart Air Cooling technology to maintain optimal operating temperatures.

What are the communication options available?

It supports LED indicators, WLAN adapter + FusionSolar App, RS485, USB, and optional 4G/3G/2G via Smart Dongle.

What is the weight and dimension of the unit?

The unit weighs approximately 90 kg (including mounting plate) and has dimensions of 1,035 x 700 x 365 mm.
