Product Description

Basic Information

Model NO.

HH1P-7/8/9/10KL-A

Nature of Source Flow

Hybrid

Phase

Single

Output Power

7kw-10kw

Certification

CE, ROHS, ISO9001

Type

PV- AC

Max. PV Input Power

12.5kw

Peak Efficiency

97.6%

Max. Charge/Discharge

190A

Protection Rating

IP66

Product Description

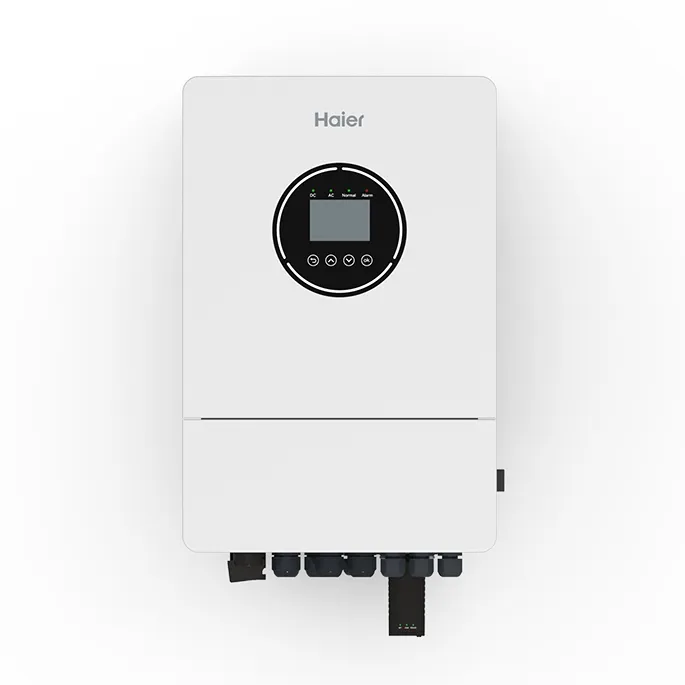

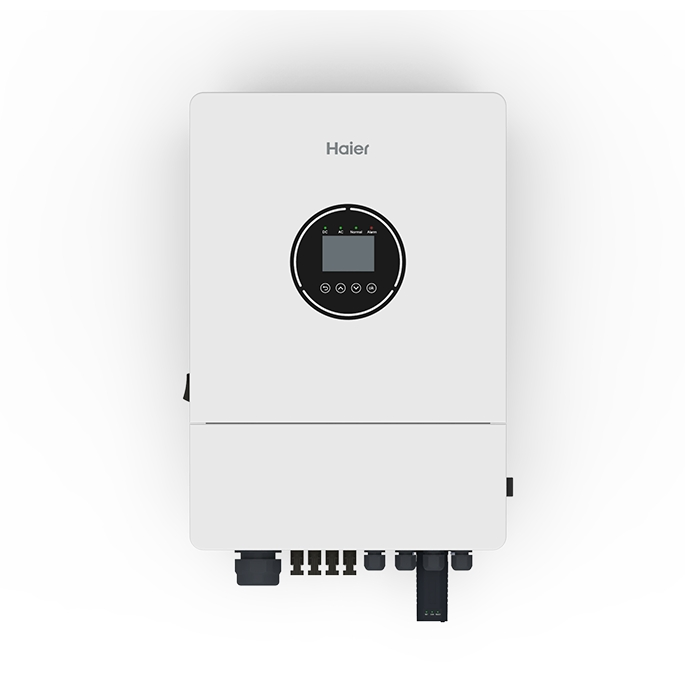

Series 7-10kW Single-Phase Hybrid Solar Inverter

The Single-Phase Hybrid Inverter delivers high efficiency, intelligent storage, and reliable backup. Its dual MPPT system maximizes energy harvest, while 190A charge/discharge capability offers exceptional flexibility.

Ideal Applications

★

Residential Homes: Medium-to-large households seeking energy independence.

★

Critical Load Backup: Continuous power for home offices or medical devices.

★

System Upgrades: Enhances existing solar installations with storage.

Key Features

● Dual MPPT System

Two independent MPPT controllers supporting up to 22A input current for maximum harvest from different orientations.

● Seamless Switching

Switching speed of <10ms ensures uninterrupted power to critical loads during grid outages.

● Smart Management

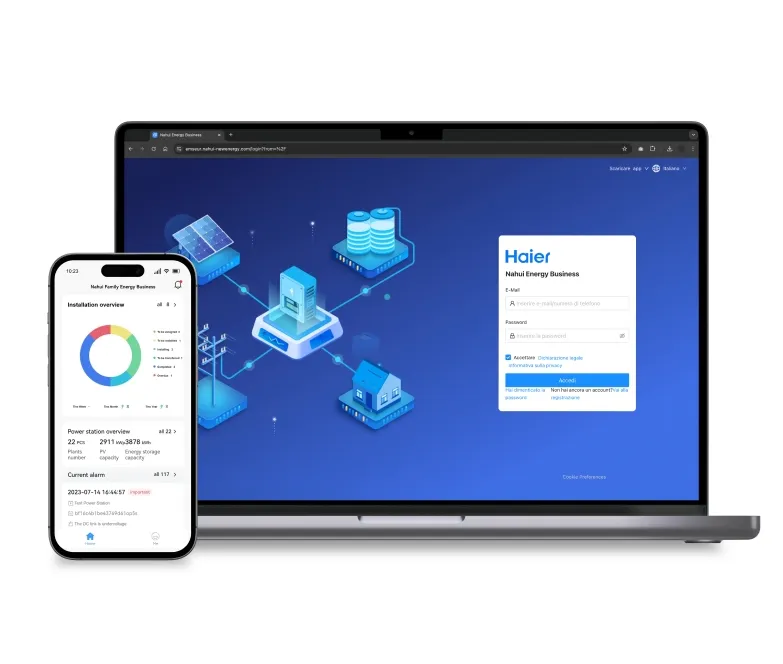

Wi-Fi/4G remote monitoring via mobile app for real-time tracking of generation and consumption.

● Advanced Safety

AFCI prevents DC fire risks, Anti-islanding protection, and IP66 water resistance.

Technical Parameters

Specification	HH1P-7KL-A	HH1P-8KL-A	HH1P-9KL-A	HH1P-10KL-A
PV String Input Data
Max. Input Power (W)	14000	16000	18000	18000
Max. Input Voltage (V)	550
MPPT Voltage Range (V)	125-425
Battery Input Data
Battery Type	Li-ion / Lead-acid
Battery Voltage Range (V)	40 ~ 60
Max. Charge/Discharge (A)	160	190	190	190
AC Output Data (On-grid)
Rated Output Power (W)	7000	8000	9000	10000
Rated Output Voltage (V)	230
General Data
Weight (kg)	30.5
Dimensions (W×H×D mm)	451 × 652 × 243
Ingress Protection	IP66
Warranty	5 years

Manufacturing Excellence

Frequently Asked Questions

1. What are the primary advantages of the dual MPPT system?

The dual MPPT system allows for two independent solar string inputs. This is ideal for roofs with different orientations (e.g., East and West), ensuring maximum energy harvest even when shading occurs on one side.

2. How fast does the inverter switch to backup power during a blackout?

The inverter features seamless switching technology with a response time of less than 10ms. This ensures that sensitive electronic devices and critical home loads remain powered without interruption.

3. Is the inverter suitable for outdoor installation?

Yes, the system has an IP66 ingress protection rating, providing high resistance against dust and water. It is designed for reliable operation in harsh outdoor environments.

4. Which battery types can be used with this hybrid inverter?

The inverter is compatible with both Li-ion and Lead-acid batteries. It operates within a 40-60V battery voltage range, offering great flexibility for various storage solutions.

5. Can I monitor the system remotely?

Absolutely. The inverter supports Wi-Fi and 4G remote monitoring. Users can track energy generation, battery status, and home consumption in real-time via a dedicated mobile app or web platform.

6. What safety protections are built into the unit?

It includes AFCI (Arc Fault Circuit Interruption), lightning protection, DC circuit breakers, reverse polarity protection, and output short-circuit protection to ensure total system safety.
