Wind Power 100kw Carton 1, 035 X 700 365 mm Huawei Inverters

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Basic Specifications

Model NO.

SUN2000-100KTL-M2

Nature of Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC SAA

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

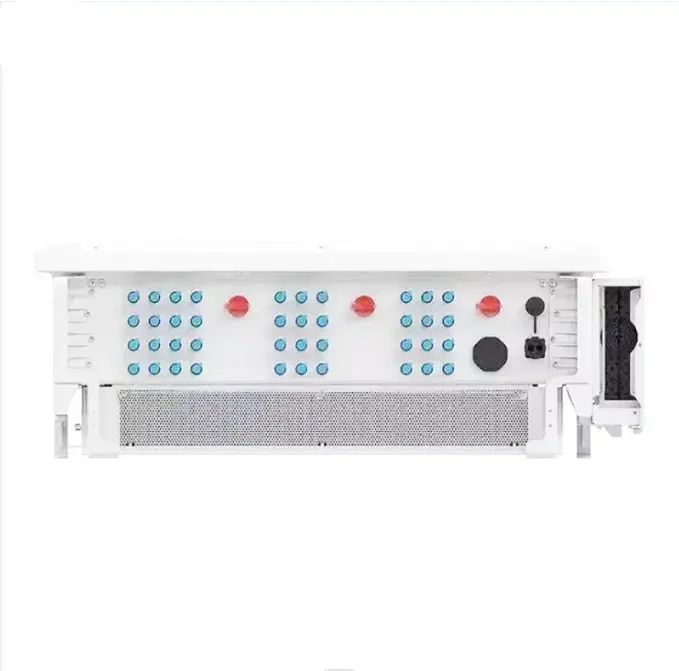

Product Description

SUN2000-100KTL-M2

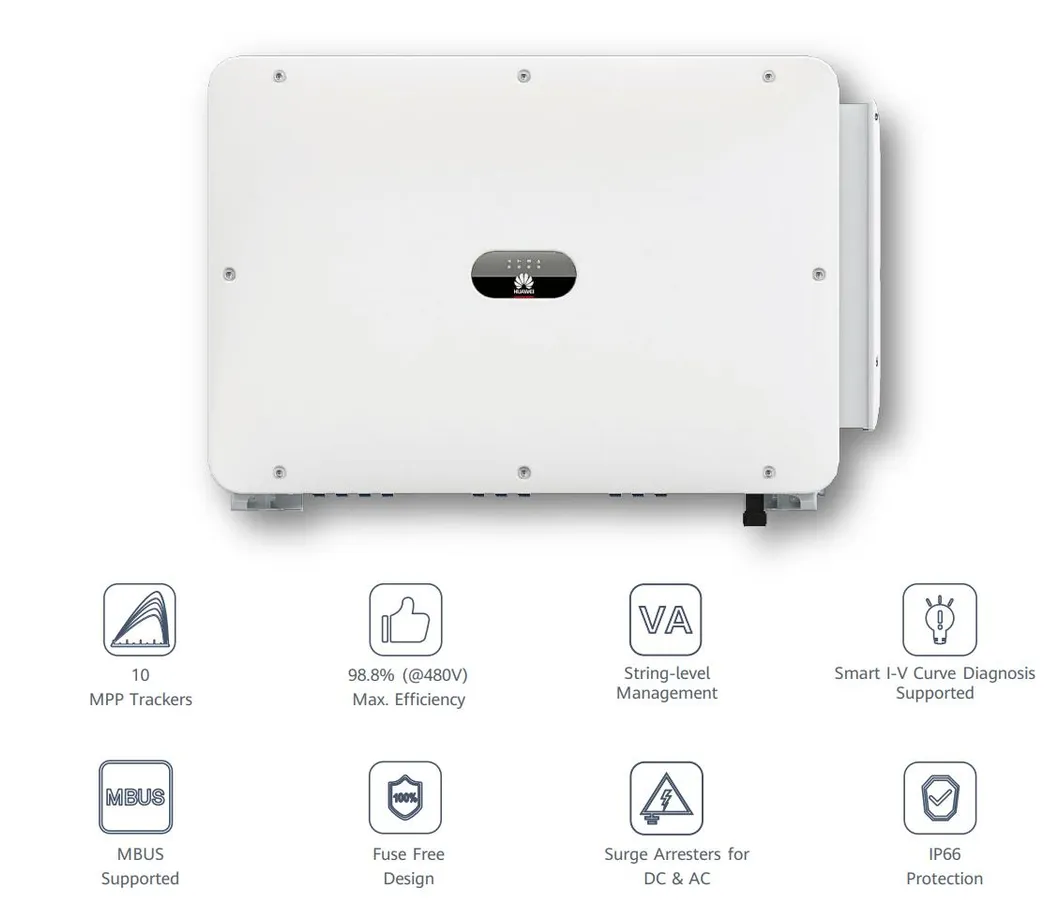

Smart PV Controller

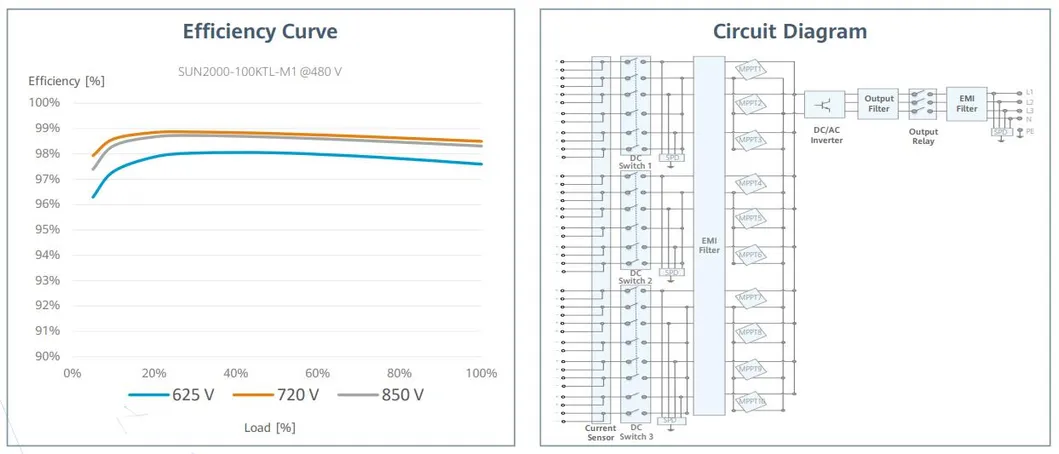

Technical Specifications

Technical Attributes	SUN2000-100KTL-M2 Data
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input Side
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Output Side
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Protection
Anti-Islanding Protection	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Protection Degree	IP66

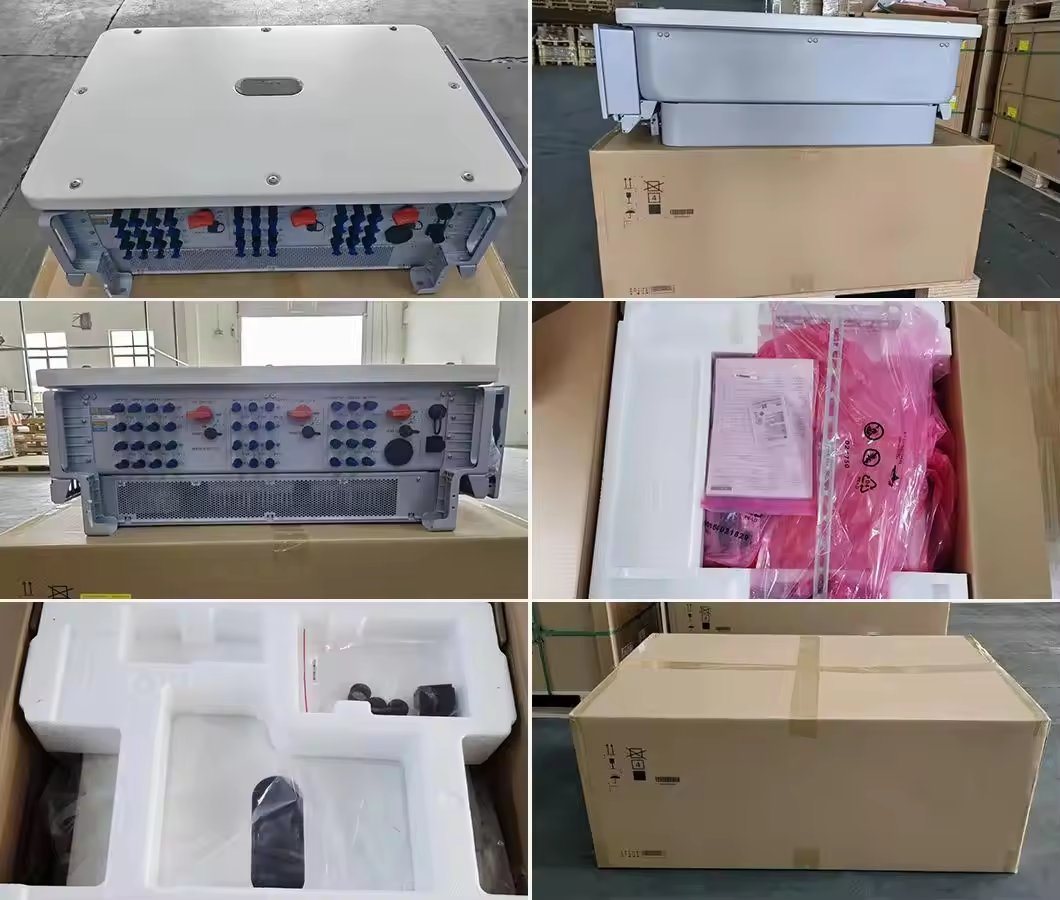

Product Details & Packing

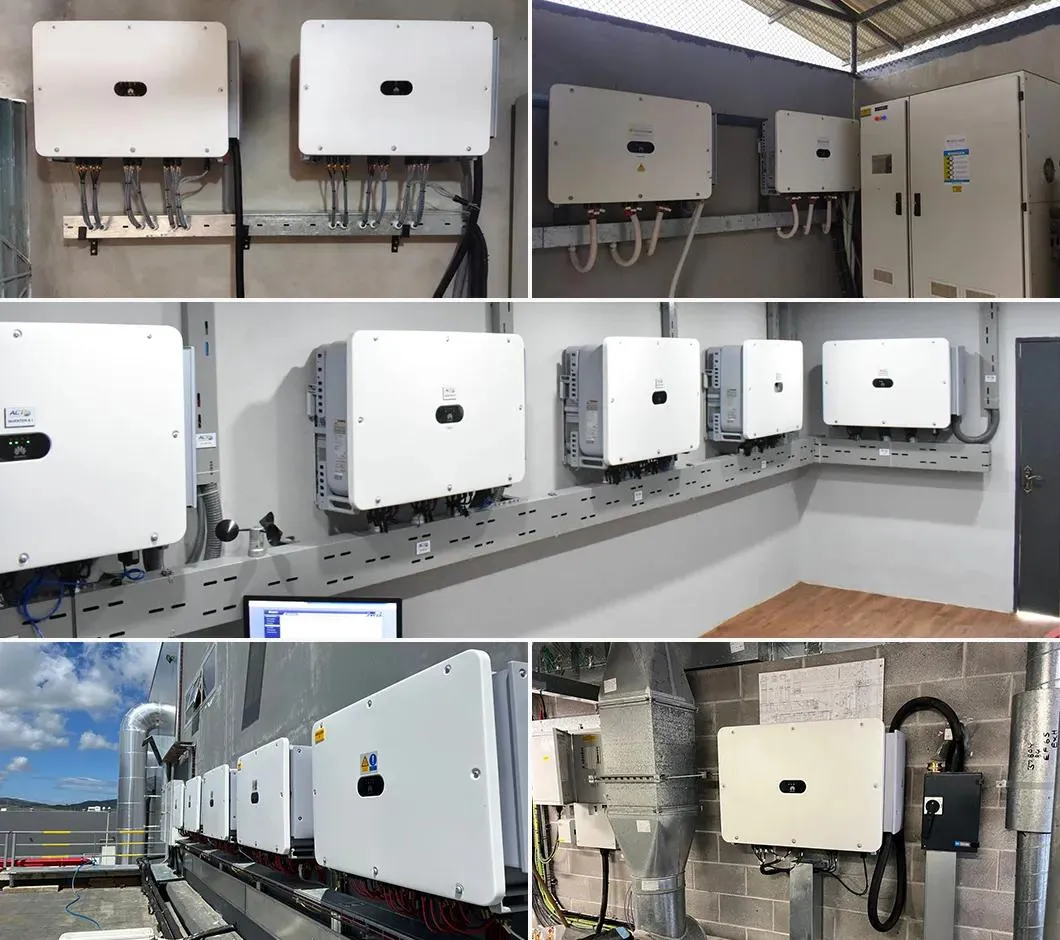

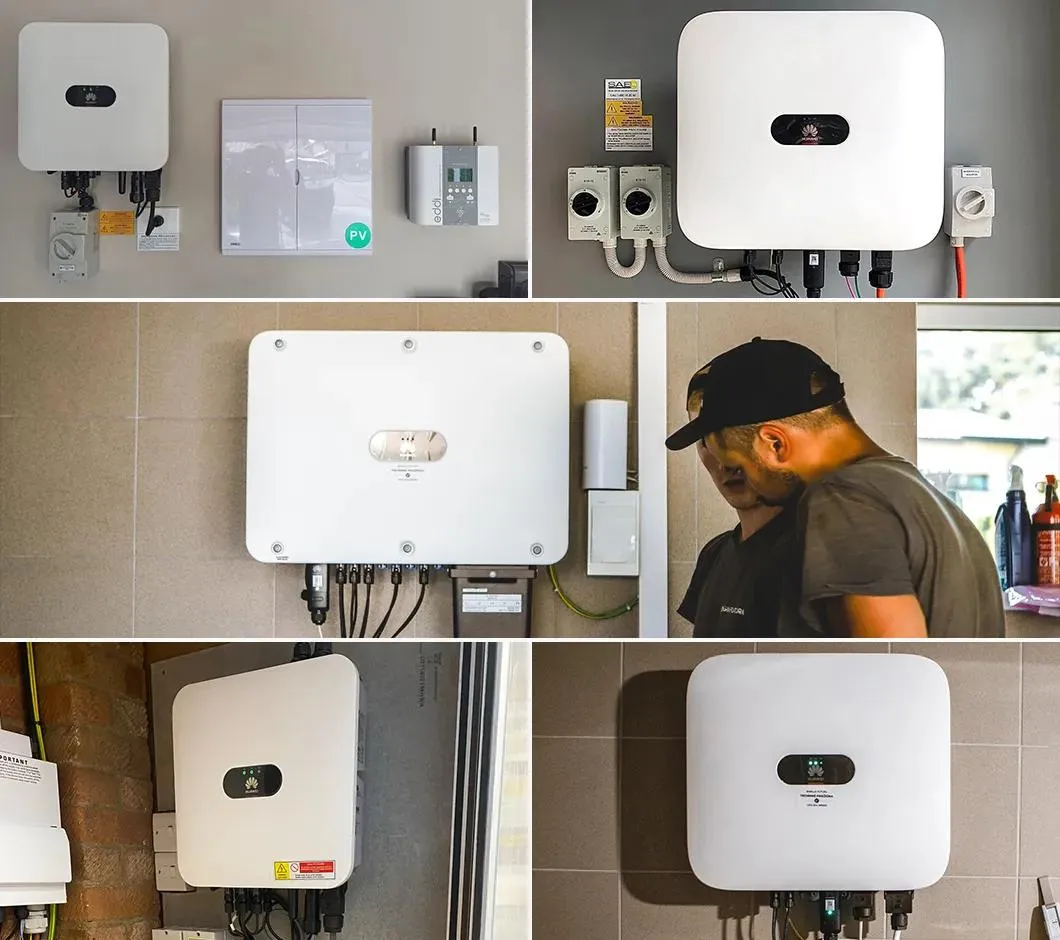

Project Show

Frequently Asked Questions

What products are available for solar systems?

We offer a complete range of solar solutions including Solar Panels, Solar Systems, Batteries, Inverters, and Wi-Fi RTU units for monitoring.

How is the product quality guaranteed?

Quality is ensured through a rigorous process: always a pre-production sample before mass production and a final inspection of every unit before shipment.

What are the accepted delivery terms and payment methods?

We support various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, or PayPal in USD, EUR, or CNY.

Does the SUN2000-100KTL-M2 support remote monitoring?

Yes, it features LED indicators and supports WLAN adapters plus the FusionSolar APP, along with optional 4G/3G/2G Smart Dongles for remote data access.

What is the environmental protection rating of this inverter?

This model is rated IP66, providing high-level protection against dust and water, making it suitable for harsh outdoor environments.

What makes this inverter efficient for large-scale projects?

With a maximum efficiency of 98.8% and 10 independent MPP trackers, it optimizes power generation even in complex setups with multiple string orientations.
