TUV CQC SAA CE Approved Solar Power 100kw 110kw 175kw Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

⚡ Basic Info.

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

HS Code

8504403090

📦 Product Description

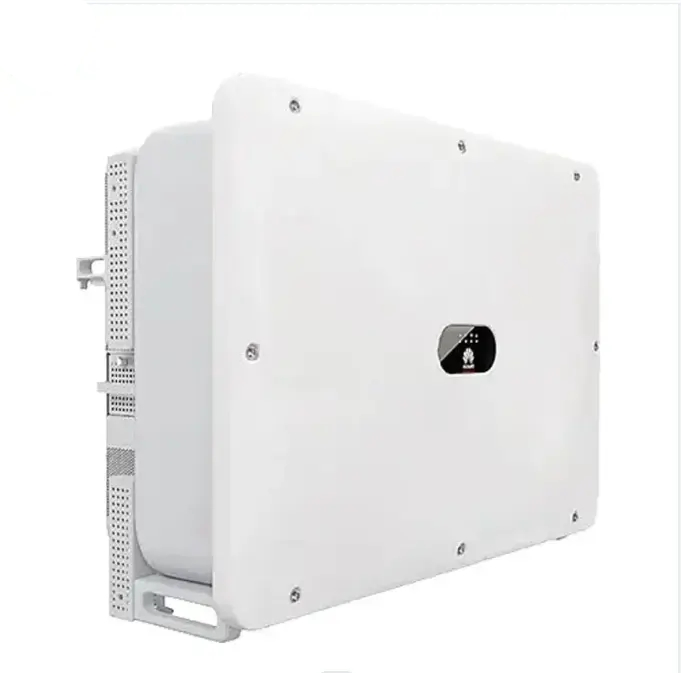

SUN2000-100KTL-M2

Smart PV Controller

📊 Technical Specifications

Parameter	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Max. input number per MPPT	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Total Harmonic Distortion	<3%
Protection
Anti-Islanding / AC Overcurrent	Yes
DC Surge Arrester	Type II
Protection Degree	IP66

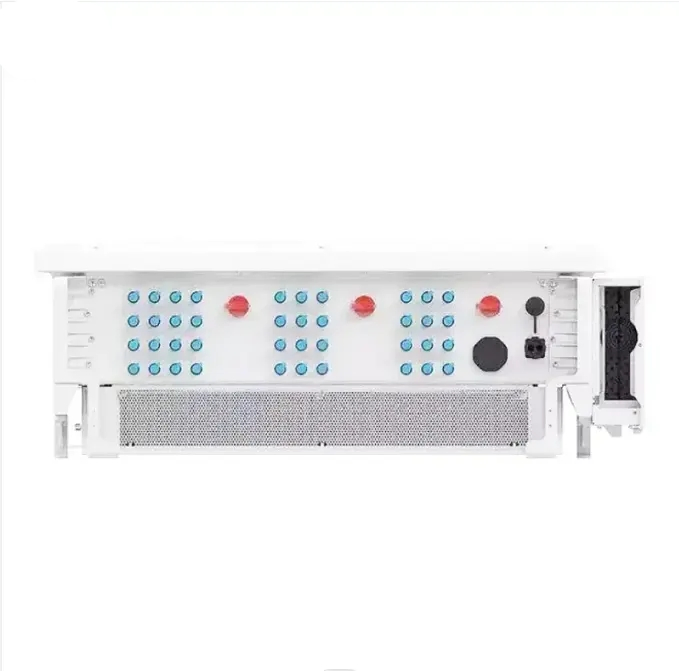

🔍 Product Details

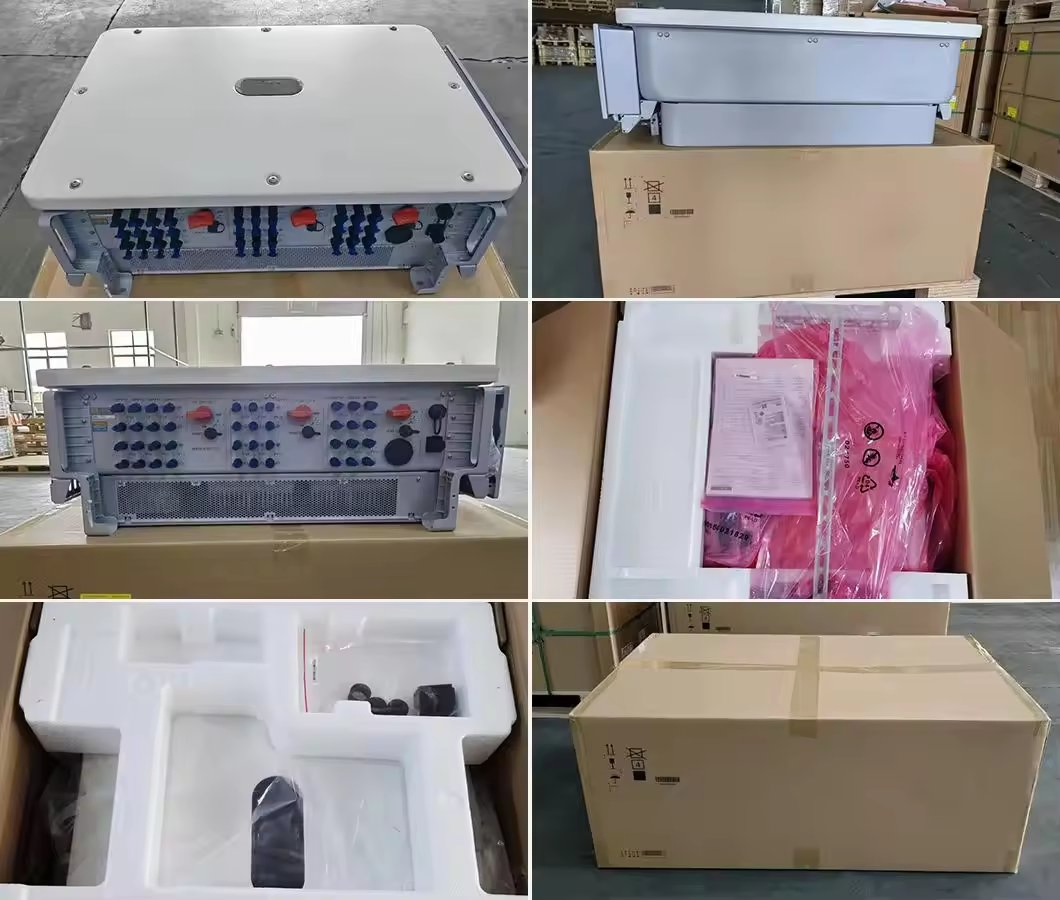

🚚 Packing & Delivery

🌟 Project Show

❓ Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of up to 98.8% at 480 V and 98.6% at 380 V/400 V, ensuring minimal energy loss during conversion.

How many MPP trackers does this model include?

It features 10 independent MPP trackers with 2 inputs per tracker, allowing for optimized performance even in complex solar array layouts.

Is the inverter suitable for outdoor installation?

Yes, with an IP66 protection rating, the unit is designed to withstand harsh environmental conditions and is fully protected against dust and powerful water jets.

What cooling method does the system use?

It utilizes Smart Air Cooling technology to maintain optimal operating temperatures between -25°C and 60°C.

Does it support remote monitoring?

Yes, it supports LED indicators and WLAN adapters via app. Optional Smart Dongle-4G is also available for 4G/3G/2G communication.

What is the weight and dimension of the unit?

The main unit weighs approximately 85-90 kg (including mounting plate) and its dimensions are 1,035 x 700 x 365 mm.
