Sine Wave Huawei Carton Solar Price 100kw 110kw 175kw Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊 Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

📝 Product Description

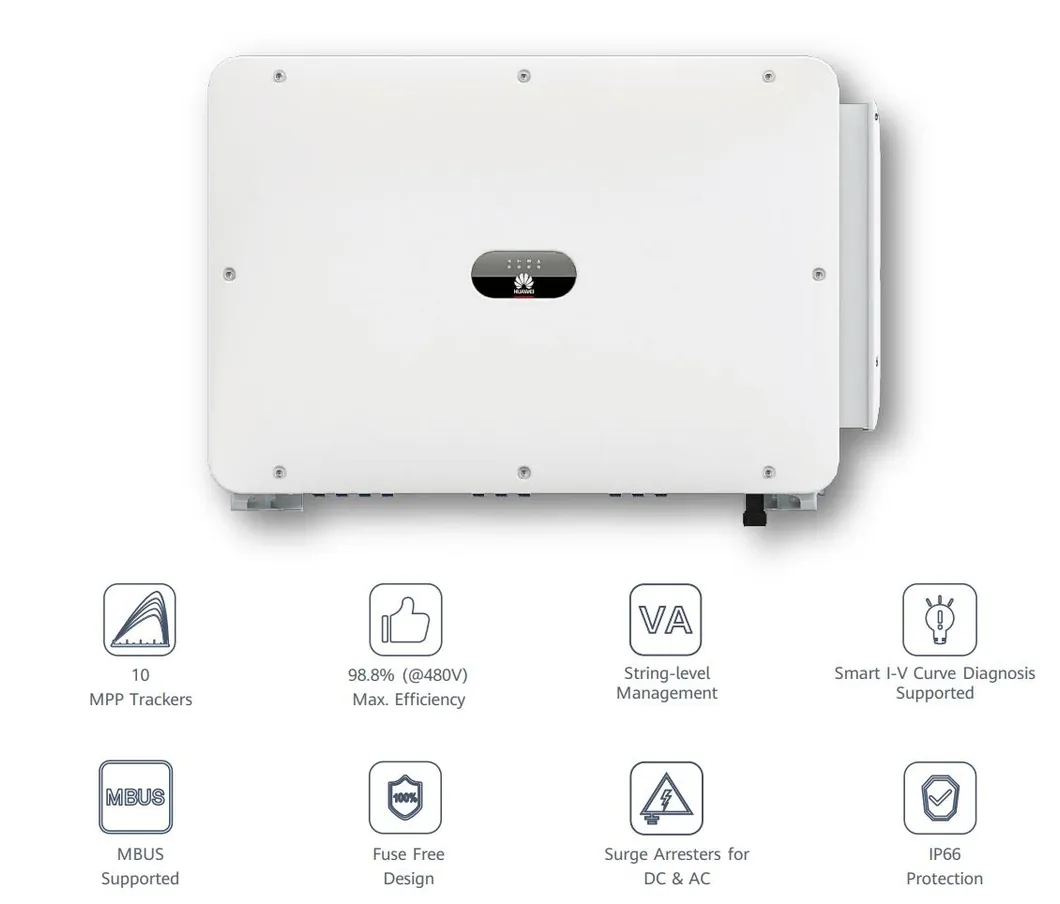

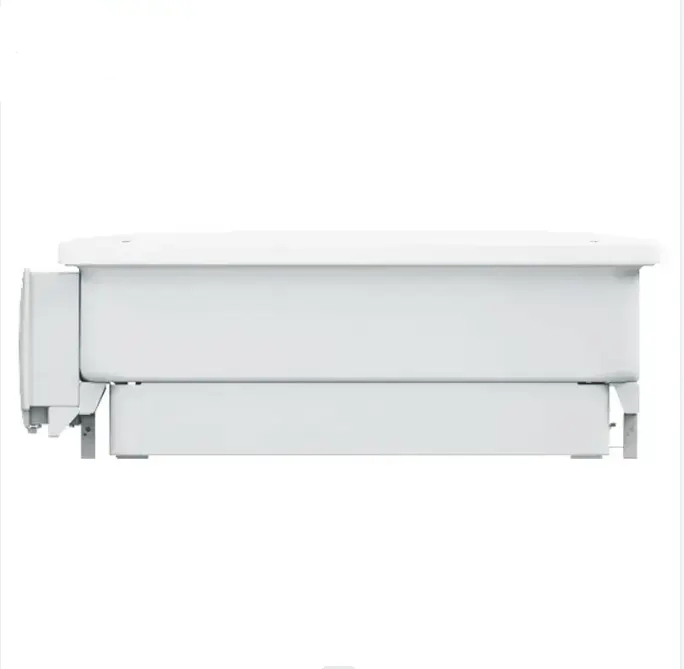

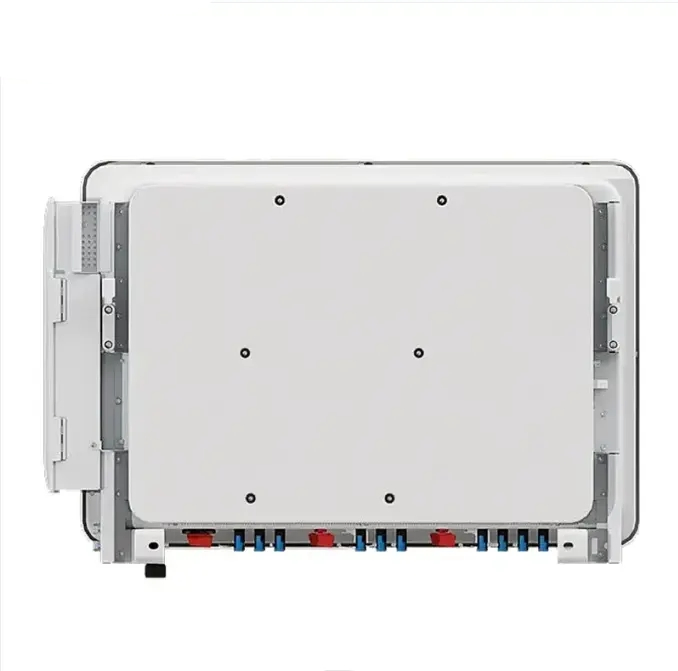

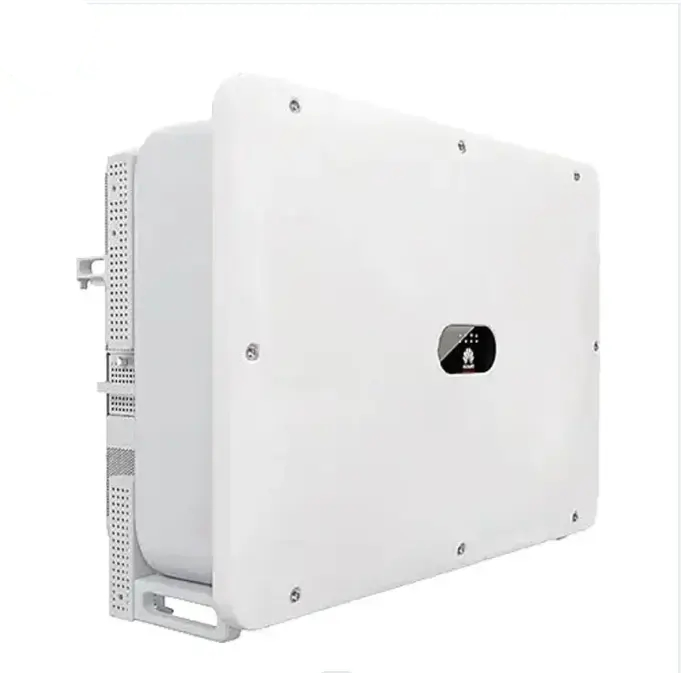

SUN2000-100KTL-M2 Smart PV Controller

⚙️ Technical Specifications

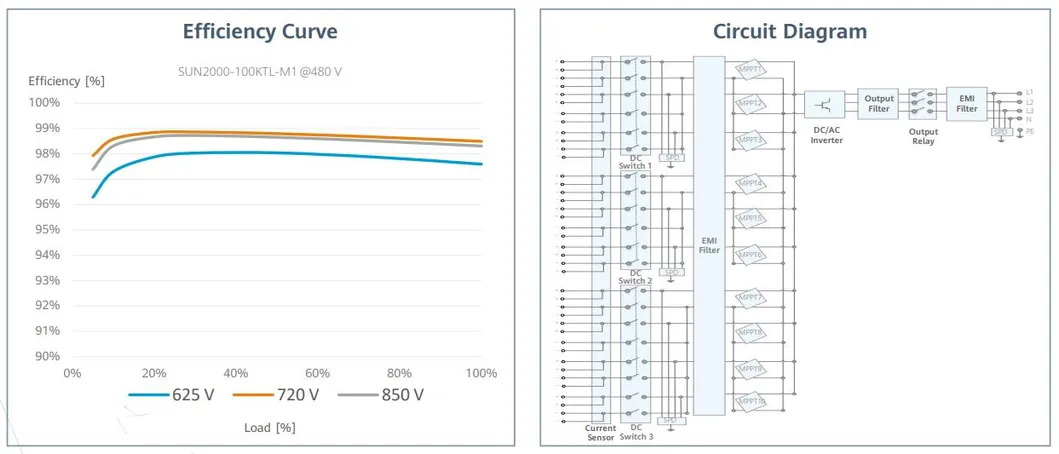

SUN2000-100KTL-M2 Efficiency & Input
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output Performance
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Output Current	133.7 A @480 V, 160.4 A @400 V, 168.8 A @380 V
Protection & General Data
Protection Degree	IP66
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Cooling Method	Smart Air Cooling
Operating Temperature Range	-25°C ~ 60°C

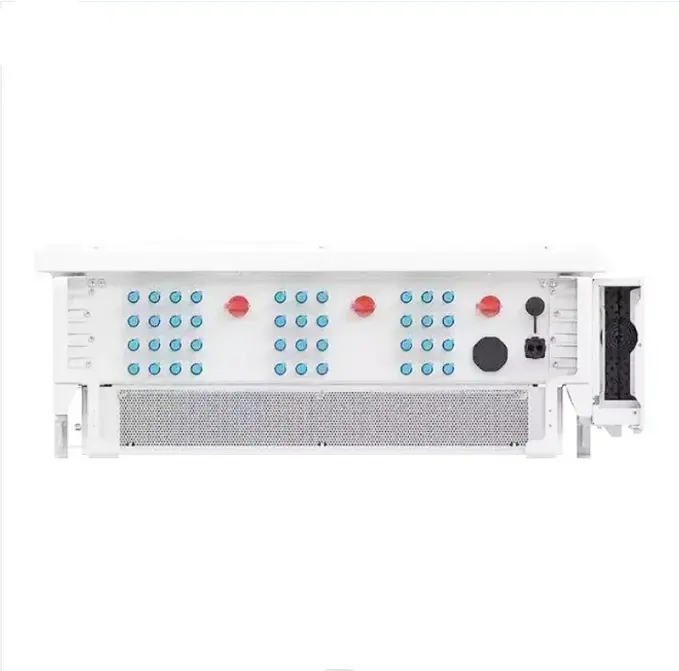

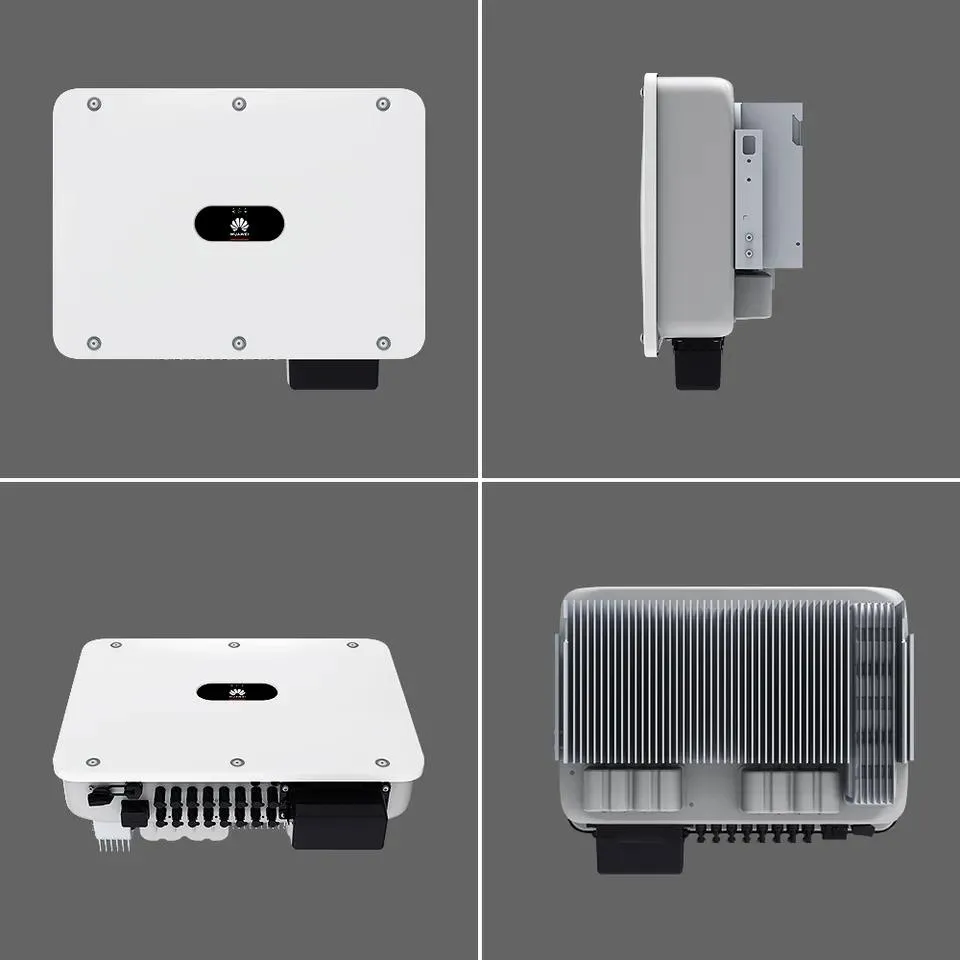

🔍 Product Details

📦 Packing & Delivery

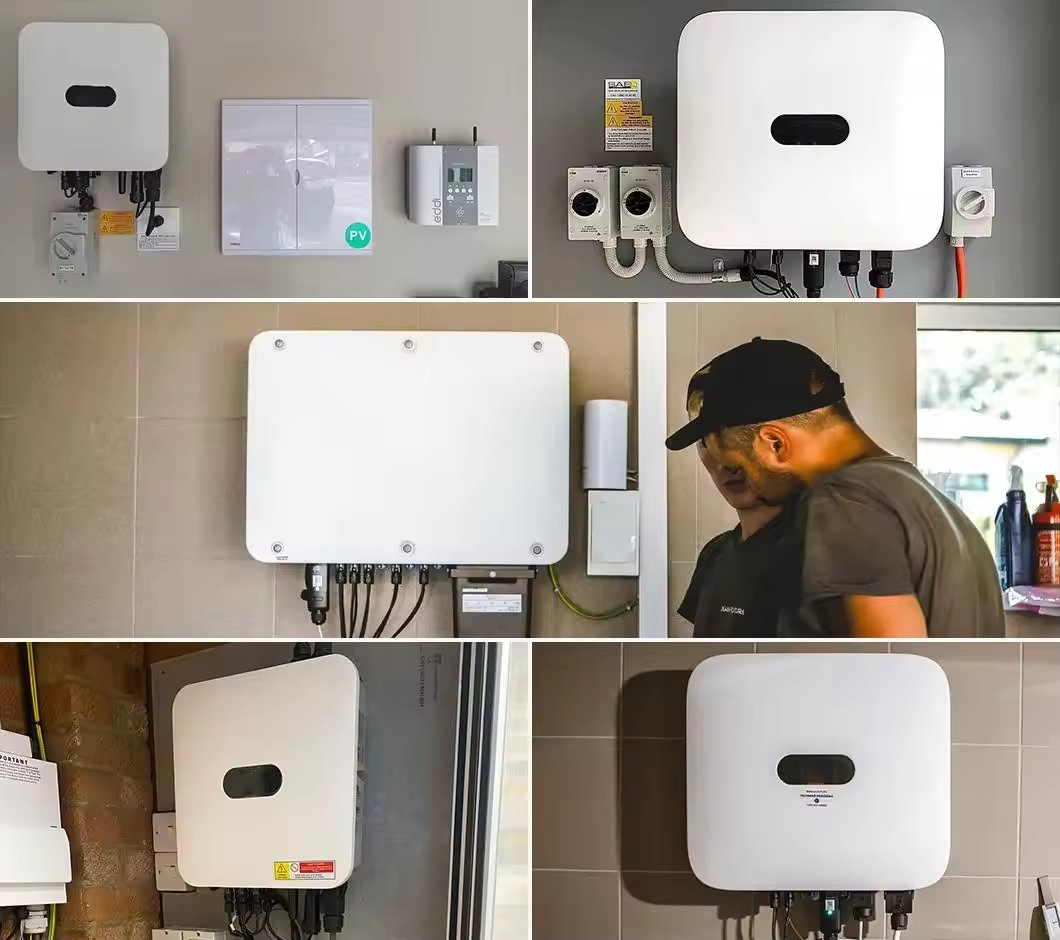

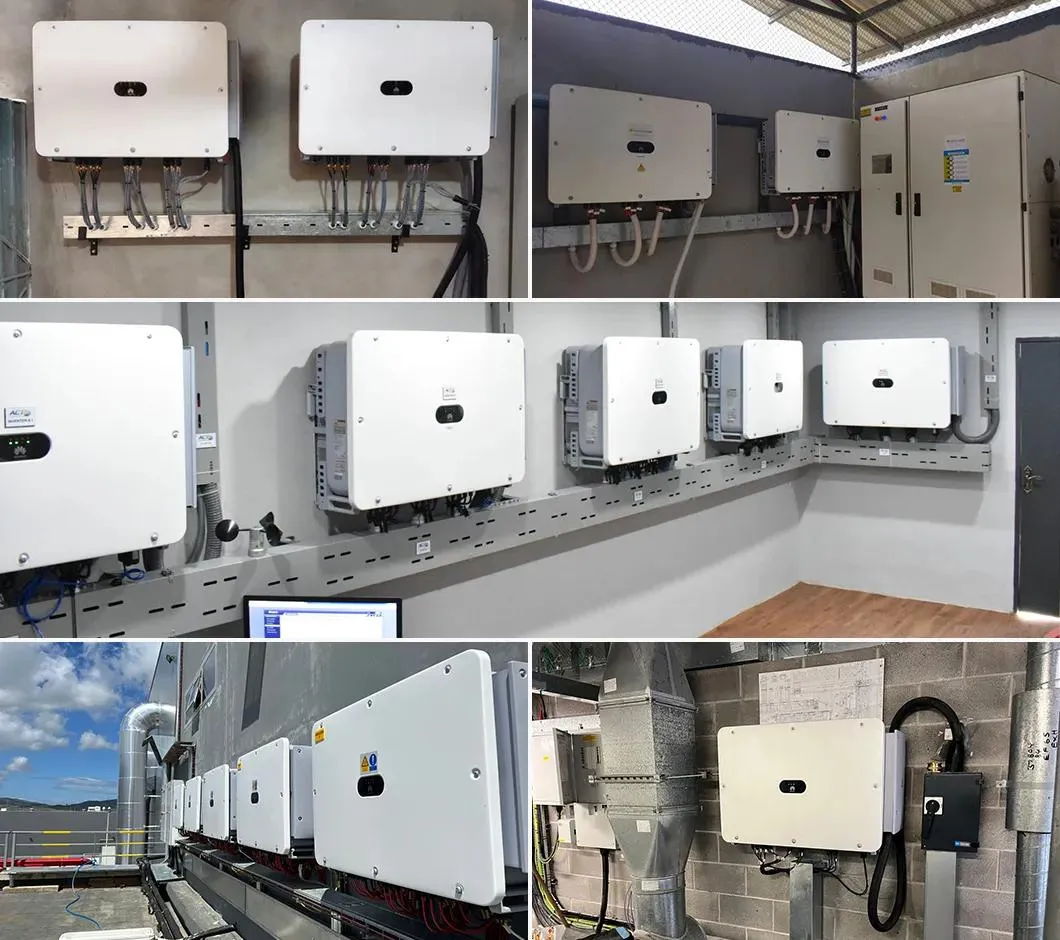

🏗️ Project Show

❓ FAQ

What products can I purchase from your selection?

You can purchase high-quality Solar Panels, complete Solar Systems, Batteries, Inverters, and Wi-Fi RTU components.

How is the quality of the solar inverters guaranteed?

Quality is maintained through a strict process including a pre-production sample before mass production and a final inspection conducted before every shipment.

What are the core business areas of your company?

Our business covers the research and development, production, and sales of PV modules, power stations, PV system products, and operation and maintenance services.

What delivery terms and payment methods are supported?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Supported payment types include T/T, L/C, and PayPal in USD, EUR, or CNY.

What languages does your service team support?

Our professional team can assist you in English, Chinese, Spanish, Japanese, German, and Russian.

What is the protection level of the SUN2000-100KTL-M2 inverter?

The inverter features an IP66 protection degree, making it highly resistant to dust and water for reliable outdoor installation.
