Product Description

📋

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

💡

Product Description

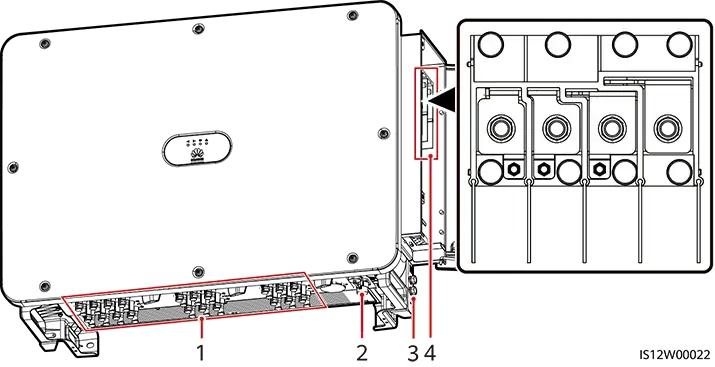

SUN2000-100KTL-M2 Smart PV Controller

📊

Technical Specifications

SUN2000-100KTL-M2 Detailed Specs
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Number of MPP trackers	10
Max. input number per MPPT	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Protection
Anti-Islanding Protection	Yes
DC Reverse-Polarity Protection	Yes
Surge Arrester (DC/AC)	Type II
General Data
Operating Temperature Range	-25°C ~ 60°C
Cooling Method	Smart Air Cooling
Protection Degree	IP66

🔍

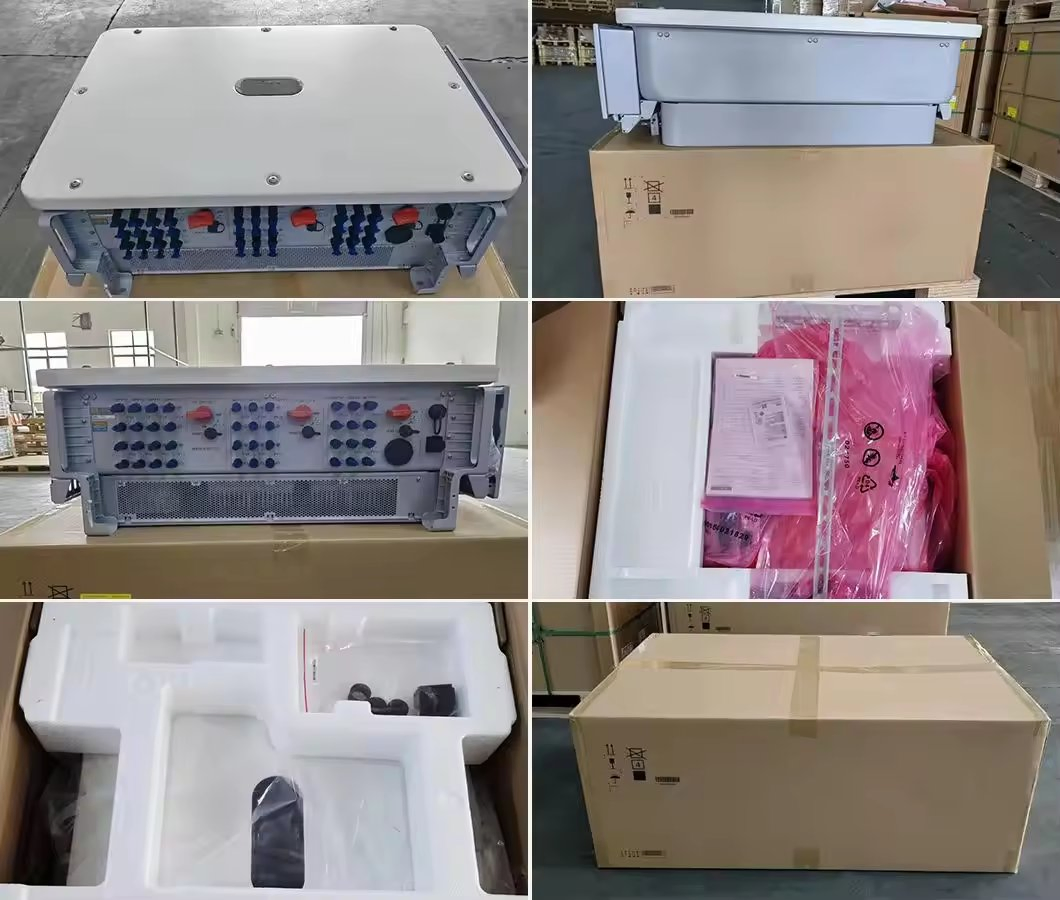

Product Details & Packing

🏗️

Project Show

❓

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2 inverter?

The inverter reaches a maximum efficiency of 98.8% when operating at 480V and 98.6% at 380V/400V.

How many MPPT trackers are integrated in this model?

It features 10 independent MPPT trackers, each supporting 2 inputs to optimize energy harvest from different string configurations.

What is the protection level for outdoor installation?

The unit is rated IP66, providing complete protection against dust and high-pressure water jets, making it ideal for harsh outdoor environments.

Does the system support remote monitoring?

Yes, it supports monitoring through LED indicators, WLAN adaptors with the FusionSolar App, and optional 4G/3G/2G Smart Dongles.

What cooling technology is used for this high-power inverter?

It utilizes Smart Air Cooling technology to maintain optimal operating temperatures even in demanding conditions.

What safety features are included?

It includes DC Reverse-Polarity Protection, Anti-islanding protection, AC Overcurrent Protection, and Type II Surge Arresters for both DC and AC sides.
