RoHS Approved Sine Wave Huawei on Grid 100kw 110kw 175kw Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Nature of Wave

Sine Wave Inverter

Weight

85kg

Specification

1,035 x 700 x 365 mm

Product Description

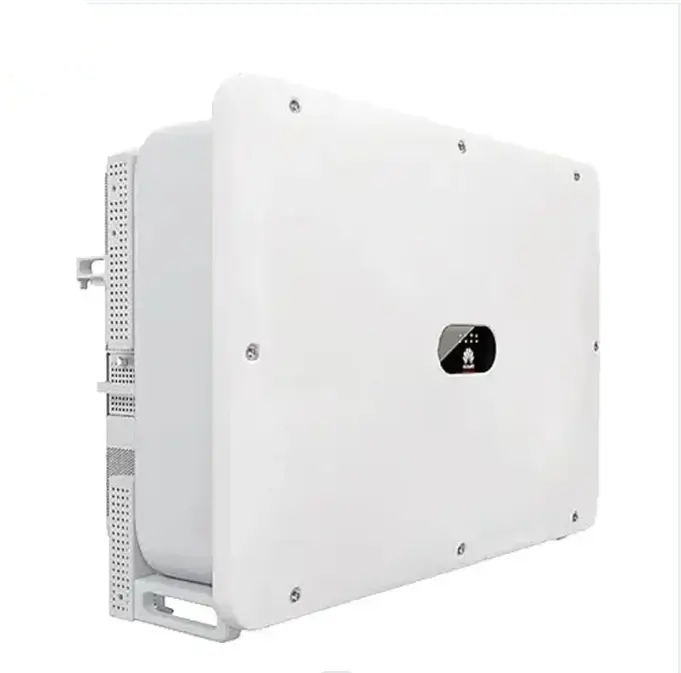

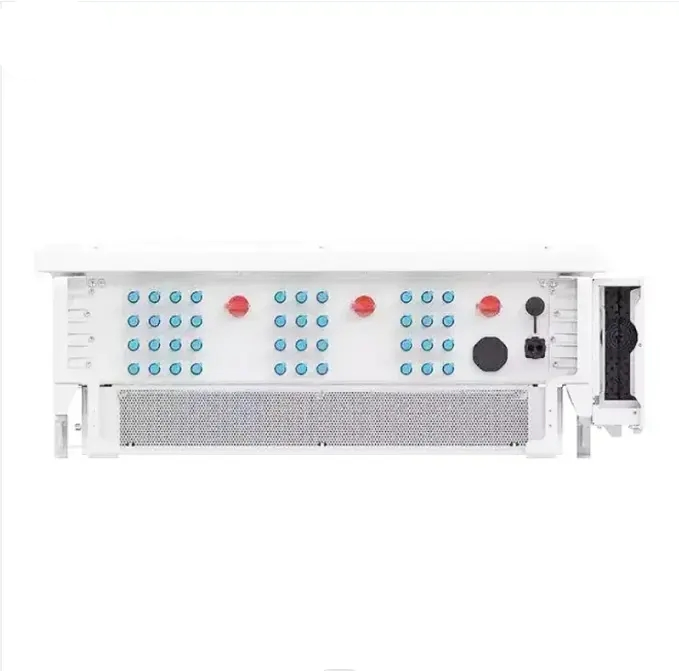

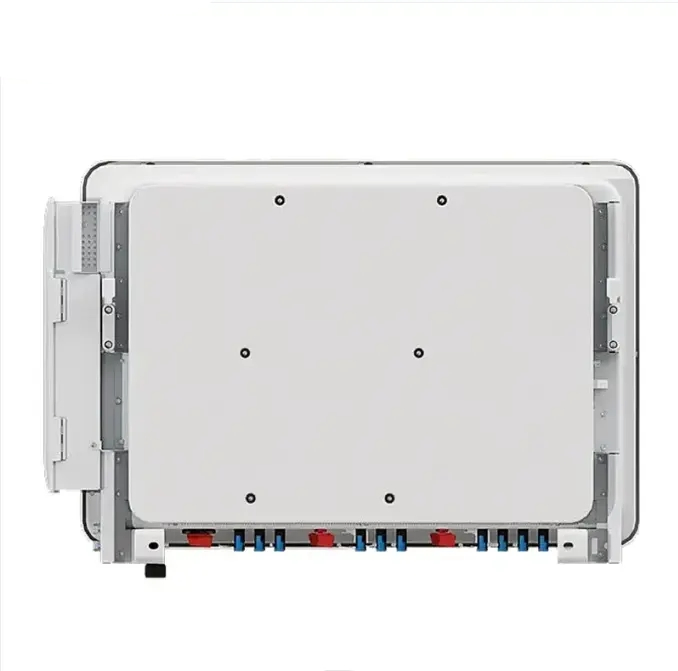

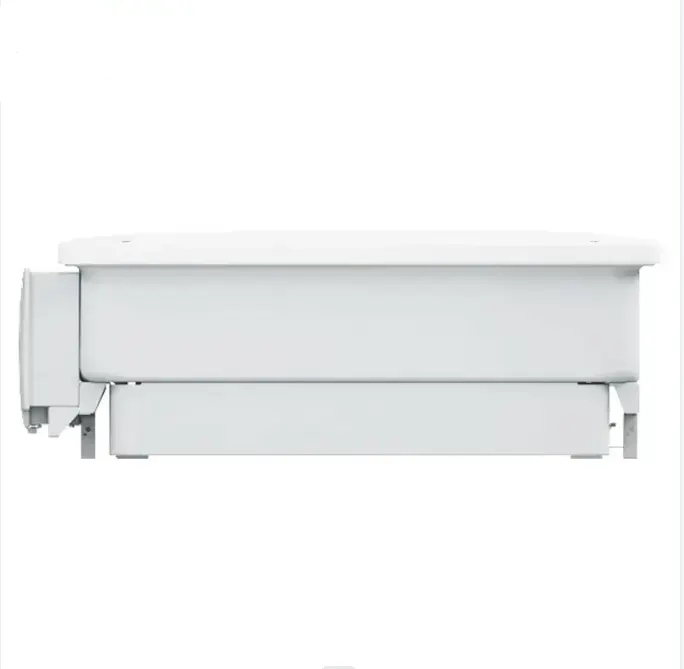

SUN2000-100KTL-M2 Smart PV Controller

Technical Specifications

Feature	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input (DC)
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output (AC)
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection
Anti-Islanding Protection	Yes
AC Overcurrent Protection	Yes
DC Reverse-Polarity Protection	Yes
DC/AC Surge Arrester	Type II
IP Protection Degree	IP66

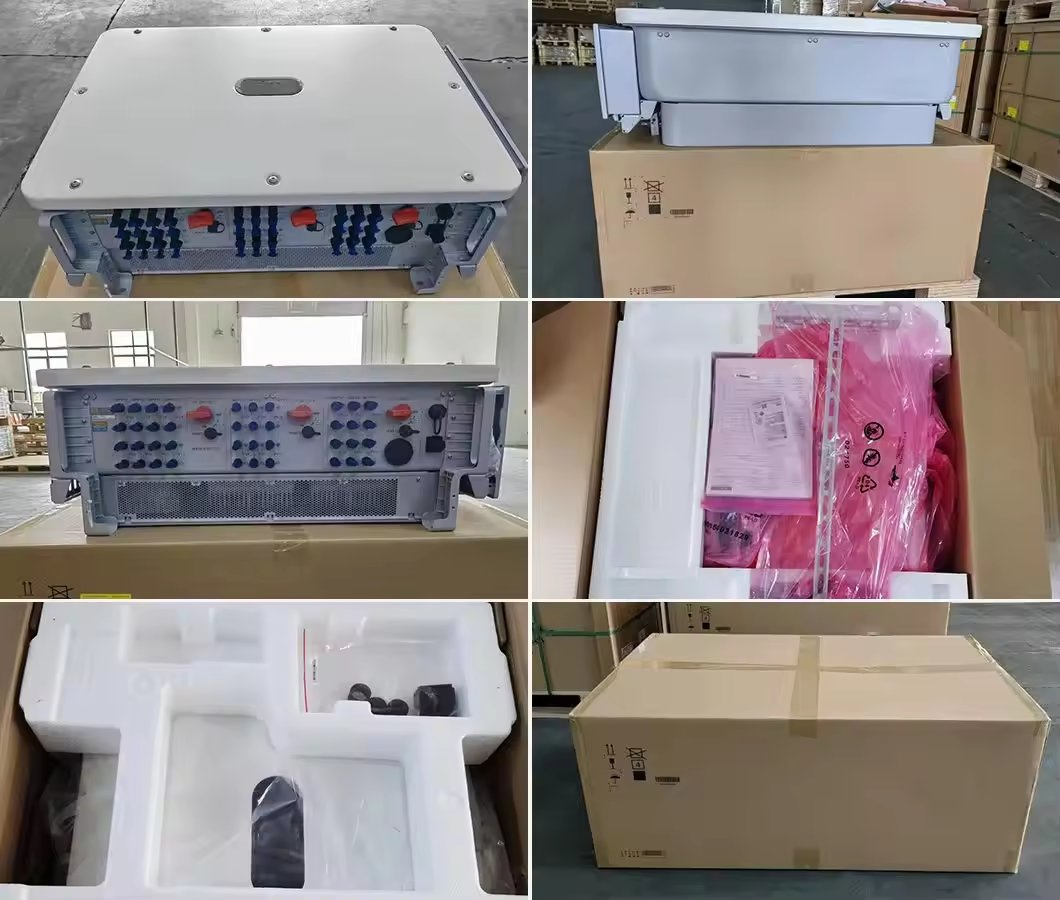

Product Details & Packaging

Project Show

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPT trackers are available in this model?

This model is equipped with 10 independent MPP trackers, each allowing for 2 string inputs, which optimizes power generation for complex rooftop or ground layouts.

Is the inverter suitable for outdoor installation?

Yes, it features an IP66 protection degree, making it highly resistant to dust and high-pressure water jets, ideal for harsh outdoor environments.

What remote monitoring options are supported?

The system supports LED indicators, WLAN adapter integration with the FusionSolar App, and optional 4G/3G/2G Smart Dongles for remote management.

What safety protections are built into the device?

It includes DC Reverse-Polarity Protection, Anti-islanding, AC Overcurrent Protection, Type II Surge Arresters for both DC and AC, and Residual Current Monitoring.

What is the operating temperature range?

The inverter operates reliably between -25°C and 60°C (-13°F to 140°F), utilizing a Smart Air Cooling method to maintain optimal performance.
