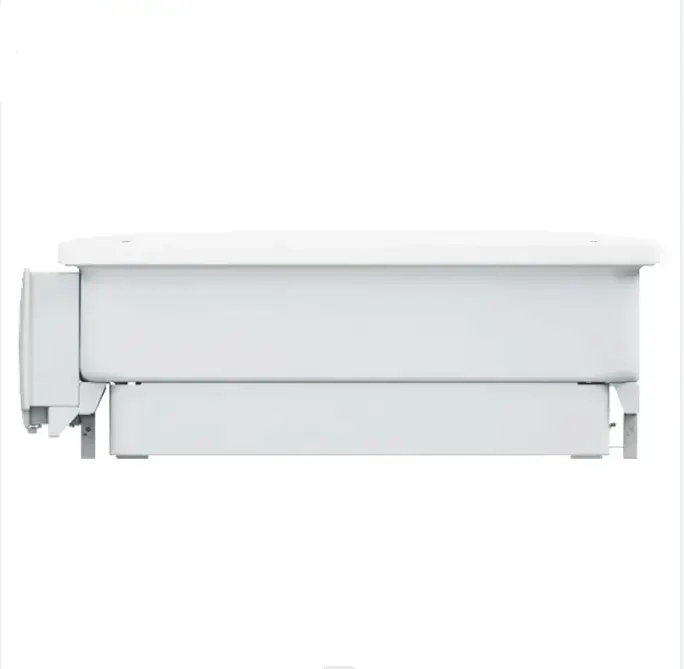

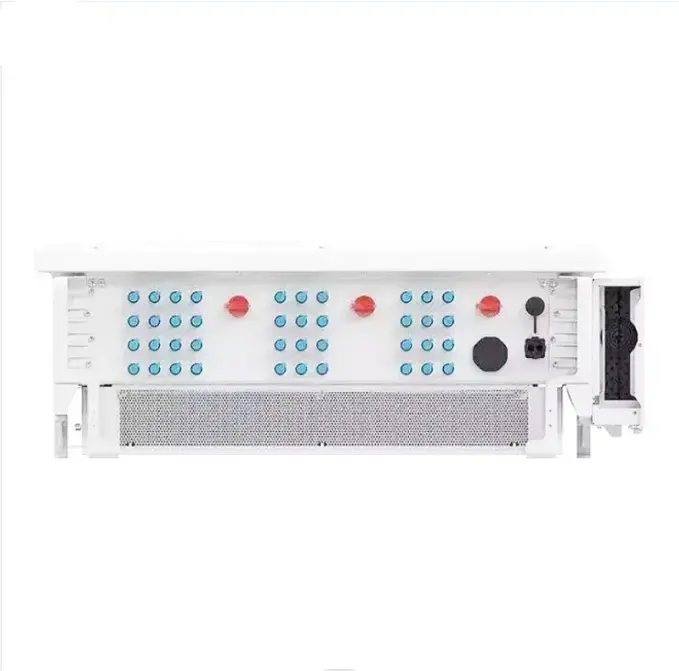

ISO9001 Approved Wind Huawei Carton 1, 035 X 700 365 mm Solar Power System Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

1

Basic Information

Model

SUN2000-100KTL-M2

Brand

Huawei

Output Power

100kW

Phase

Three Phase

Efficiency

98.8% Max

Protection

IP66

Source Type

Active Inverter

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

2

Product Description

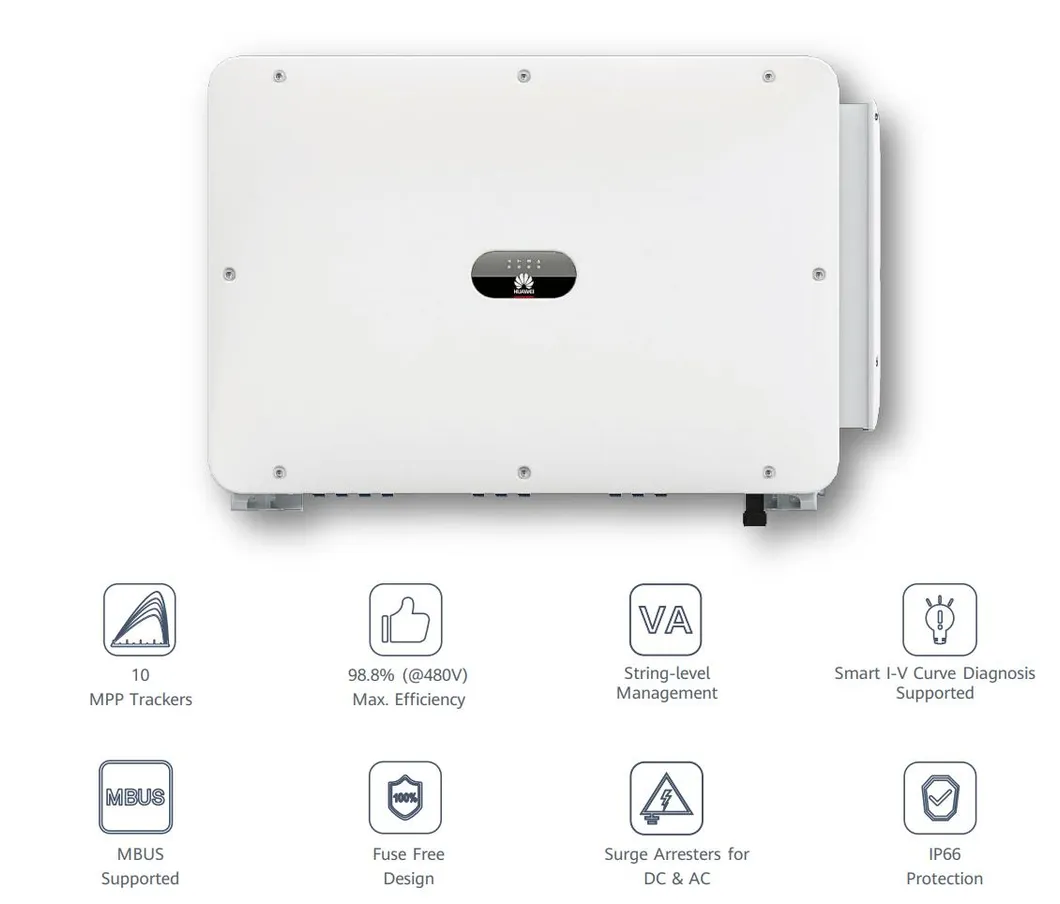

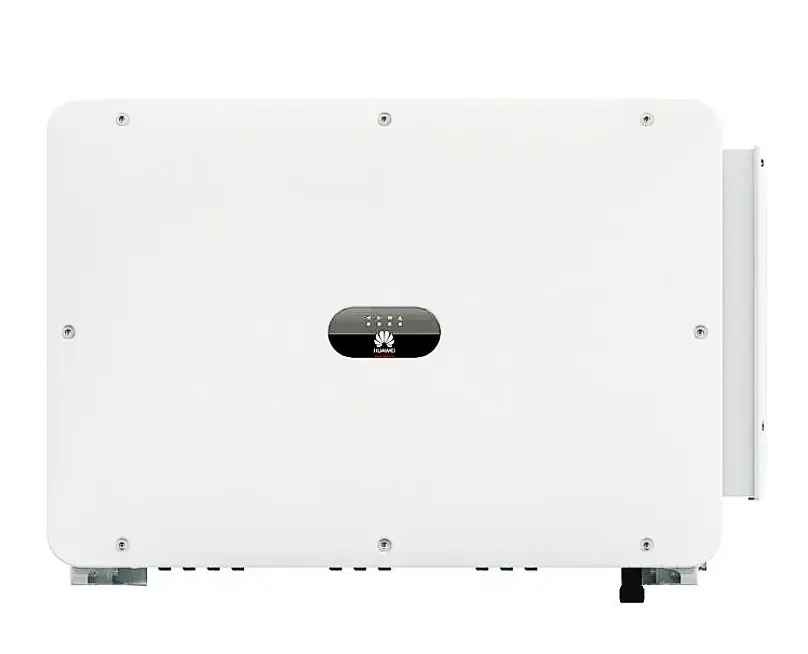

SUN2000-100KTL-M2 Smart PV Controller

3

Technical Specifications

Parameter	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input (DC)
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Output (AC)
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Protection
DC Surge Arrester	Type II
AC Surge Arrester	Type II
IP Rating	IP66

4

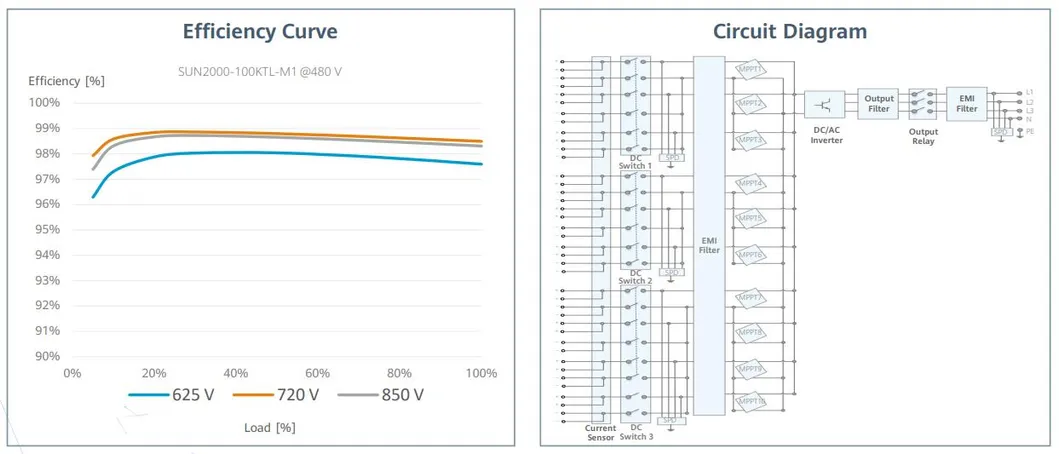

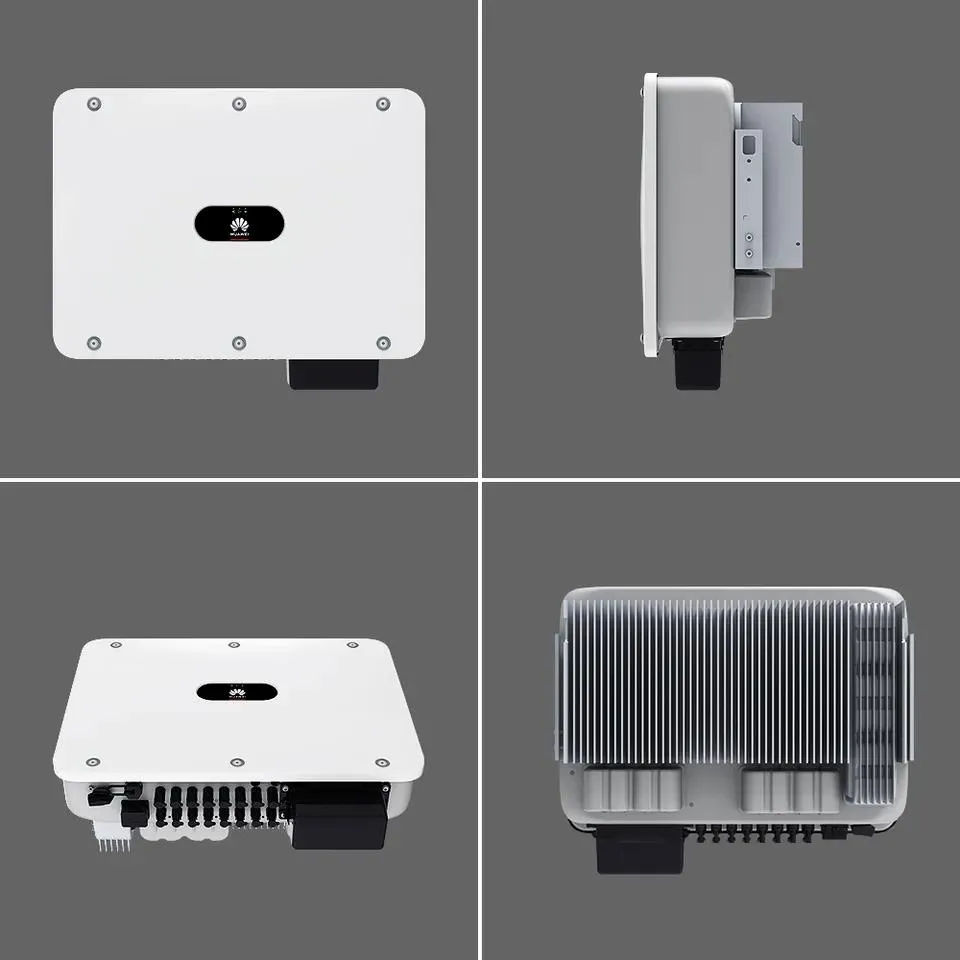

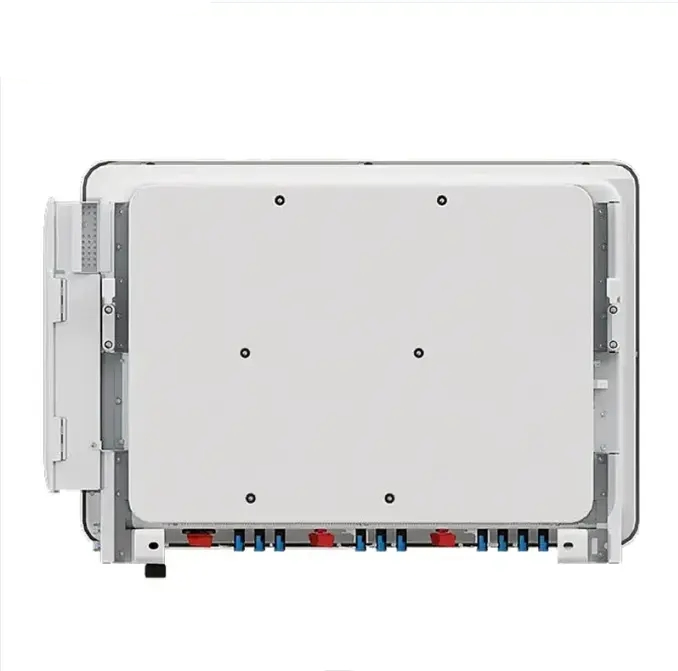

Product Details

5

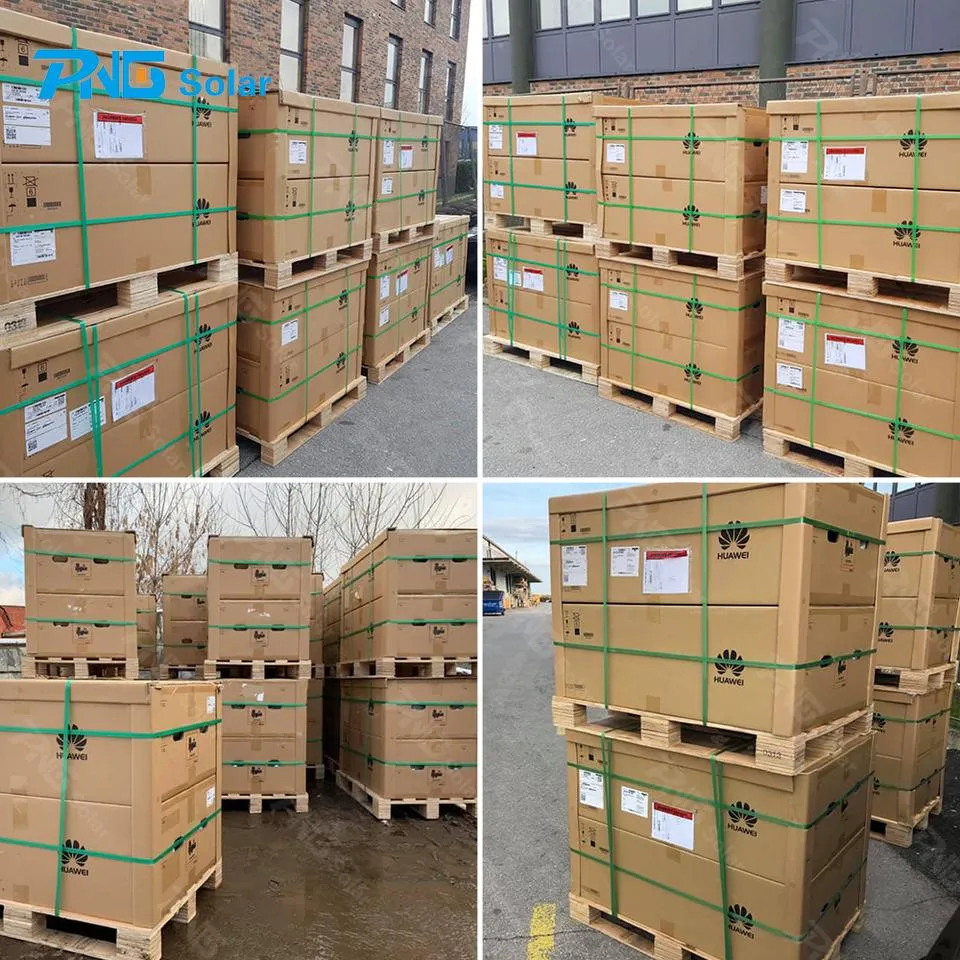

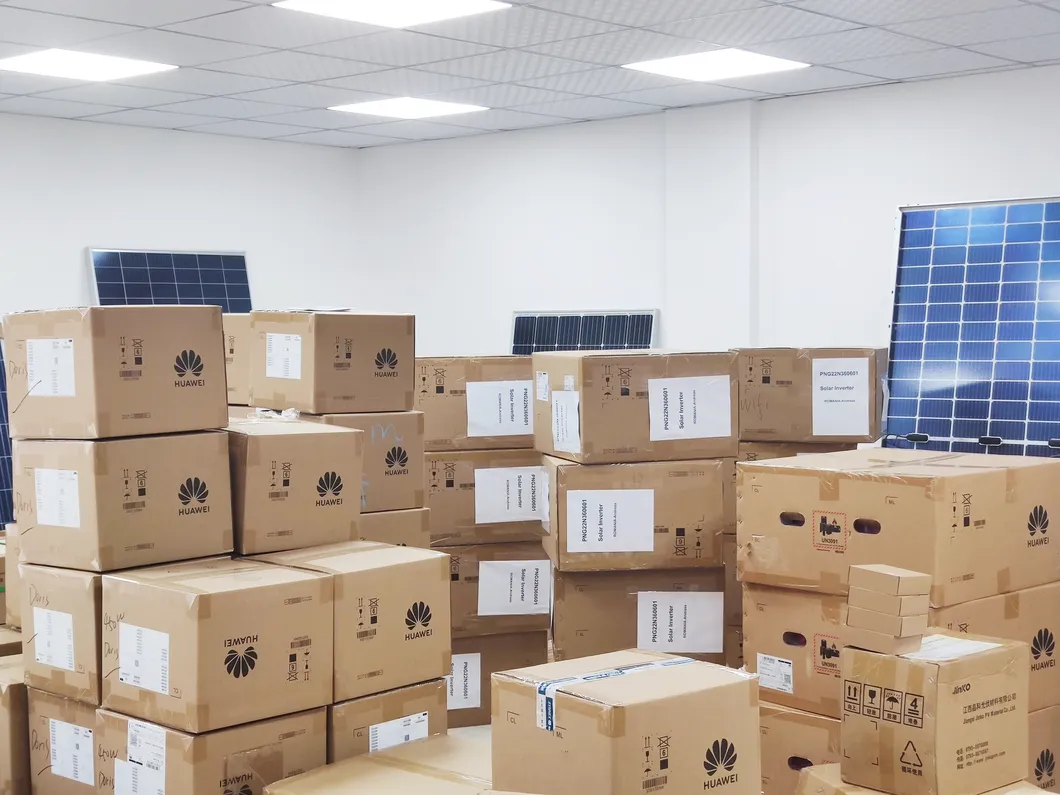

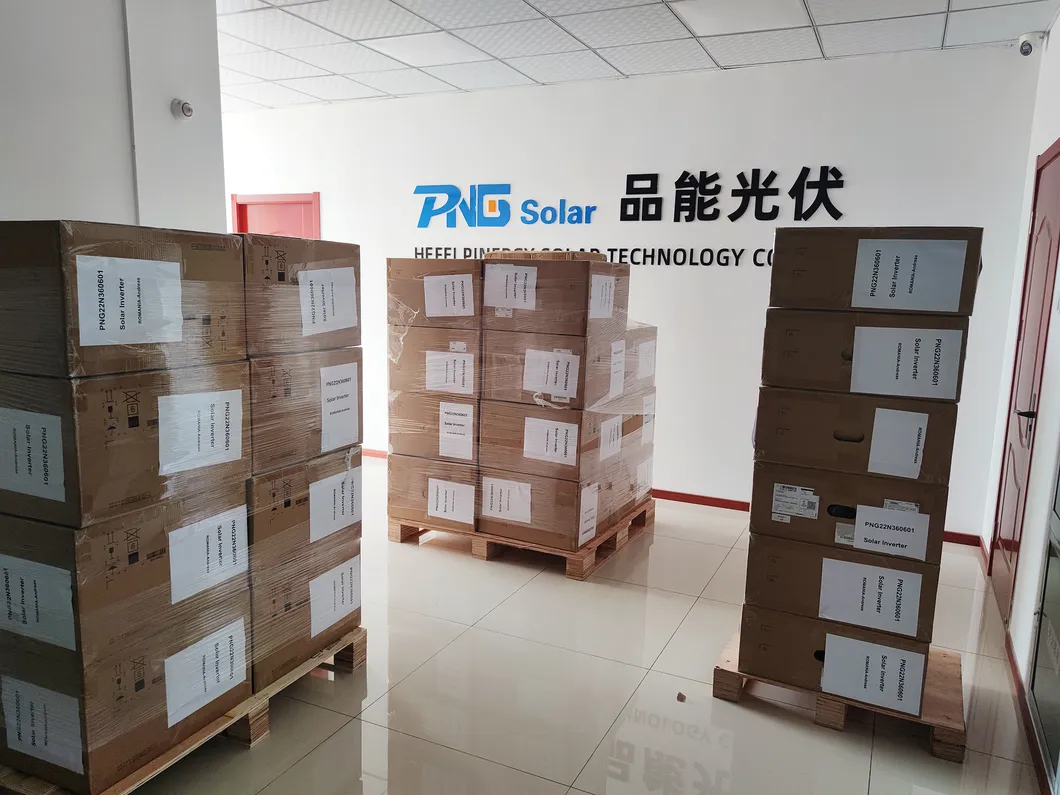

Packing & Delivery

6

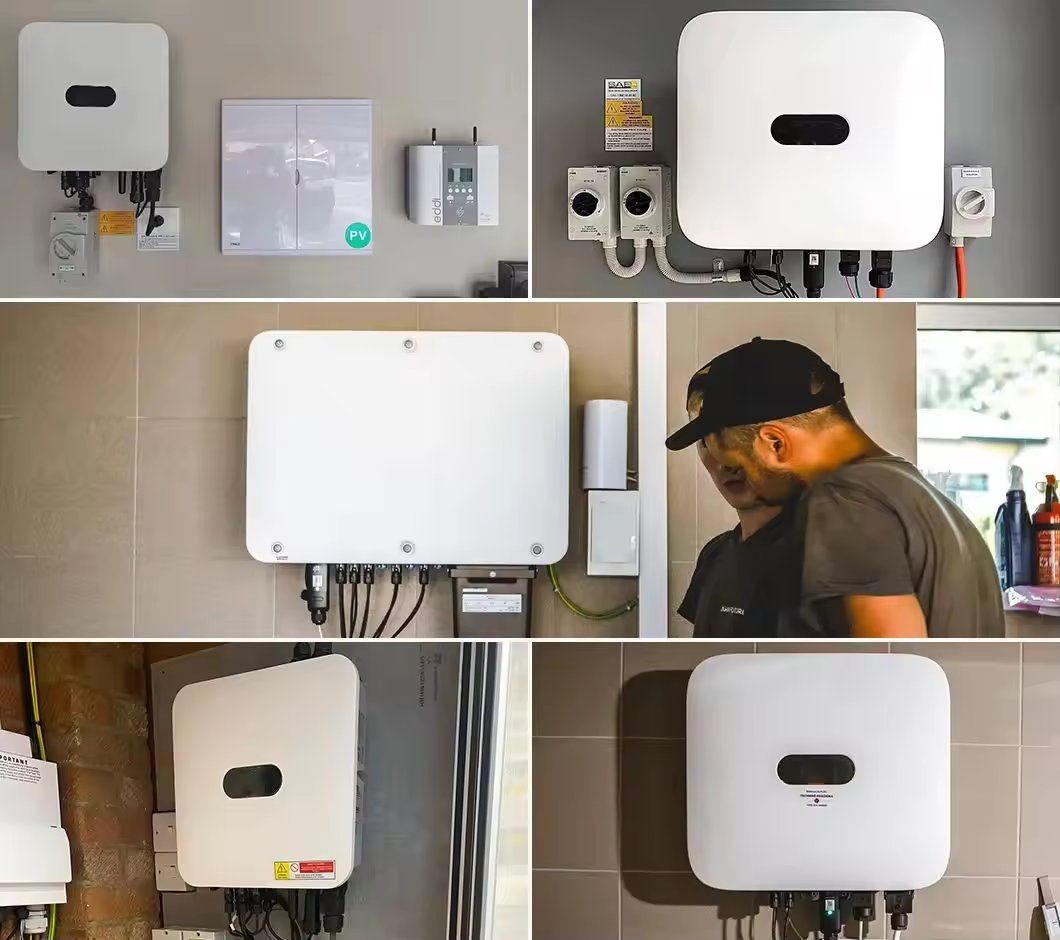

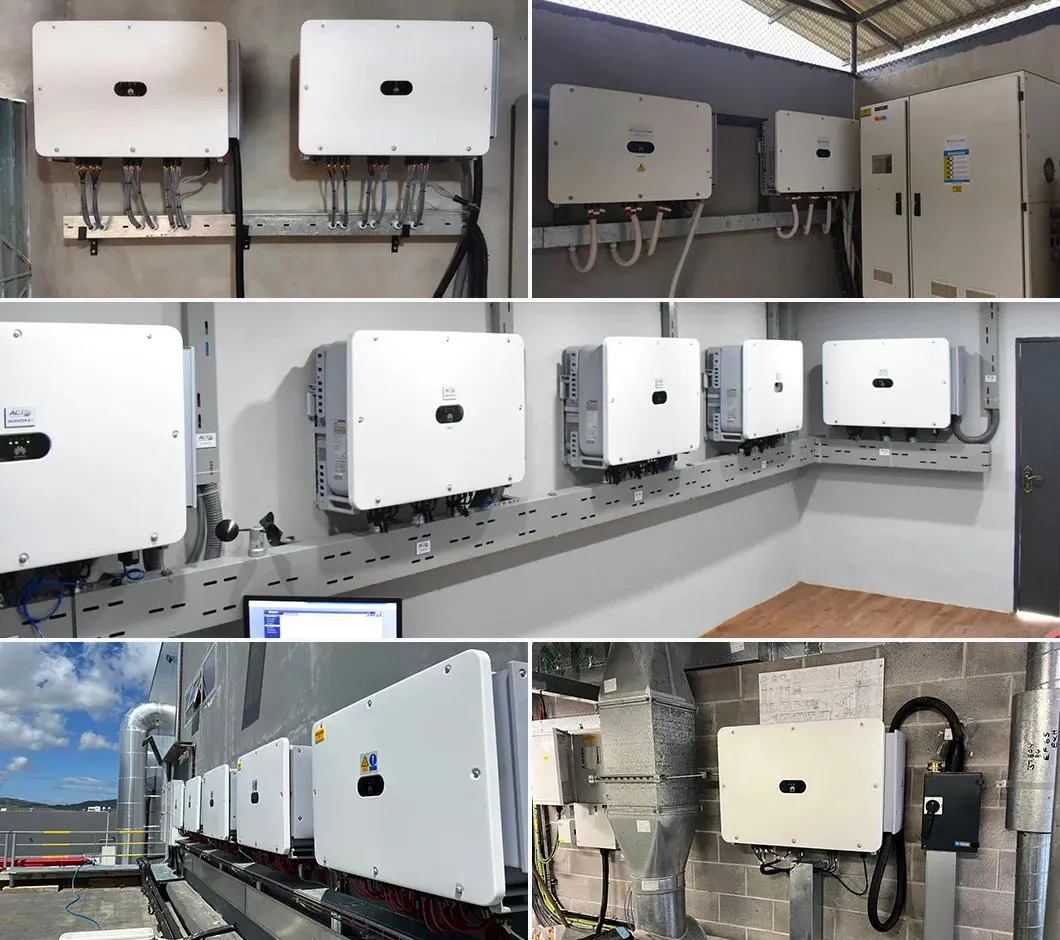

Project Show

?

Frequently Asked Questions

How do you guarantee the quality of the solar inverters?

We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure high performance and reliability.

What products are available in your catalog?

We offer a full range of solar solutions including Solar Panels, Solar Systems, Batteries, Smart Inverters, and Wi-Fi monitoring RTUs.

What are the supported delivery and payment terms?

We accept various delivery terms such as FOB, CFR, CIF, EXW, and DDP. Payment can be made via T/T, L/C, or PayPal in USD, EUR, or CNY.

What is the efficiency of the SUN2000-100KTL-M2?

This model features a maximum efficiency of 98.8% at 480V, ensuring optimal energy conversion for large-scale PV projects.

Does the inverter support remote monitoring?

Yes, it features LED indicators and supports WLAN adapters plus the FusionSolar APP for comprehensive system management and monitoring.

Is the inverter suitable for harsh environments?

With an IP66 protection degree and an operating temperature range of -25°C to 60°C, it is designed to operate reliably in challenging outdoor conditions.
