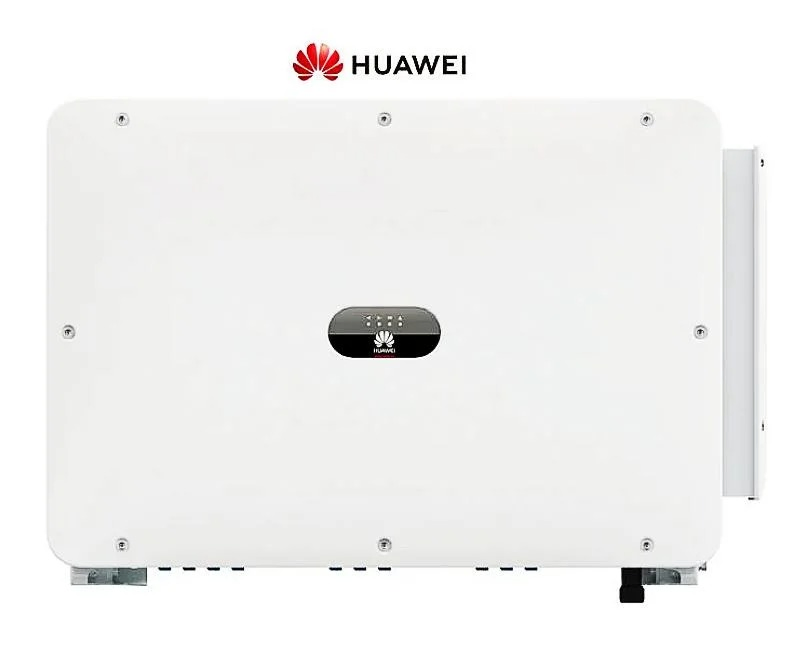

Huawei Agent Huawei Sun2000-110ktl-M2 100kw 110kw 196kw 250kw 300kw Huawei on Grid Solar Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

🚀 Overview

Model NO.

SUN2000-110KTL-M2

Nature of Source Flow

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg / 90kg (with plate)

Specification

1,035 x 700 x 365 mm

HS Code

8504403090

📝 Product Description

SUN2000-100KTL-M2

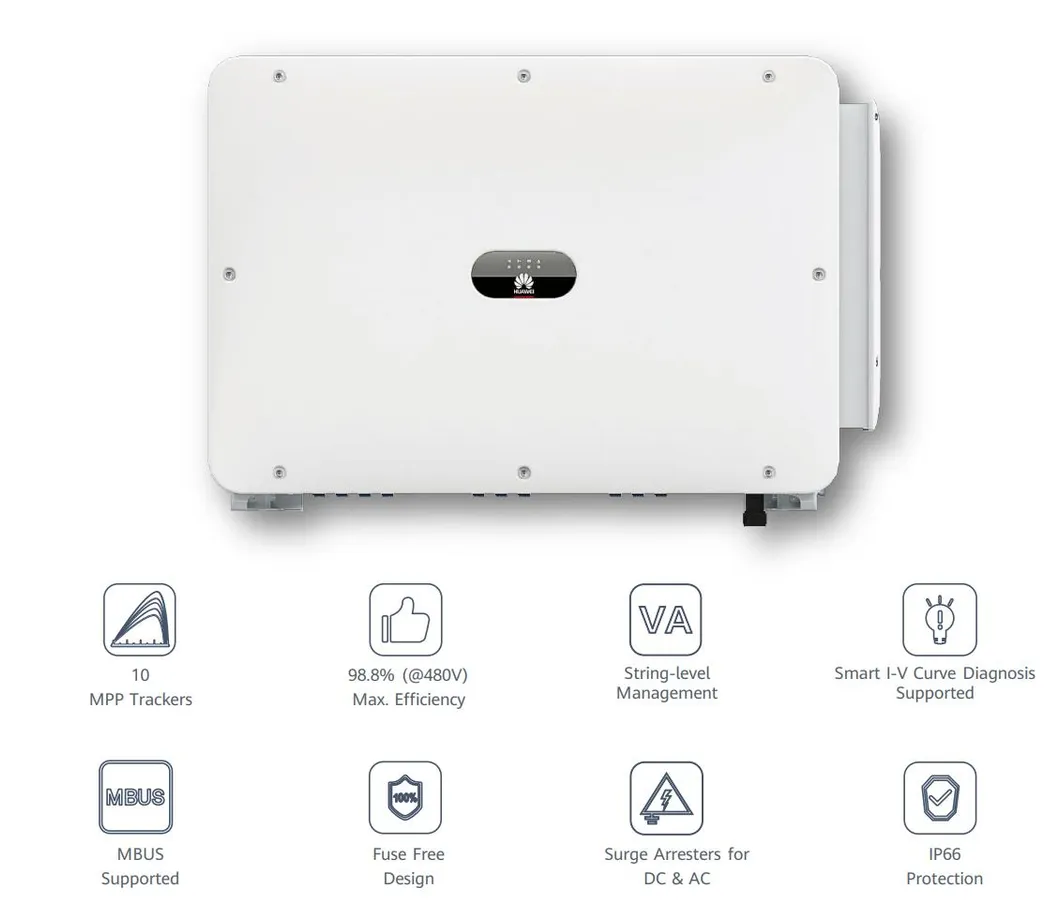

Smart PV Controller

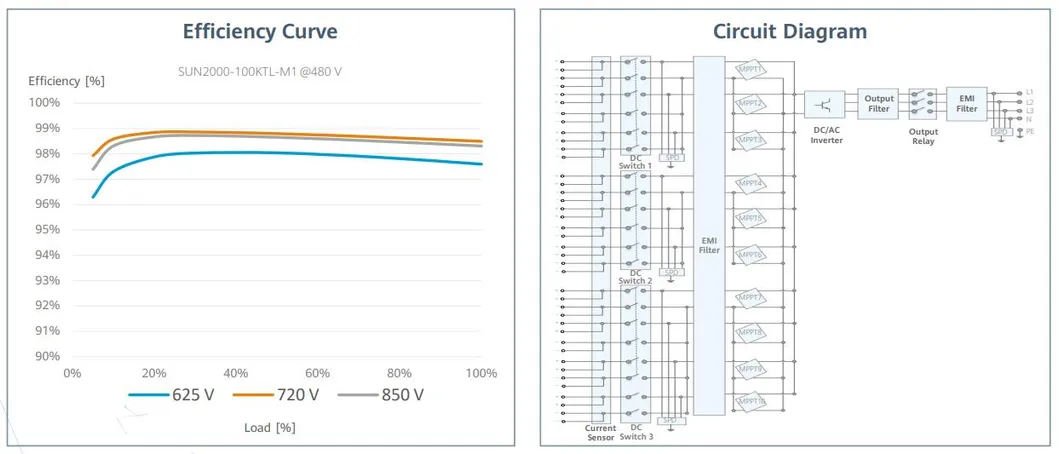

⚙️ Technical Specifications

SUN2000-100KTL-M2 Parameters
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Max. Total Harmonic Distortion	<3%
Protection
Input-side Disconnection Device	Yes
DC Surge Arrester / AC Surge Arrester	Type II / Type II
Protection Degree	IP66

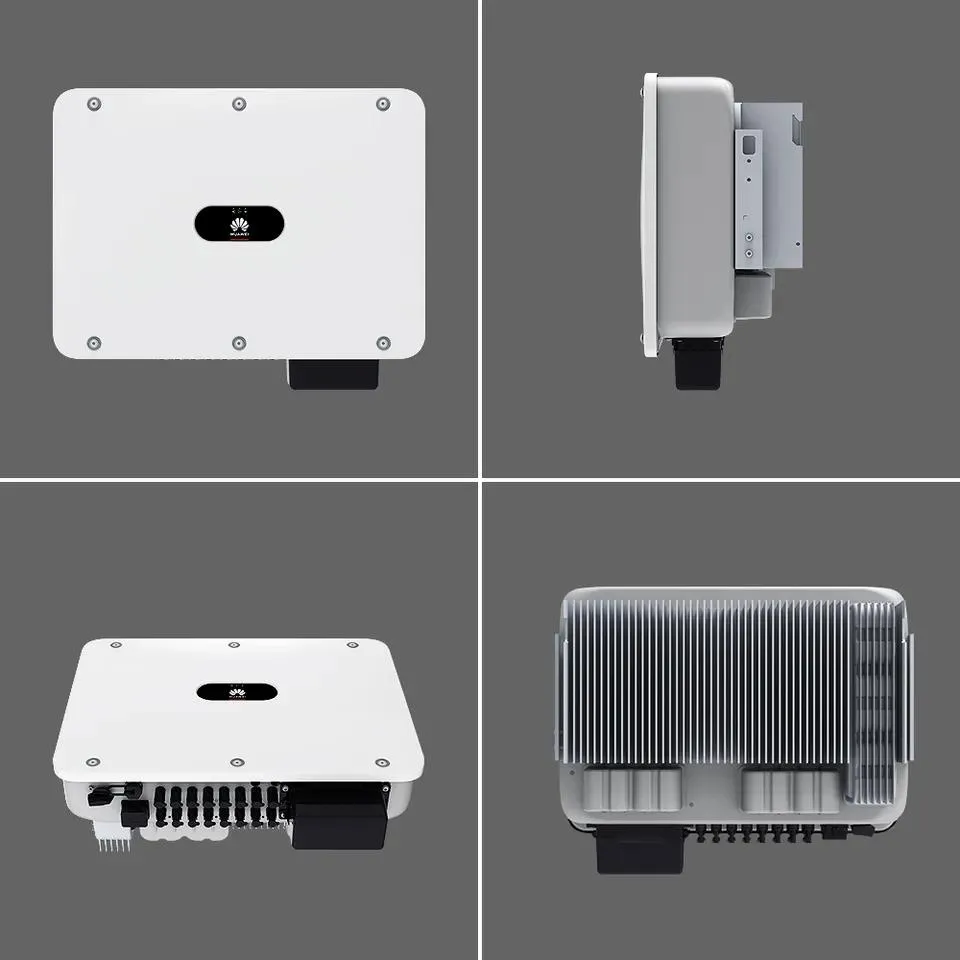

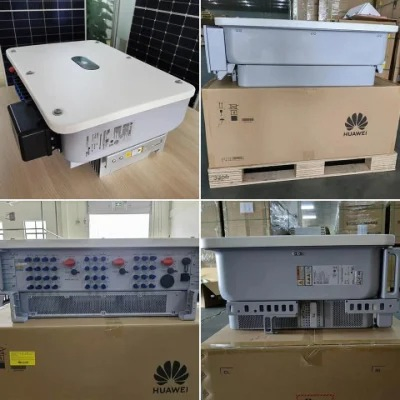

📦 Product Details & Packing

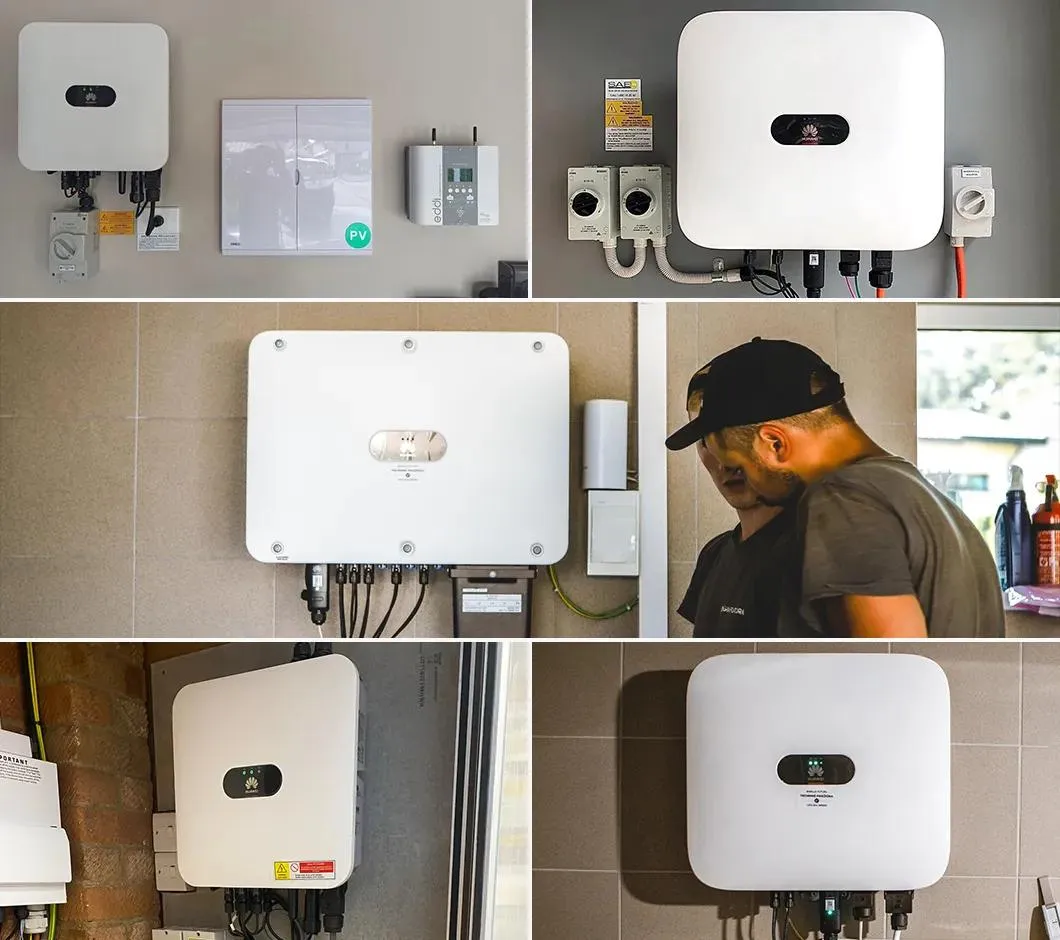

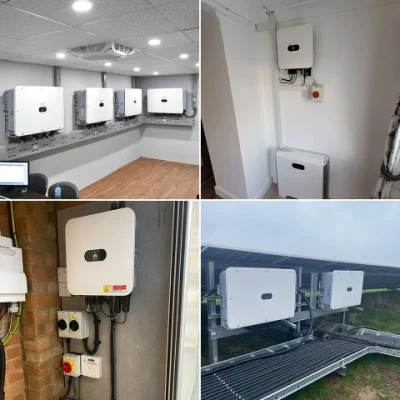

🏗️ Project Show

❓ Frequently Asked Questions

How do you ensure the quality of the solar inverters?

We maintain strict quality control by providing a pre-production sample before mass production and performing a final inspection before every shipment.

What products can I purchase for a complete solar system?

We offer a full range of components including Solar Panels, Solar Systems, Batteries, Inverters, and Wi-Fi RTU units for monitoring.

What delivery terms are available for international orders?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP to meet different logistical requirements.

What payment methods are accepted?

We support multiple payment types such as T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal in currencies including USD, EUR, and CNY.

What is the protection rating and efficiency of the SUN2000-100KTL-M2?

The inverter features an IP66 protection degree and achieves a maximum efficiency of 98.8% (@480 V), making it highly reliable for various environments.

Which languages can your team communicate in?

Our support team is proficient in multiple languages, including English, Chinese, Spanish, Japanese, German, and Russian.
