Huawei on Grid Power Inverter Sun2000-100ktl-M2 Three Phase Pure Sine Wave Power Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

ℹ

Basic Specifications

Model NO.

SUN2000-100KTL-M2

Nature of Source Flow

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC SAA

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Circuit Topologies

Push-pull Type

Nature of Wave String

Sine Wave Inverter

Weight

85kg

Transport Package

Carton

Specification

1, 035 x 700 x 365 mm

Origin

China

Production Capacity

10000PCS Per Month

★

Product Description

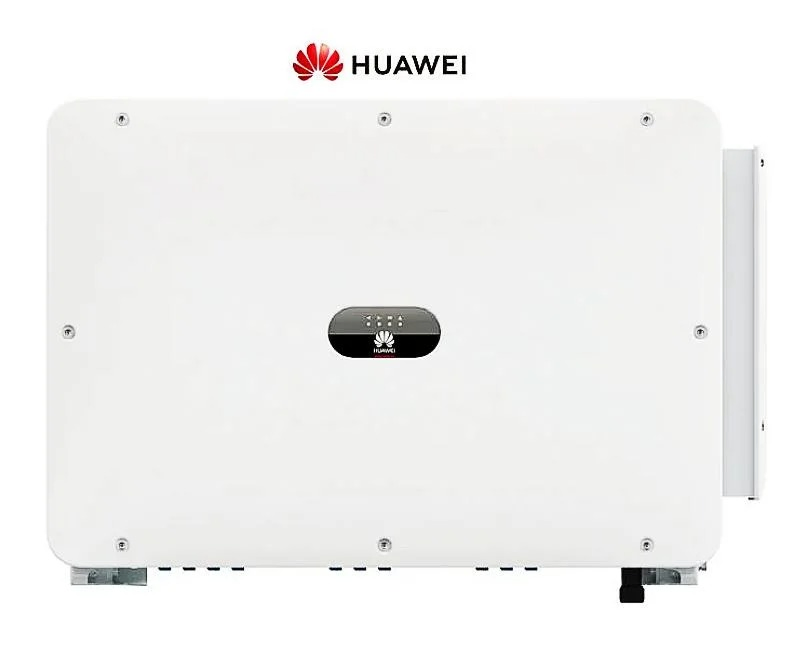

SUN2000-100KTL-M2

Smart PV Controller

⚙

Technical Specifications

Technical Attributes	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Max. Output Current	133.7 A @480 V, 160.4 A @400 V, 168.8 A @380 V
Protection
Anti-Islanding Protection	Yes
AC Overcurrent Protection	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Protection Degree	IP66

📦

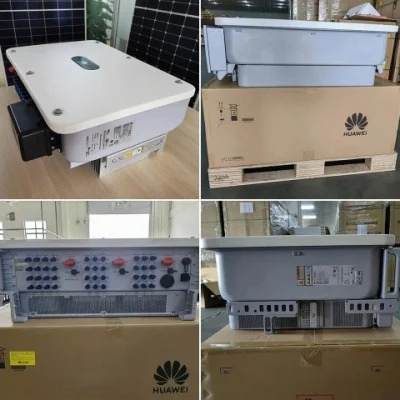

Product Details & Packing

🏗

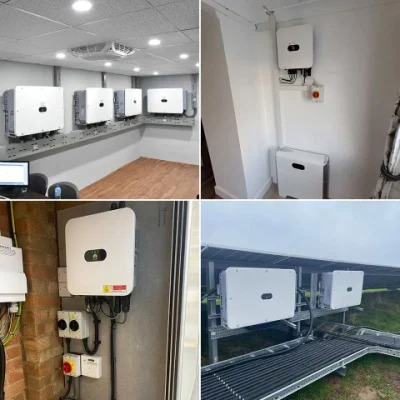

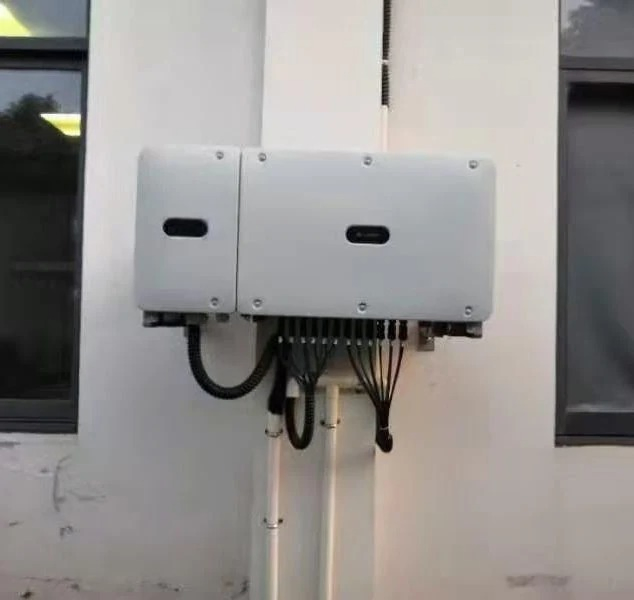

Project Show

❓

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480 V and 98.6% at 380 V / 400 V, ensuring optimal energy conversion for solar power systems.

How many MPP trackers are available on this model?

The SUN2000-100KTL-M2 is equipped with 10 independent MPP trackers, allowing for high flexibility in string design and maximizing energy yield even in complex installations.

What is the protection rating for outdoor use?

This inverter features an IP66 protection degree, making it highly resistant to dust and powerful water jets, suitable for various harsh outdoor environments.

Does the system support remote monitoring?

Yes, it supports multiple communication methods including LED indicators, WLAN adaptor via the FusionSolar APP, RS485, and optional 4G/3G/2G Smart Dongles.

What safety features are integrated into the inverter?

The inverter includes comprehensive safety protections such as Anti-Islanding, AC Overcurrent, DC Reverse-Polarity, PV-array String Fault Monitoring, and Type II Surge Arresters for both DC and AC sides.
