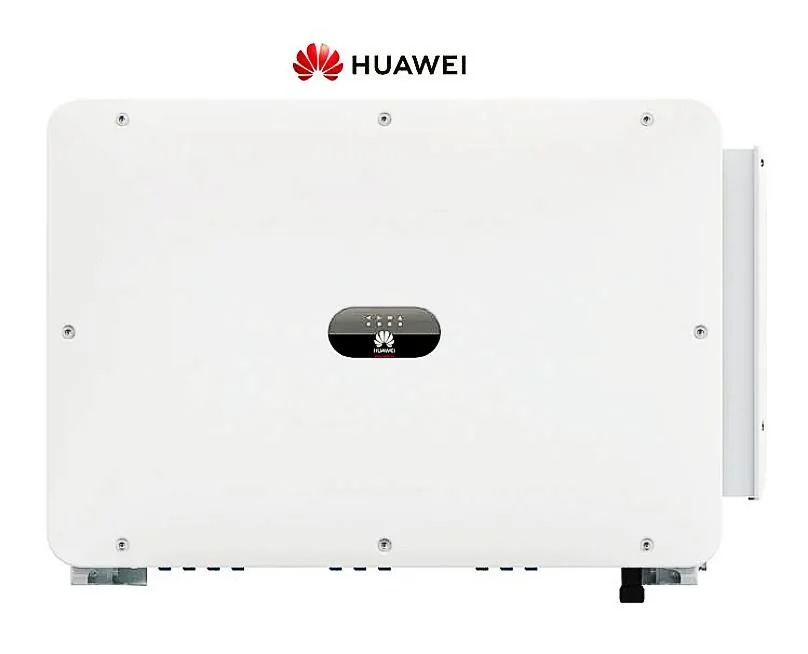

Factory Sale Huawei Sun2000-110ktl-M2 Sun2000-100ktl-M2 Huawei Solar Inverter Three Phase MPPT Huawei Smart Hybrid Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kW

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

🚀

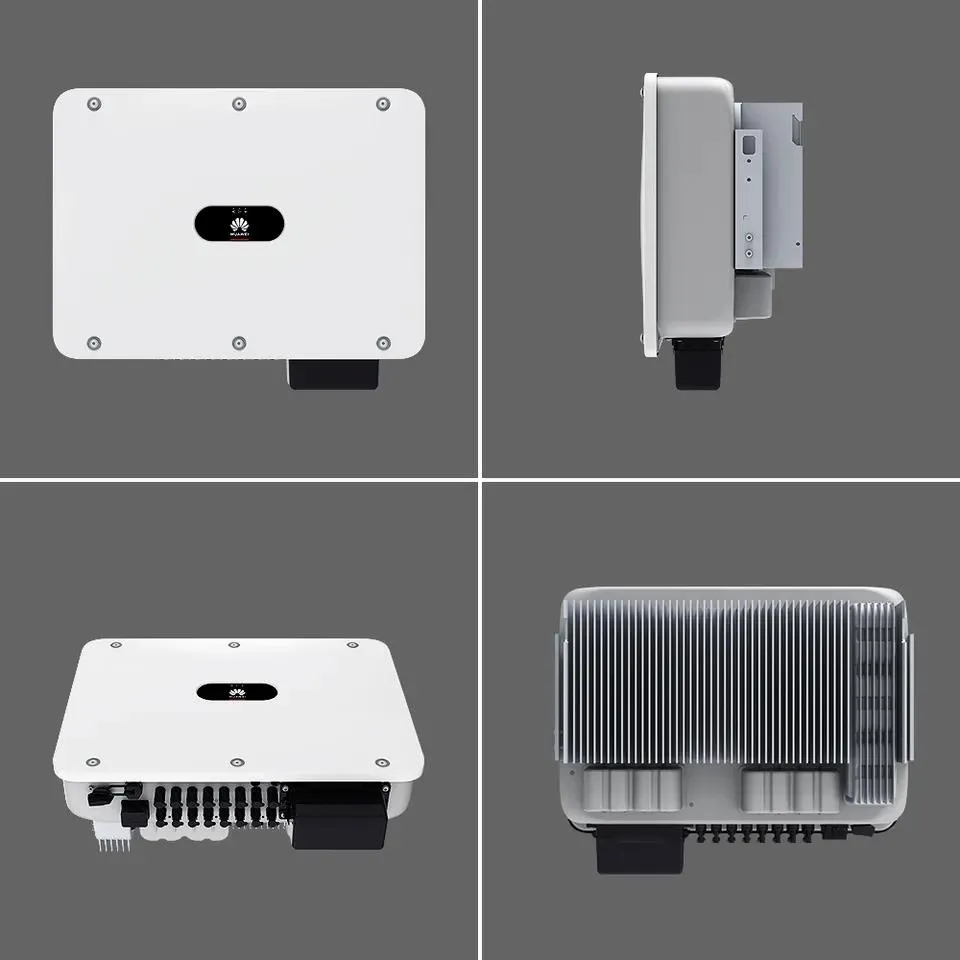

Product Description

SUN2000-100KTL-M2

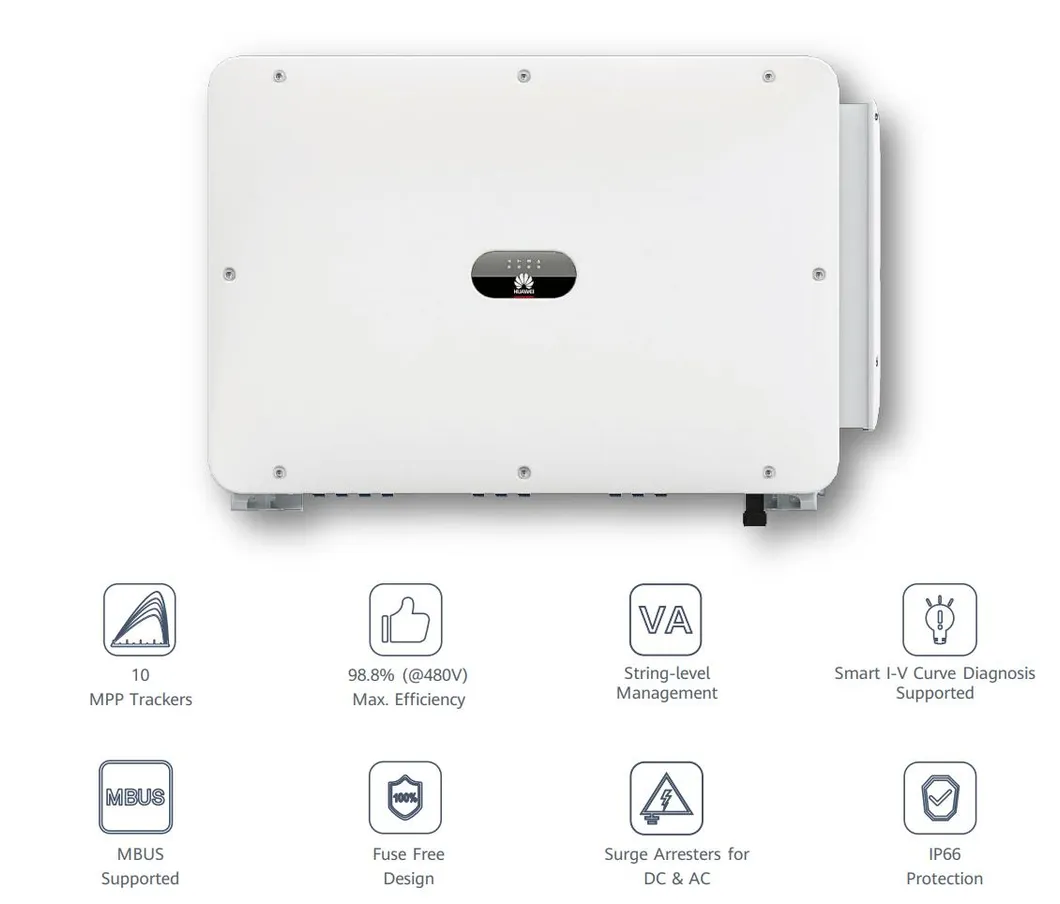

Smart PV Controller

⚙️

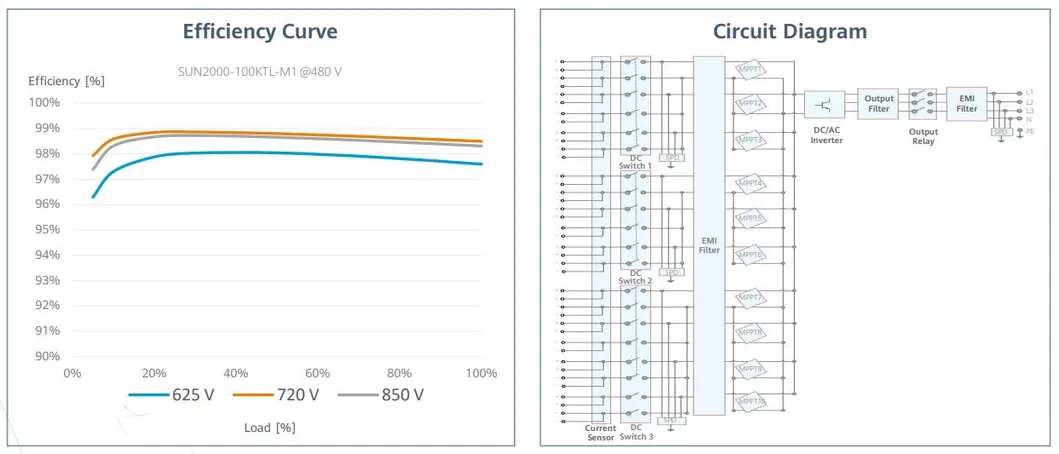

Technical Specifications

SUN2000-100KTL-M2 Characteristics
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP Trackers	10
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Protection Degree	IP66
Cooling Method	Smart Air Cooling
Operating Temperature	-25°C ~ 60°C

📦

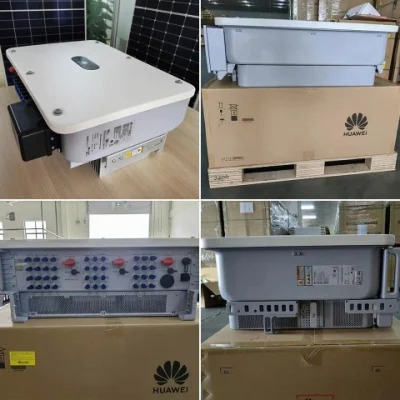

Details & Packaging

🏗️

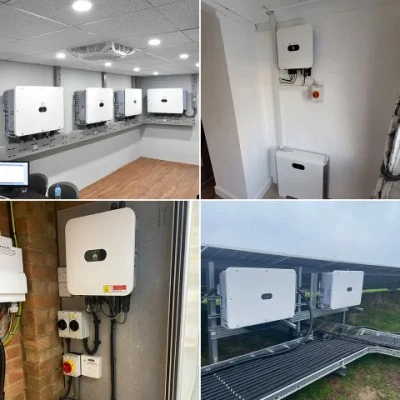

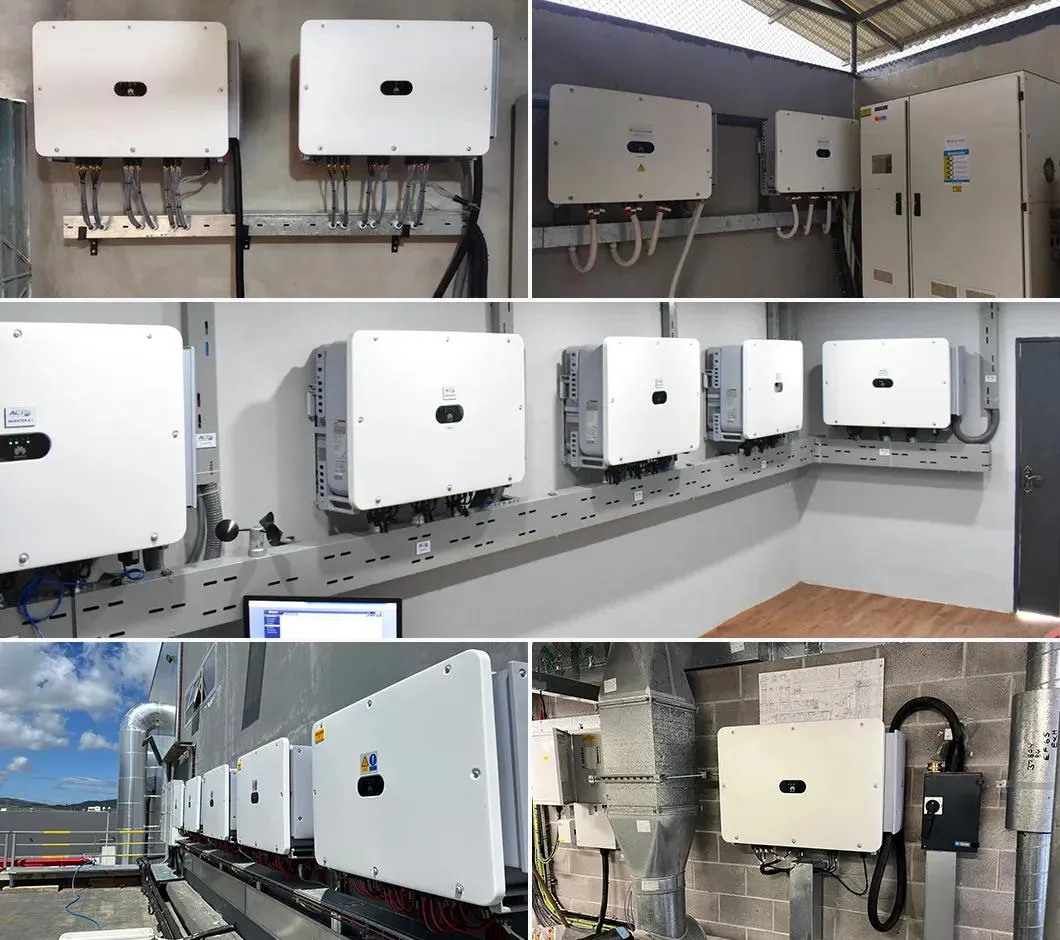

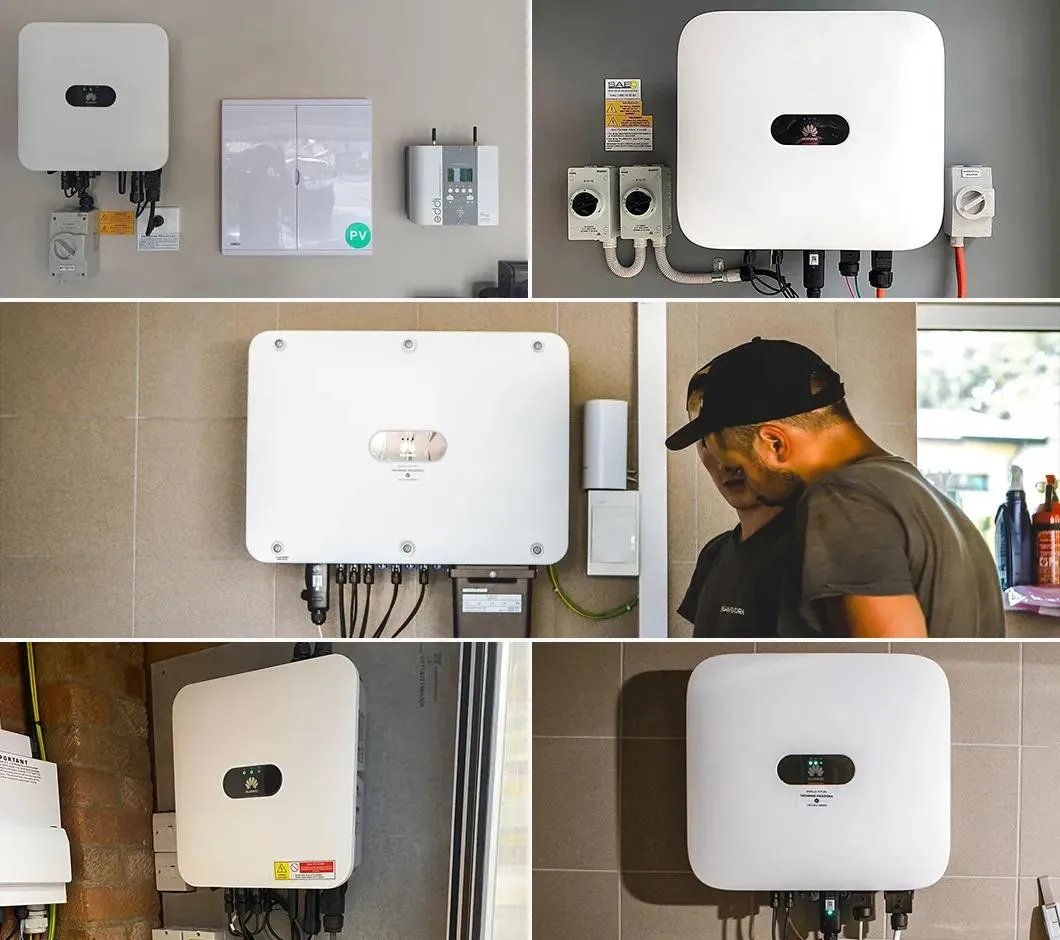

Project Showcase

❓

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2 inverter?

The inverter achieves a maximum efficiency of 98.8% at 480 V and 98.6% at 380 V/400 V, ensuring minimal energy loss during conversion.

How many MPPTs does this model feature?

This smart PV controller is equipped with 10 independent MPP trackers, each allowing for 2 strings, which optimizes power generation even in complex installation environments.

What is the protection rating for outdoor installation?

The inverter has an IP66 protection degree, making it highly resistant to dust and high-pressure water jets, ideal for harsh outdoor environments.

Does the inverter support remote monitoring?

Yes, it supports communication via LED indicators, WLAN adapter + FusionSolar App, and optional 4G/3G/2G Smart Dongles for real-time monitoring.

What cooling method is used in this 100kW inverter?

It utilizes Smart Air Cooling technology, which dynamically adjusts to the temperature to ensure stable operation and longevity of internal components.

Is the inverter compatible with different grid voltages?

Yes, it supports nominal output voltages of 380V, 400V, and 480V, making it versatile for various industrial and commercial grid requirements.
