Solar Huawei on Grid Power Inverter 10kw 50kw 60kw 100kw Three Phase Pure Sine Wave Output Power Supply

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊Basic Info.

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

💡Product Description

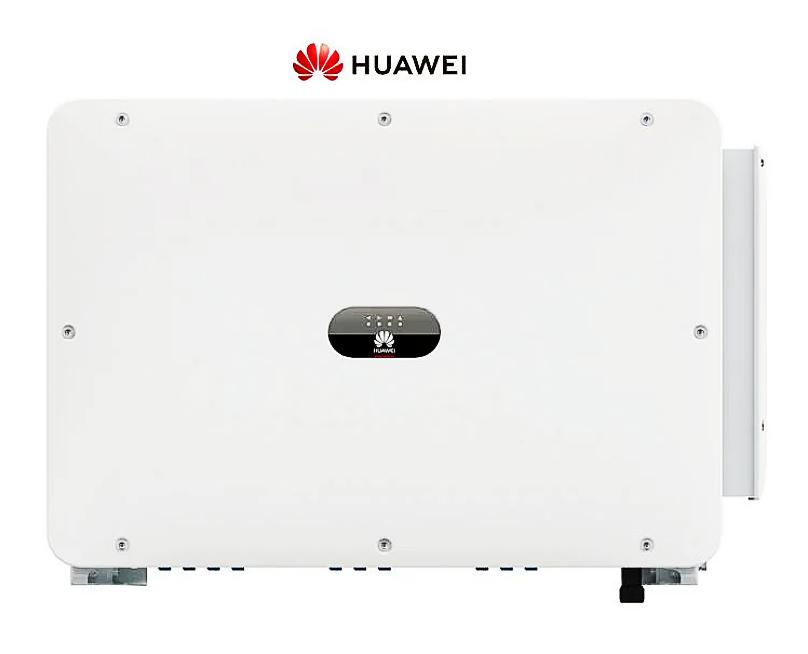

SUN2000-100KTL-M2

Smart PV Controller

⚙️Technical Specifications

Features	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Total Harmonic Distortion	<3%
Protection
Input-side Disconnection Device	Yes
Anti-Islanding Protection	Yes
DC Reverse-Polarity Protection	Yes
DC/AC Surge Arrester	Type II
Protection Degree	IP66

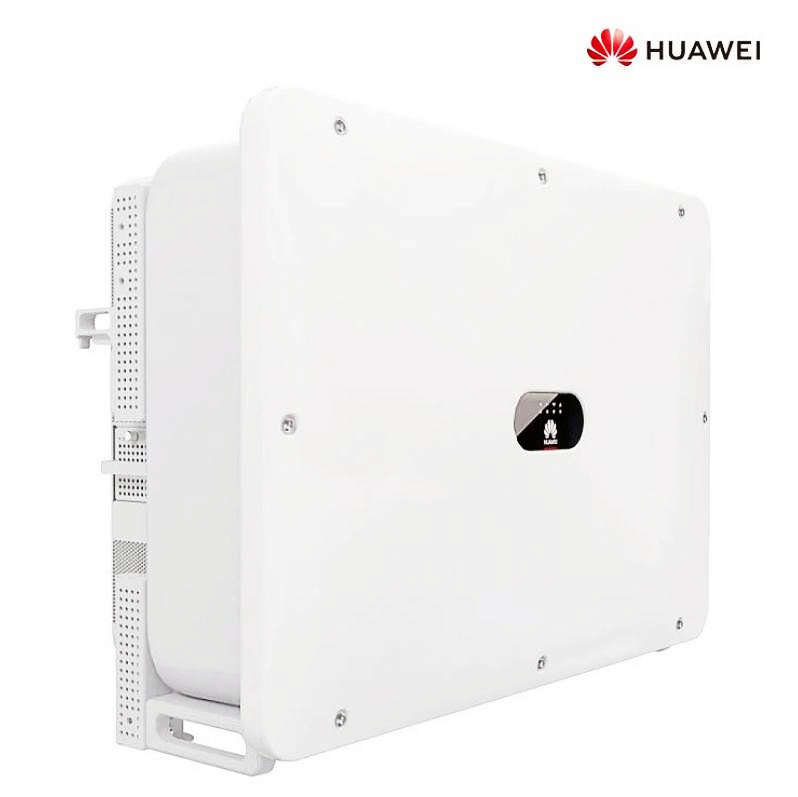

🔍Product Details

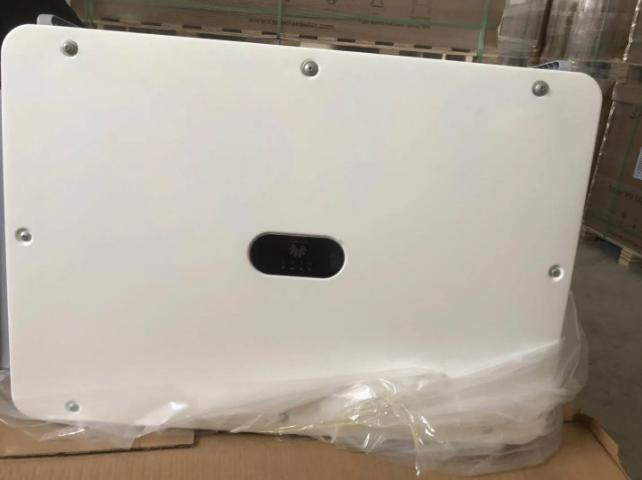

📦Packing & Delivery

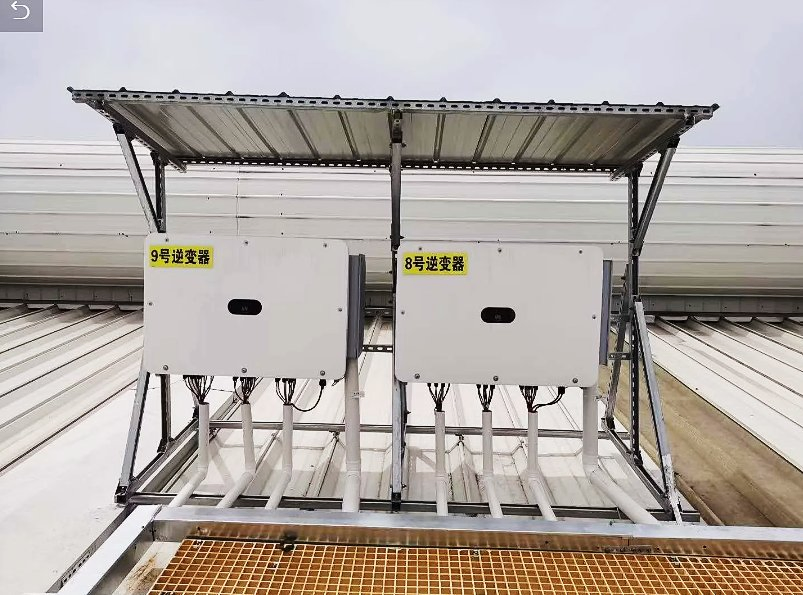

🏗️Project Show

❓Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPT trackers are included in this model?

This model features 10 independent MPPT (Maximum Power Point Tracking) trackers, allowing for flexible string configurations and optimized performance even with complex roof layouts or partial shading.

What is the environmental protection rating for this inverter?

The SUN2000-100KTL-M2 is rated IP66, providing high-level protection against dust and powerful water jets, making it suitable for harsh outdoor environments.

Does the system include surge protection?

Yes, it comes equipped with integrated Type II surge arresters for both DC and AC sides to protect the equipment from atmospheric discharges and switching surges.

What cooling method does the SUN2000-100KTL-M2 use?

It utilizes Smart Air Cooling technology, which dynamically adjusts the cooling intensity based on the operating temperature and load for optimal reliability.

How can I monitor the performance of the PV system?

The system supports LED indicators for local status and can be accessed via a WLAN adapter + FusionSolar App. It also supports RS485 and USB communication, with an optional 4G Smart Dongle.
