Solar Power 5 Years Huawei Carton 100kw in Stock Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📋 Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1, 035 x 700 x 365 mm

💡 Product Description

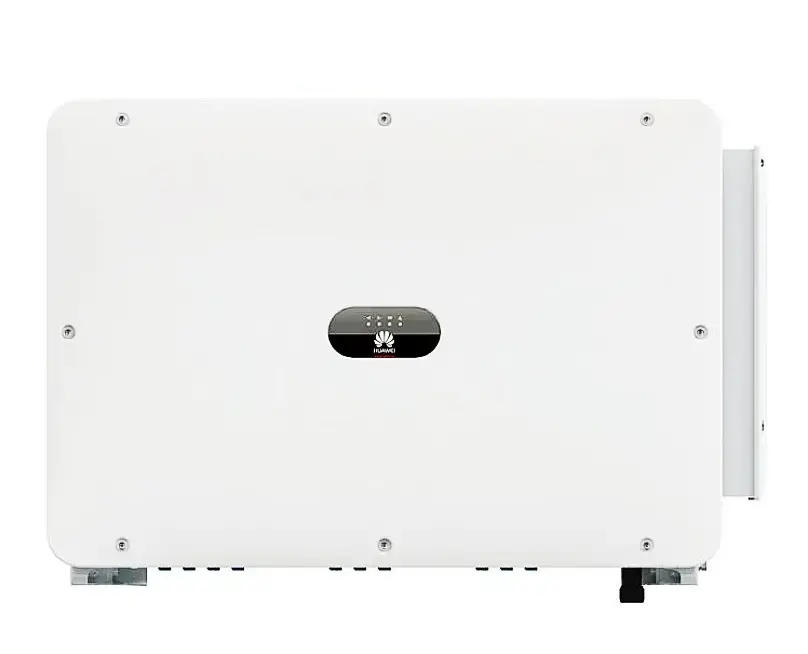

SUN2000-100KTL-M2

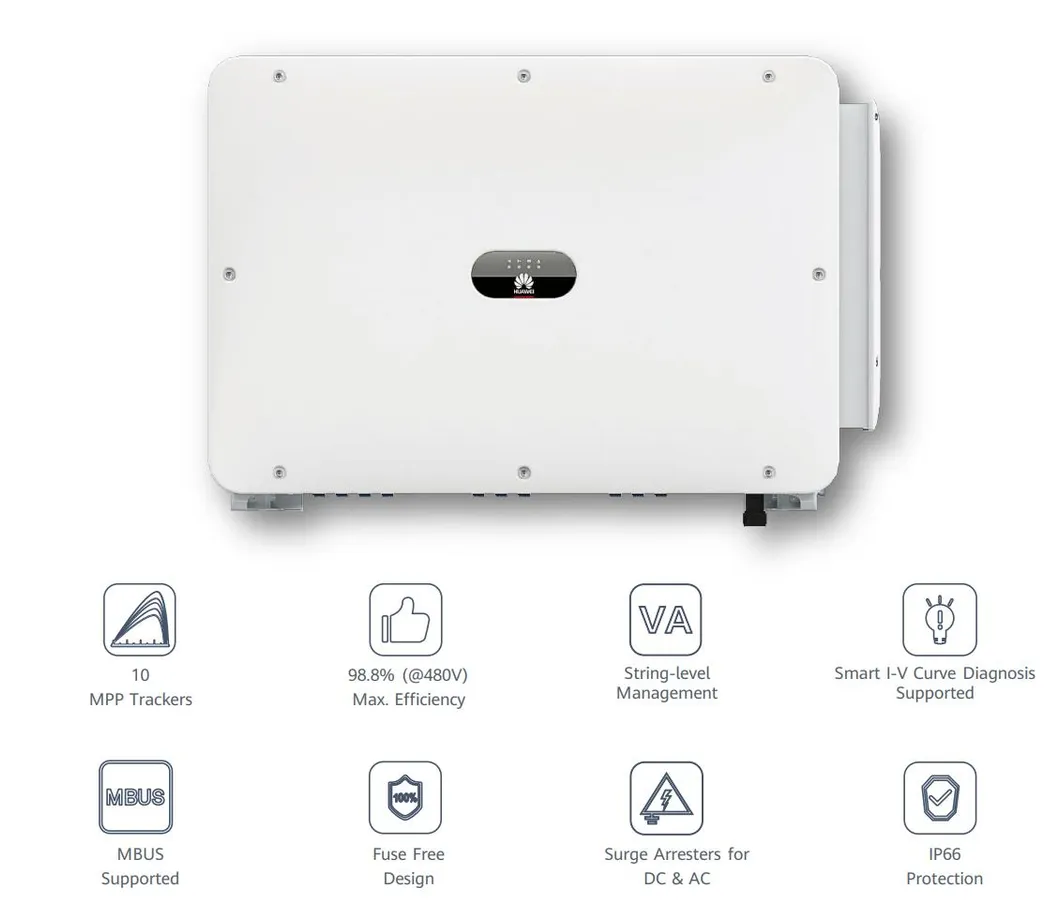

Smart PV Controller

⚙️ Technical Specifications

Technical Specifications	SUN2000-100KTL-M2

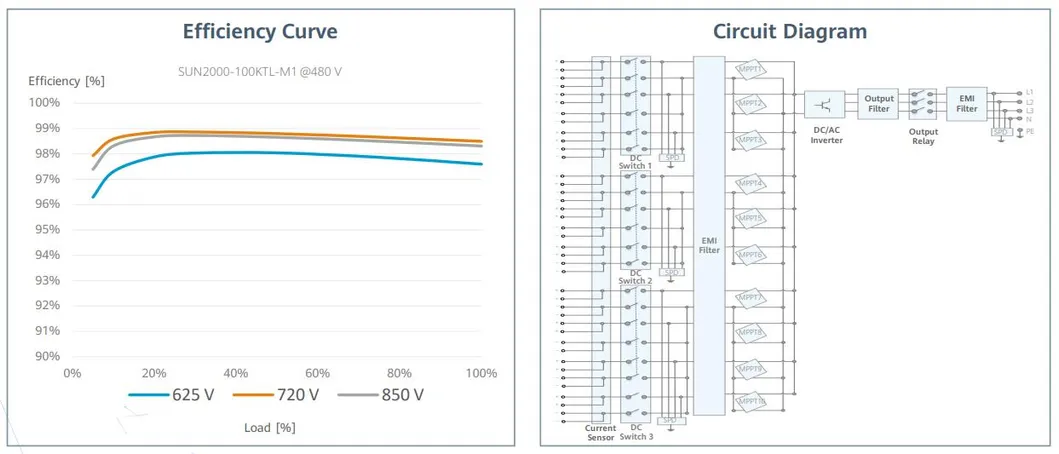

Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Max. input per MPP tracker	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection
Input-side Disconnection Device	Yes
Anti-Islanding Protection	Yes
DC Reverse-Polarity Protection	Yes
DC/AC Surge Arrester	Type II
General Data
Dimensions (W x H x D)	1,035 x 700 x 365 mm
Weight (with mounting plate)	90 kg
Operating Temperature	-25°C ~ 60°C
Protection Degree	IP66

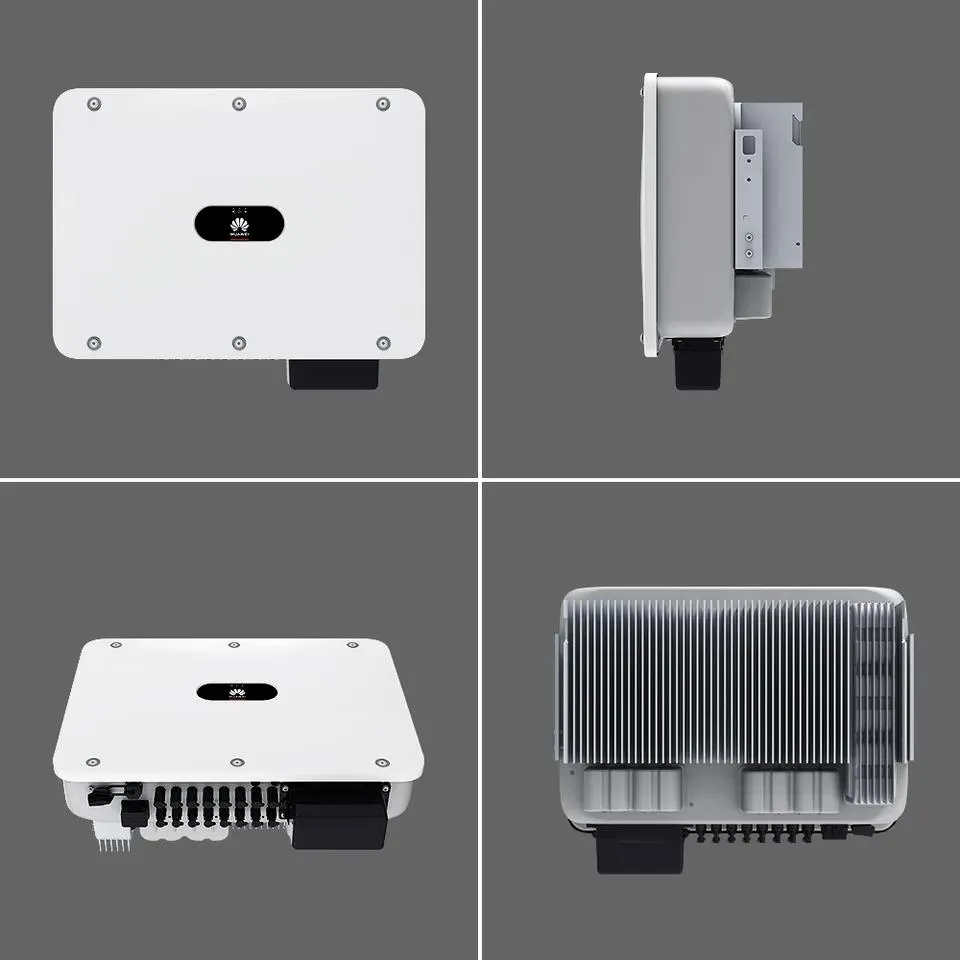

📦 Product Details & Packing

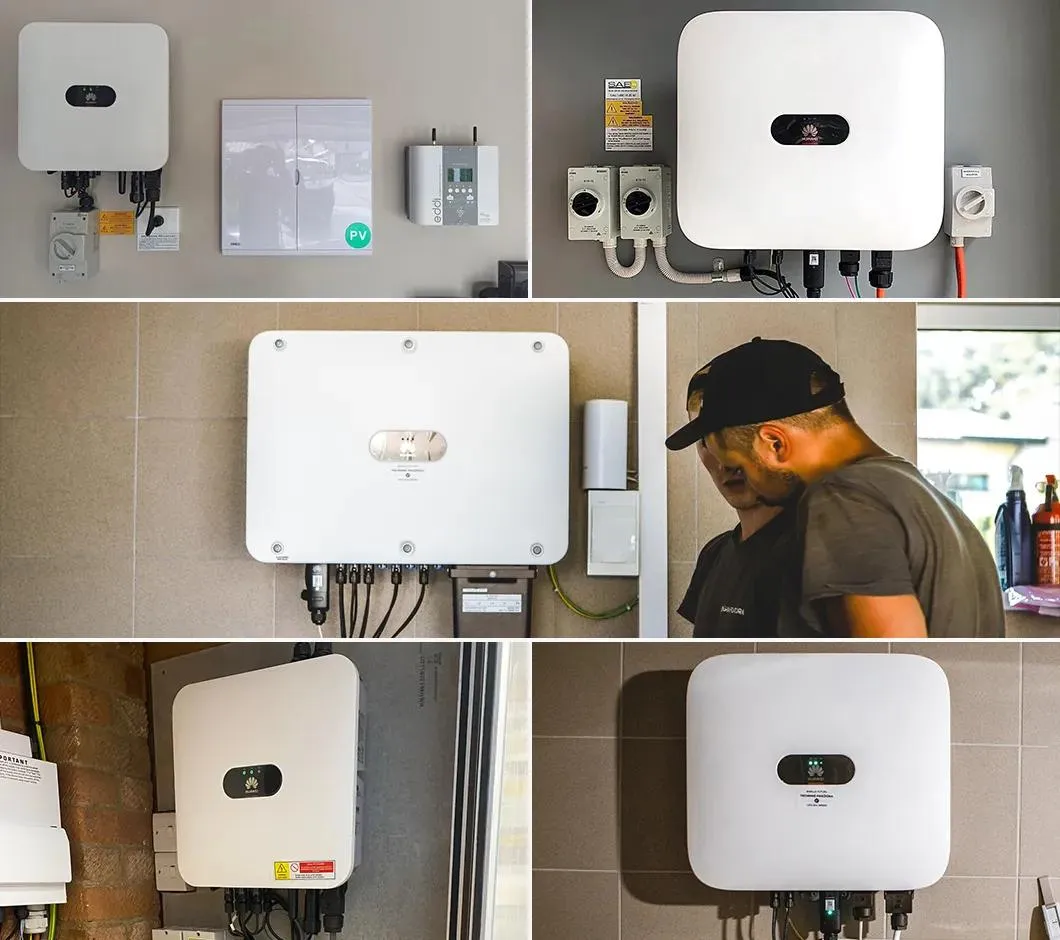

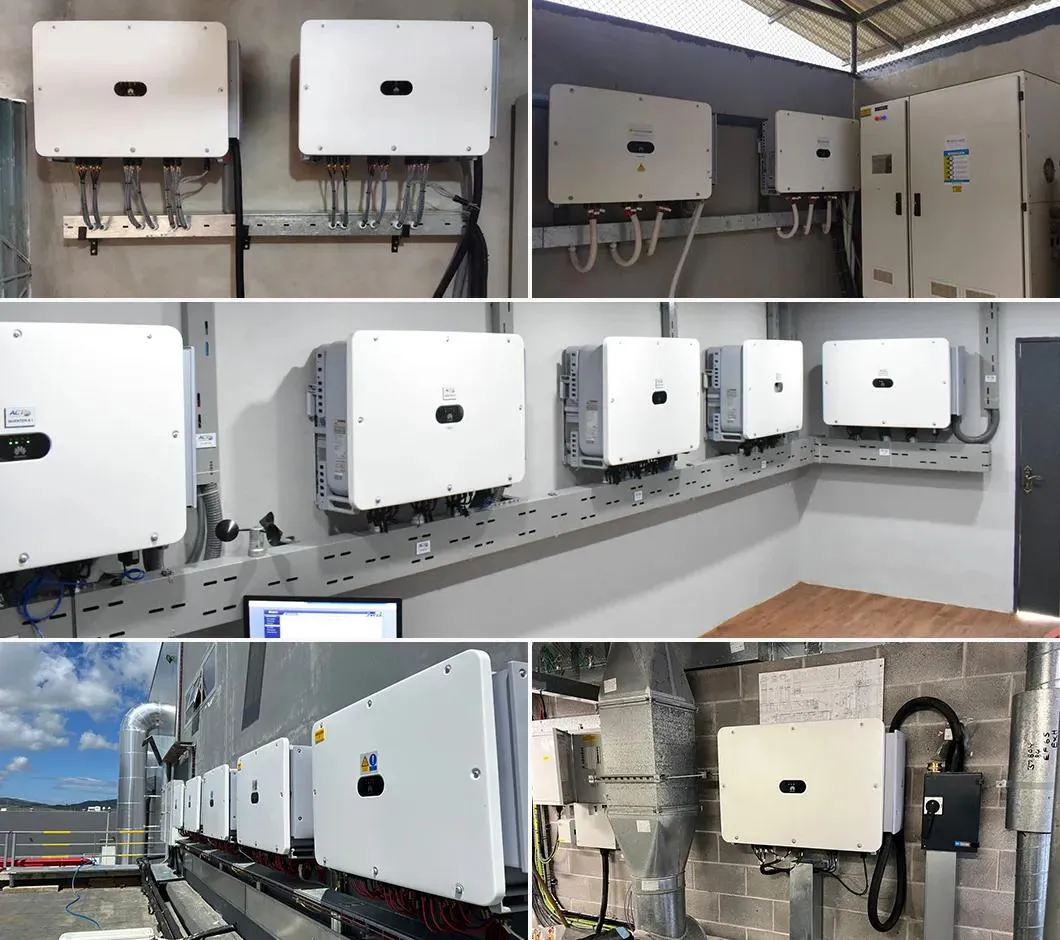

🏗️ Project Show

❓ Frequently Asked Questions

What is the maximum efficiency of this 100kw inverter?

The SUN2000-100KTL-M2 reaches a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V.

Is this inverter suitable for outdoor installation?

Yes, it features an IP66 protection degree, making it highly resistant to dust and water, perfect for outdoor environments.

How many MPPT trackers does the SUN2000-100KTL-M2 have?

This model is equipped with 10 independent MPP trackers to ensure optimal power generation even in complex installation conditions.

What cooling method does the device use?

It utilizes Smart Air Cooling technology to maintain stable operating temperatures and prolong the device's lifespan.

Can I monitor the system remotely?

Yes, the system supports LED indicators and can be accessed via a WLAN adaptor combined with the FusionSolar App for real-time monitoring.

What are the safety protection features?

It includes multiple safety features such as Anti-Islanding protection, DC Reverse-Polarity protection, AC Overcurrent protection, and Type II Surge Arresters for both DC and AC sides.
