Push-Pull Type Huawei Carton Solar Hybrid on Grid Inverter with CE

1 / 5

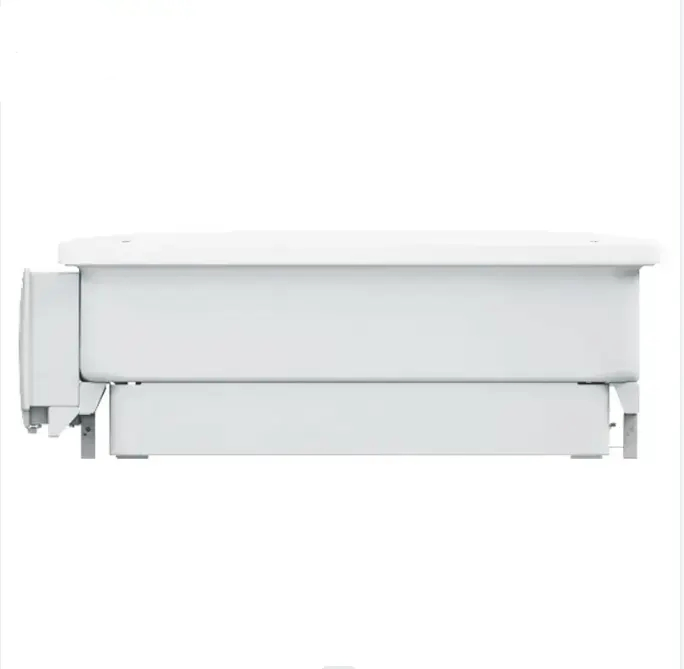

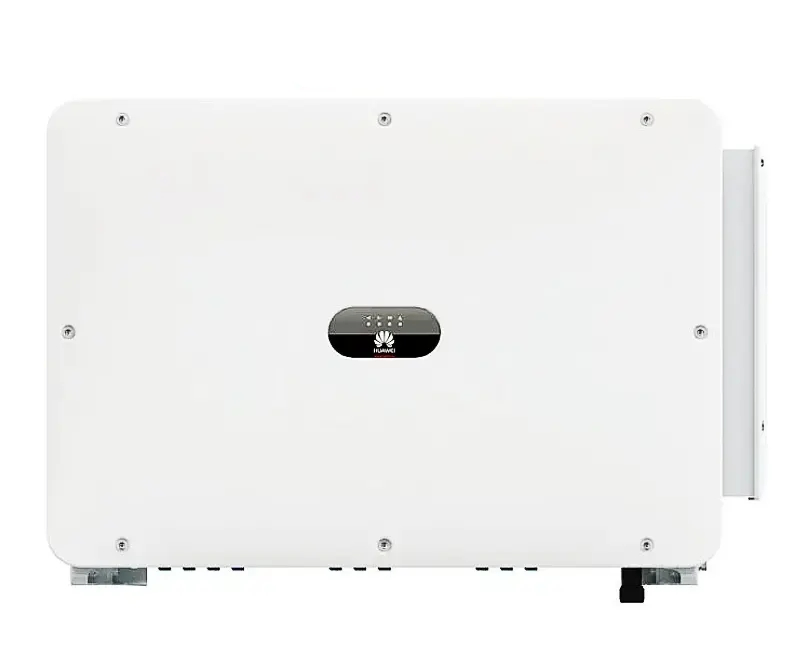

Push-Pull Type Huawei Carton Solar Hybrid on Grid Inverter with CE

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Overview Product Description Specifications Details Packing & Delivery Project Show FAQ

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

Product Description

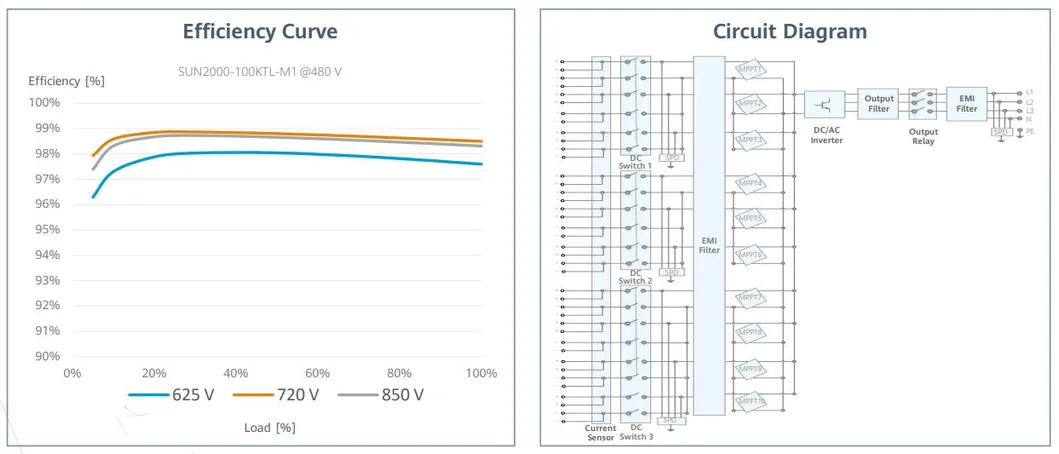

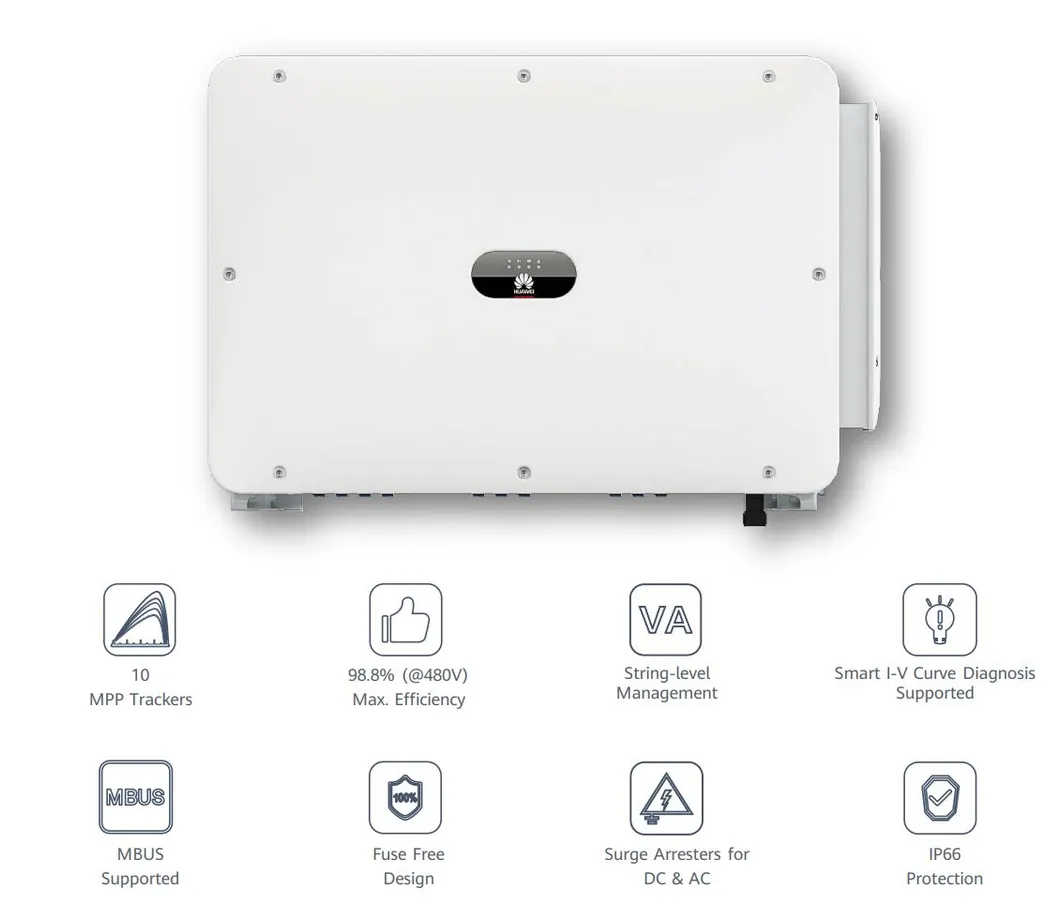

SUN2000-100KTL-M2 Smart PV Controller

Technical Specifications

Category	Specification Details (SUN2000-100KTL-M2)
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
Number of MPP trackers	10
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Protection Degree	IP66
Cooling Method	Smart Air Cooling
Operating Temperature	-25°C ~ 60°C

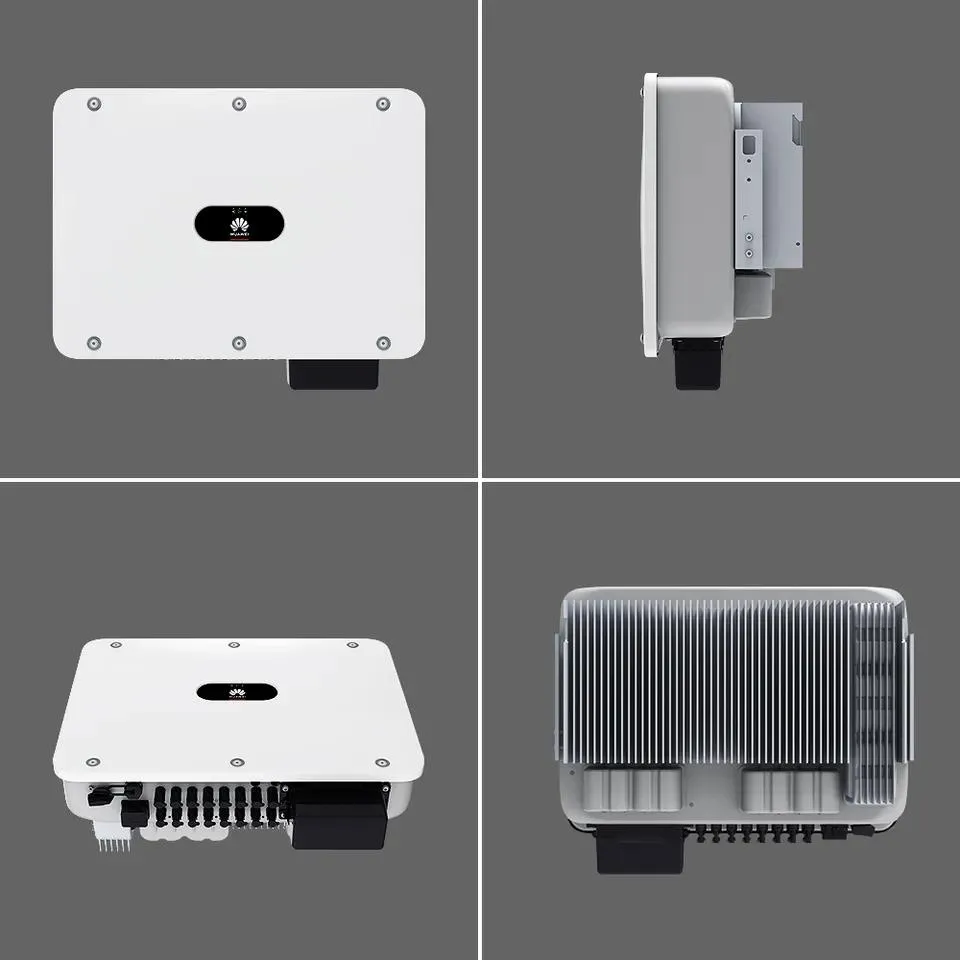

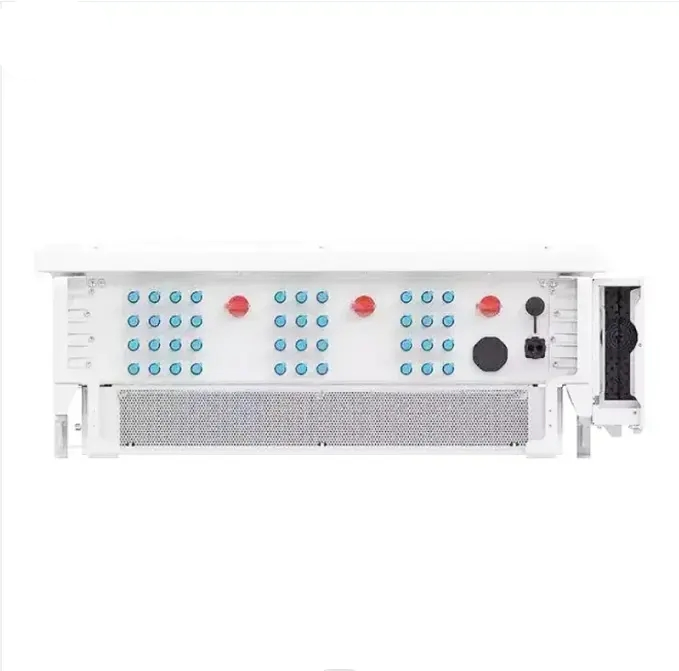

Product Details

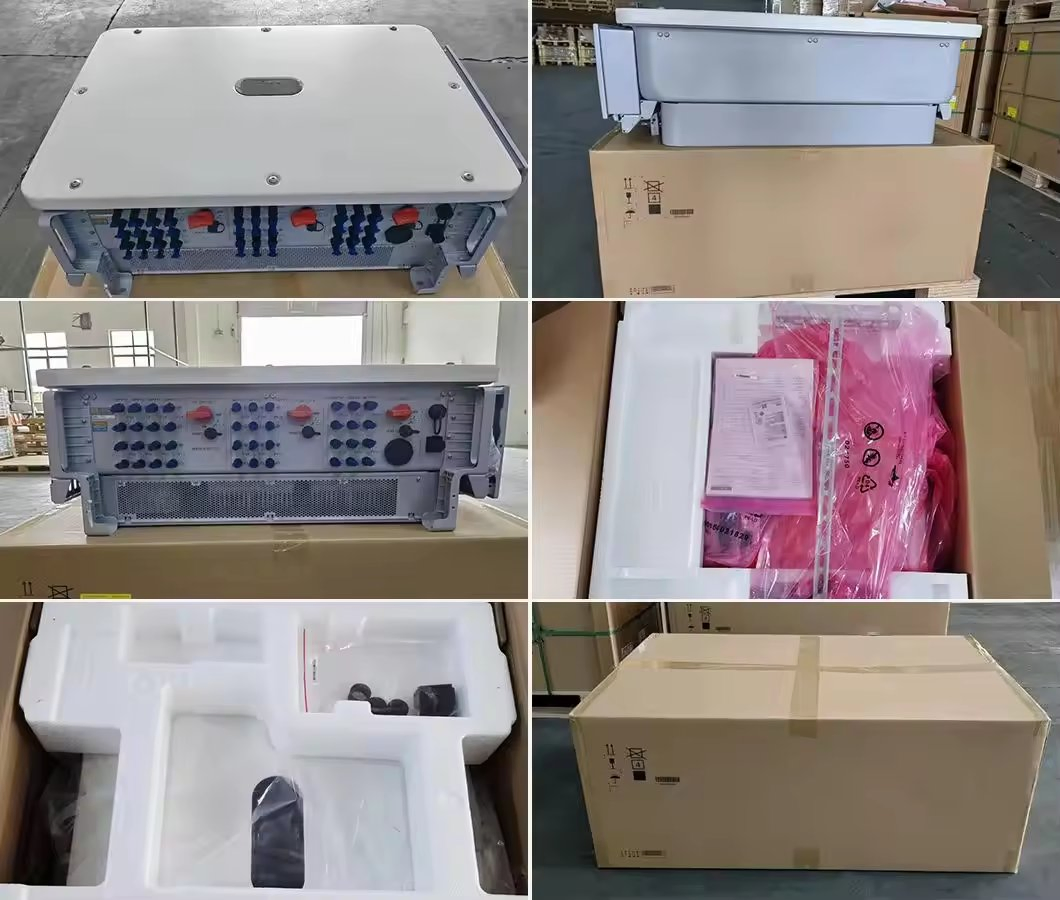

Packing & Delivery

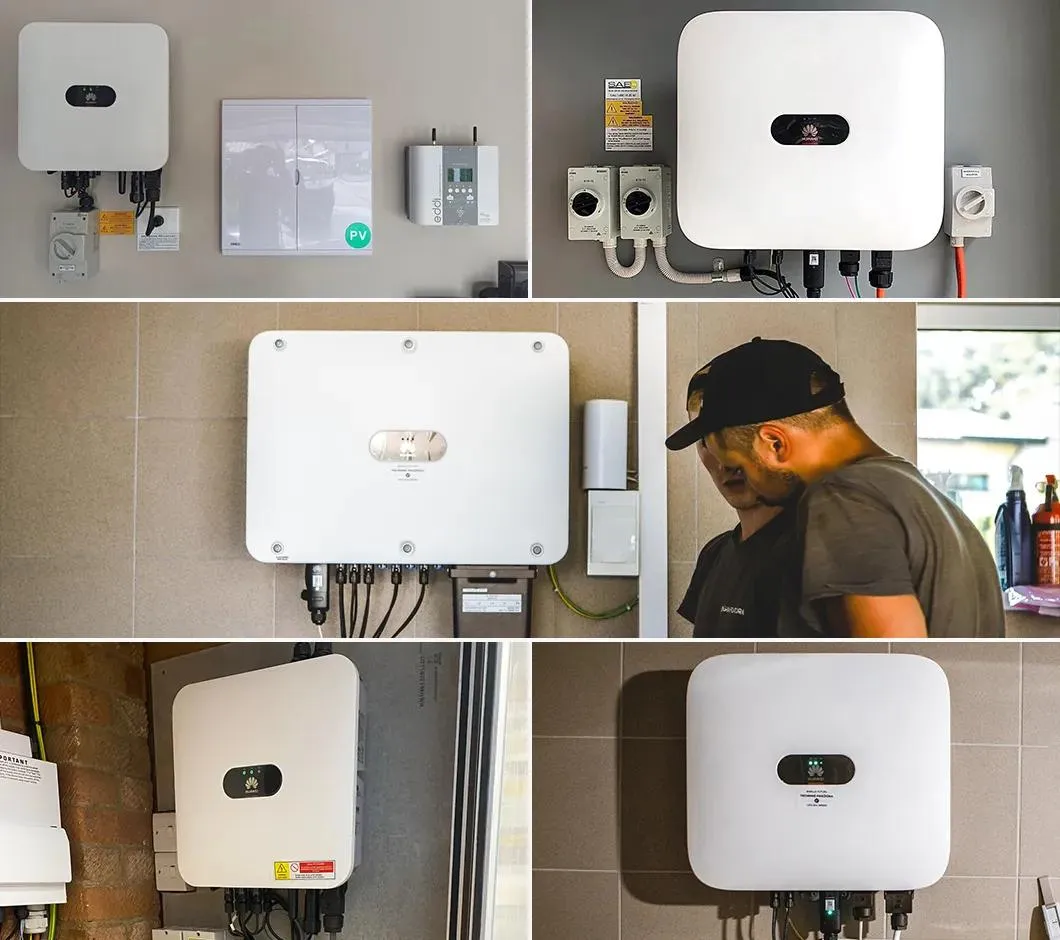

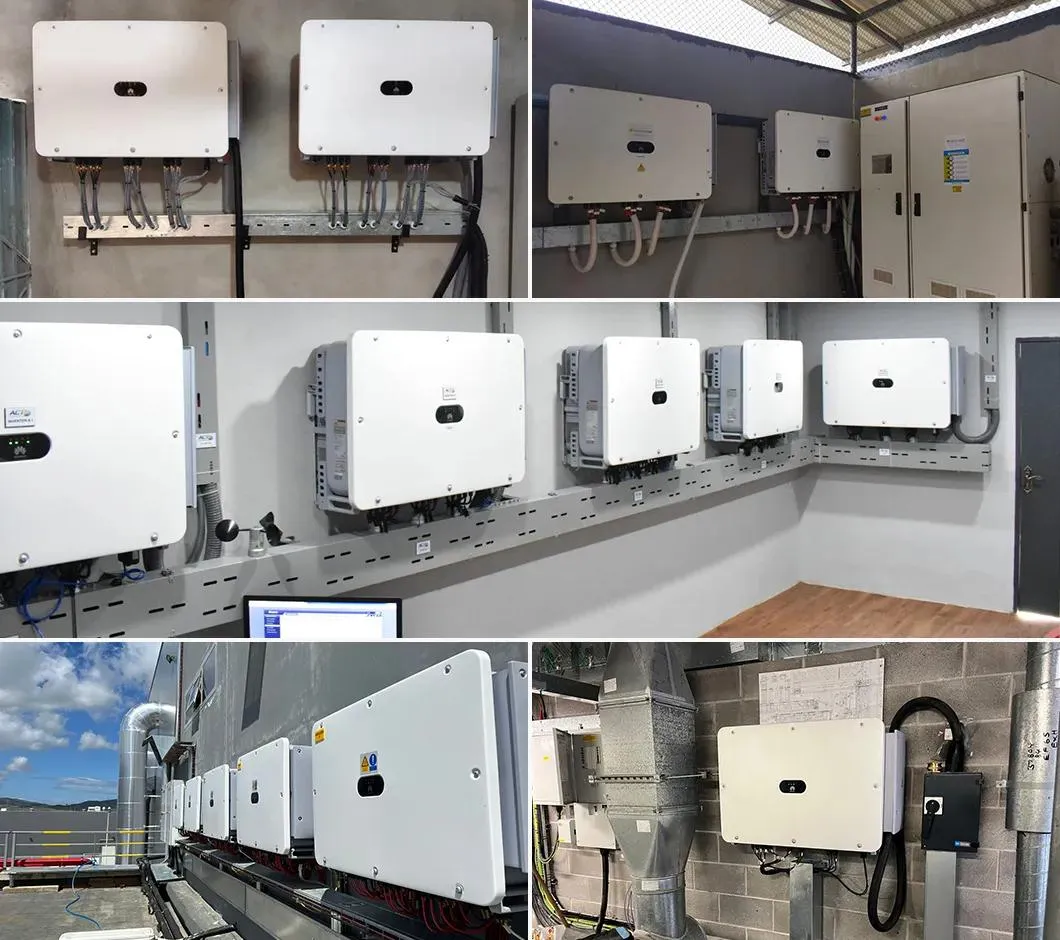

Project Show

Frequently Asked Questions

1. What is the maximum efficiency of this solar inverter?

The SUN2000-100KTL-M2 features a maximum efficiency of 98.8% at 480V and a European efficiency of up to 98.6%.

2. How many MPP trackers are available for string configuration?

It is equipped with 10 independent MPP trackers, with 2 inputs per tracker, allowing for optimized energy harvest across complex roof or ground installations.

3. What kind of environmental protection does the unit offer?

The inverter is rated IP66, providing complete protection against dust and high-pressure water jets, suitable for harsh outdoor environments.

4. Does it support remote monitoring and app integration?

Yes, it features LED indicators and supports the FusionSolar APP via a WLAN adapter. It also offers optional 4G/3G/2G Smart Dongles for remote connectivity.

5. What safety protections are built into the system?

The system includes DC disconnection devices, anti-islanding protection, AC overcurrent protection, DC reverse-polarity protection, and Type II surge arresters for both AC and DC sides.

6. What certifications does this inverter carry?

The product is fully certified with SAA, CE, ROHS, ISO9001, and TUV CQC, meeting international quality and safety standards.
