China ISO9001 Approved Huawei Carton 1, 035 X 700 365 mm Hybrid on Grid Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

SUN2000-100KTL-M2

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Specification

1,035 x 700 x 365 mm

Capacity

10000PCS Per Month

Product Description

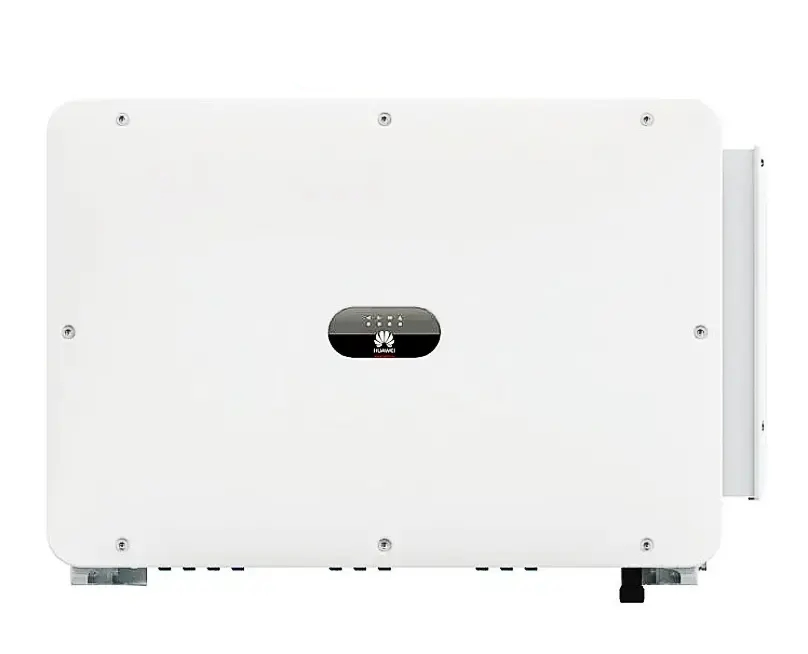

SUN2000-100KTL-M2 Smart PV Controller

Technical Specifications

Parameter	SUN2000-100KTL-M2 Detail
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	10
Max. input number per MPPT	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Total Harmonic Distortion	<3%
Protection
Anti-Islanding Protection	Yes
AC Overcurrent Protection	Yes
DC Reverse-Polarity Protection	Yes
DC/AC Surge Arrester	Type II
General Data
Dimensions (W x H x D)	1,035 x 700 x 365 mm
Weight (with mounting plate)	90 kg
Operating Temperature	-25°C ~ 60°C
Protection Degree	IP66

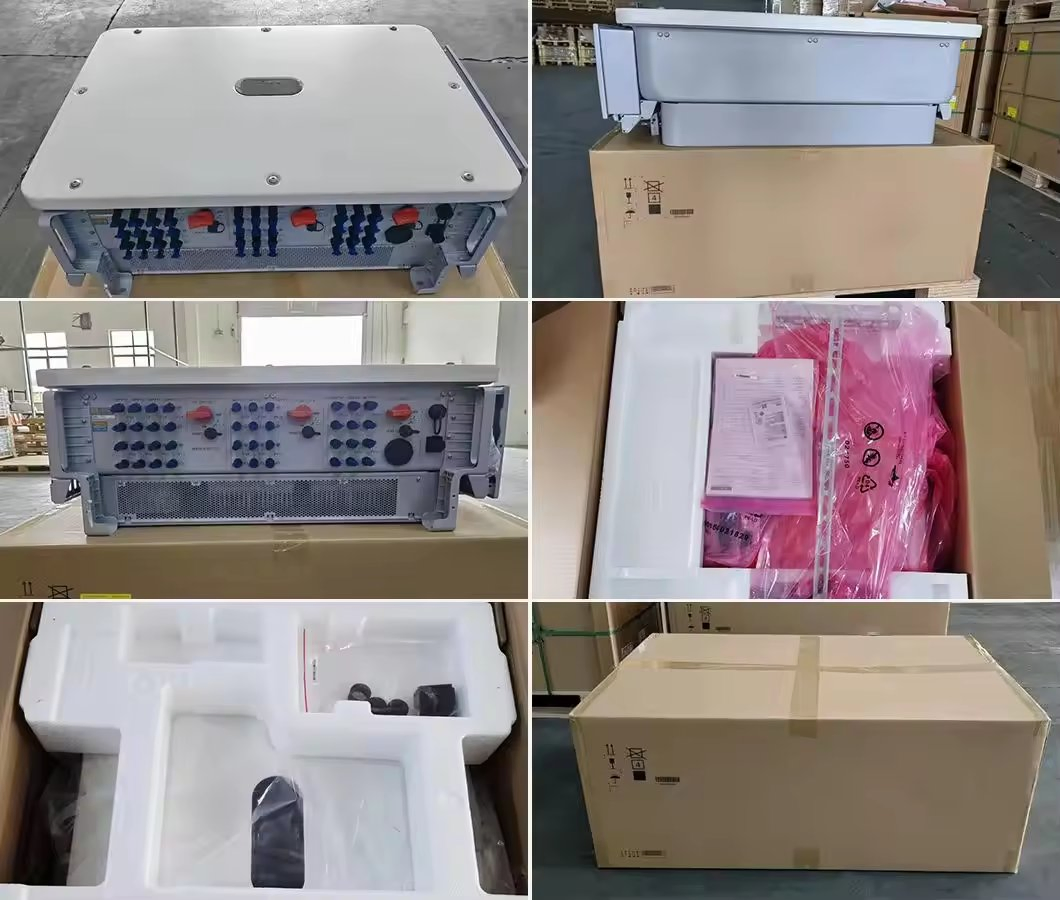

Product Details & Packing

Project Show

Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPT trackers are integrated into this model?

It features 10 independent MPPT (Maximum Power Point Tracking) trackers, with 2 inputs per tracker, allowing for flexible string configurations and optimized performance.

Is this inverter suitable for outdoor installation?

Yes, it has a protection degree of IP66, making it completely dust-tight and protected against powerful water jets, ideal for harsh outdoor environments.

What cooling method does the SUN2000-100KTL-M2 use?

It utilizes a Smart Air Cooling system that efficiently manages the internal temperature to maintain optimal performance even in high-temperature environments.

What communication options are available for monitoring?

The system supports LED indicators and a WLAN adaptor for use with the FusionSolar App. It also offers optional 4G/3G/2G communication via a Smart Dongle and RS485 support.

Does it provide surge protection?

Yes, it is equipped with Type II surge arresters for both the DC and AC sides, providing robust protection against electrical surges.
