Three Carton 1, 035 X 700 365 mm Inverter Huawei Inverters with SAA

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊

Overview & Basic Info

Model NO.

SUN2000-100KTL-M2

Brand

Huawei

Output Power

100kw

Phase

Three Phase

Type

DC/AC Inverters

Efficiency

98.8%

Protection

IP66

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

🚀

Product Description

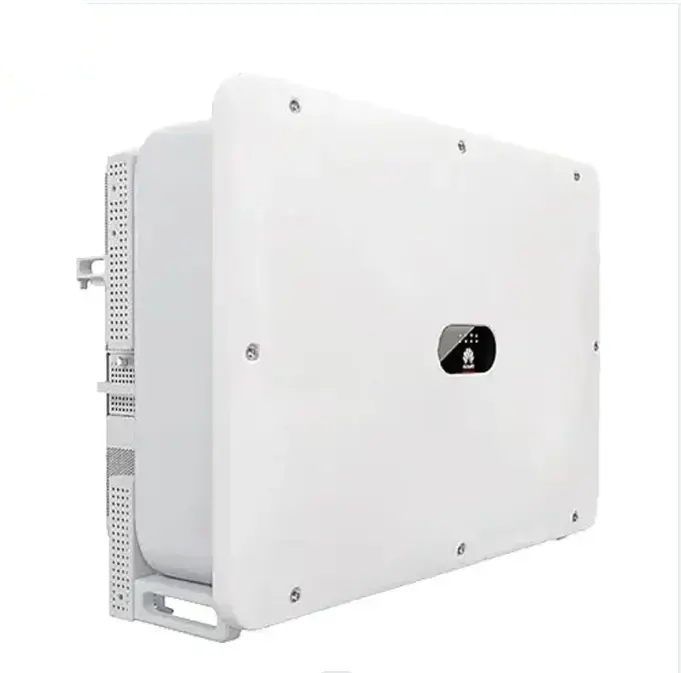

SUN2000-100KTL-M2 Smart PV Controller

Smart, efficient, and reliable three-phase string inverter designed for large-scale commercial and utility solar plants.

📋

Technical Specifications

Category	Parameter	SUN2000-100KTL-M2
Efficiency	Max. Efficiency	98.8% @480 V
Efficiency	European Efficiency	98.6% @480 V
Input	Max. Input Voltage	1,100 V
	Max. Current per MPPT	26 A
	Start Voltage	200 V
	Number of MPP trackers	10
	Max. inputs per MPPT	2
Output	Nominal AC Active Power	100,000 W
	Max. AC Apparent Power	110,000 VA
	Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
	Rated AC Grid Frequency	50 Hz / 60 Hz
Protection	Surge Arrester (DC/AC)	Type II
	Anti-Islanding Protection	Yes
	IP Rating	IP66
General	Cooling Method	Smart Air Cooling
General	Operating Temp	-25°C ~ 60°C

🔍

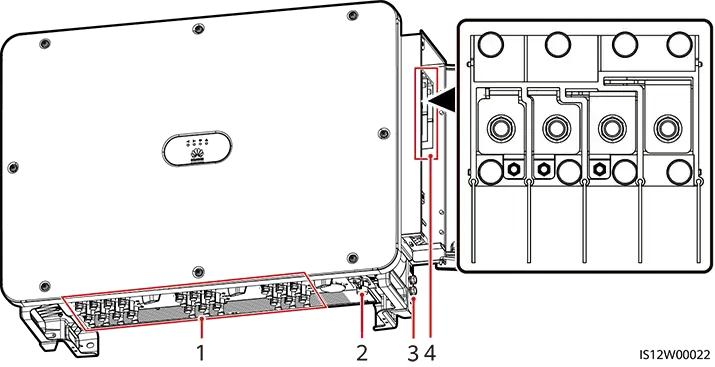

Product Details

📦

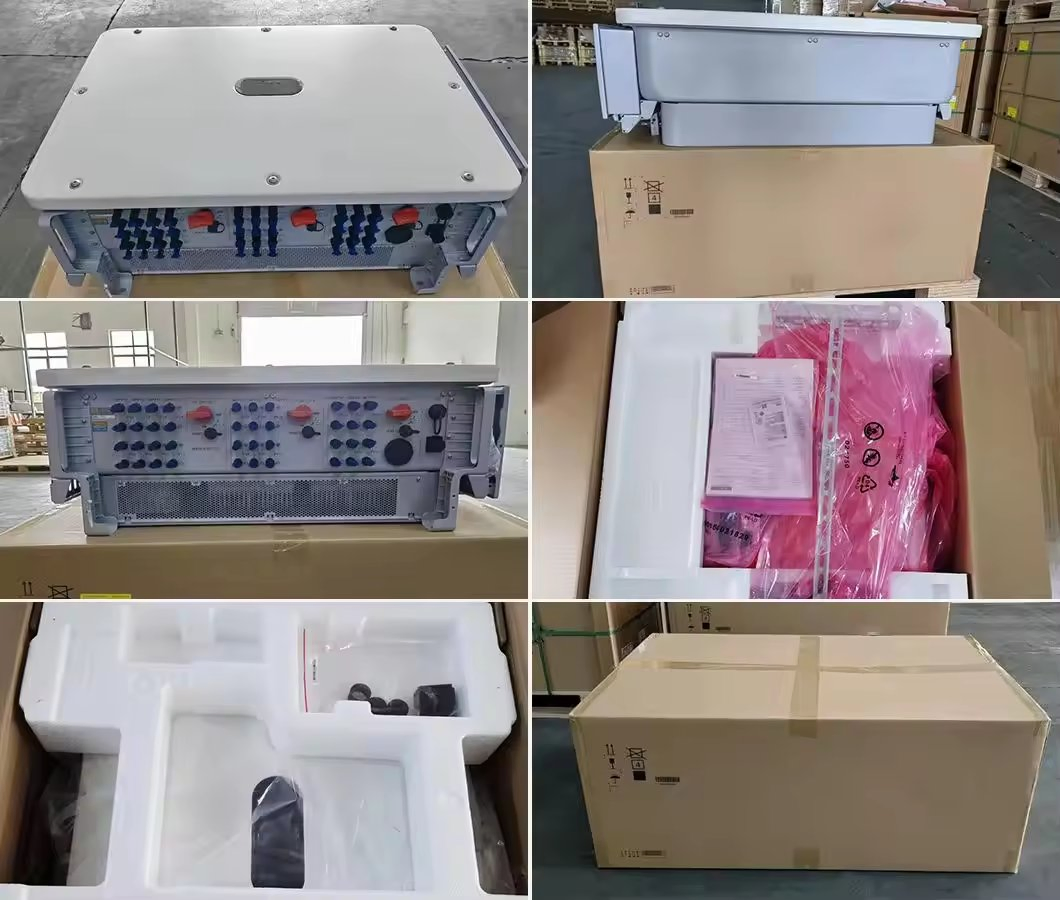

Packing & Delivery

🏗️

Project Show

❓

Frequently Asked Questions

1. What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss.

2. How many MPP Trackers does this model support?

This model features 10 independent MPP Trackers, allowing for flexible string configurations and optimized performance under varying shade conditions.

3. Is the inverter suitable for outdoor installation?

Yes, with an IP66 protection degree, it is fully protected against dust and heavy water jets, making it ideal for harsh outdoor environments.

4. What monitoring options are available?

It includes LED indicators and supports the WLAN adaptor + FusionSolar App. Additionally, 4G/3G/2G communication is available via an optional Smart Dongle.

5. What kind of cooling system does it use?

The SUN2000-100KTL-M2 uses Smart Air Cooling technology to maintain optimal operating temperatures even in high-ambient environments.

6. Does it include safety protections like surge arresters?

Yes, it is equipped with Type II DC and AC surge arresters, as well as anti-islanding and DC reverse-polarity protection.
