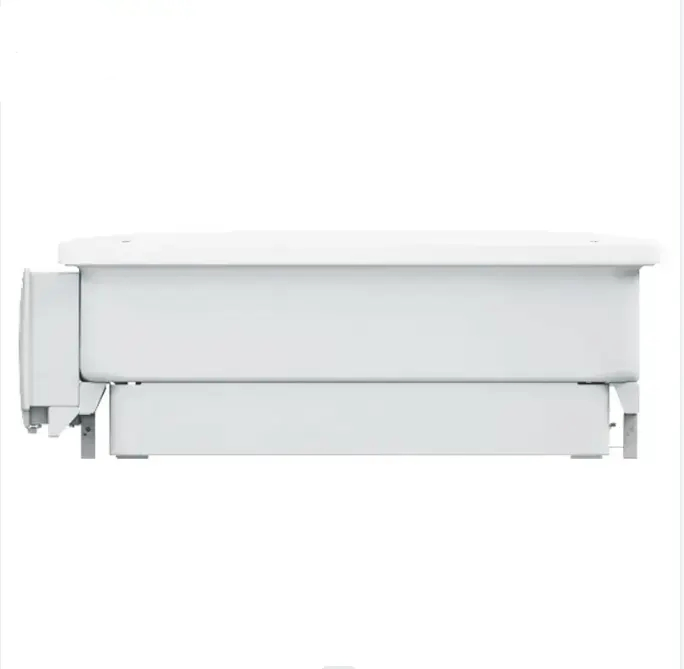

Huawei Power Carton 1, 035 X 700 365 mm Hybrid Solar Inverter

1 / 5

Huawei Power Carton 1, 035 X 700 365 mm Hybrid Solar Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

SUN2000-100KTL-M2

Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

Product Description

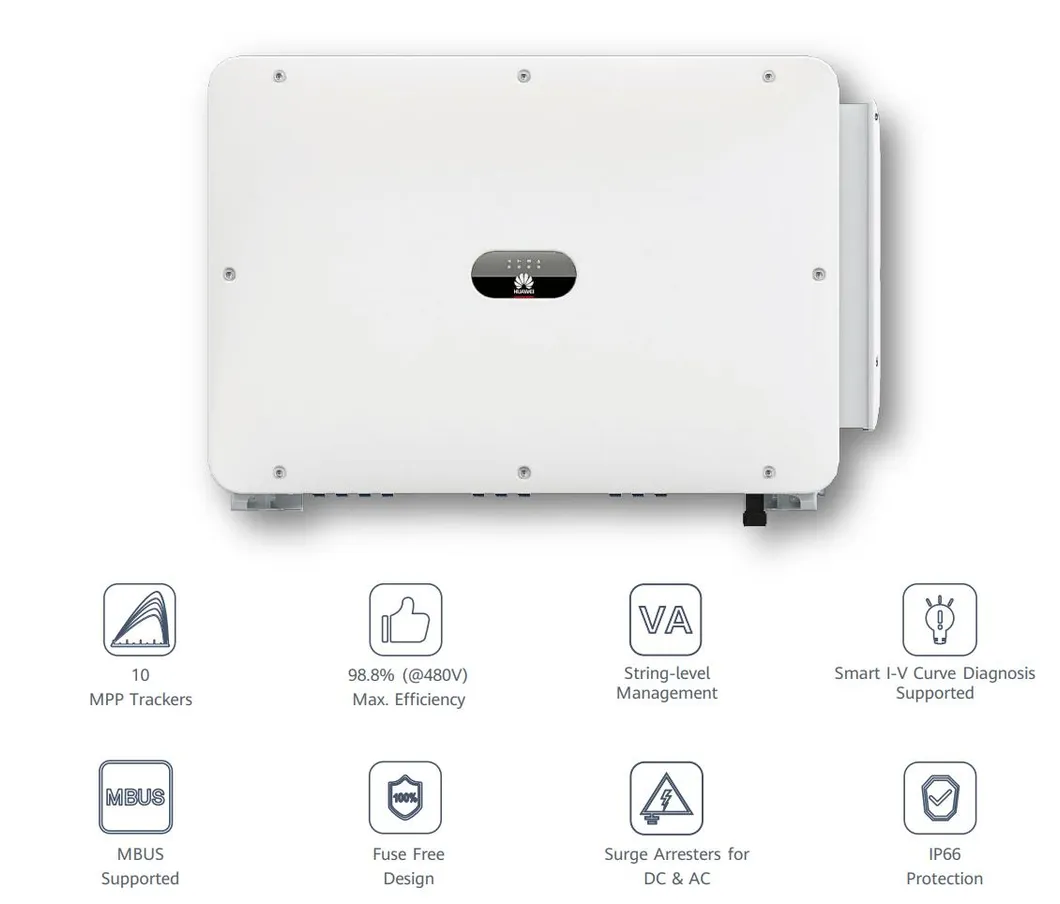

SUN2000-100KTL-M2 Smart PV Controller

Technical Specifications

Feature	Specification (SUN2000-100KTL-M2)

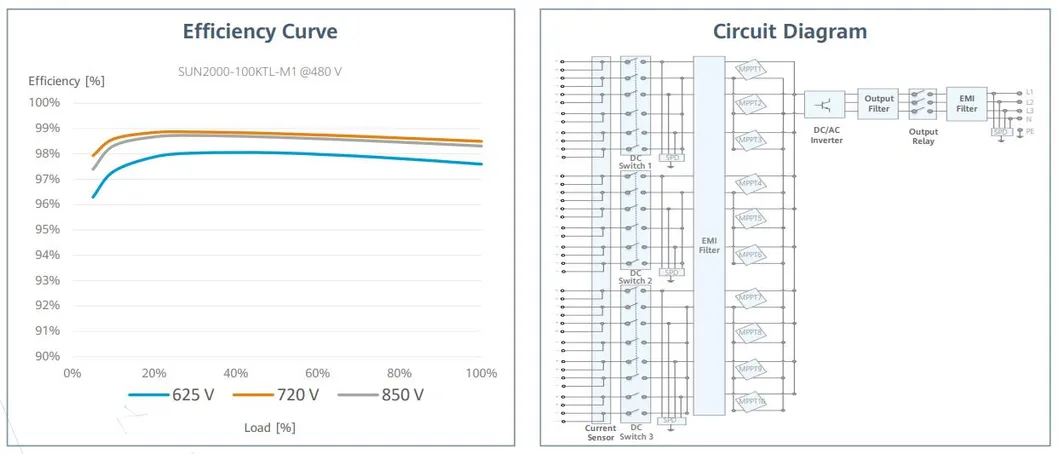

Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Number of MPP trackers	10
Max. Input per MPPT	2
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Max. Output Current	168.8 A @380 V
Protection
Anti-Islanding Protection	Yes
DC Reverse-Polarity Protection	Yes
Surge Arrester (DC/AC)	Type II
Protection Degree	IP66

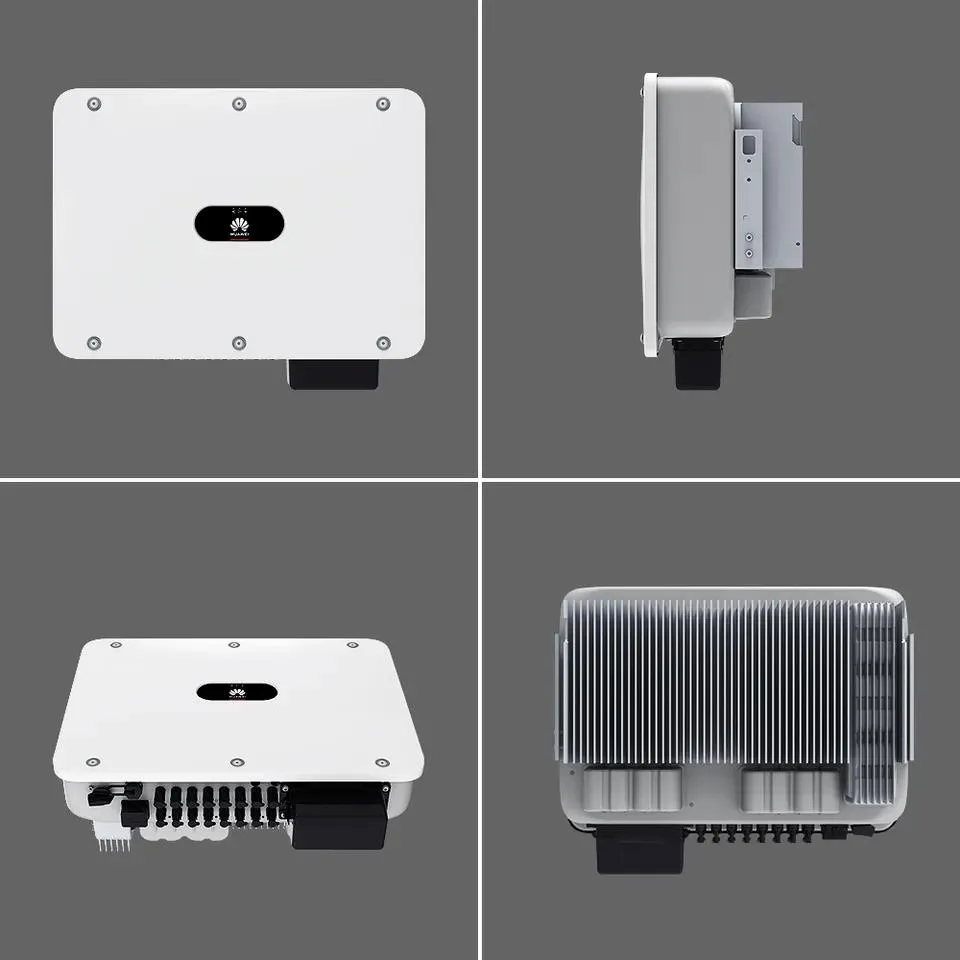

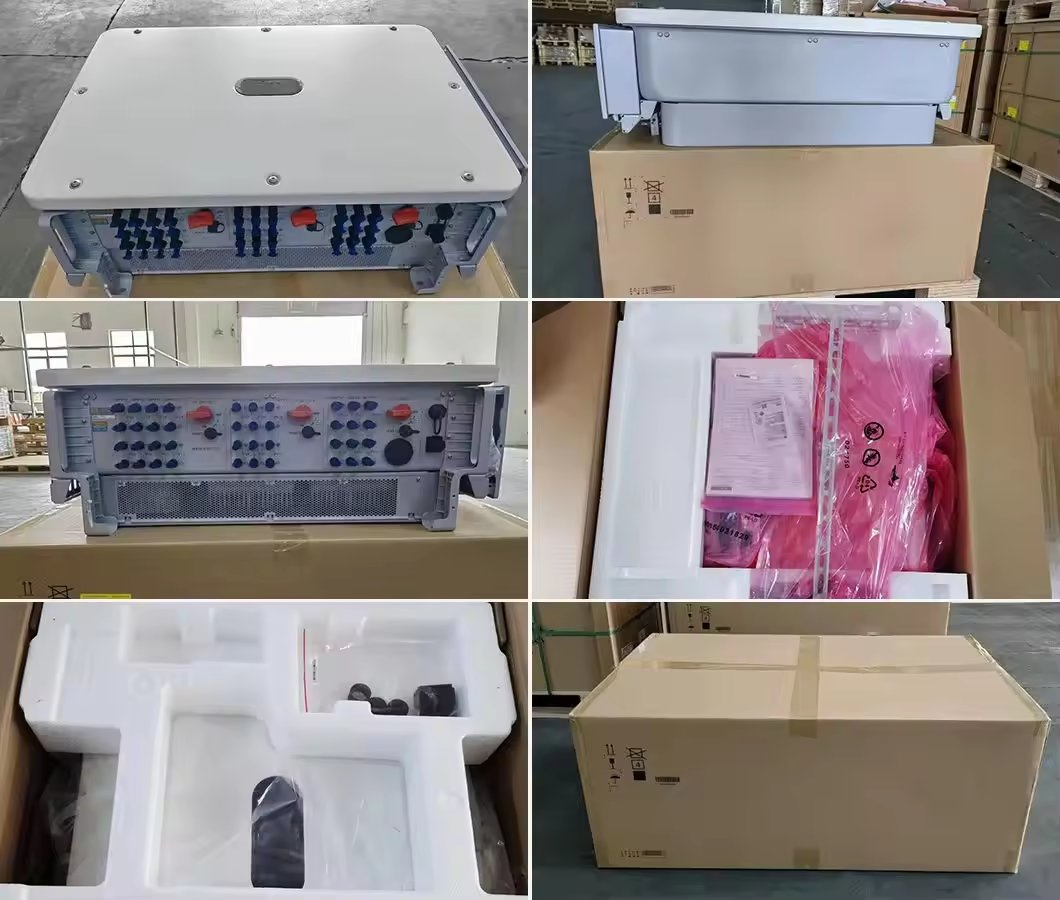

Product Details & Packing

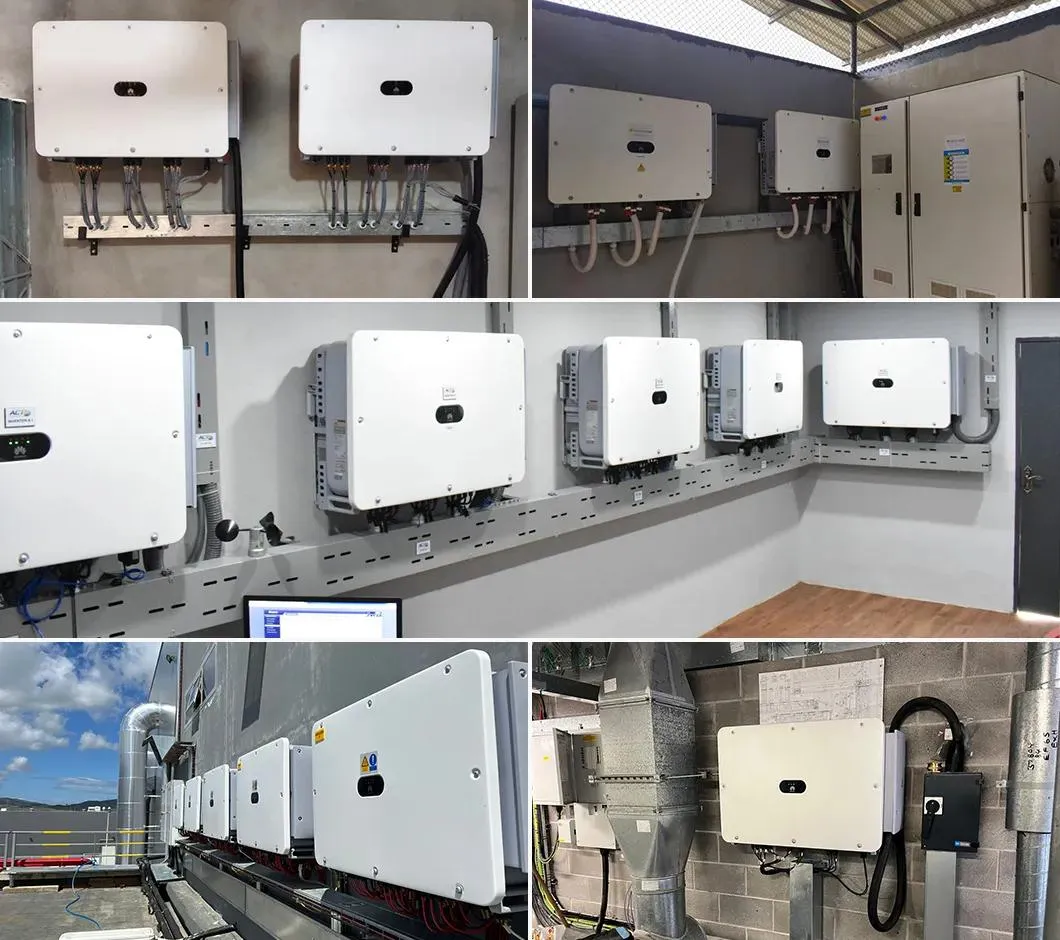

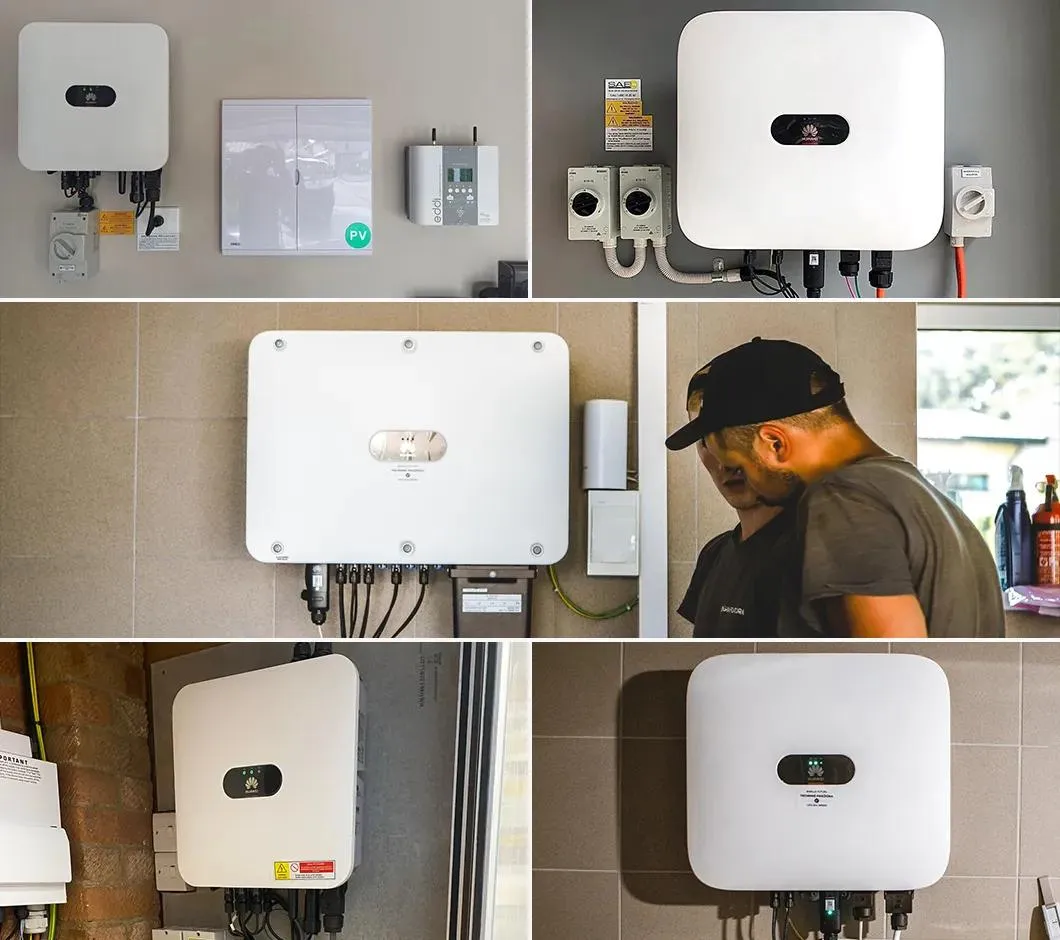

Project Show

Frequently Asked Questions

What is the core expertise of your team?

We are professional specialists in PV technology, focusing on the R&D, production, and sales of high-quality PV modules, solar power stations, and maintenance services.

How is product quality guaranteed?

Quality is managed through a rigorous process including pre-production sample evaluation and a mandatory final inspection before every shipment to ensure international standards.

What range of solar products can I purchase?

Our comprehensive range includes Solar Panels, complete Solar Systems, high-capacity Batteries, Smart Inverters, and Wi-Fi RTU monitoring tools.

Why choose these smart PV controllers over other suppliers?

Our products feature advanced technologies like high efficiency (98.8%), multiple MPP trackers (10), and IP66 protection, backed by extensive operation and maintenance expertise.

What delivery and payment terms are accepted?

We support various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payment can be made via T/T, L/C, or PayPal in currencies such as USD, EUR, and CNY.

Which languages does your service team support?

To provide global support, our team is proficient in English, Chinese, Spanish, Japanese, German, and Russian.
