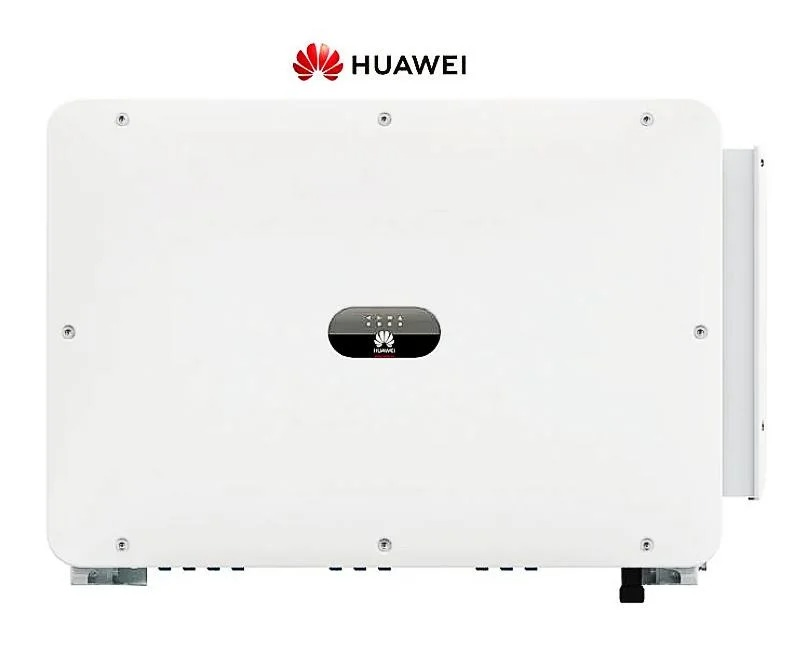

Huawei 110kw Sun2000-100ktl-M2 on Grid Solar System 100kw Solar Inverter for Commercial Solar Inverter

1 / 5

Huawei 110kw Sun2000-100ktl-M2 on Grid Solar System 100kw Solar Inverter for Commercial Solar Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SUN2000-100KTL-M2

Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC SAA

Brand

Huawei

Type

DC/AC Inverters

Wave String

Sine Wave Inverter

Weight

85kg

Specification

1,035 x 700 x 365 mm

💡 Product Overview

SUN2000-100KTL-M2 Smart PV Controller

High-performance three-phase inverter designed for commercial and utility-scale solar power systems, delivering efficiency and intelligence in power conversion.

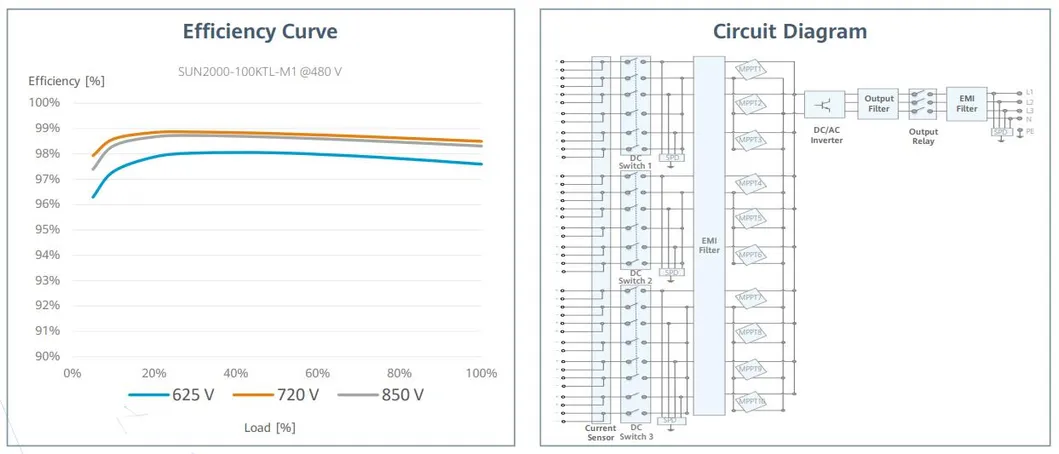

⚙️ Technical Specifications

Efficiency Features	SUN2000-100KTL-M2 Performance
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input Data
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output Data
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection & Safety
Anti-Islanding / AC Overcurrent	Yes
DC Reverse-Polarity Protection	Yes
Surge Arrester (DC/AC)	Type II
Protection Degree	IP66

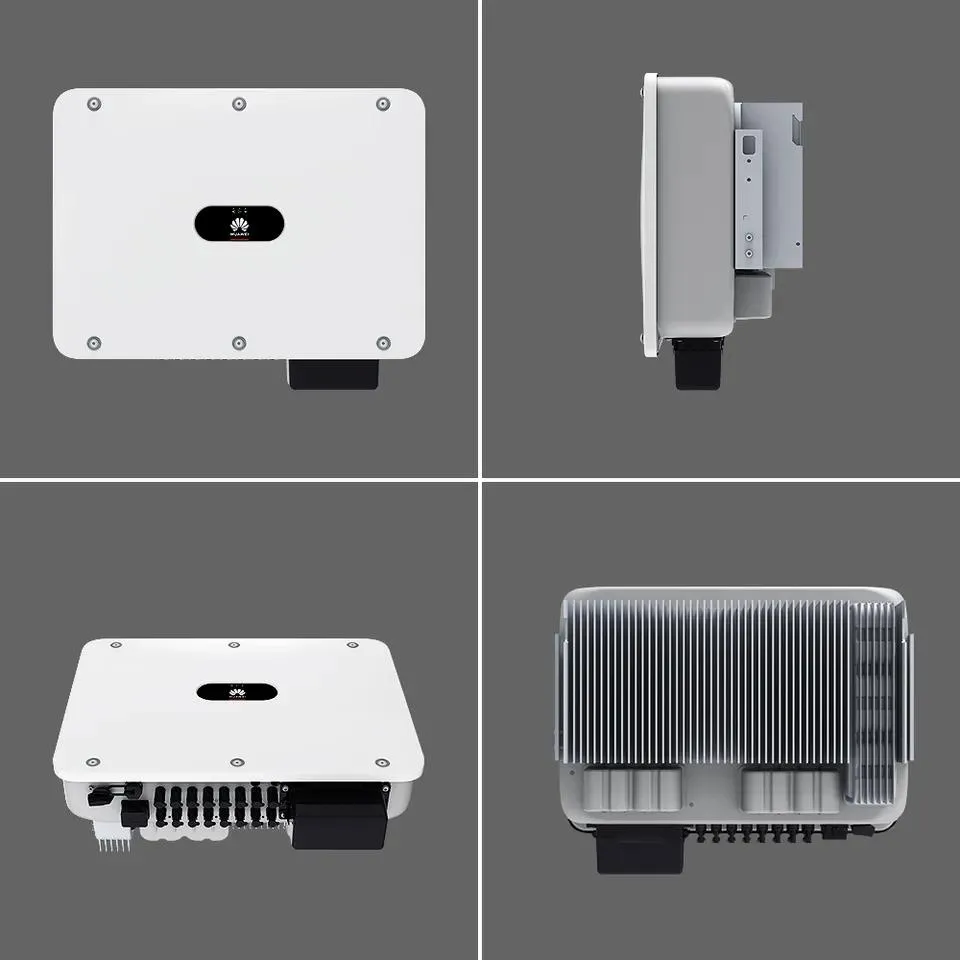

📦 Product Details & Delivery

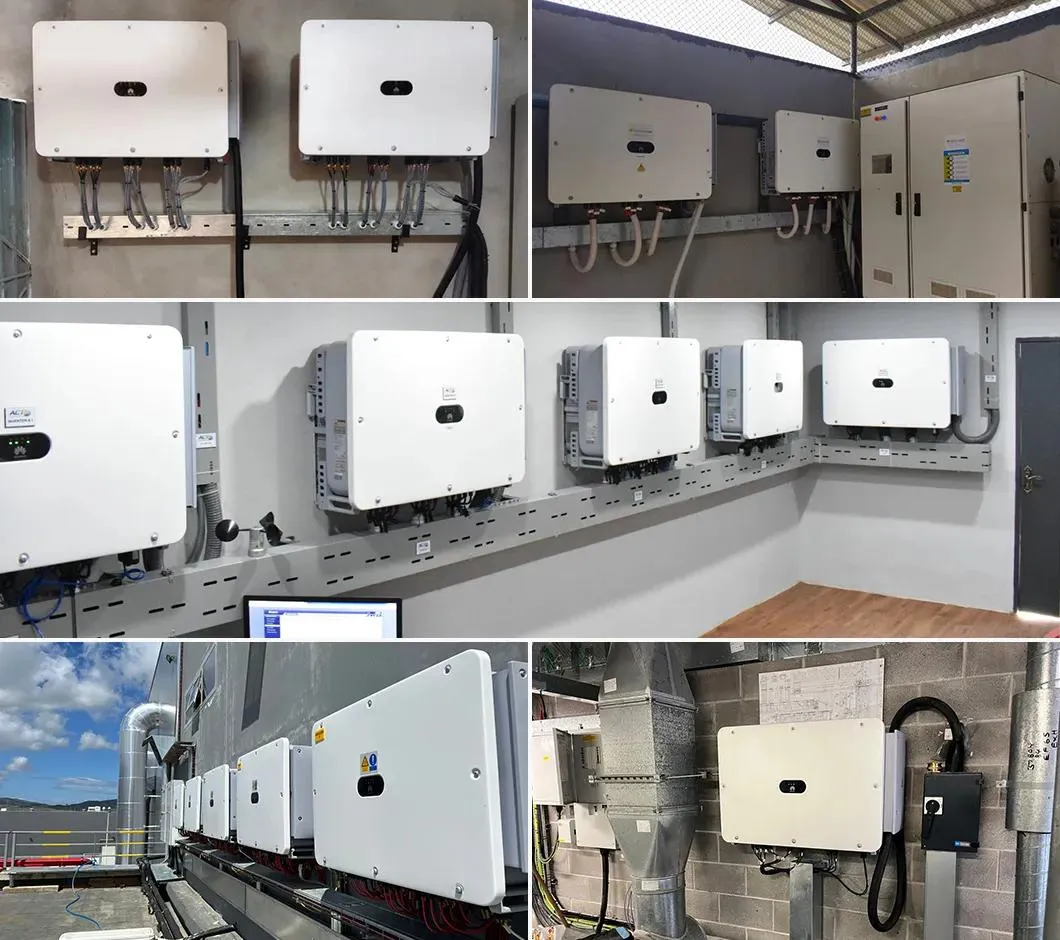

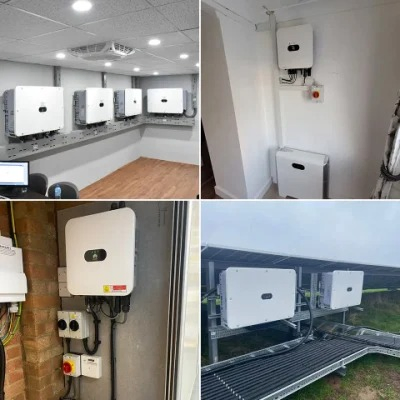

🏗️ Project Showcase

❓ Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPTs does this model support?

It features 10 independent MPP trackers with 2 inputs per tracker, allowing for flexible string design and optimized performance even in complex shading conditions.

Is this inverter suitable for outdoor installation?

Yes, with an IP66 protection rating and an operating temperature range of -25°C to 60°C, it is designed to withstand harsh outdoor environments.

What cooling technology is utilized?

The unit uses Smart Air Cooling technology to maintain optimal operating temperatures and ensure long-term reliability.

What communication options are available for monitoring?

It supports LED indicators, RS485, USB, and optional Smart Dongle-4G (4G/3G/2G) for seamless integration with monitoring apps.

Does it include built-in safety protections?

Yes, it includes integrated DC/AC Type II Surge Arresters, Anti-Islanding protection, DC Reverse-Polarity protection, and String Fault Monitoring.
