5 Years Three Carton 1, 035 X 700 365 mm Solar Inverter 110kw Huawei Inverters

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📋 Basic Information

Model NO.

SUN2000-100KTL-M2

Source Flow

Active Inverter

Phase

Three Phase

Output Power

100kw

Certification

SAA, CE, ROHS, ISO9001, TUV CQC

Brand

Huawei

Type

DC/AC Inverters

Weight

85kg

Dimensions

1,035 x 700 x 365 mm

Origin

China

⭐ Product Description

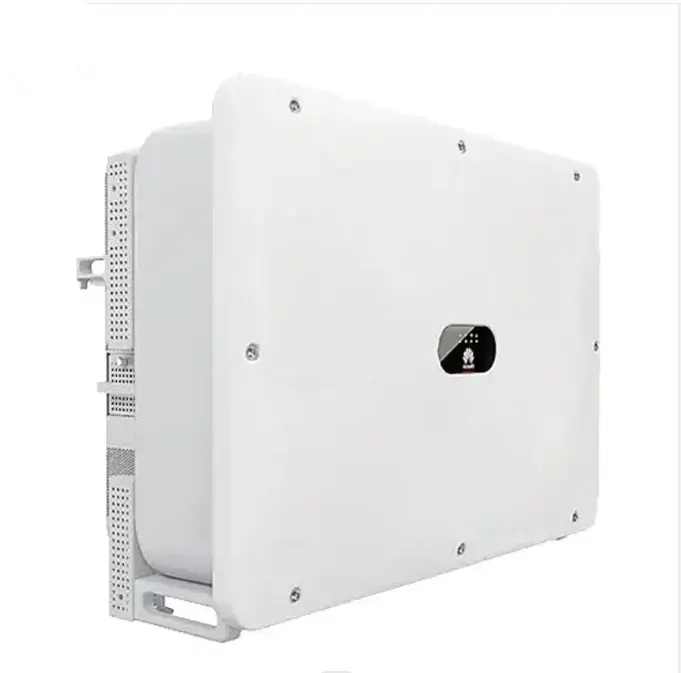

SUN2000-100KTL-M2 Smart PV Controller

⚙️ Technical Specifications

SUN2000-100KTL-M2 Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input Data
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	10
Max. input number per MPP tracker	2
Output Data
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Output Current	168.8 A @380 V
Protection
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
IP Protection Degree	IP66
General Data
Operating Temperature Range	-25°C ~ 60°C
Cooling Method	Smart Air Cooling
Dimensions (W x H x D)	1,035 x 700 x 365 mm
Weight	90 kg

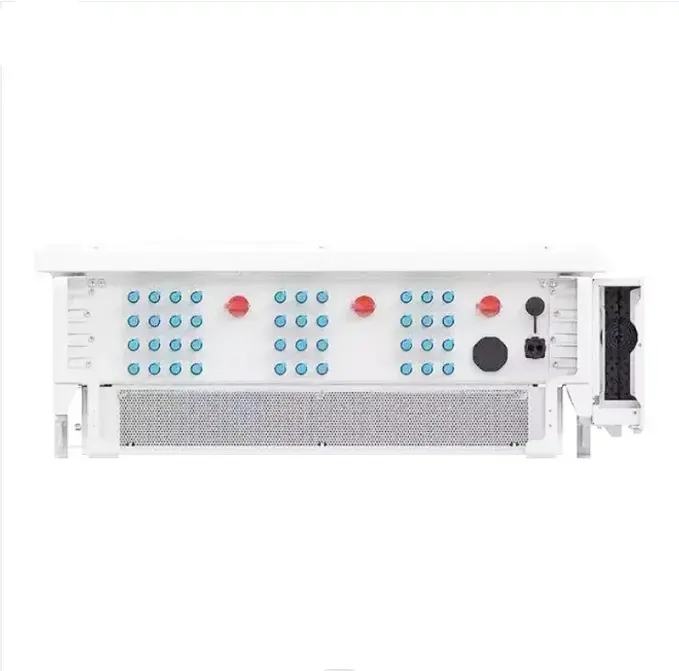

🔍 Product Details

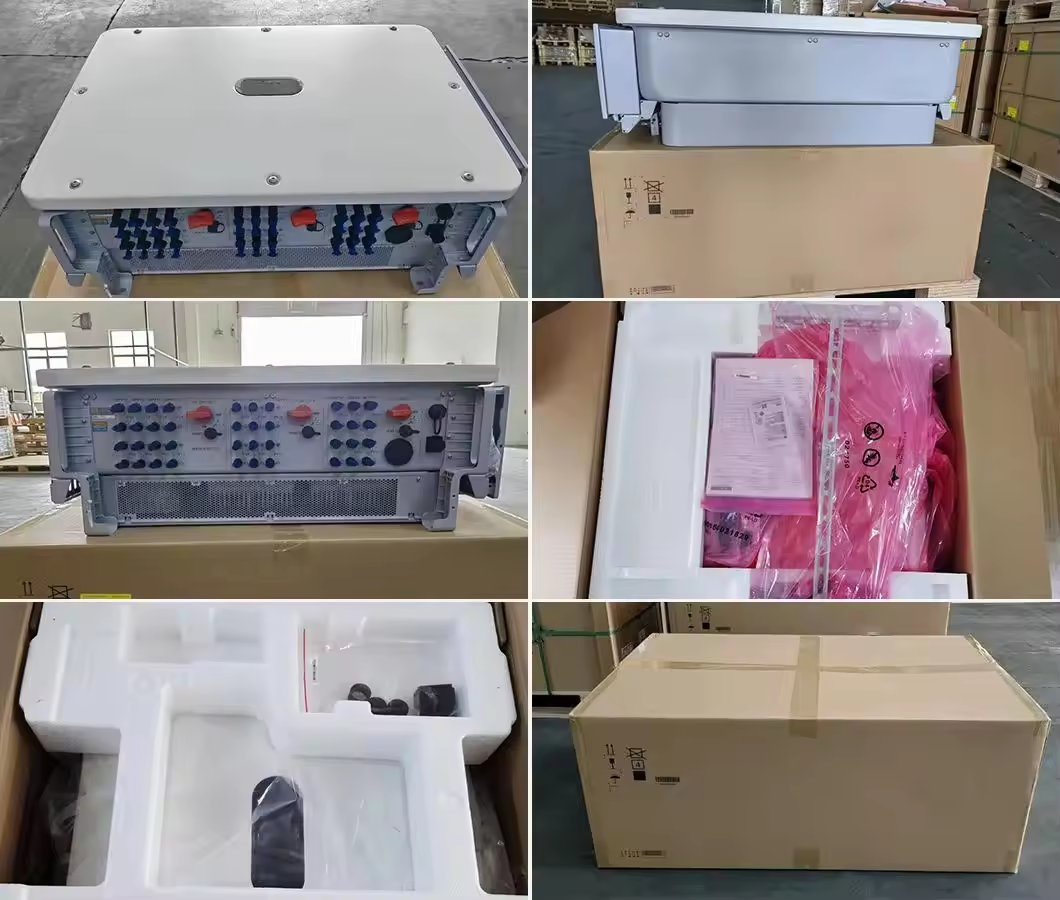

📦 Packing & Delivery

🏗️ Project Show

❓ Frequently Asked Questions

What is the maximum efficiency of the SUN2000-100KTL-M2?

The inverter achieves a maximum efficiency of 98.8% at 480V and 98.6% at 380V/400V, ensuring minimal energy loss during conversion.

How many MPPT trackers are integrated into this model?

It features 10 independent MPP trackers with 2 inputs per tracker, allowing for flexible string configurations and optimized performance even in shaded conditions.

Is the inverter suitable for harsh outdoor environments?

Yes, the SUN2000-100KTL-M2 is rated IP66, providing superior protection against dust and high-pressure water jets, making it ideal for outdoor installations.

What cooling method does the device use?

The system utilizes Smart Air Cooling technology to maintain optimal operating temperatures and ensure long-term reliability without the need for complex liquid cooling.

Does it support remote monitoring and communication?

Yes, it includes LED indicators and supports WLAN connection via the FusionSolar App. It also features RS485 and USB ports for comprehensive data monitoring.

What safety protections are built into the system?

The inverter includes comprehensive protection features such as DC Reverse-Polarity Protection, Anti-islanding, AC Overcurrent Protection, and Type II Surge Arresters for both DC and AC sides.
