Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.	SUN2000-100KTL-M2
Nature of Source Flow	Active Inverter
Phase	Three
Output Power	100kw
Certification	SAA, CE, ROHS, ISO9001, TUV CQC SAA
Type	DC/AC Inverters
Power Source	Solar Power, Wind Power
Weight	85kg
Specification	1, 035 x 700 x 365 mm
HS Code	8504403090

Product Description

SUN2000-100KTL-M2

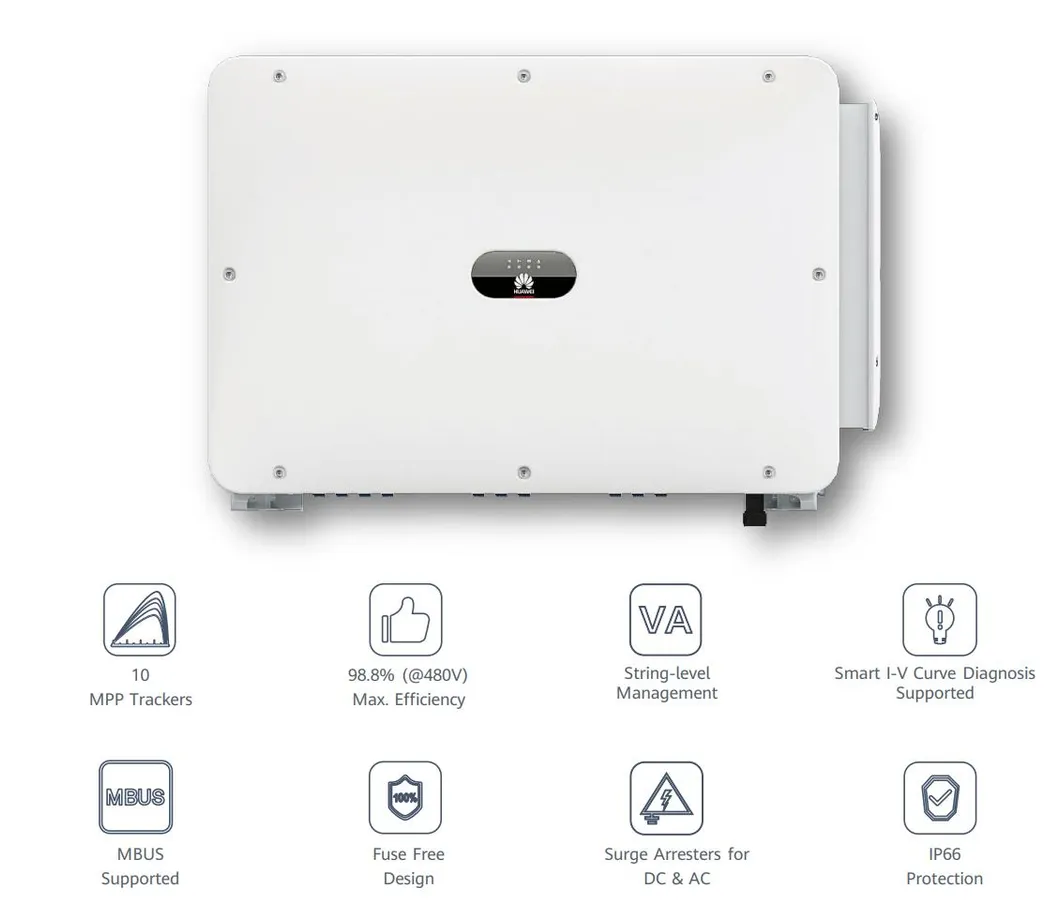

Smart PV Controller

Smart PV Controller

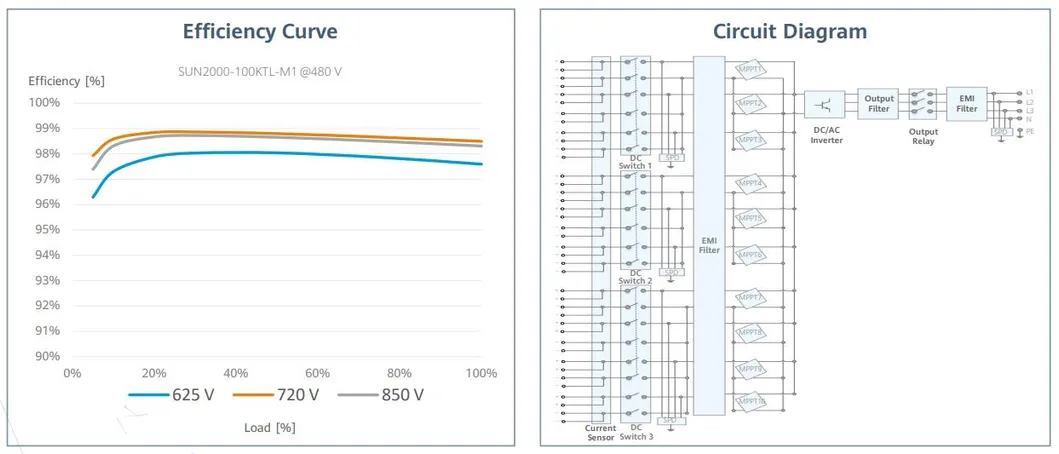

Inverter Features

Technical Specifications

Technical Specifications	SUN2000-100KTL-M2
Efficiency
Max. Efficiency	98.8% @480 V, 98.6% @380 V / 400 V
European Efficiency	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	26 A
Max. Short Circuit Current per MPPT	40 A
Start Voltage	200 V
Number of MPP trackers	10
Output
Nominal AC Active Power	100,000 W
Max. AC Apparent Power	110,000 VA
Nominal Output Voltage	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Protection
Input-side Disconnection Device	Yes
Anti-Islanding Protection	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
Protection Degree	IP66

Product Details & Packing

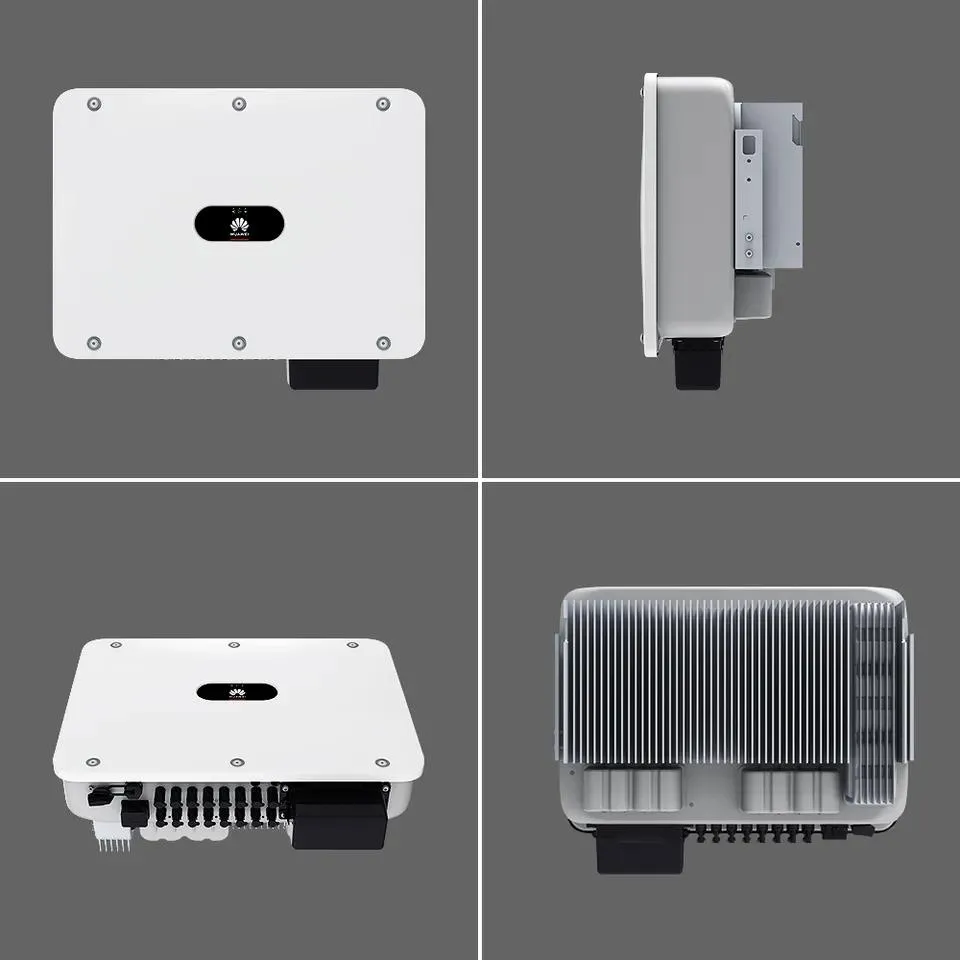

Product Details

Packing

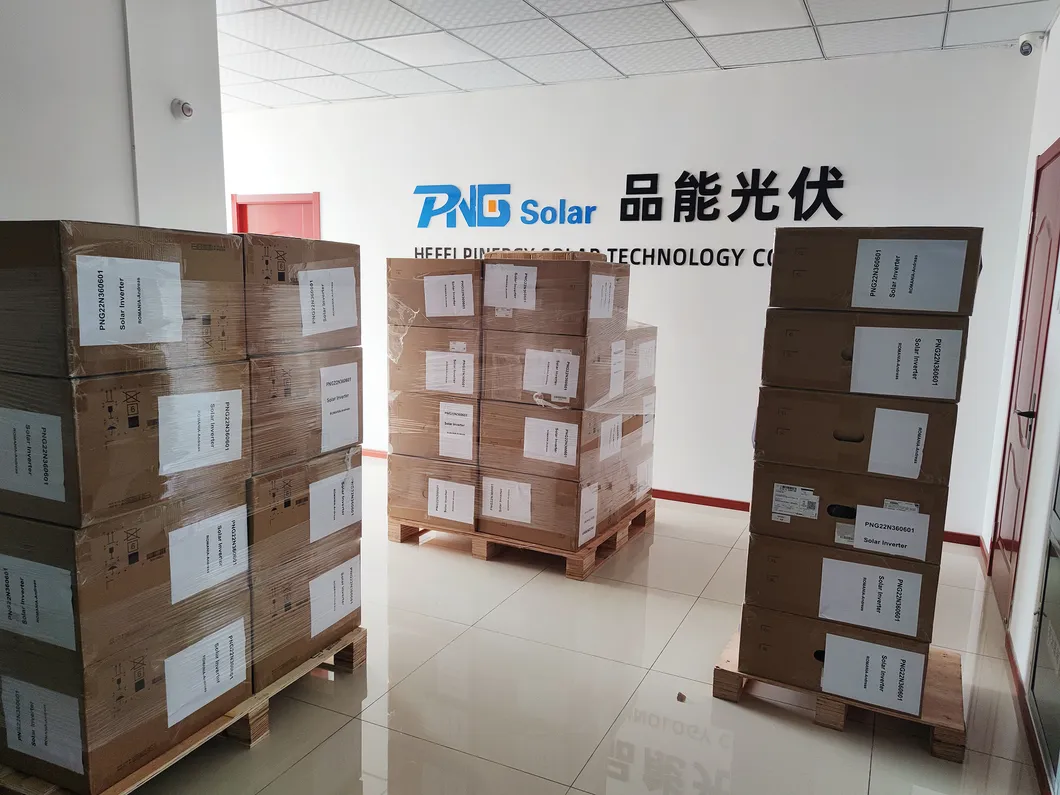

Delivery Process 1

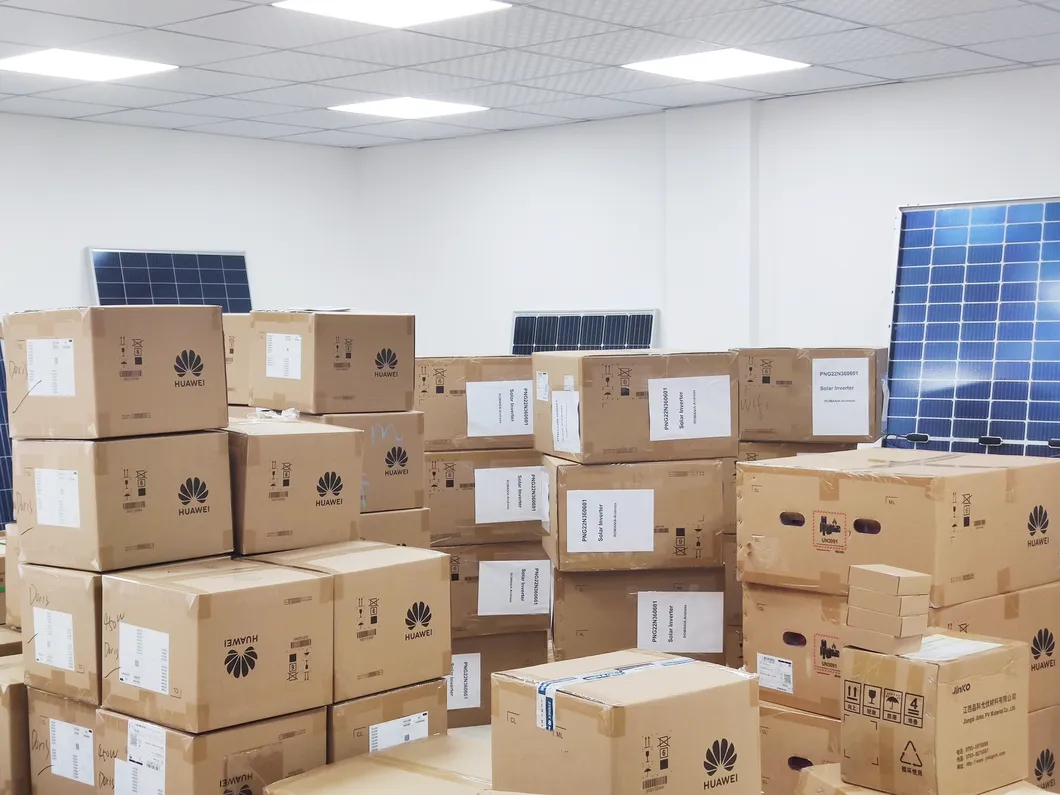

Delivery Process 2

Project Show

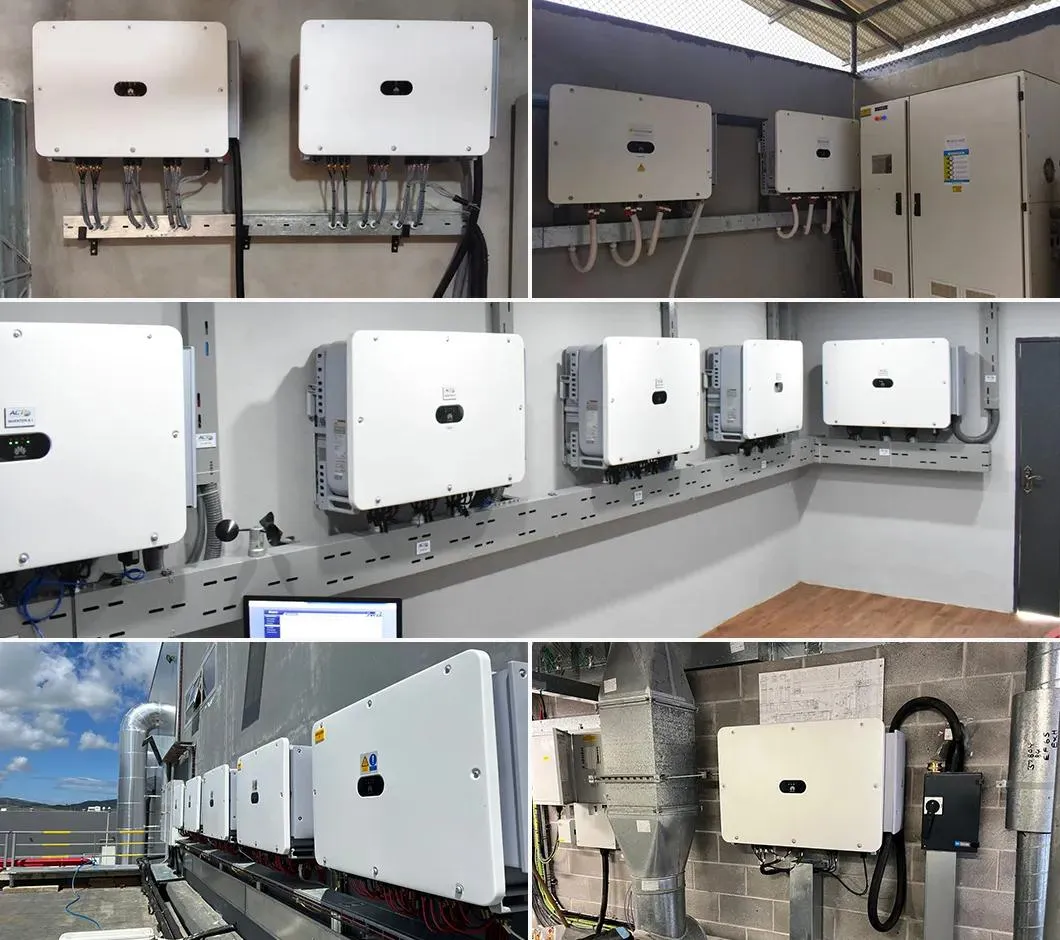

Project Instance 1

Project Instance 2

Frequently Asked Questions

How is the product quality guaranteed?

We ensure quality through a strict process: always a pre-production sample before mass production and a final inspection before every shipment.

What types of products are available?

Our core range includes Solar Panels, Solar Systems, Batteries, Smart PV Inverters, and Wi-Fi RTU monitoring solutions.

What are the supported delivery terms?

We support a variety of delivery terms including FOB, CFR, CIF, EXW, and DDP to meet global shipping requirements.

Which payment methods and currencies are accepted?

We accept payments in USD, EUR, and CNY via T/T, L/C, and PayPal.

What is the protection rating of the SUN2000-100KTL-M2?

The inverter features an IP66 protection degree, making it highly resistant to dust and water, suitable for demanding outdoor environments.

Does the system support remote monitoring?

Yes, it supports multiple communication methods including LED indicators, WLAN adaptor + App, RS485, and optional 4G/3G/2G Smart Dongles.
