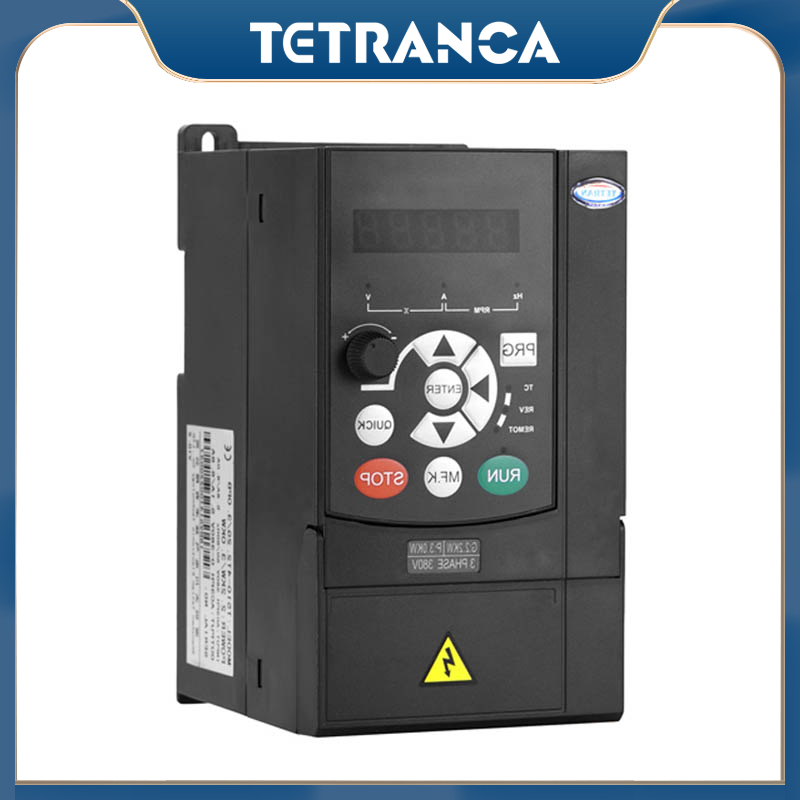

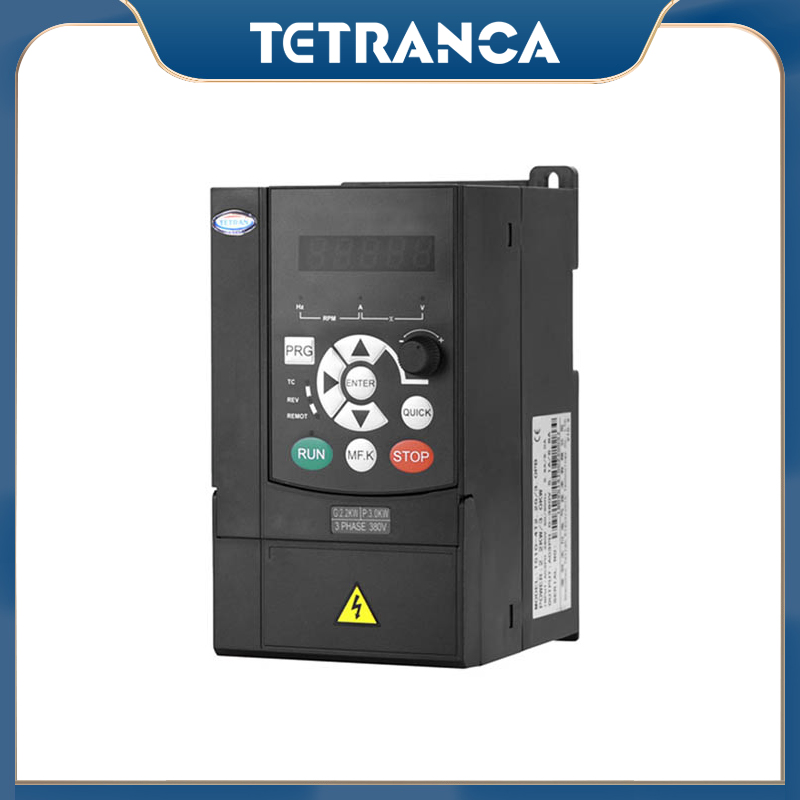

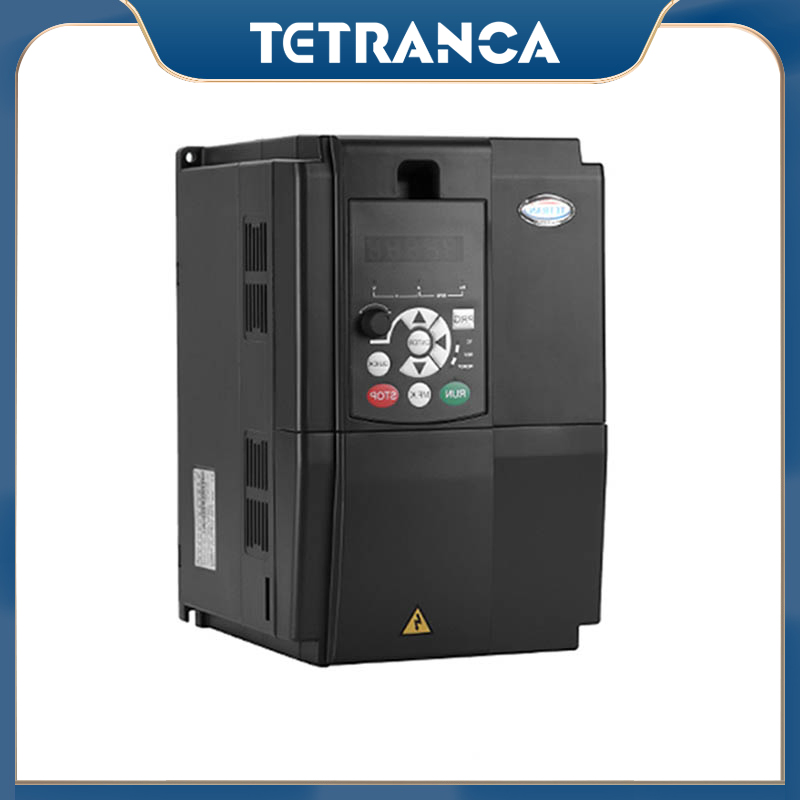

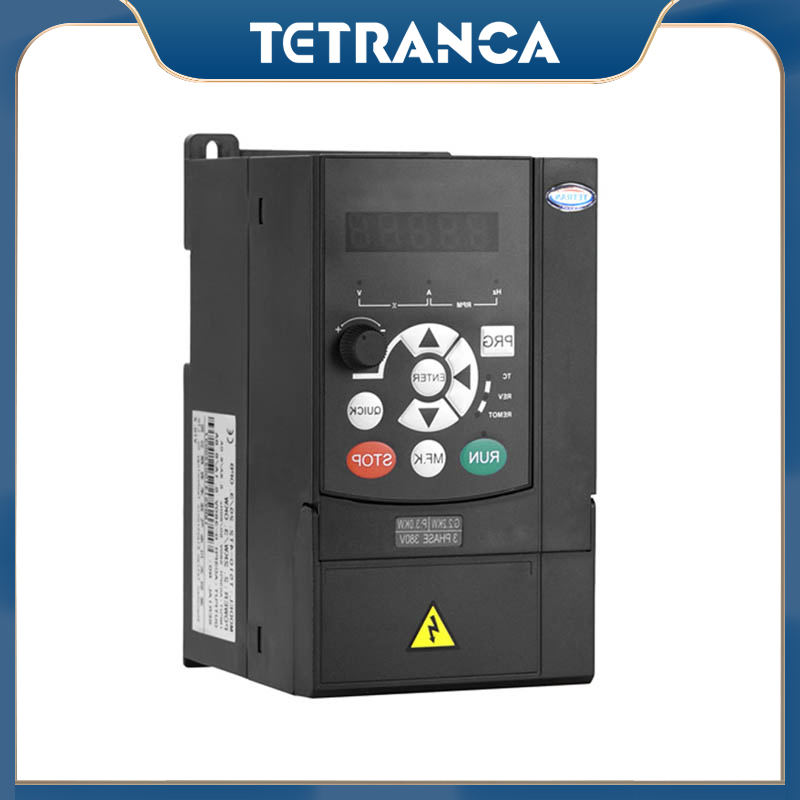

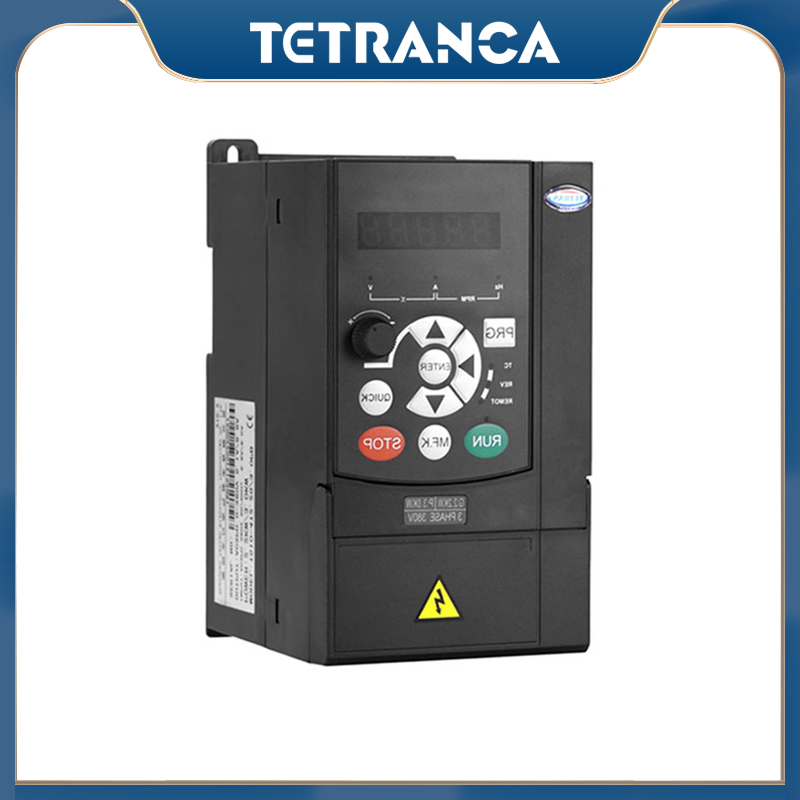

VFD 7.5kw Variable Frequency Drive High Frequency Converter with Pure Sine Wave Output and Input Voltage 3 Phase 50Hz/60Hz

1 / 5

VFD 7.5kw Variable Frequency Drive High Frequency Converter with Pure Sine Wave Output and Input Voltage 3 Phase 50Hz/60Hz

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Single&Three

Send Inquiry

Product Description

Technical Specifications

Model NO.	all
Principle of Work	V/F Control Transducer
Switch Mode	PWM Control
Main Circuit Type	Voltage
Voltage of Power Supply	Low Voltage Variable-Frequency Drive
Link of Transformation	AC-DC-AC Variable-Frequency Drive
Nature of DC Power	Voltage Variable-Frequency Drive
Function	Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type
Condition	100% Original Brand
Input Voltage	1AC 220V/3AC 380V
Nominal Voltage	220V, 380V, 110V, 400V
Power Phase Number	Single Phase, Three Phase
Certification	ISO9001, CE
IP Level	IP25
OEM	Accepted
Warranty	18 Months
MOQ	1PC
Output Frequency	SVC: 0-320Hz, V/F: 0~3200Hz
Communication	RS485 / Modbus / Profinet / Profibus
Control Mode	V/F, SVC
Working Temperature	-10~50ºC
Specification	0.45-1750kw
HS Code	8504403090
Production Capacity	50000PCS/ Month

Product Description

Variable Frequency Drive High Frequency Converter

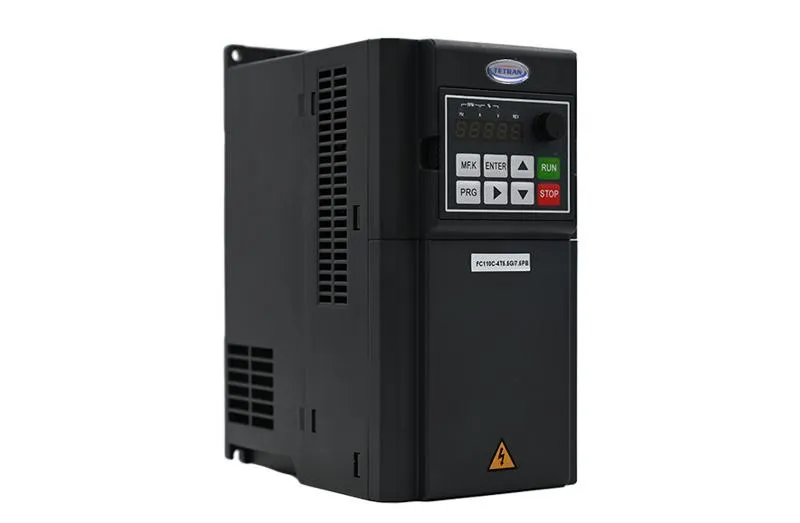

⚡T510 / T510E Series

Power Range: 220V 0.4~2.2KW | 380V 0.75~400KW

The best-selling and most cost-effective machine.
Reducing motor and energy losses for greater energy efficiency.
Independent air duct design prevents external contaminants, ensuring reliability.

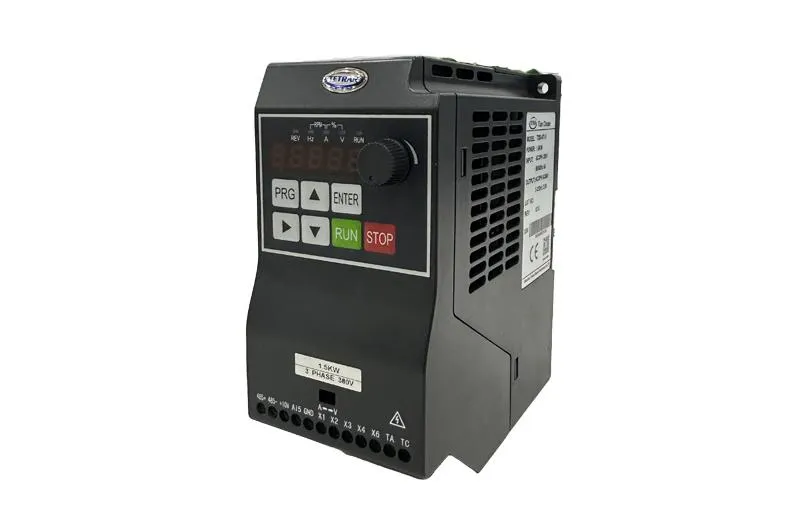

⚙️T100 / T200 / T210 Series

Power Range: 220V 0.4~1.5KW | 380V 0.75~2.2KW

V/F Vector control technology.
PID, multi-speed, Modbus communication included.
Complete functions in a compact, smaller size.

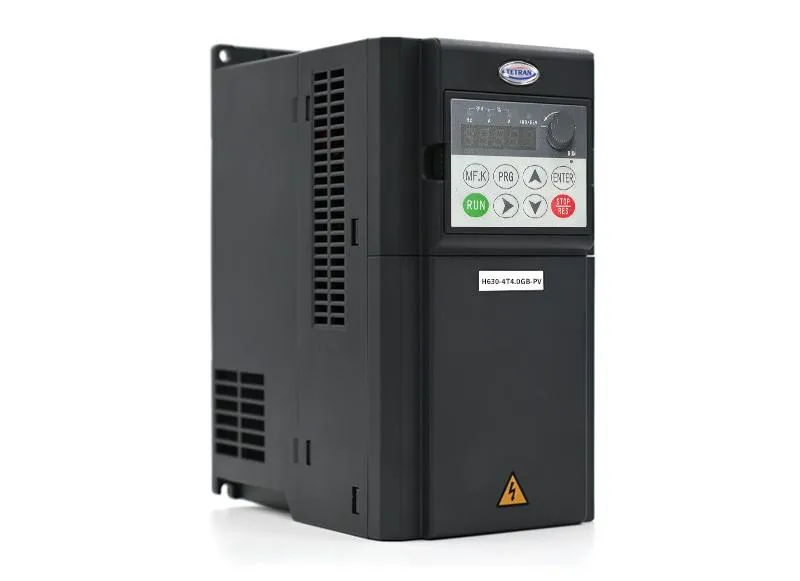

☀️H630 Solar Pump Inverter

Power Range: 220V 0.4~2.2KW | 380V 0.75~500KW

Specialized models for solar water pump systems.
Supports optional boost module up to 2000kw.
Professional OEM brand availability.

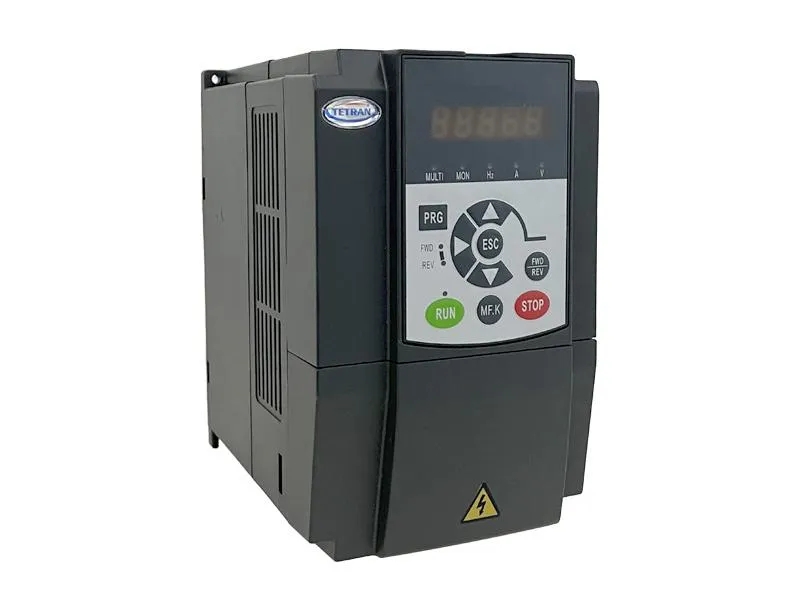

🛡️T600 / T600E Series

Power Range: 220V 0.4~2.2KW | 380V 0.75~400KW

Reaches 150% rated torque at 0.5Hz without PG flux vector control.
Comprehensive protection: Overvoltage, overcurrent, overload, short circuit, and overheating.

💧Water Pump Series

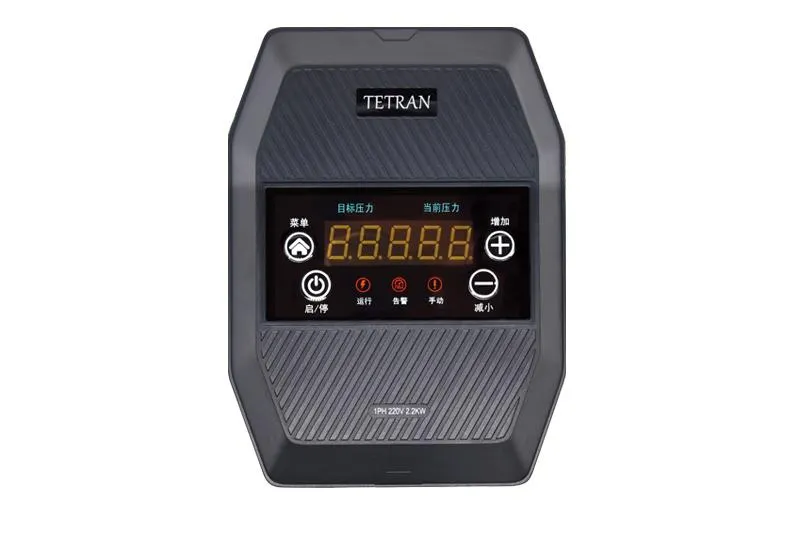

SD200 Backpack VFD

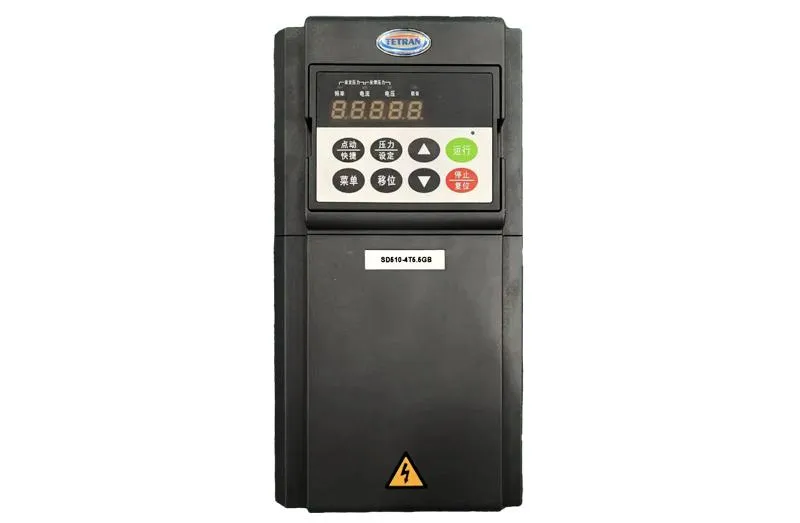

SD500 Pump VFD

Visual Overview

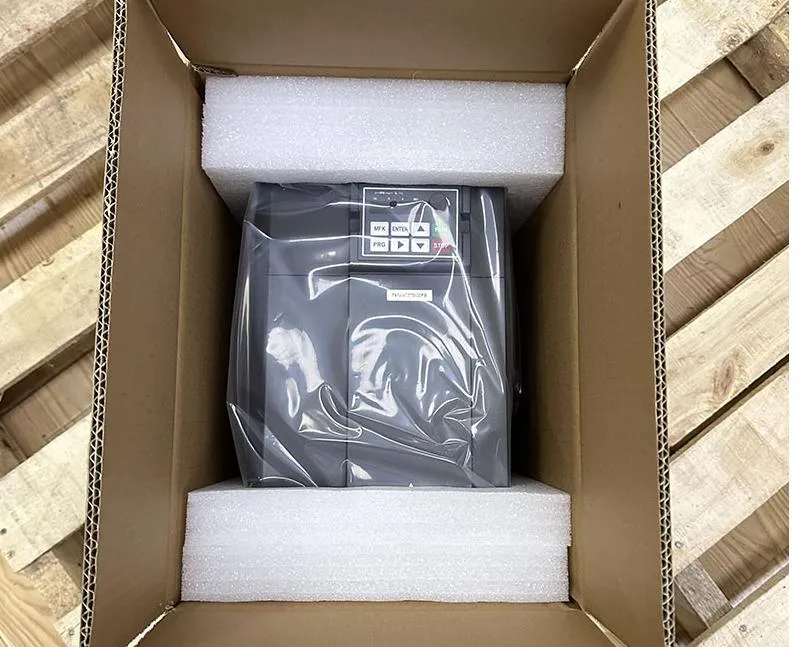

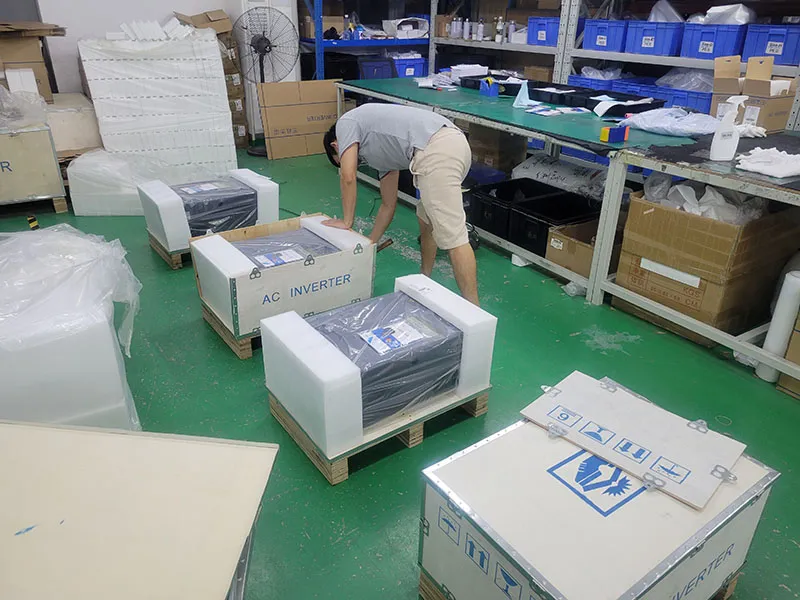

Packing & Delivery

📦 Standard Export Packaging: Waterproof, dustproof, and pressure resistant.

🏷️ Customization: Supports customizable labels and logos.

Package Size	25.00cm * 25.00cm * 33.00cm
Gross Weight	3.000kg

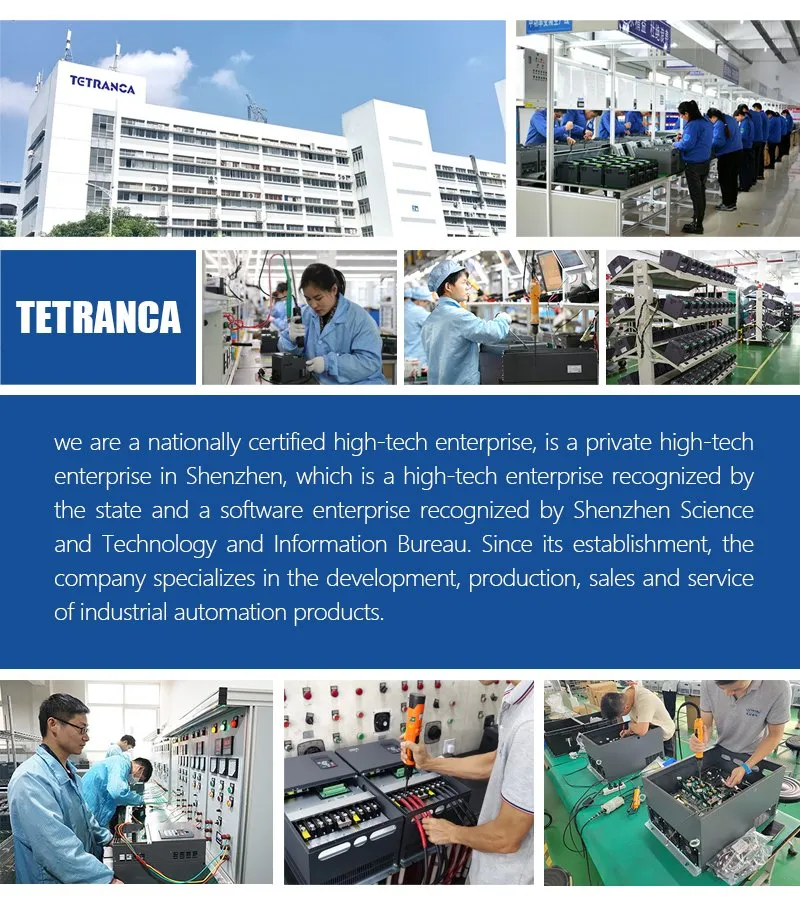

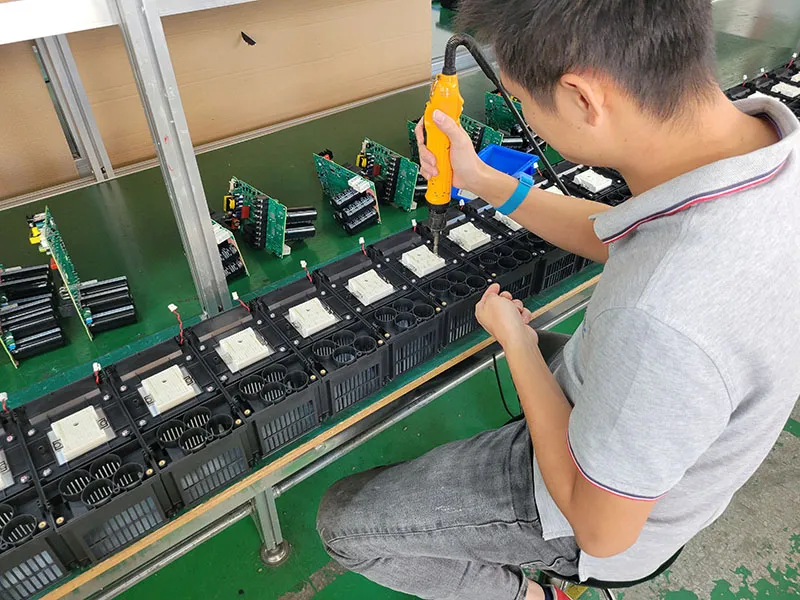

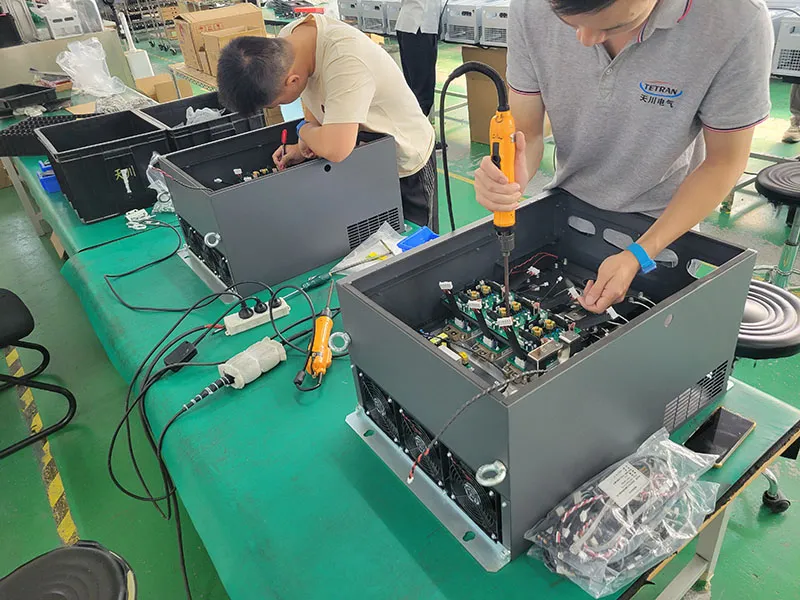

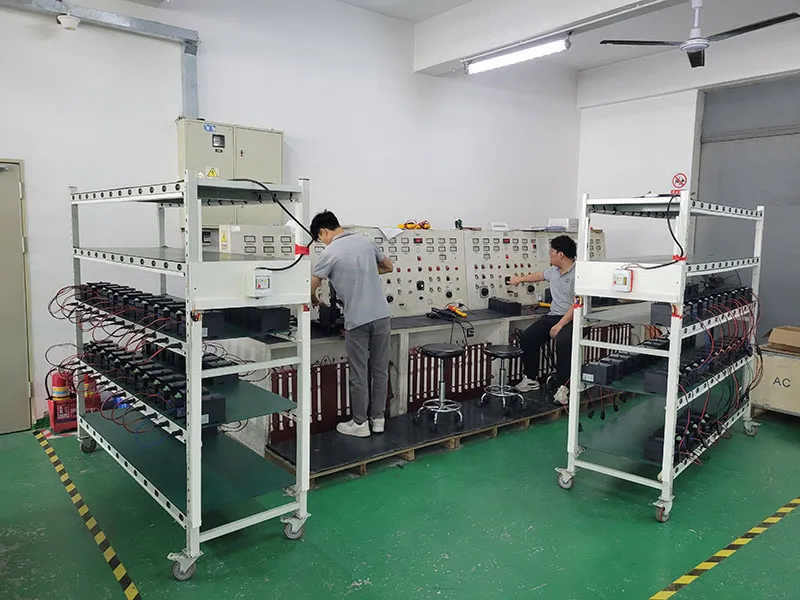

Manufacturing Excellence

Frequently Asked Questions

Q1: What is the warranty period for your VFD products? A: We provide an 18-month warranty for all our Variable Frequency Drives to ensure long-term reliability and customer satisfaction.

Q2: Do you support OEM or custom branding? A: Yes, OEM services are accepted. We can provide customizable labels and logos on our standard export packaging.

Q3: What control modes are available in these converters? A: Our products support both V/F (Voltage/Frequency) control and SVC (Sensorless Vector Control) modes to meet various application needs.

Q4: What is the output frequency range? A: For SVC mode, the frequency range is 0-320Hz. For V/F mode, it ranges from 0 to 3200Hz.

Q5: Is there protection against electrical faults? A: Absolutely. Our VFDs come with comprehensive protection against overvoltage, overcurrent, overload, short circuits, grounding, and overheating.

Q6: What is the minimum order quantity (MOQ)? A: The MOQ is just 1 PC, making it accessible for both small projects and large-scale industrial requirements.
