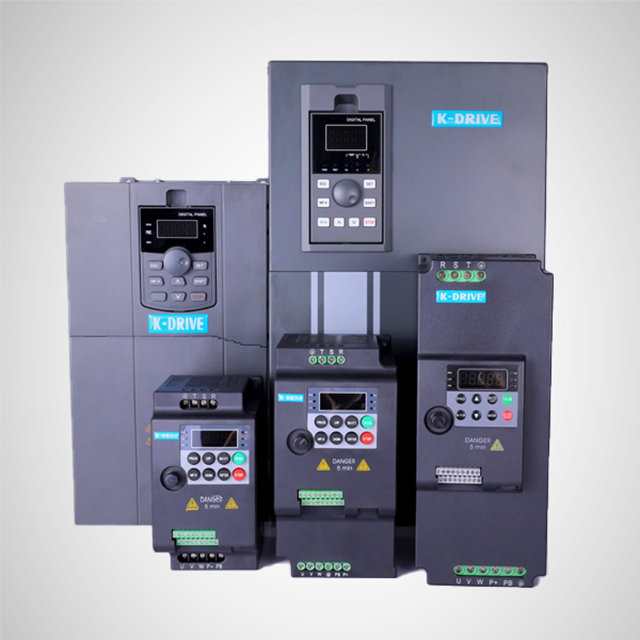

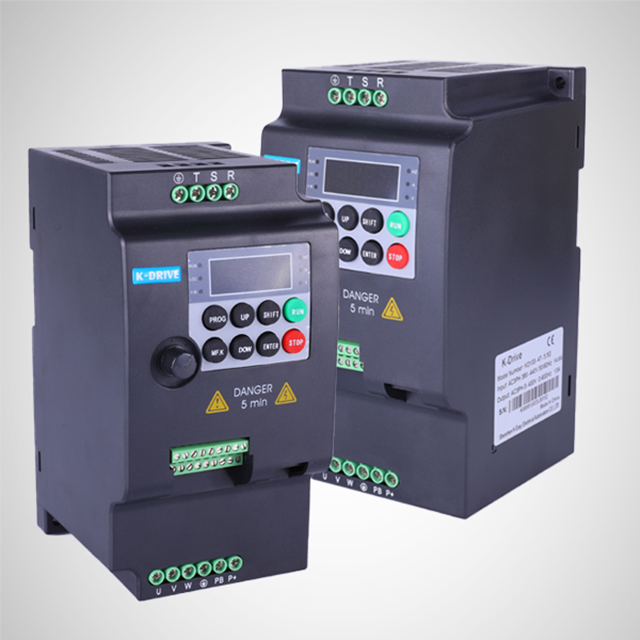

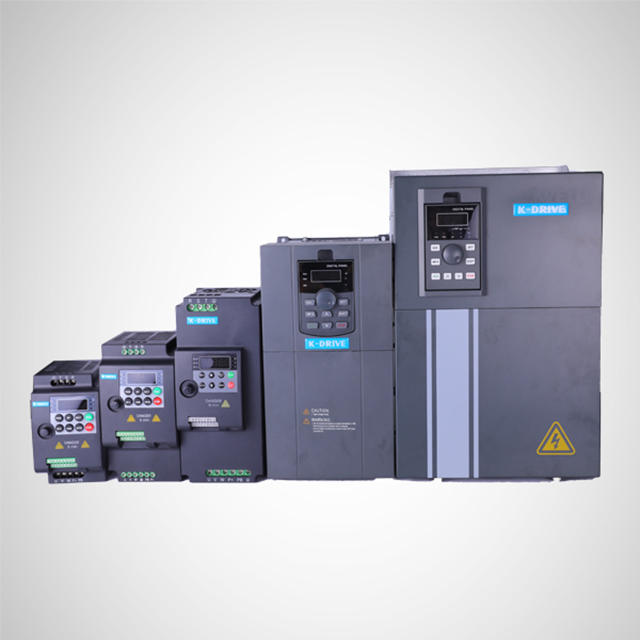

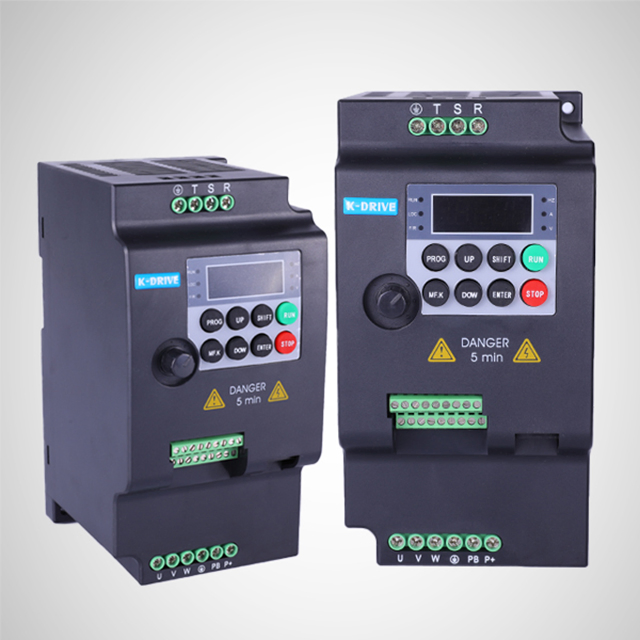

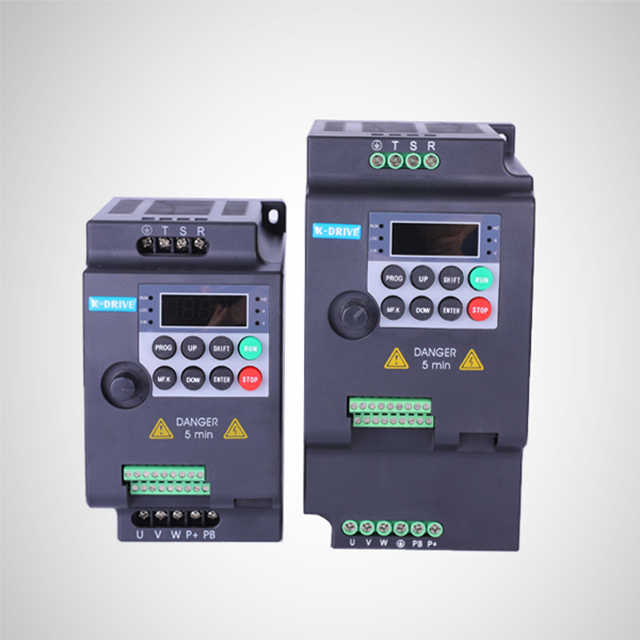

500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
1 / 5
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency
500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency

500kw High Performance Low Voltage General Industrial Use Vector VFD/ Variable Frequency

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

▤ Overview
Model NO.
KD100
Work Principle
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Main Circuit
Voltage Type
Voltage Type
Low Voltage Variable-Frequency Drive
Transformation
AC-DC-AC
Function
Simple, Elevator Special, Textile Special, Universal
Capacity
200,000 PCS/Month
⚙ Product Description
Professional manufacturer specialized in the R&D of AC drives. A comprehensive product family has been established, with frequency inverters covering a power range from 0.4 to 630kW and a voltage range between 220V and 480V. Over 300,000 units are operating smoothly across various industrial sites.
The KD100 Series is a highly competitive series offering exceptional value. It features high-quality internal components, including hall chips and a built-in EMC filter, supported by a 3-year warranty.

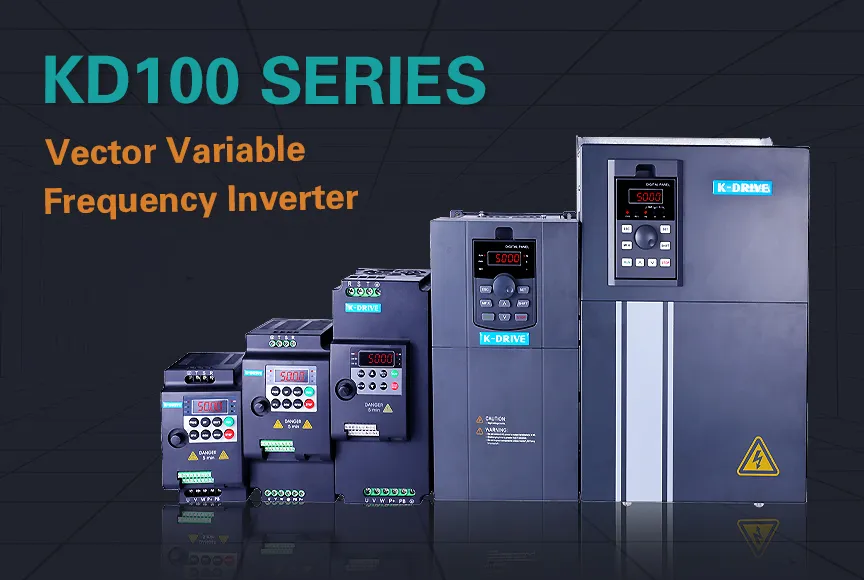

High Performance VFD
📋 Product Parameters
Input Voltage 208~240V single phase & three phase
380~480V three phase
Output Frequency 0~600Hz
Control Technology V/F, SVC, Torque Control
Starting Torque 0.5Hz 150% (V/F), 0.25HZ 180% (SVC)
Speed Accuracy ±0.5%(V/F) ±0.2%(SVC)
Overload Capability 150% 60S / 180% 10S / 200% 1S
I/O Support 16-steps speed control, 5 Digital inputs (NPN/PNP), 2 Analog In/Out
Communication MODBUS RS485

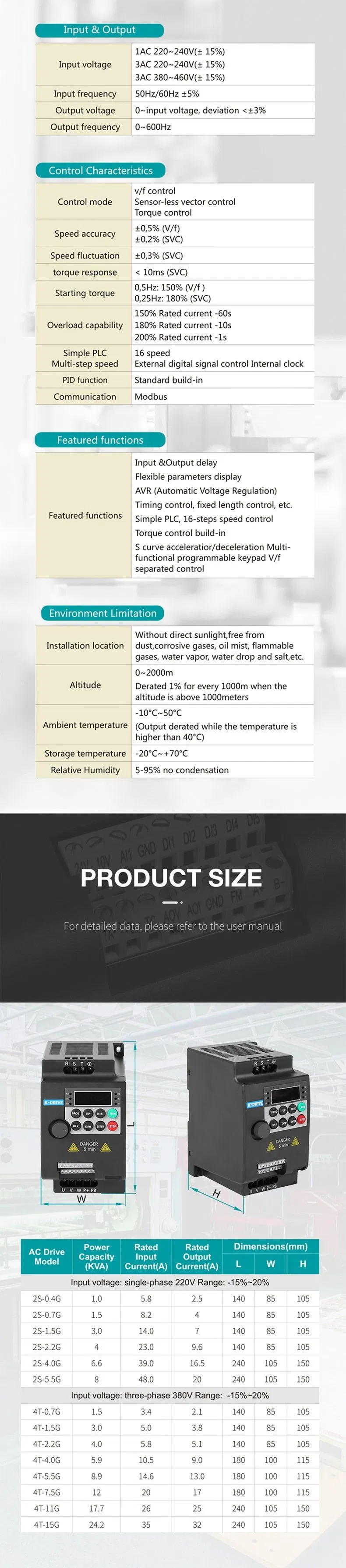

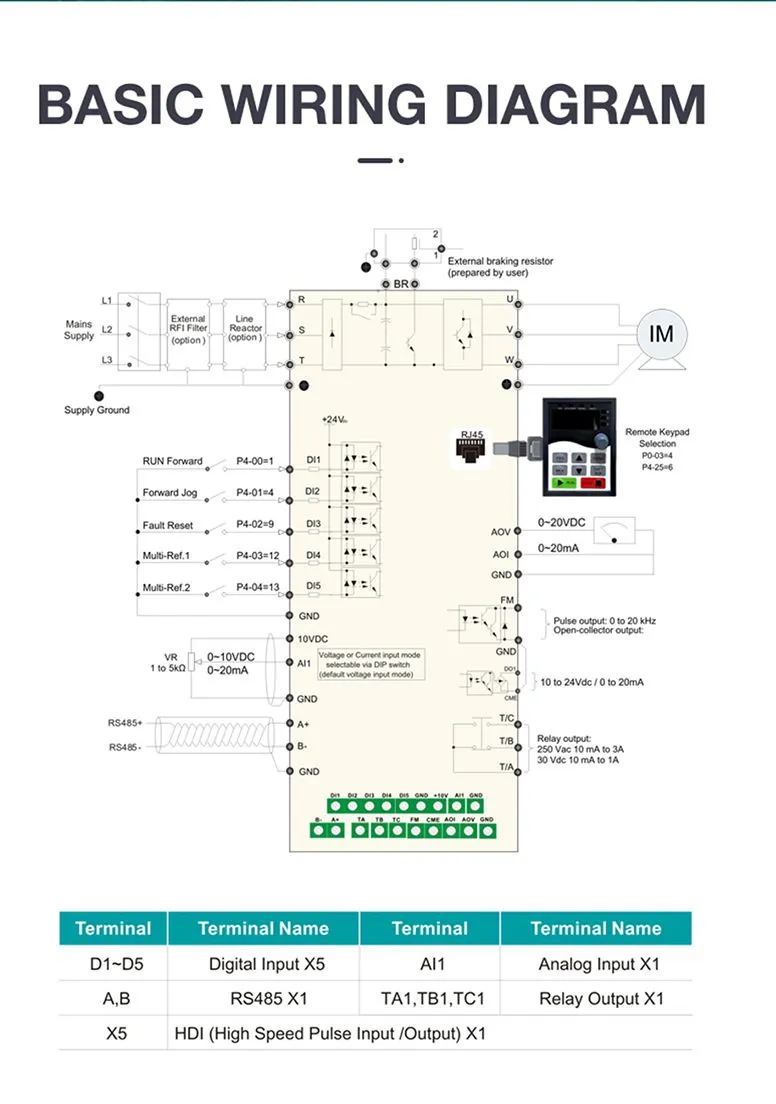

VFD Parameters Detail VFD Technical Drawing
✔ Product Features
01
Compact design suitable for limited installation space such as packaging and labeling machines.
02
Patented rubber keypad design with a larger size for easier international operation.
03
External keyboard support, offering flexibility for panel assembly.
04
PC software integration with one-key setting to save debugging time.
05
Built-in EMC C3 filter for superior anti-electromagnetic interference.
06
Independent air duct design for optimized heat dissipation and maintenance.
07
Integrated PID and multi-speed functions for diverse applications.
🏭 Production Facility

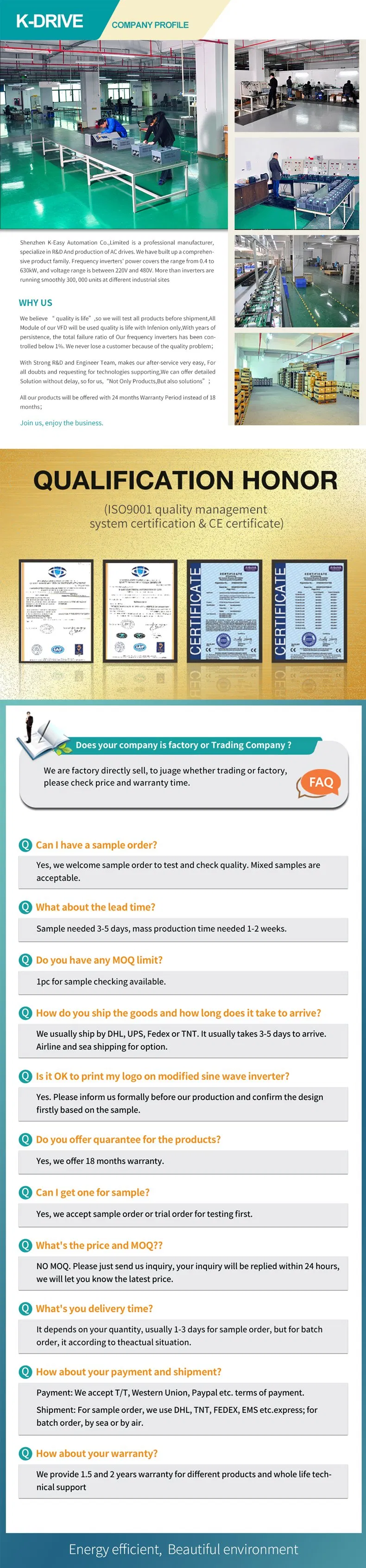

Factory Production Line
❓ FAQ
What is the power range of the KD100 series?
The KD100 series covers a wide power range from 0.4kW up to 630kW.
Does this VFD support remote control?
Yes, it features an external keyboard option and supports RS485 Modbus RTU & ASCII communication for remote integration.
How long is the warranty period?
We provide a 3-year warranty for the KD100 series due to its high-quality internal components.
Is there built-in interference protection?
Yes, it includes a built-in EMC C3 filter to provide strong anti-electromagnetic interference capabilities.
What control modes does the inverter support?
It supports V/F control, Sensorless Vector Control (SVC), and Torque Control modes.
Can it be used in tight spaces?
Absolutely. The compact design is specifically engineered for installations with limited space like conveyors and packaging machinery.
