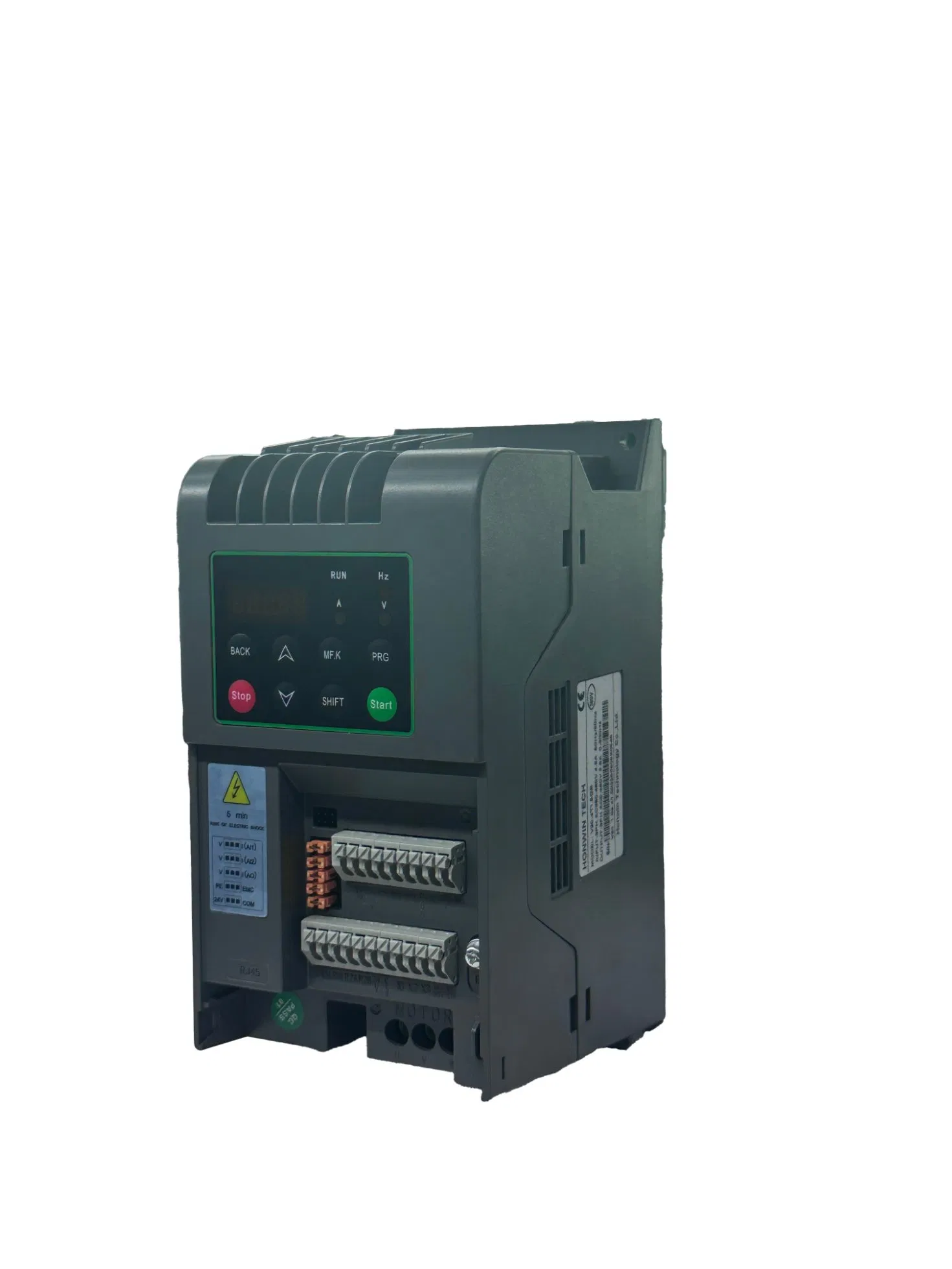

Reliable V20 Series 1-5HP VFD for Industrial Use 0.75-3.7kw

1 / 5

Reliable V20 Series 1-5HP VFD for Industrial Use 0.75-3.7kw

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

V20 series: 0.75-3.7kW, 1-5HP

Principle of Work

V/F Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC VFD

Function

Elevator Special, Textile Special, Constant Torque Universal

Apply to

Crane, Water Pump, Adjust Speed

LED

LED Operation Keyboard

Material

ABS (Black)

Origin

China

HS Code

85044099

Product Description

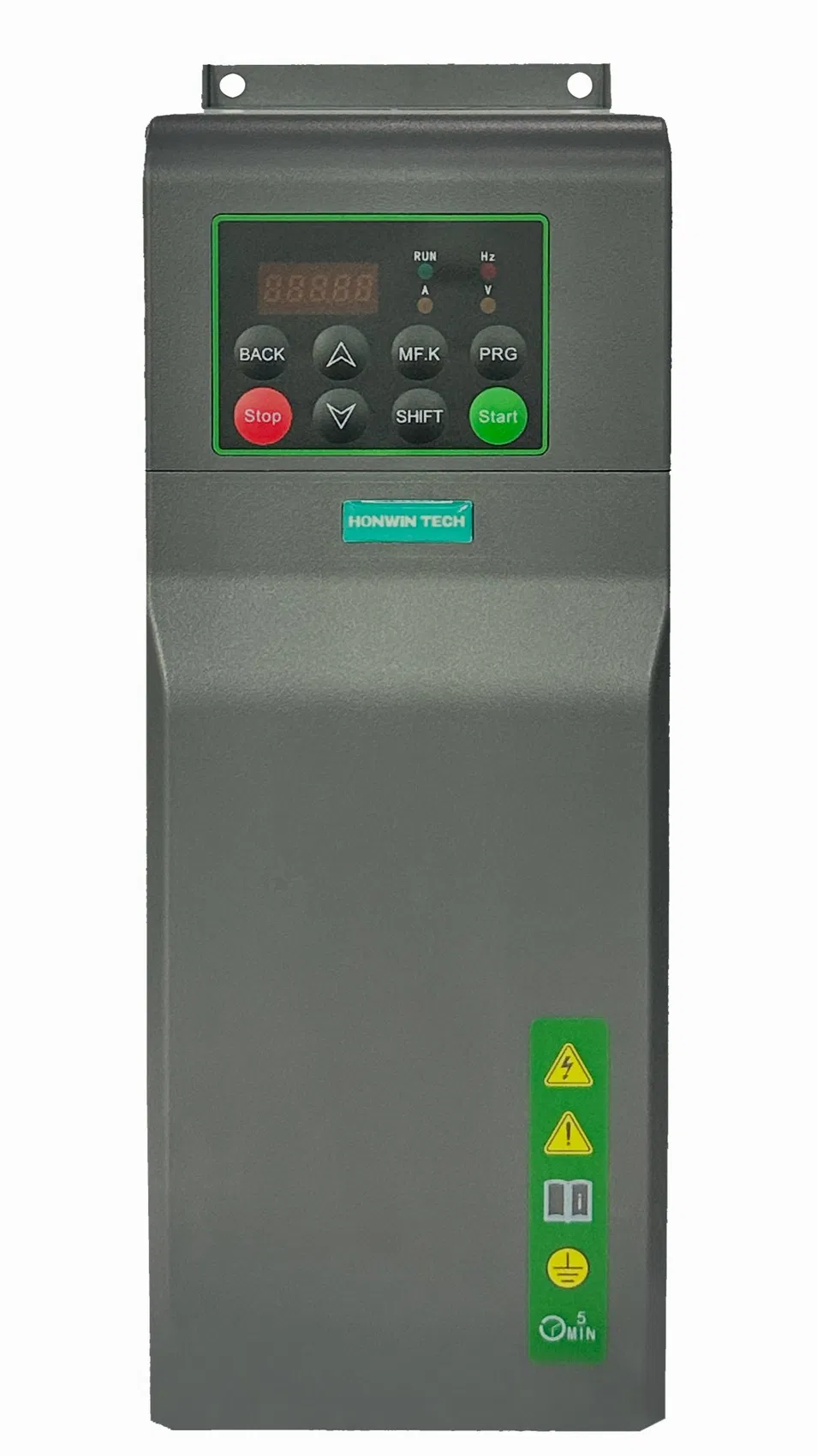

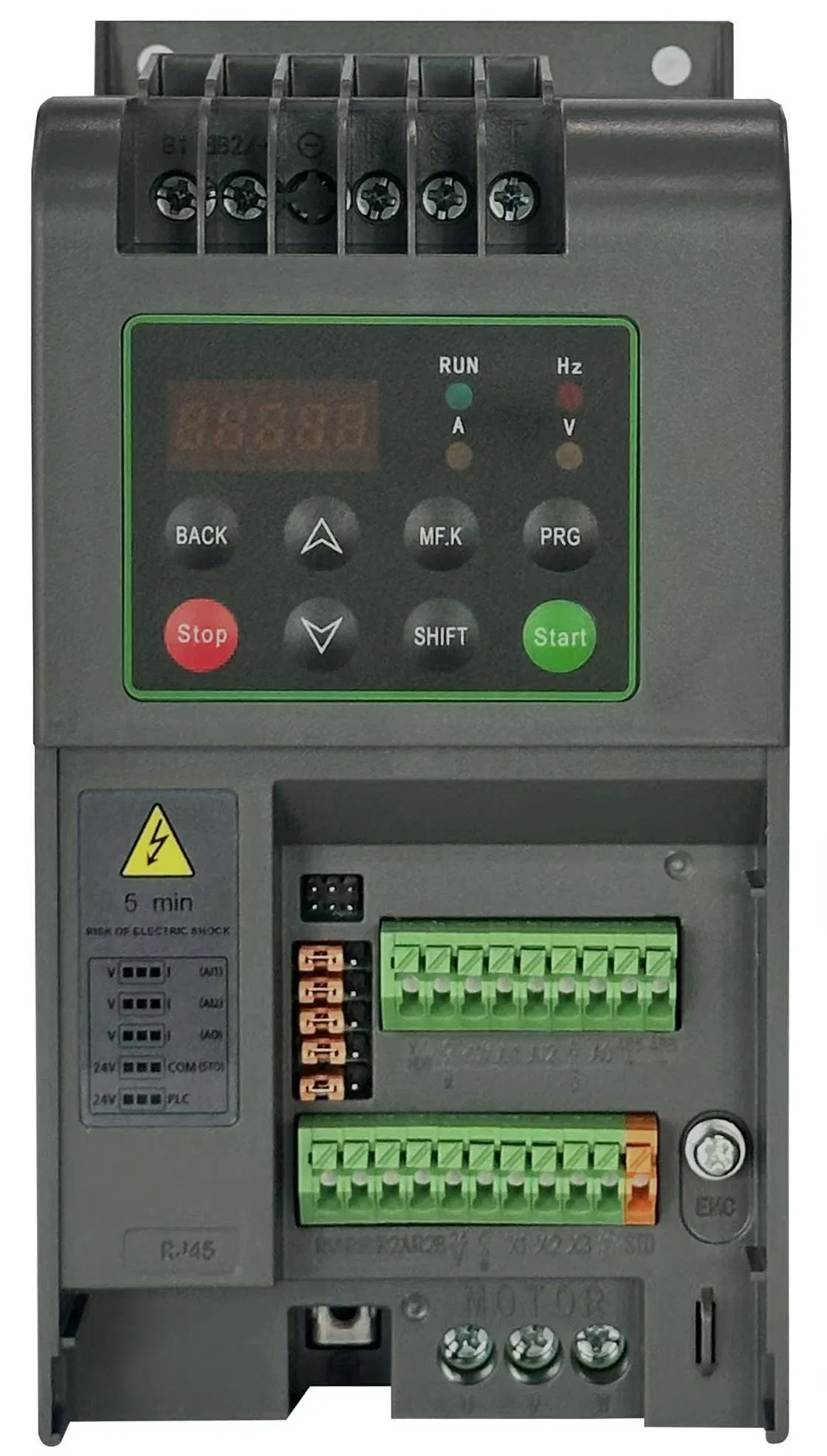

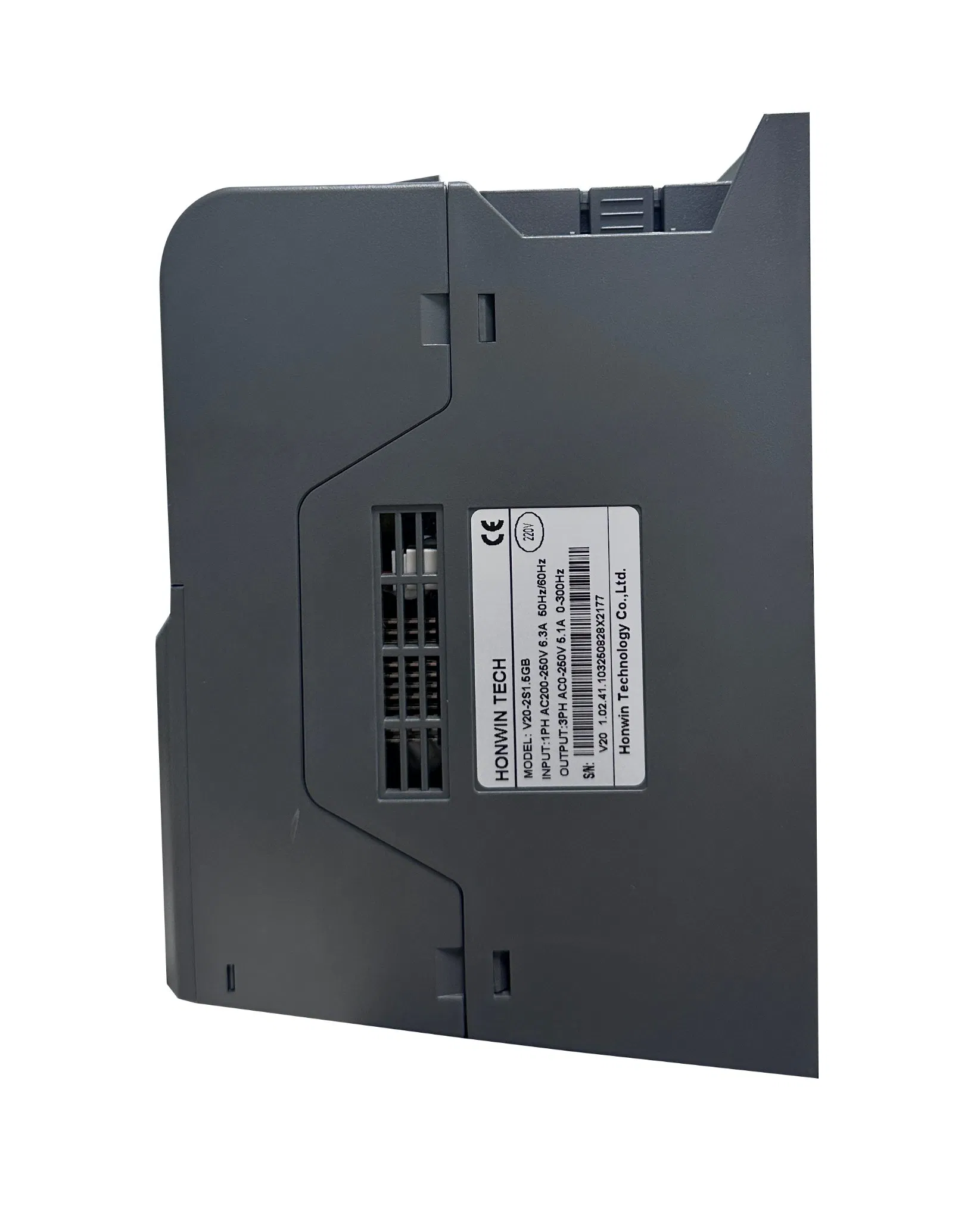

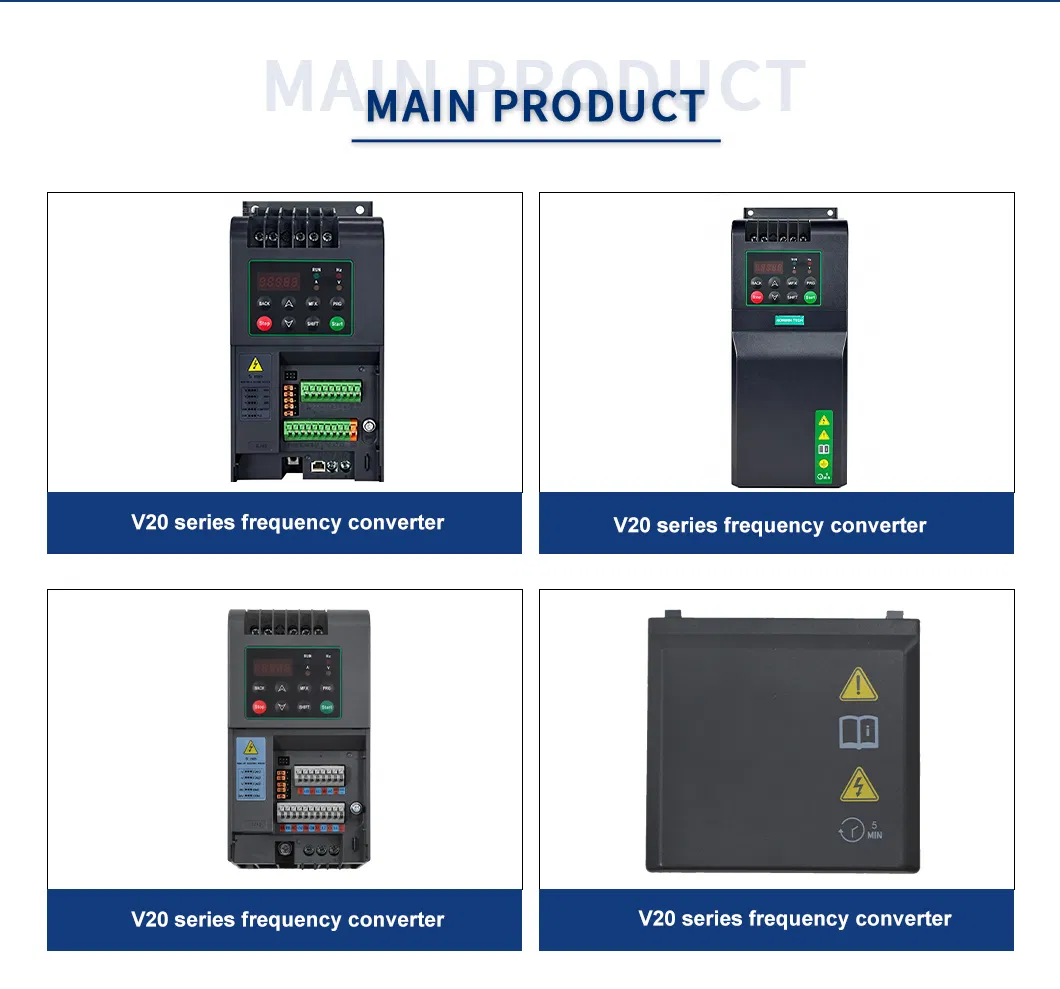

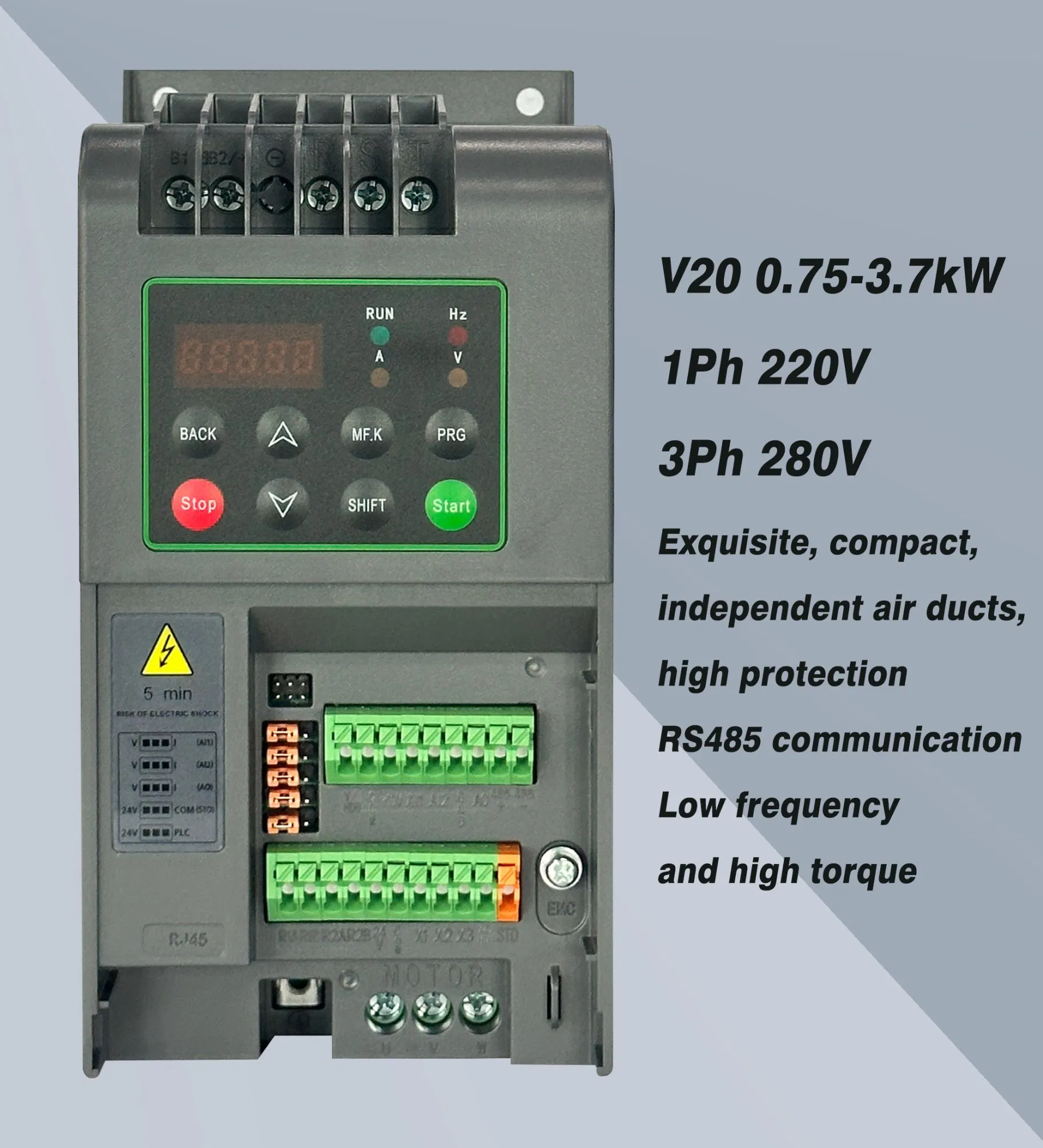

The V20 series products are exquisite vector type frequency converters. With a power range of 0.75-11KW, these units are compact and designed to save installation space significantly. Featuring an independent air duct and high protection ratings, the series ensures reliability in harsh industrial environments.

Independent air duct for superior cooling
Easy fan disassembly and maintenance
STO (Safe Torque Off) safety function optional
High reliability with low frequency and high torque output
Compliant with EU standards

Technical Specifications

Drive Model	Capacity (kVA)	Input (A)	Output (A)	Motor (kW)
V20-4T0.75G/1.5LB	2.8	2.4	2.3	0.75
V20-4T1.5G/2.2LB	5.0	4.6	3.8	1.5
V20-4T2.2G/3.7LB	6.7	6.3	5.1	2.2
V20-4T3.7G/5.5LB	12	11.4	9.0	3.7
V20-4T5.5G/7.5LB	17.5	16.7	13.0	5.5
V20-4T7.5G/11LB	22.8	21.9	17.0	7.5
V20-4T11G/15LB	33.4	32.2	24.0	11

Installation Dimensions

Model Range	W (mm)	H (mm)	D (mm)	W1 (mm)	H1 (mm)
V20-4T0.75G to 3.7G	83	173	119	67	163
V20-4T5.5G to 11G	102	283	155	86	273

Product Gallery

Frequently Asked Questions

?Can I use my own logo or design on the product?

Yes, we offer OEM/ODM services; Your logo and design can be made on the product according to your requirements.

?Do you have a dedicated manufacturing facility?

Yes, we are a professional manufacturer. Our factory is equipped to provide customers with full customization and OEM/ODM services to meet industrial standards.

?Is it possible to obtain samples for testing?

Yes, samples are available for quality evaluation and technical verification.

?What is your monthly production capacity?

We operate five production lines with a capacity of approximately 3,000 pieces of equipment per month, allowing us to handle large-scale orders efficiently.

?What is the lead time for product dispatch?

Most products are in stock. For orders under 100 units, we typically dispatch within 15 days depending on the specific machine type.

?What industries can the V20 series be applied to?

The V20 series is versatile and can be applied to centrifuges, machine tools, woodworking, fans, water pumps, treadmills, cranes, and conveyor belts.
