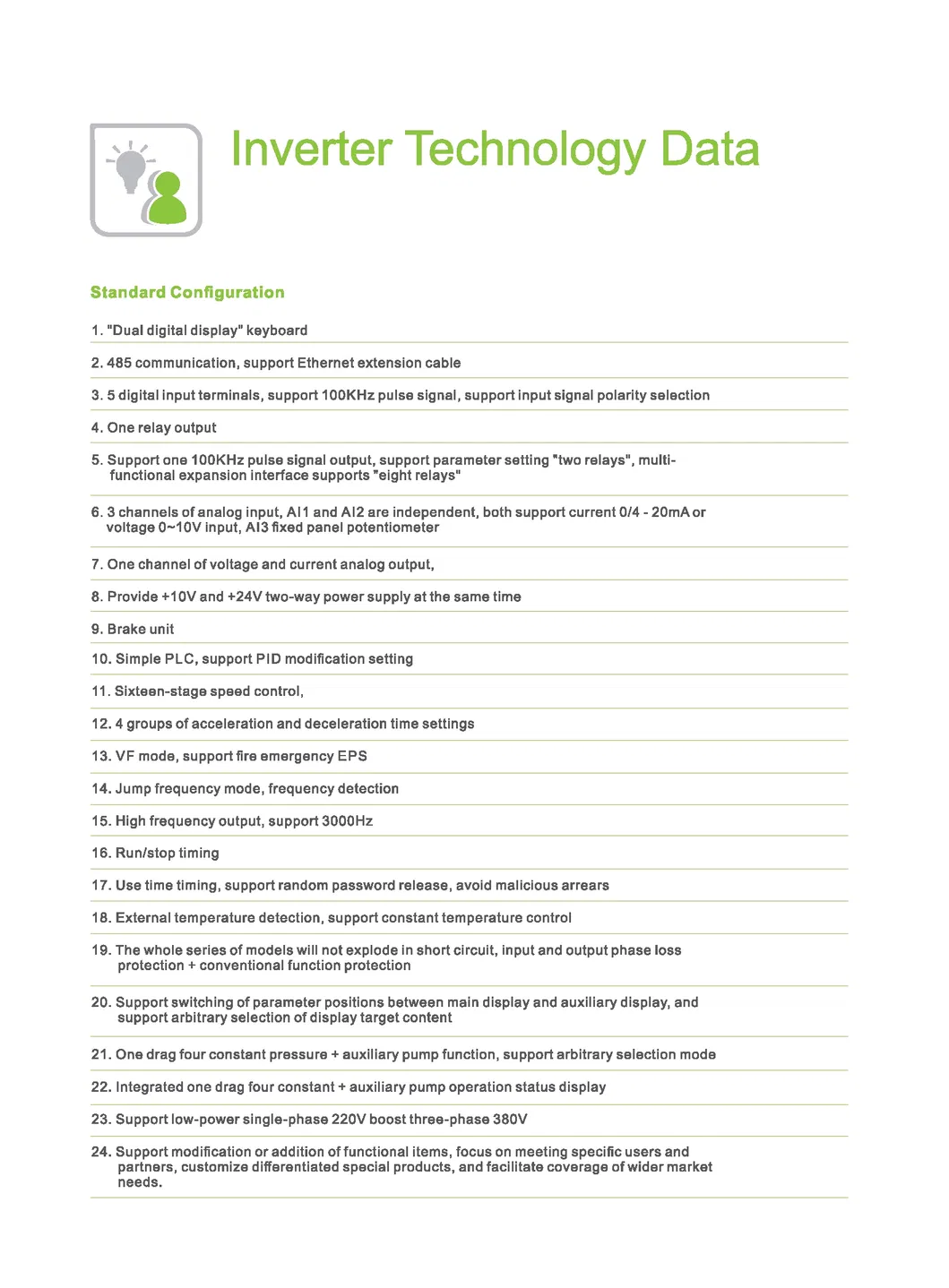

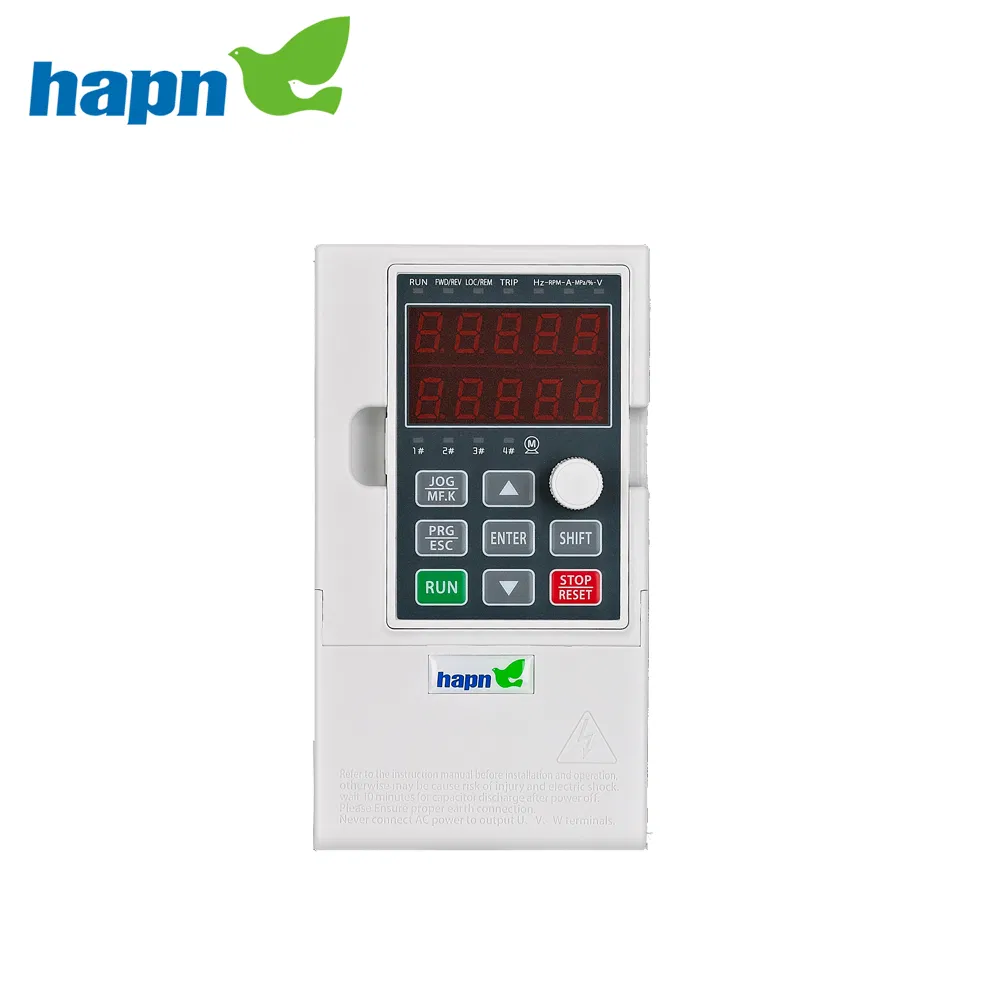

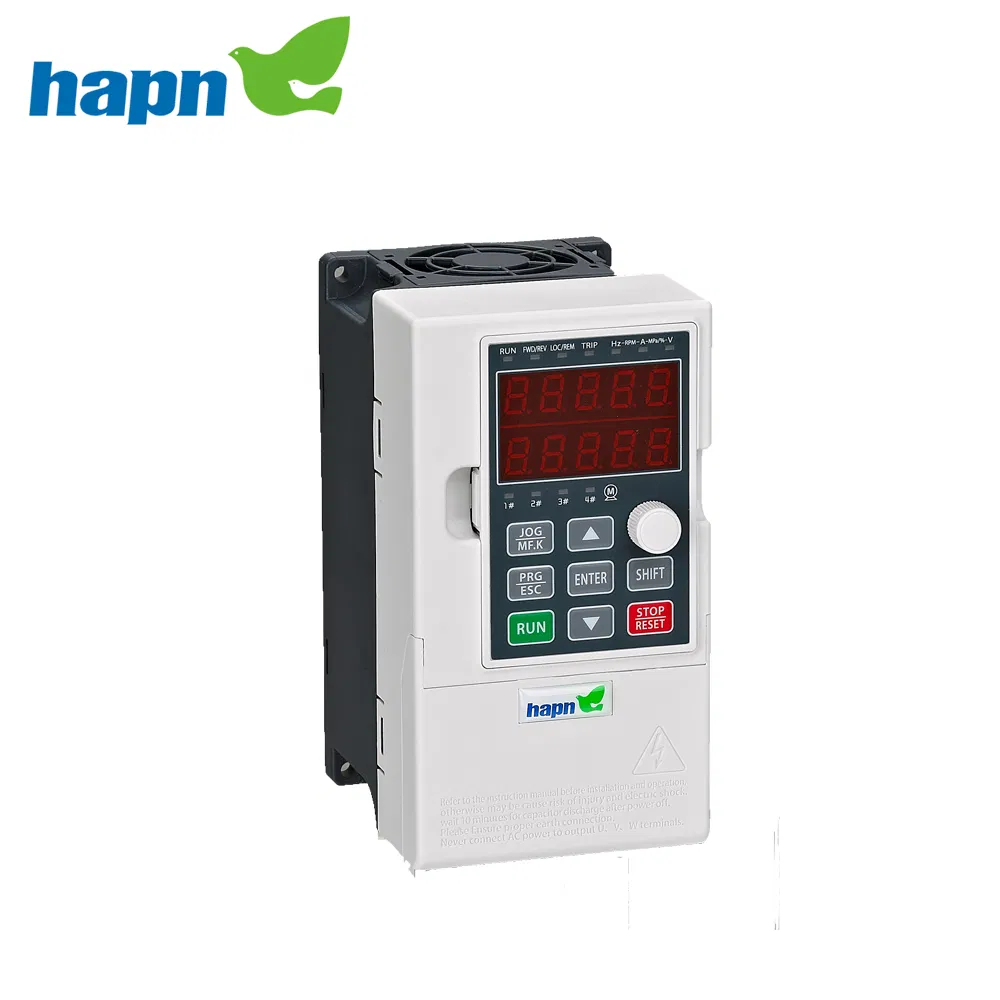

01 "Dual digital display" keyboard
02 485 communication, support Ethernet extension cable

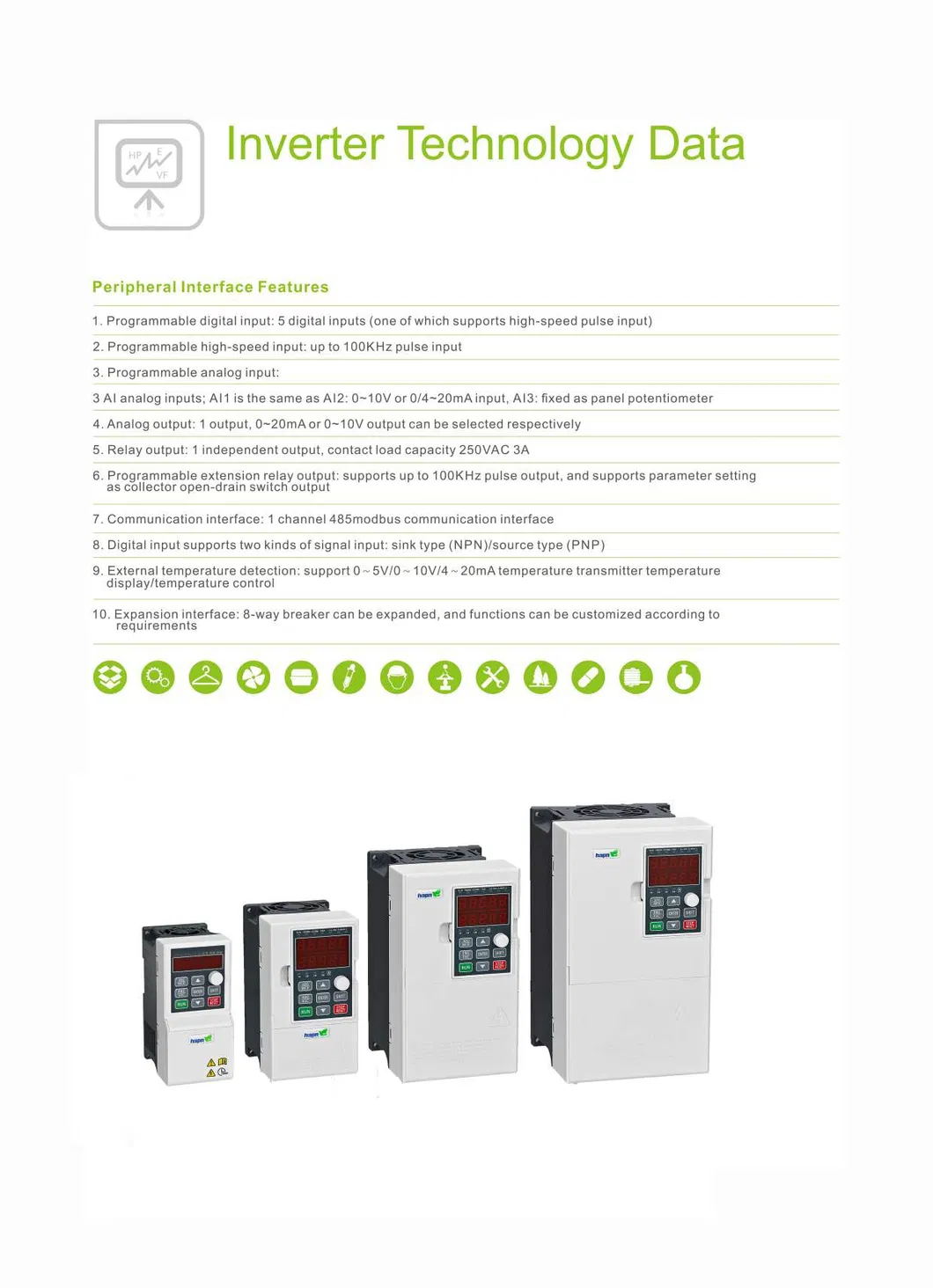

03 5 digital input terminals, support 100KHz pulse signal, support input signal polarity selection
04 One relay output
05 Support one 100KHz pulse signal output, support parameter setting "two relays", multifunctional expansion interface supports "eight relays"
06 3 channels of analog input, AI1 and AI2 are independent (0/4-20mA or 0~10V), AI3 fixed panel potentiometer
07 One channel of voltage and current analog output
08 Provide +10V and +24V two-way power supply simultaneously
09 Brake unit integrated
10 Simple PLC, support PID modification setting
11 Sixteen-stage speed control
12 4 groups of acceleration and deceleration time settings
13 VF mode, support fire emergency EPS
14 Jump frequency mode, frequency detection
15 High frequency output, support 3000Hz
16 Run/stop timing function
17 Random password release to avoid malicious arrears
18 External temperature detection, support constant temperature control
19 Full protection: Short circuit, input/output phase loss protection
20 Dual display parameter switching & target content selection
21 One drag four constant pressure + auxiliary pump function
22 Integrated operation status display for pump management
23 Support low-power single-phase 220V boost to three-phase 380V
24 Customization support for specific user requirements
