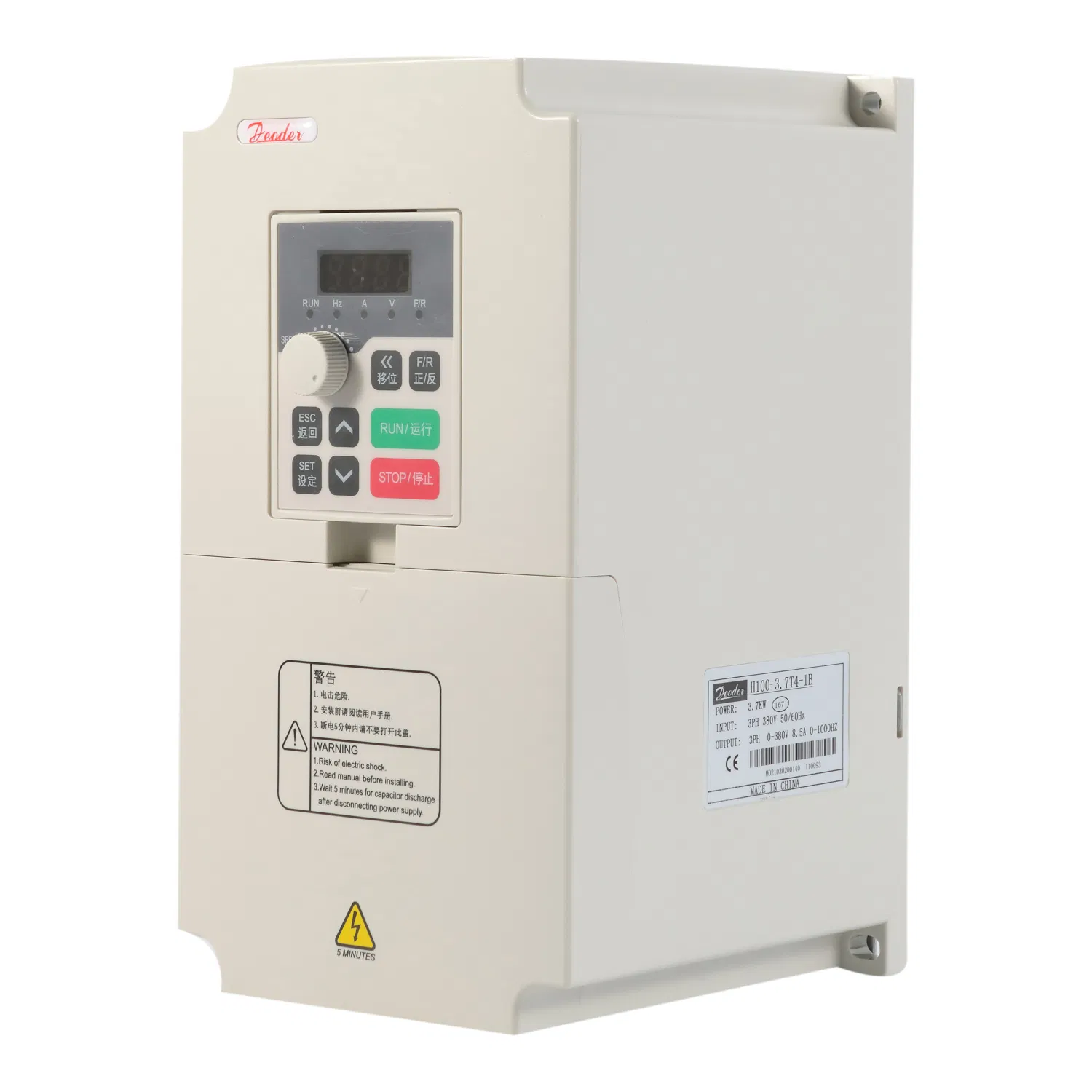

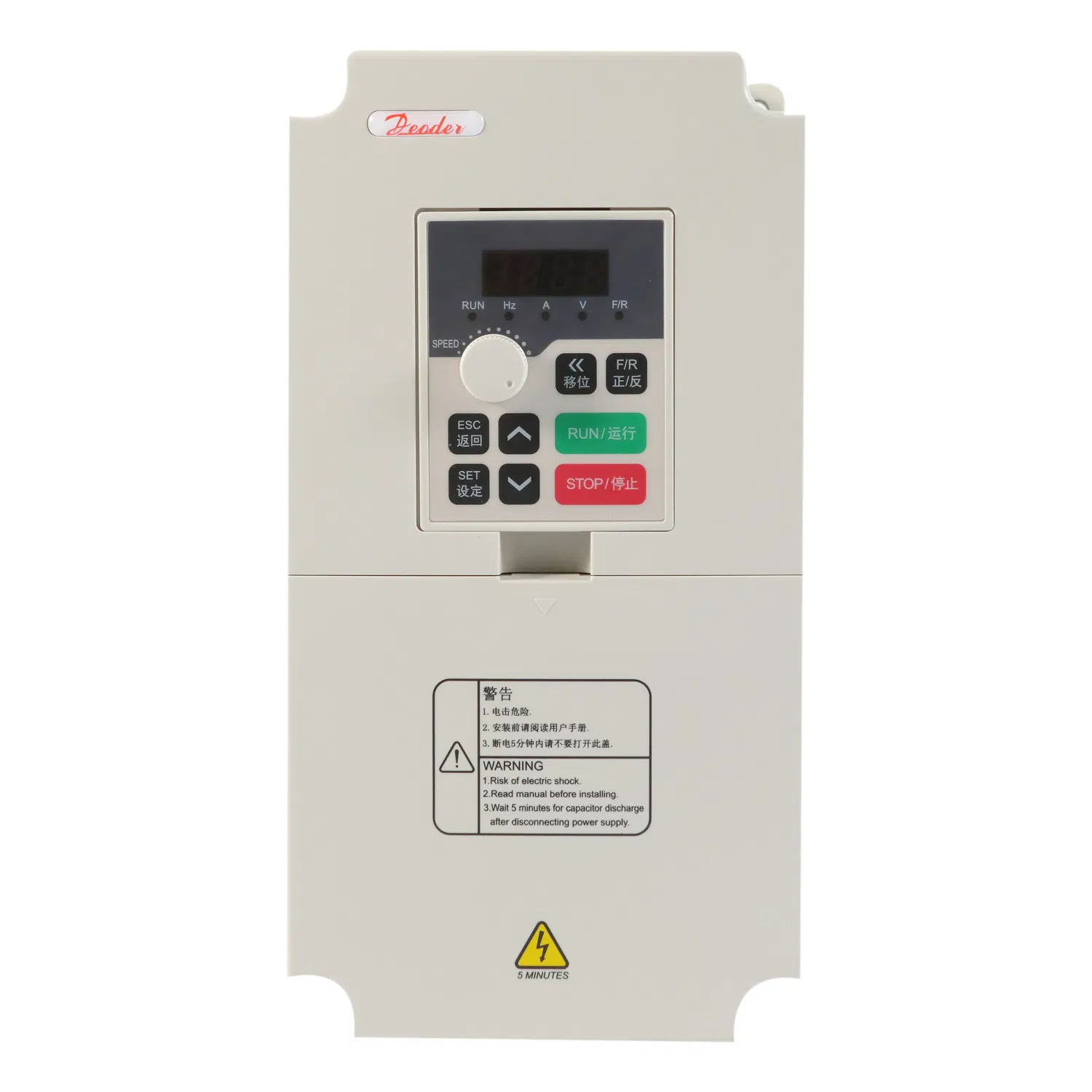

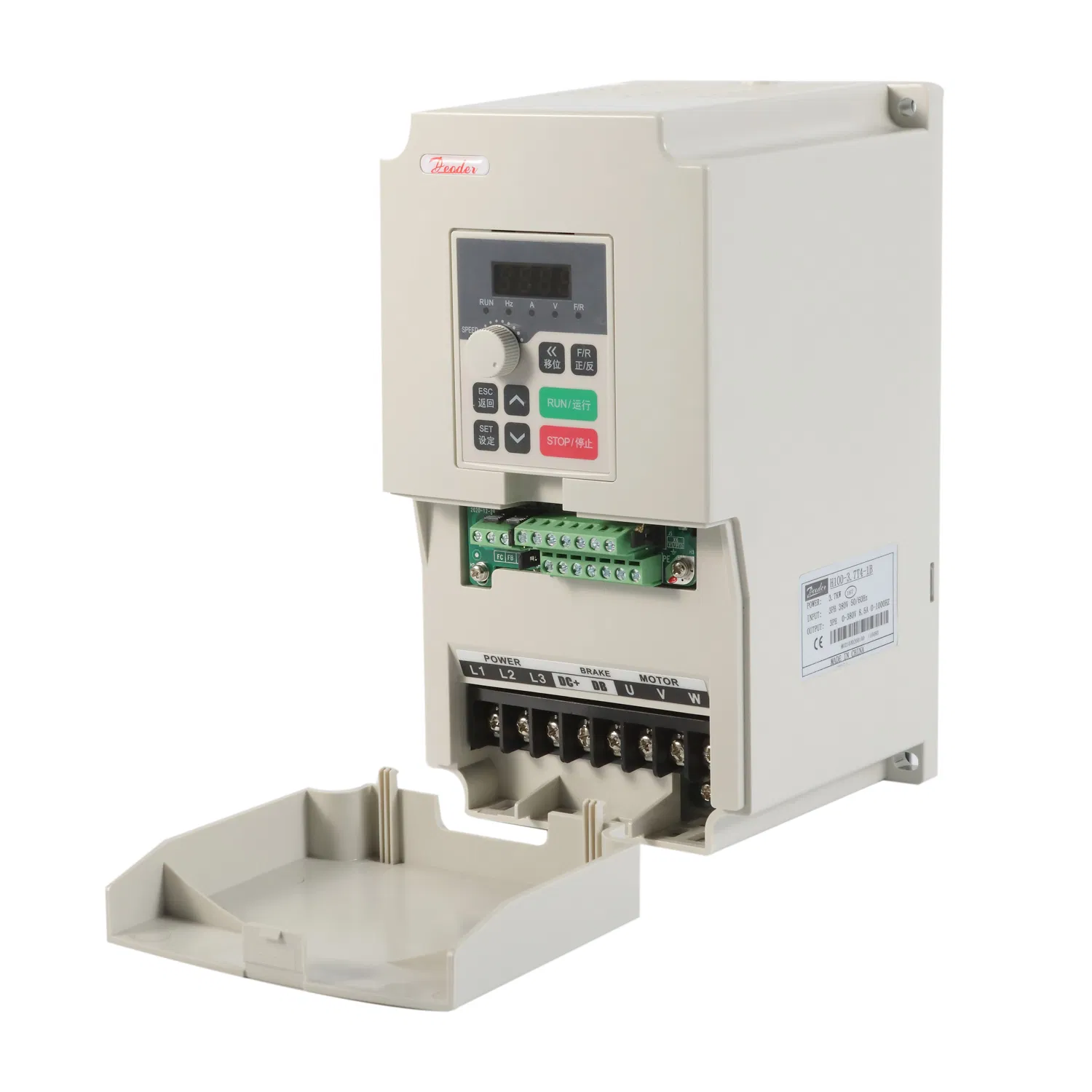

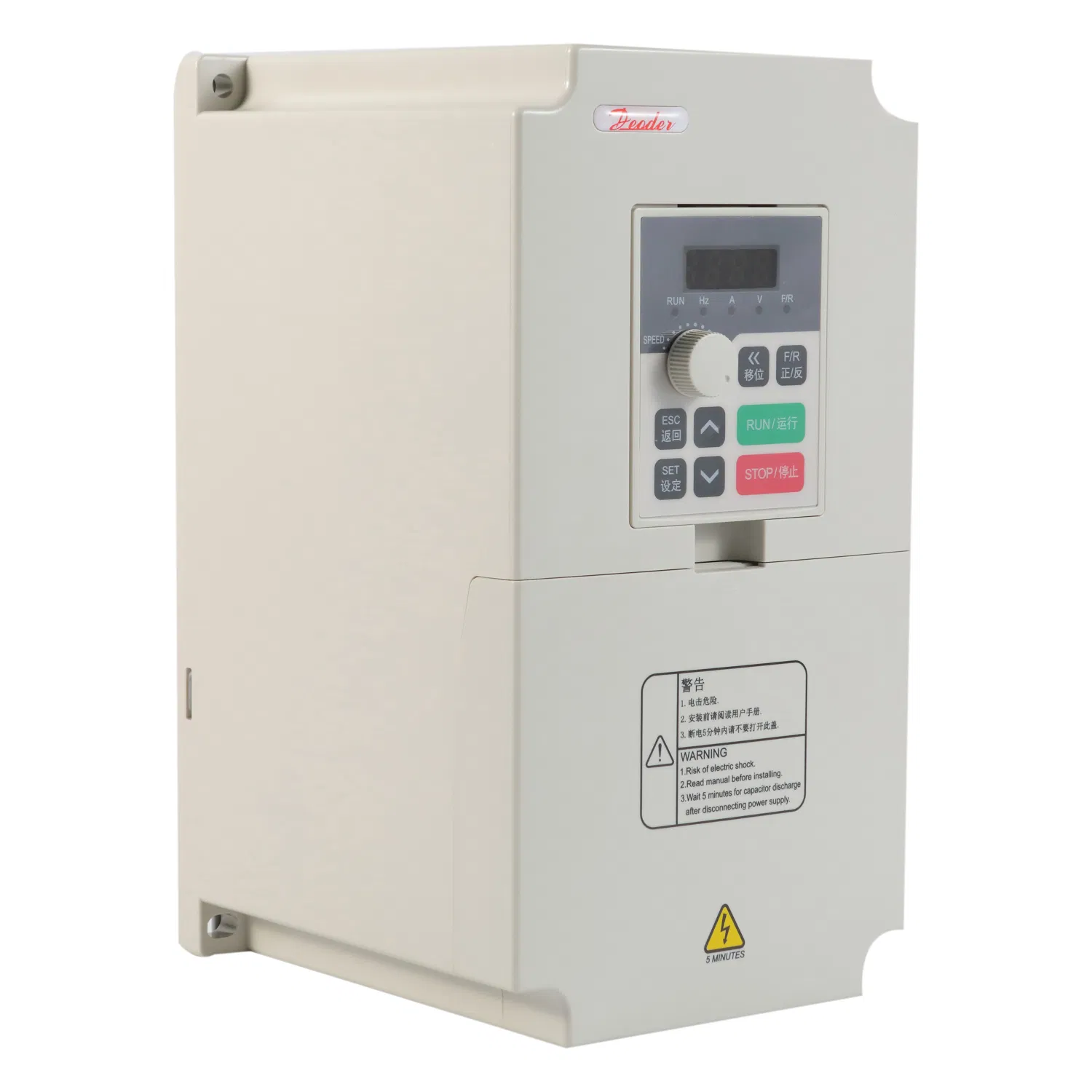

220V 230V 240V Input Voltage High Frequency Inverter 50Hz 60Hz Output 5.5kw VFD

📋 Overview

Principle of Work	V/F Control Transducer
Switch Mode	Vf
Main Circuit Type	Voltage
Voltage of Power Supply	Low Voltage Variable-Frequency Drive
Link of Transformation	3.0kw
Nature of DC Power	Voltage Variable-Frequency Drive
Function	Simple Type, Textile Special, Constant Torque Universal Type
Transport Package	By Carton
Specification	Three-phase: 380V: 1.5kw
Origin	China
HS Code	8504403090
Production Capacity	100000

⚡ Product Description

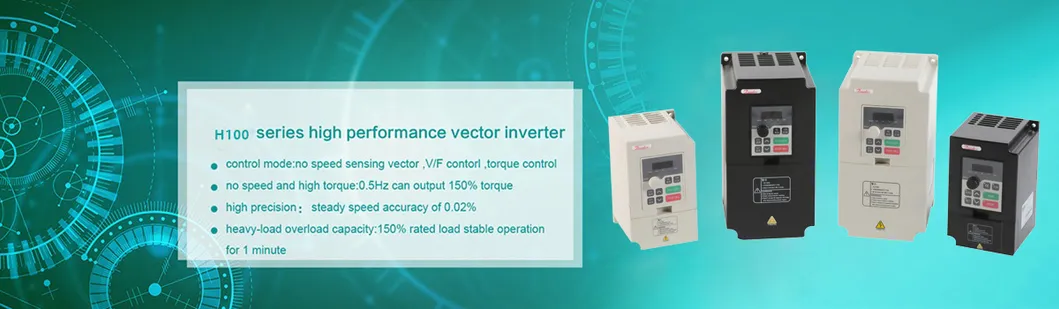

Model	H100 Series Frequency Inverter
Power Range	3 Phase AC 380V~480V (-10% ~ +10%) 0.75KW ~ 500KW
Output Frequency	0.00~1000Hz (Default: 50/60Hz)
Control Mode	V/F Control, Sensorless Vector Control, Torque Control
Starting Torque	0.5Hz/150%(SVC)
Communication	RS-485, supporting MODBUS protocol
Energy Saving	Power saving rate 30% - 80%
PID Control	Built-in, convenient for closed-loop control systems (e.g., constant pressure water supply)
Fault Protection	Over current, over voltage, under voltage, over temperature, phase failure, over load etc.

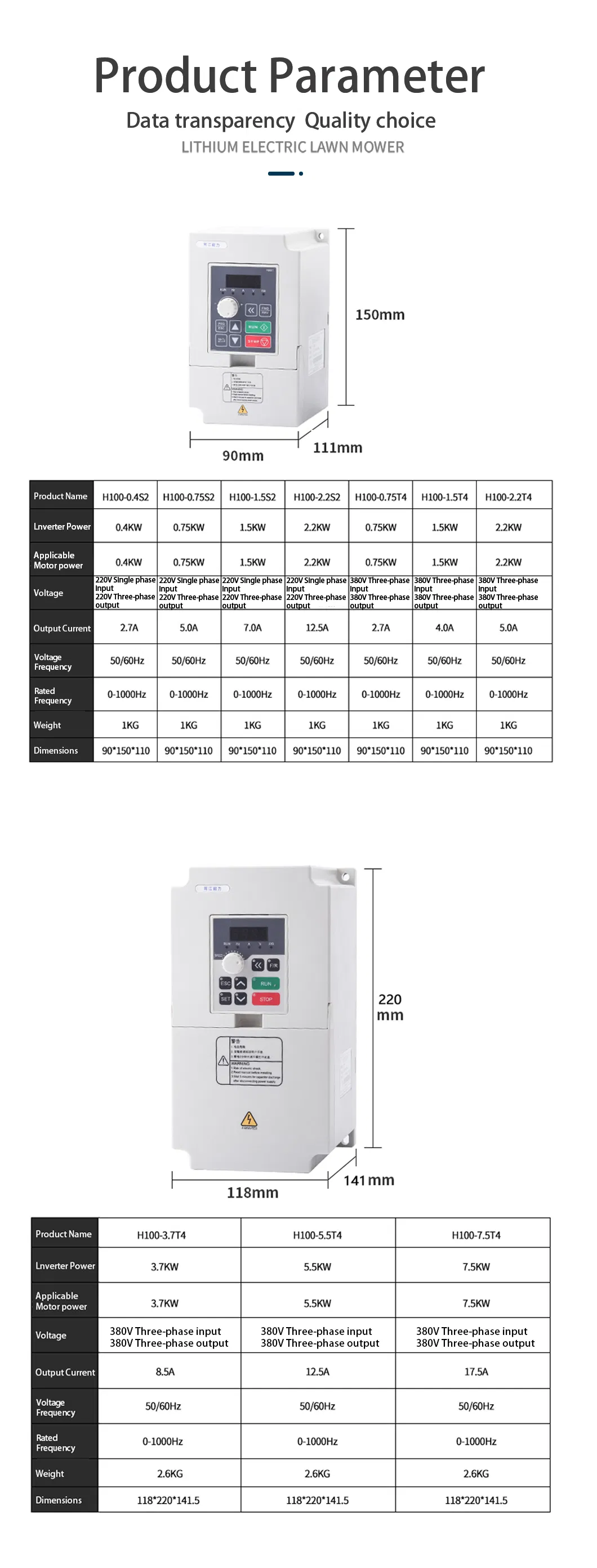

📊 Product Parameters

Inverter Model	Power (kW)	Input Voltage	Output Current (A)	Dimension HxWxD (mm)
H100-0.4S2-1B	0.4	220V 50HZ	2.5/5.0	150x90x118
H100-0.75S2-1B	0.75	220V 50HZ	5.0/7.0	150x90x118
H100-1.5S2-1B	1.5	220V 50HZ	7.0/11	150x90x118
H100-2.2S2-1B	2.2	220V 50HZ	11/17	220x118x148
H100-0.75T4-1B	0.75	380V 50Hz	2.7/4.0	150x90x118
H100-2.2T4-1B	2.2	380V 50Hz	5.0/8.5	150x90x118
H100-7.5T4-1B	7.5	380V 50Hz	17.5/24	220x118x148

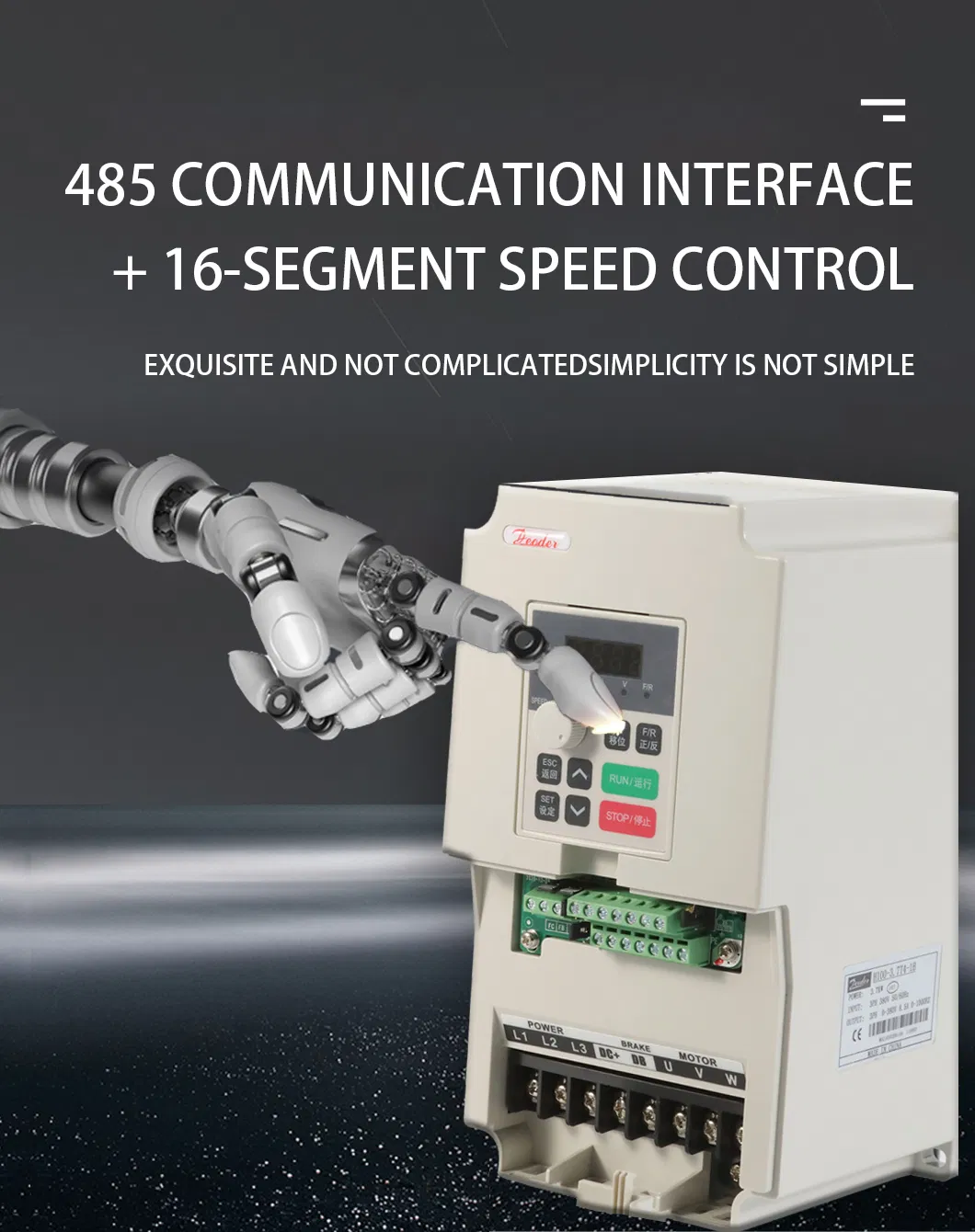

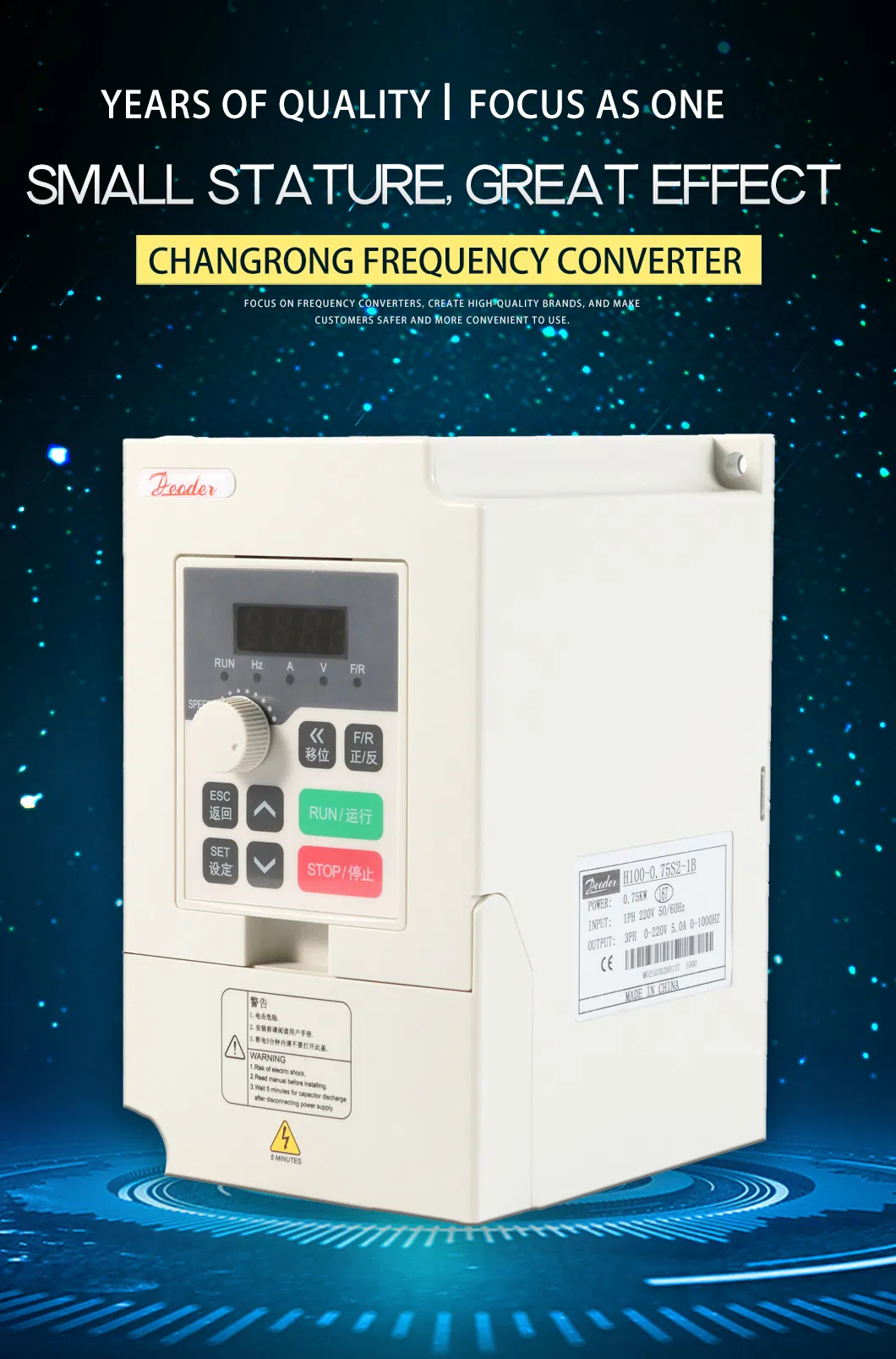

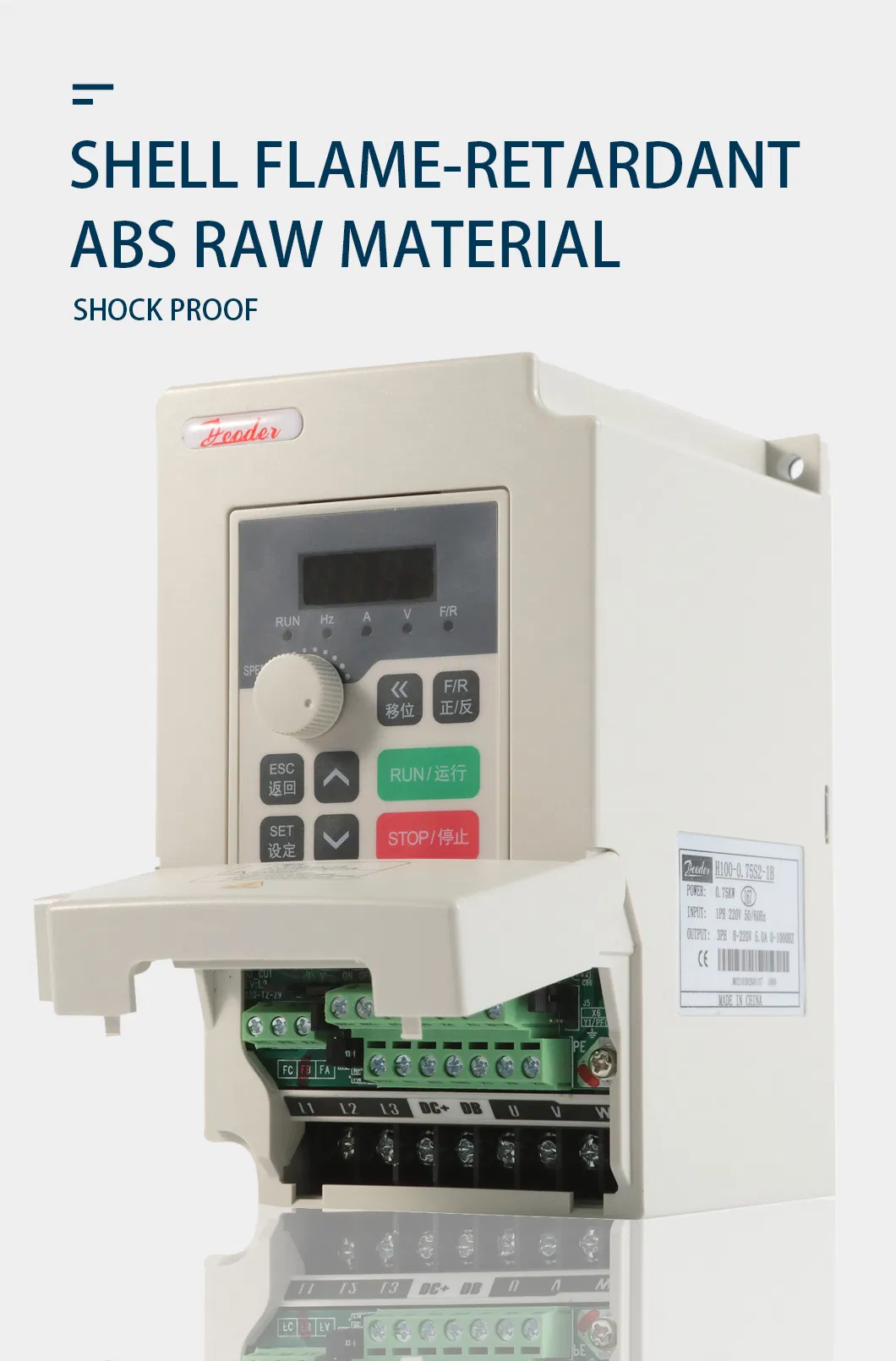

📷 Detailed Photos

⚙️ Application

Applicable Scenarios: Fans, Pumps, 3-Phase Motors, Machine Tool, Textile, Mining, Chemical, Plastic machinery, Metallurgy, Oil, Woodworking, Pharmaceutical, Ceramics, Paper, Lifting, Printing And Packaging, Air Compressors, Agricultural Irrigation, etc.

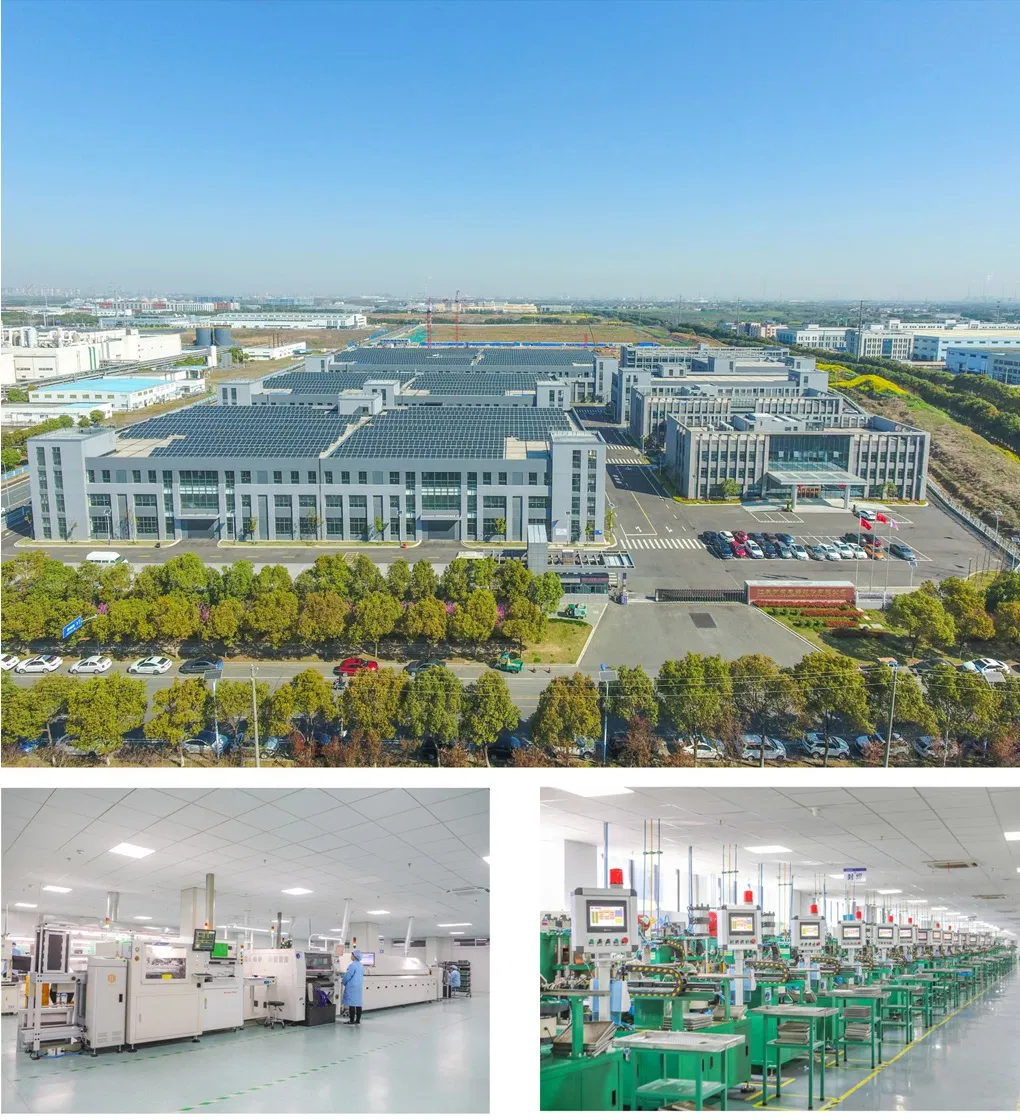

📜 Certifications & Production

❓ FAQ

What voltage range can you support?

We support Single-phase 220v input to single-phase/three-phase 220v output, Three-phase 220v input to three-phase 220v output, and Single-phase 220v input to three-phase 380v output.

How to choose the power of the frequency inverter?

Power selection should be based on your motor's specifications. Please provide your motor power details to our technical team for a tailored solution.

How to ensure product quality?

Our production strictly follows the ISO9001 quality control system. Every unit undergoes four quality inspections and high-temperature testing before receiving the "QA" pass.

Do you accept OEM business?

Yes, we accept both OEM and ODM orders with your official authorization.

What is the lead time for orders?

Samples typically take 3-5 days, while mass production orders generally require 1-2 weeks depending on the volume.

Do you offer a guarantee for the products?

Yes, we provide an 18-month warranty for our frequency inverters.
