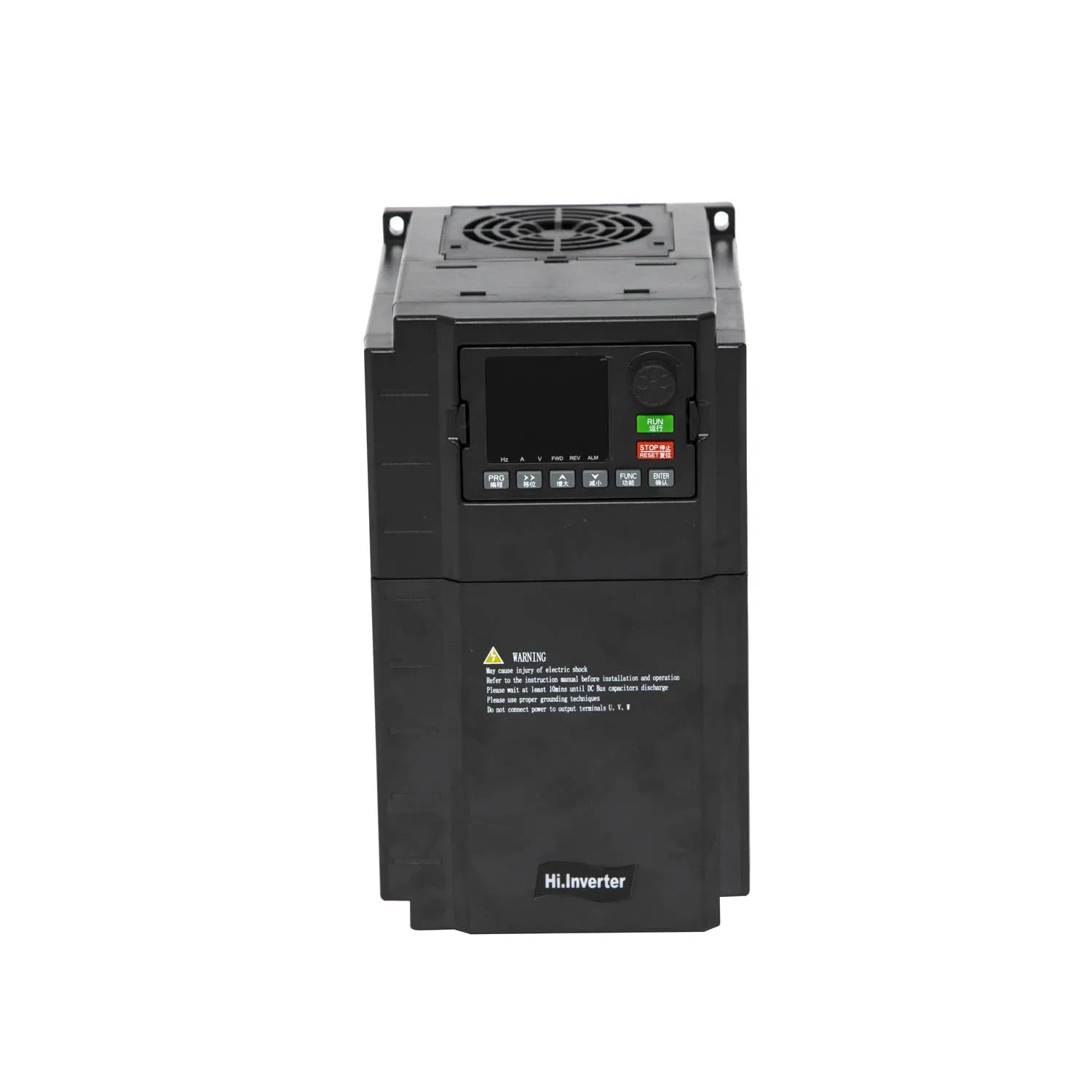

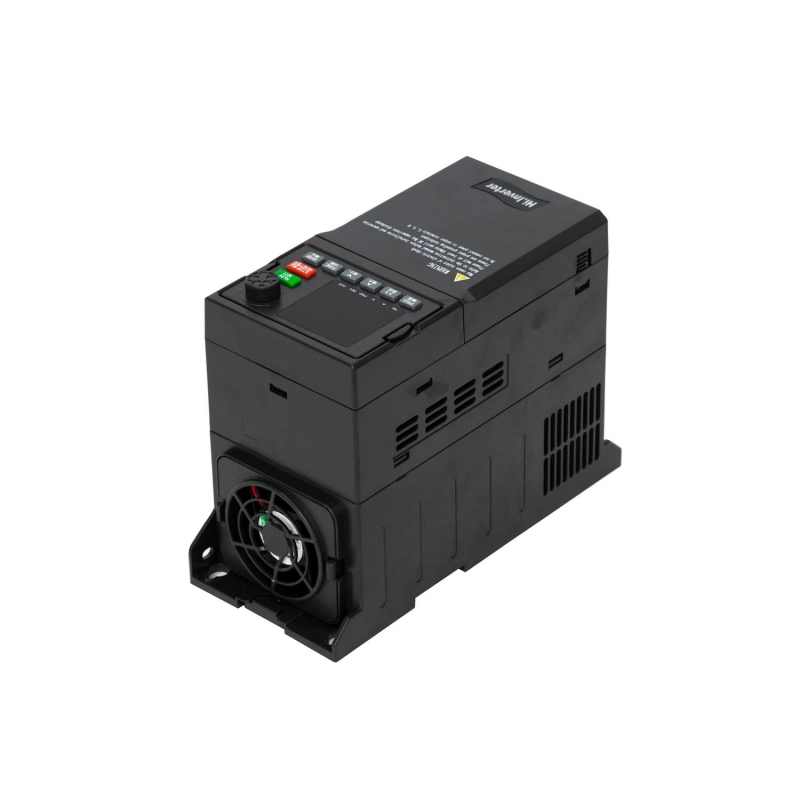

Energy-Saving VFD Drive Featuring Toroidal Transformer, High Voltage Transformer and Solar Pump VFD

1 / 5

Energy-Saving VFD Drive Featuring Toroidal Transformer, High Voltage Transformer and Solar Pump VFD

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Info

Model NO.	VFD
Principle of Work	Vector Control Transducer
Switch Mode	PWM Control
Control Mode	Sensor Less Flux Vector Control (Sfvc)
Main Circuit Type	Voltage
Power Supply	Low Voltage Variable-Frequency Drive
Function	Simple Type, Elevator Special, Textile Special
Origin	China

📦

Packaging & Delivery

Package Size	18.50cm * 12.60cm * 16.00cm
Package Gross Weight	2.100kg
Transport Package	Cartoon

🏢

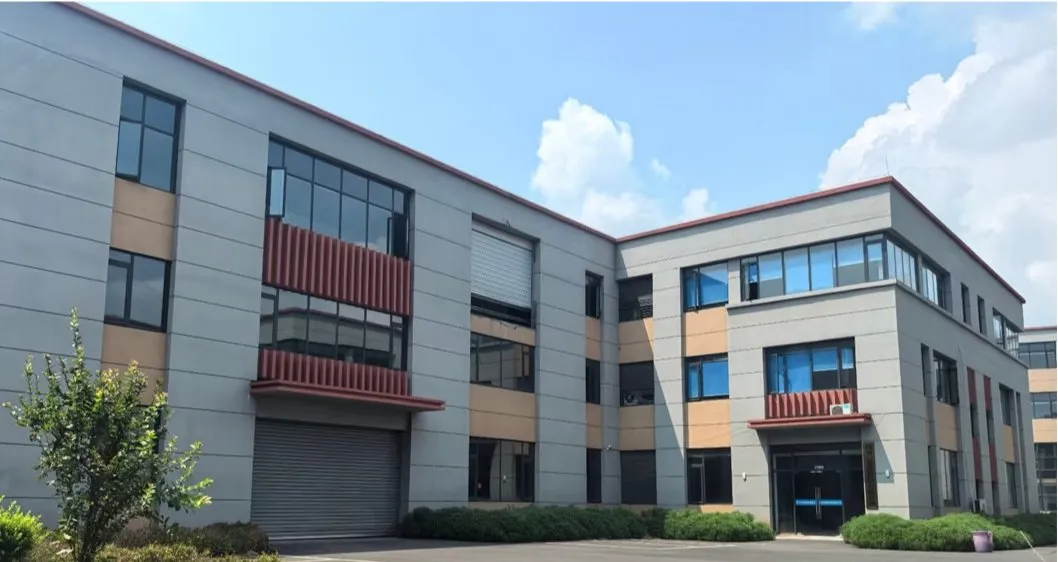

Company Profile

We are a leading manufacturer specializing in the design, production, and OEM services of a wide range of electrical apparatus including transformers, voltage stabilizers, circuit breakers, inverters, relays, load switches, contactors, current tranformer, multimeter, disconnector, surge protective device, overvoltage and undervoltage protector, track socket, Fuse, meter, load switch, capacitor, variable frequency drive, voltage regulator etc.

We hold management system certification: ISO9001: 2015, IS014001: 2015, and kinds of quality certification such as: CE, CB, TUV, RoHS, UL, etc.

⚙️

Product Description

AC Drive Technology

The AC drive is a general-purpose high-performance current vector control AC drive. It can implement the control of asynchronous motor and permanent magnet synchronous motor (PMSM).

It increases the user programmable function, background monitoring software and communication bus function, and supports multi-kind PG cards. It is used to drive various automation production equipment involving textile, paper-making, wire-drawing, machine tool, packing, food, fan and pump.

🔍

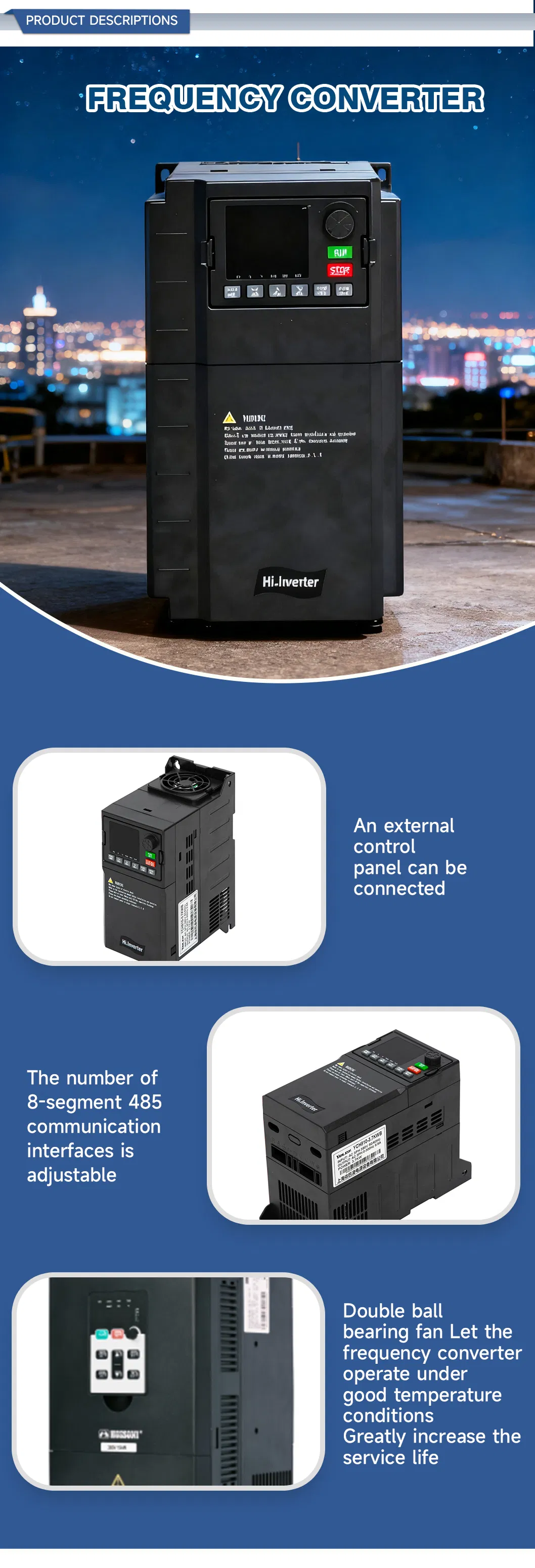

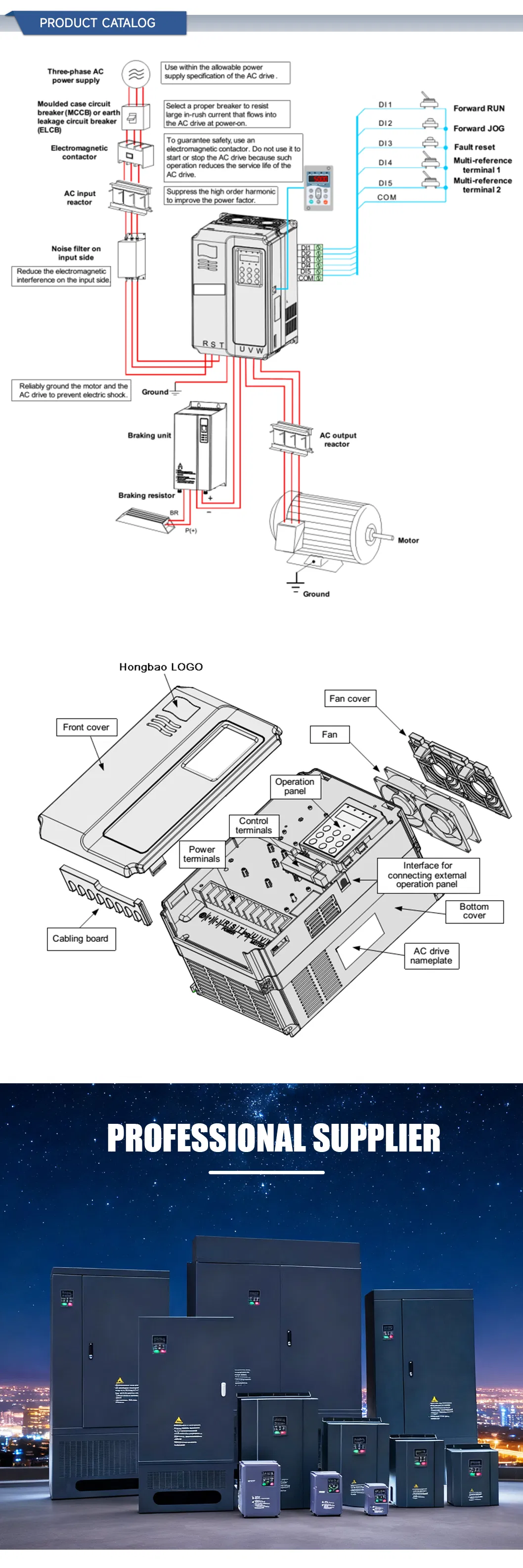

Detail Showcase

📊

Technical Specification

Category	Item	Specifications
Standard Functions	Maximum Frequency	Vector control: 0-300Hz; V/F control: 0-3200Hz
	Carrier Frequency	0.5-16 kHz (Adjusted automatically)
	Control Mode	SFVC, CLVC, V/F Control
	Startup Torque	G type: 0.5 Hz/150% (SFVC); P type: 0.5 Hz/100%
	Speed Stability	±0.5% (SFVC); ±0.02% (CLVC)
Individual Functions	Timing Control	Range: 0.0-6500.0 minutes
	Communication	Modbus-RTU, PROFIBUS-DP, CANlink, CANopen
	Encoder Types	Differential, Open-collector, UVW, Resolver

⭐

Product Advantages

Multiple Voltage Classes: Coverage for 220V, 380V, 480V, 690V, and 1,140V.
Dual Motor Support: Controls both Asynchronous motors and PMSM.
Advanced Algorithm: All-new SFVC algorithm for better low-speed stability.
User Programmable: HBPC1 card supports ladder diagram programming.
Monitoring: Professional background software for real-time oscilloscope functions.

🌍

Working Environment

Ambient temperature: -30°C to +40°C
Altitude: Up to 1000m
Wind speed: Max 34m/s (700Pa)
Humidity: Daily and monthly average relative humidity ≤ 95%
Shock proof: Horizontal ≤ 0.4m/s²; Vertical ≤ 0.15m/s²
Installation site slope: ≤ 3°
Environment: Free from corrosive/flammable gases and violent shaking

❓

Frequently Asked Questions

1. What services can we provide?

We provide customization, OEM, and ODM services. We also offer professional technical solutions and after-sales service through local teams in various regions including America, Australia, and Africa.

2. How long is the manufacturing lead time?

It depends on the order volume, but typically orders are processed and manufactured within 4 to 8 weeks.

3. Can we customize the logo and packaging?

Yes, we welcome brand, logo, color, and packaging customization according to your specific country standards and requirements.

4. What types of motors can this VFD control?

It supports high-performance control for both three-phase AC asynchronous motors and permanent magnet synchronous motors (PMSM).

5. What communication protocols are supported?

Our VFD units support multiple communication protocols, including Modbus-RTU, PROFIBUS-DP, CANlink, and CANopen.

6. Why choose our products?

We are a professional factory with over 20 years of experience in power electronic equipment, offering globally reliable quality and a complete customer service system.
