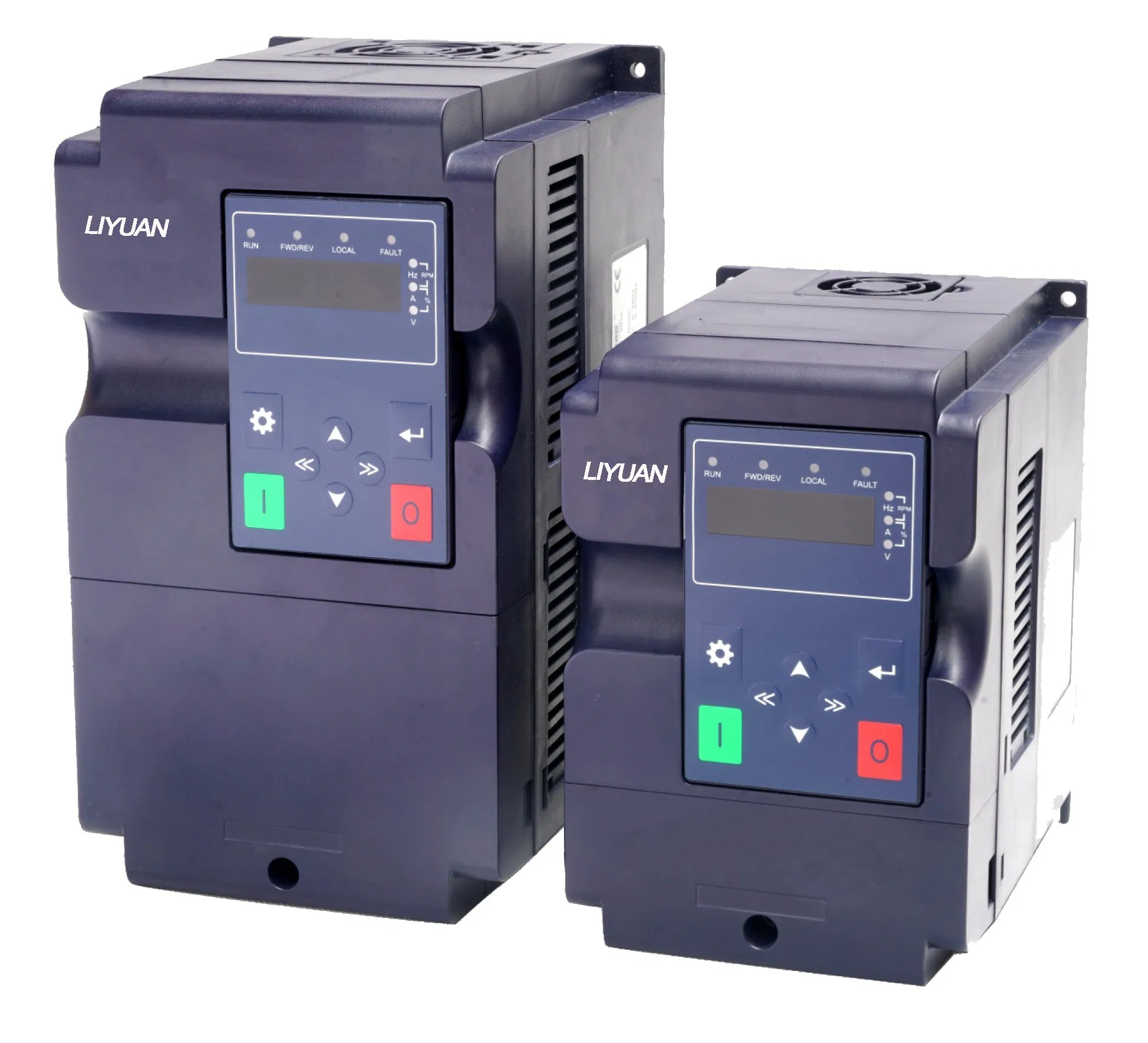

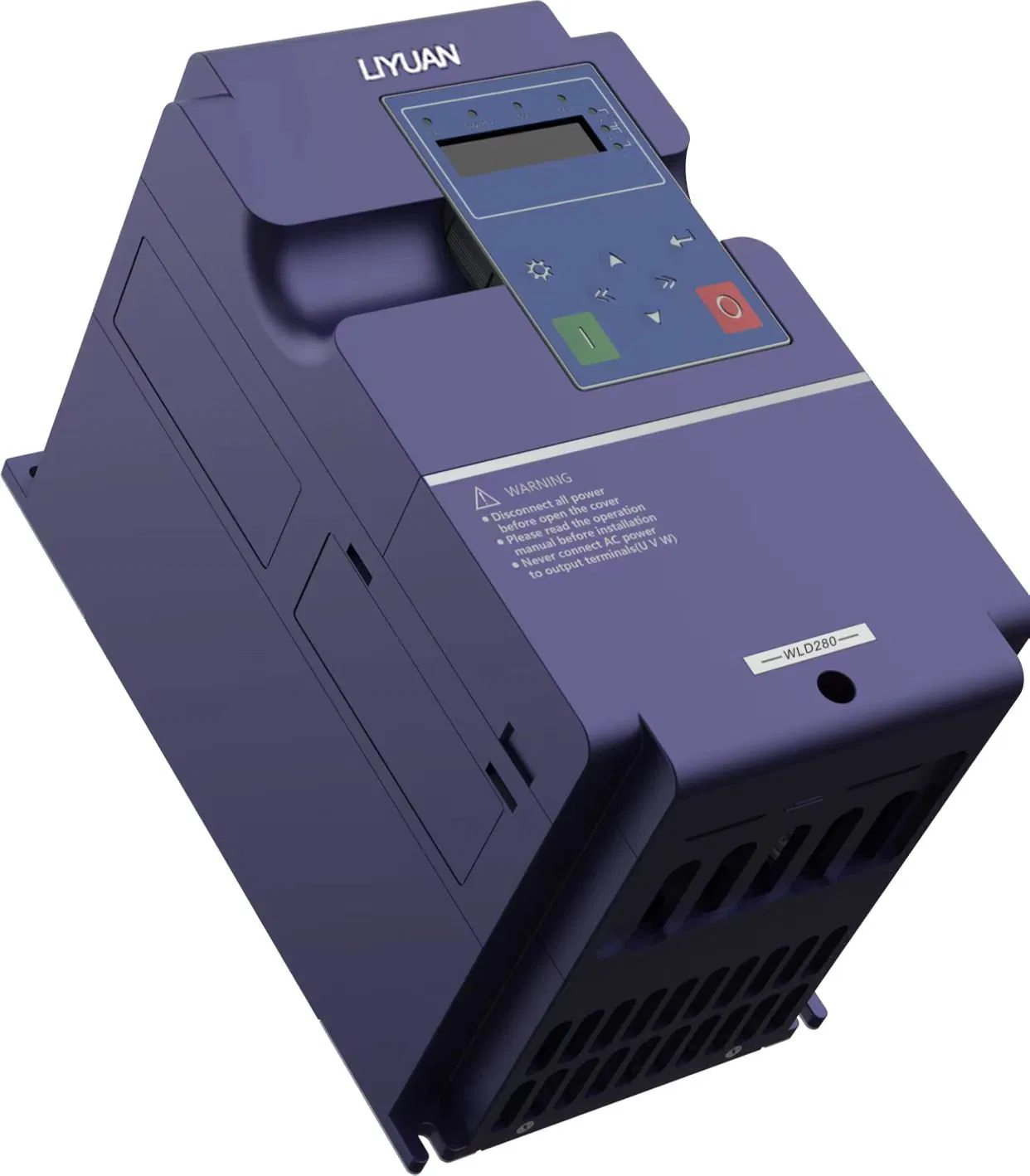

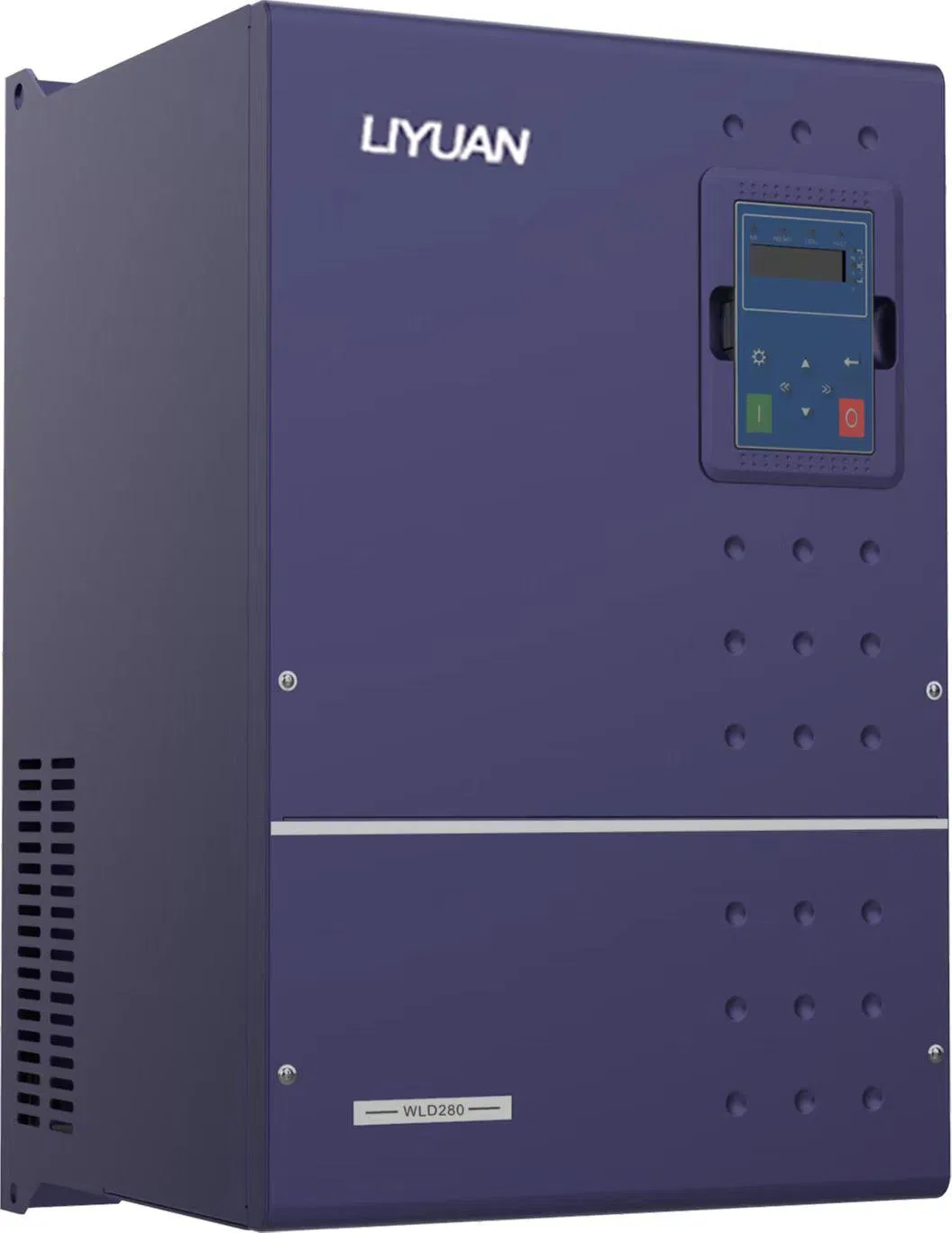

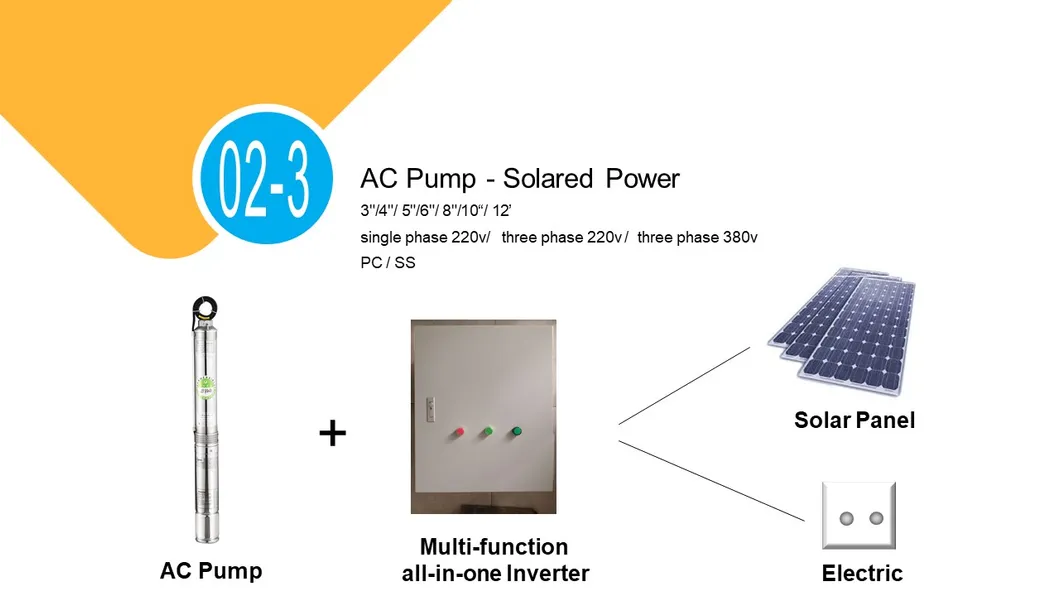

WLD280 Solar Submersible Pump Inverter MPPT AC Controller Power Supply
Input & Output Voltage and Power Range:
Protection Function:
| Output AC Three Phase 380V | ||||
|---|---|---|---|---|
| Model No. | Rated Power (kW) | Input Current (A) | Output Current (A) | Motor Power (kW) |
| WLD280-4001 | 0.75 | 3.4 | 2.1 | 0.75 |
| WLD280-4002 | 1.5 | 5 | 3.8 | 1.5 |
| WLD280-4003 | 2.2 | 5.8 | 5.1 | 2.2 |
| WLD280-4005 | 4 | 13.5 | 9.5 | 4 |
| WLD280-4007 | 5.5 | 19.5 | 14.0 | 5.5 |
| WLD280-4010 | 7.5 | 25 | 18.5 | 7.5 |
| WLD280-4015 | 11 | 32 | 25.0 | 11 |
| WLD280-4020 | 15 | 40 | 32.0 | 15 |
| WLD280-4030 | 22 | 51 | 45.0 | 22 |
| WLD280-4050 | 37 | 80 | 75.0 | 37 |
| WLD280-4100 | 75 | 139 | 152.0 | 75 |
| Power (Kw) | Inst. Dim (A*B mm) | Ext. Dim (H*W*D mm) | Hole (mm) | Packing Size (mm) |
|---|---|---|---|---|
| 0.75~2.2 | 114*174 | 186*126*163.8 | 5.0 | 255*185*255 |
| 4.0~5.5 | 114*174 | 186*126*185.0 | 5.0 | 255*185*255 |
| 7.5 | 129*242 | 258*145*176.5 | 5.5 | 345*255*285 |
| 11~15 | 146*301 | 313*161*210.0 | 6.0 | 390*265*305 |
| 30~37 | 233*381 | 400*251*213.0 | 6.0 | 550*380*330 |
