Home > AC Solar Pump Inverter > 3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
1 / 5
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter
3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter

3 Years Warranty Efficiency Solar Pump Inverter Variable Frequency AC Drive Solar Inverter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Information
Model NO.KD100
Principle of WorkVector Control Transducer
Switch ModeHigh Carrier Frequency PWM Control
Main Circuit TypeVoltage
Voltage SupplyLow Voltage Variable-Frequency Drive
Link of TransformationAC-DC-AC VFD
Nature of DC PowerVoltage VFD
FunctionElevator/Textile/Universal Type
BrandK-Drive
HS Code85044099
D
Product Description
Professional manufacturer specialized in R&D of AC drives. With more than 12 years of experience in the domestic market, a comprehensive product family has been built. Frequency inverters' power covers the range from 0.4 to 630kW, and voltage range is between 220V and 480V. More than 300,000 units are running smoothly at various industrial sites.
The KD100 Series is a highly competitive series offered at the best price point. It features high-quality internal components, including all Hall chips and built-in EMC filters. All units come with a 3-year warranty.

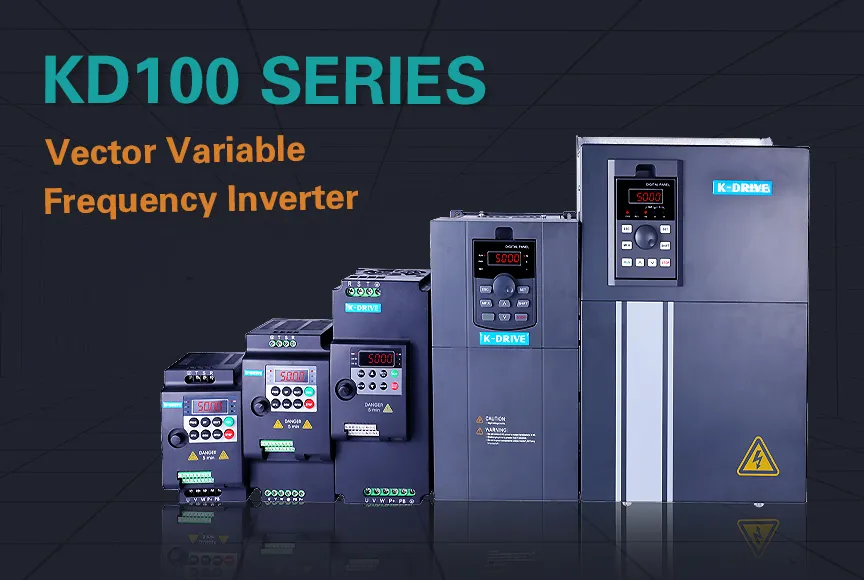

KD100 Inverter
P
Product Parameters
Input Voltage 208~240V single phase & three phase / 380~480V three phase
Output Frequency 0~600Hz
Control Technology V/F, SVC, Torque Control
Starting Torque 0.5Hz 150% (V/F), 0.25HZ 180% (SVC)
Speed Accuracy ±0.5%(V/F) ±0.2%(SVC)
Torque Response <10ms (SVC)
Overload Capability 150%@60S, 180%@10S, 200%@1S
I/O Features Simple PLC (16-steps), 5 Digital inputs (NPN/PNP), 2 Analog In/Out
Communication MODBUS RS485

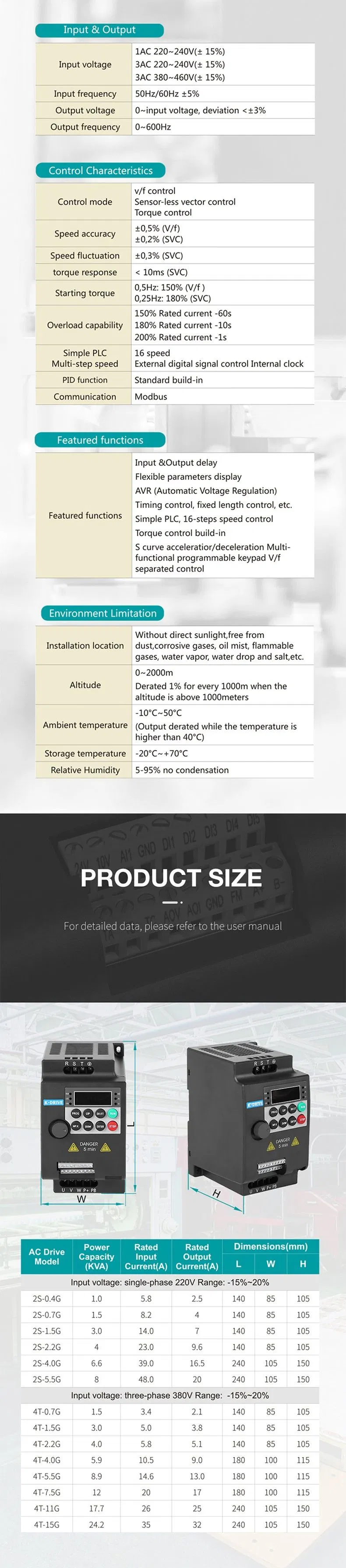

Parameters Chart

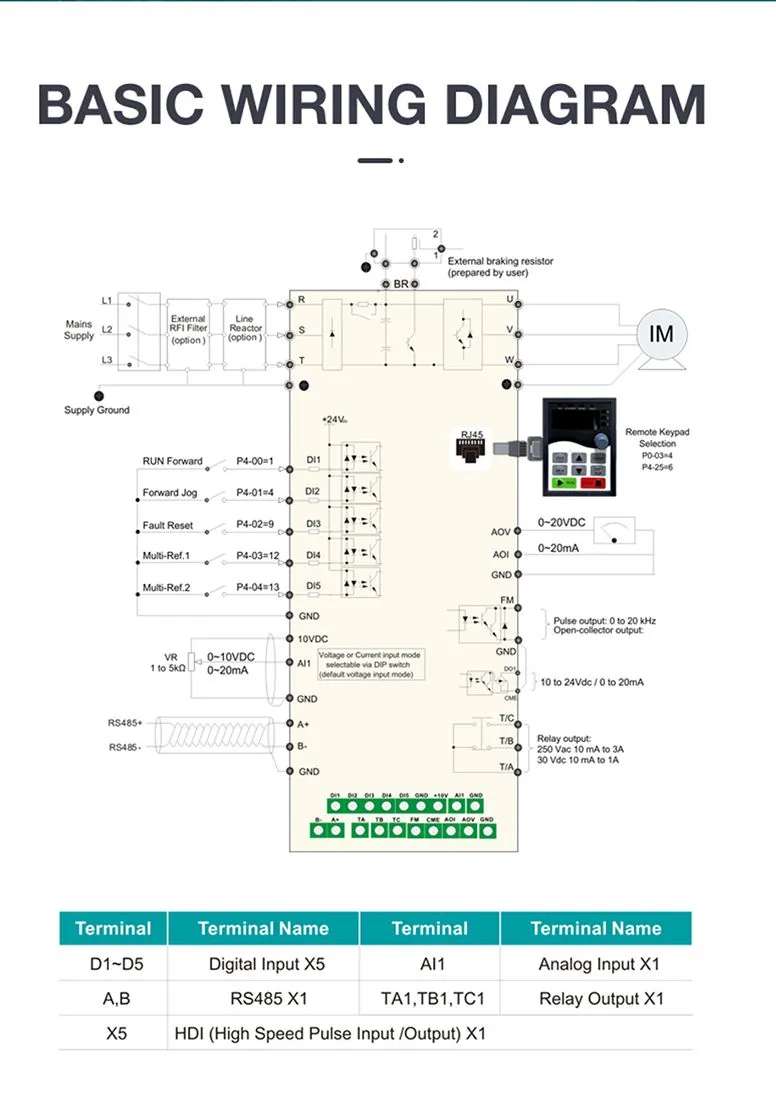

Specifications
F
Product Features
01
Compact design suitable for limited installation space such as packaging and conveyors.
02
Patented rubber keypad design with a larger size for easier operation for overseas users.
03
External keyboard support, flexible for panel assembly.
04
PC software for one-key setting, significantly saving debugging time.
05
Built-in EMC C3 filter for strong anti-electromagnetic interference capability.
06
Independent air duct design for superior heat dissipation and easy maintenance.
07
Programmable DI/DO/AI and RS485 Modbus RTU & ASCII communication.
08
Integrated PID and multi-speed functions.
09
Support for fire override mode.
C
Production Overview

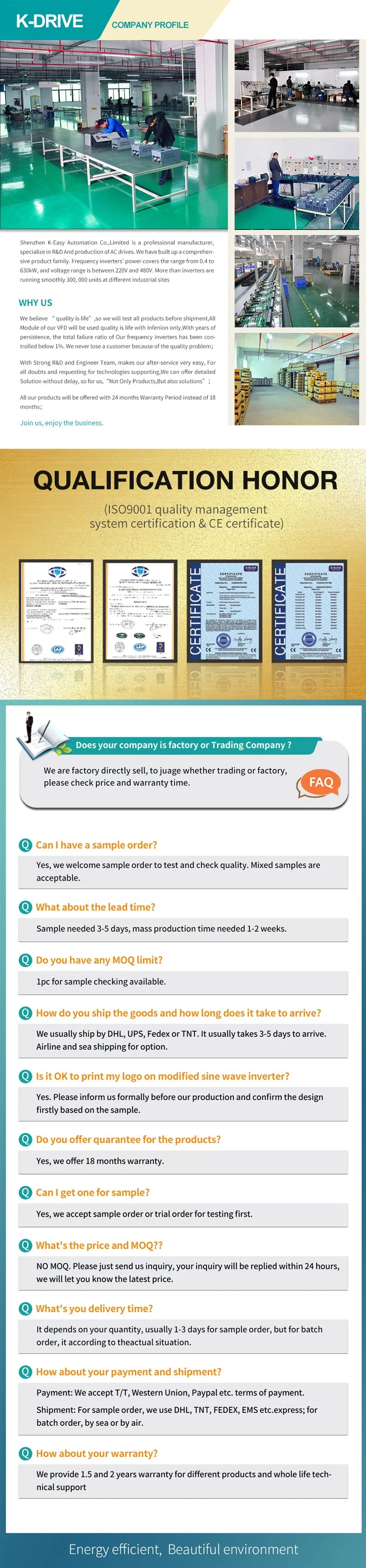

Production Facility
Frequently Asked Questions
What is the warranty period for the KD100 series?
The KD100 series comes with a standard 3-year warranty covering quality-related issues.
Does this inverter support single-phase input?
Yes, the KD100 series supports both 208~240V single-phase and three-phase input voltage options.
What communication protocols are supported?
It supports MODBUS RS485 with both RTU and ASCII modes for easy integration with other devices.
Can the KD100 handle high-torque start applications?
Yes, it provides a starting torque of 150% at 0.5Hz in V/F control and up to 180% at 0.25Hz in SVC control.
What is the output frequency range?
The inverter can provide an output frequency ranging from 0Hz up to 600Hz.
Is there an EMC filter included?
Yes, it features a built-in EMC C3 filter to enhance anti-electromagnetic interference performance.
