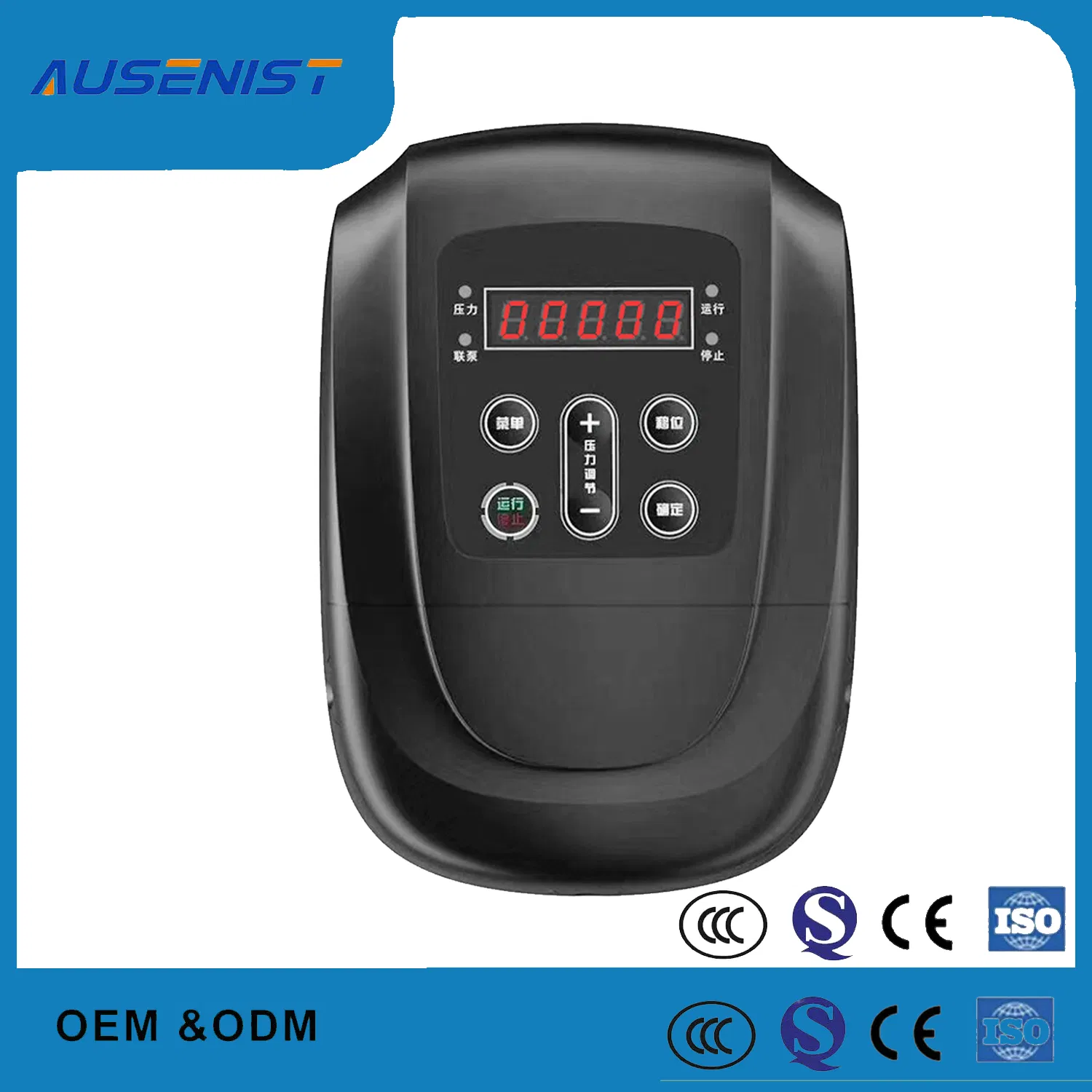

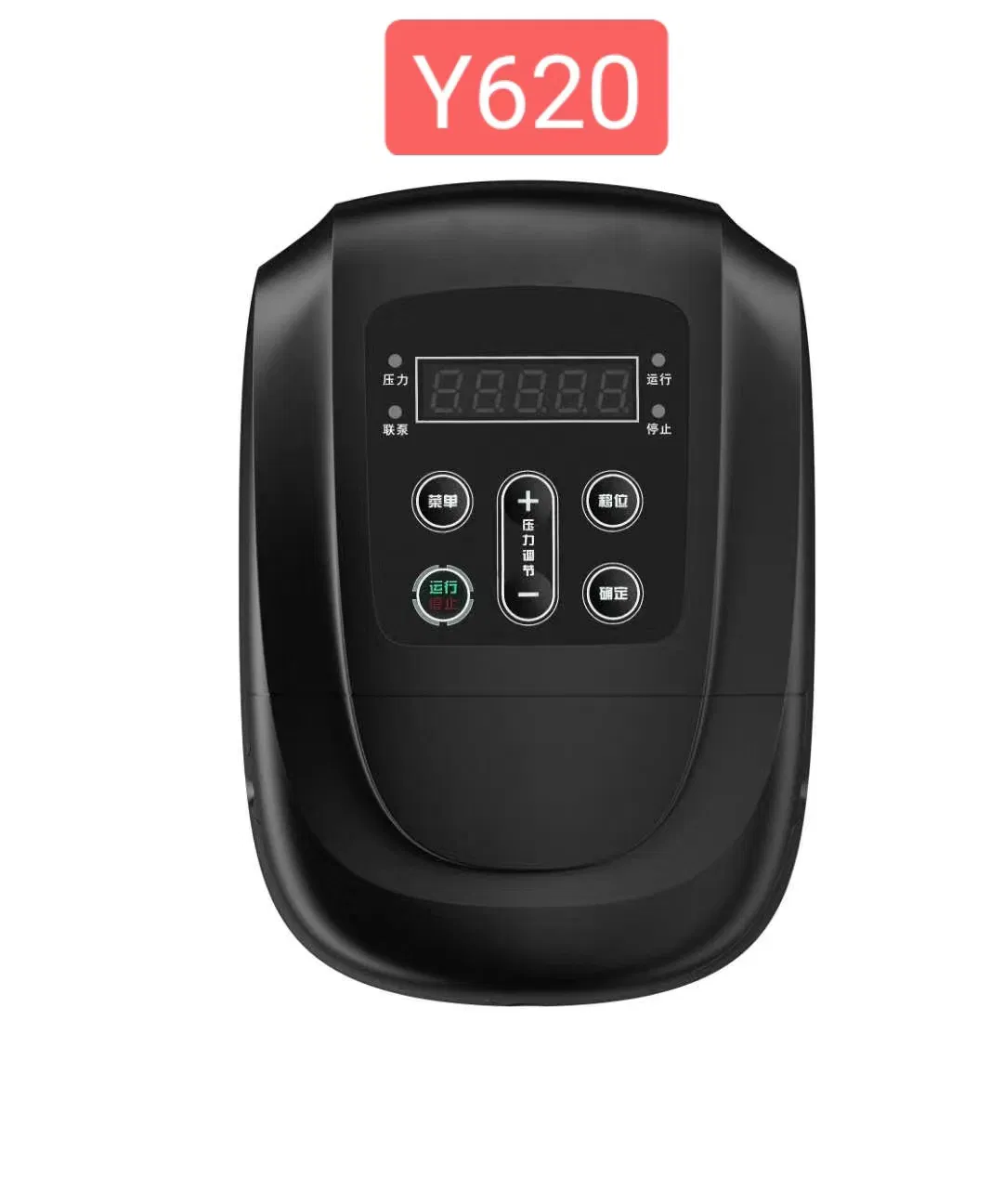

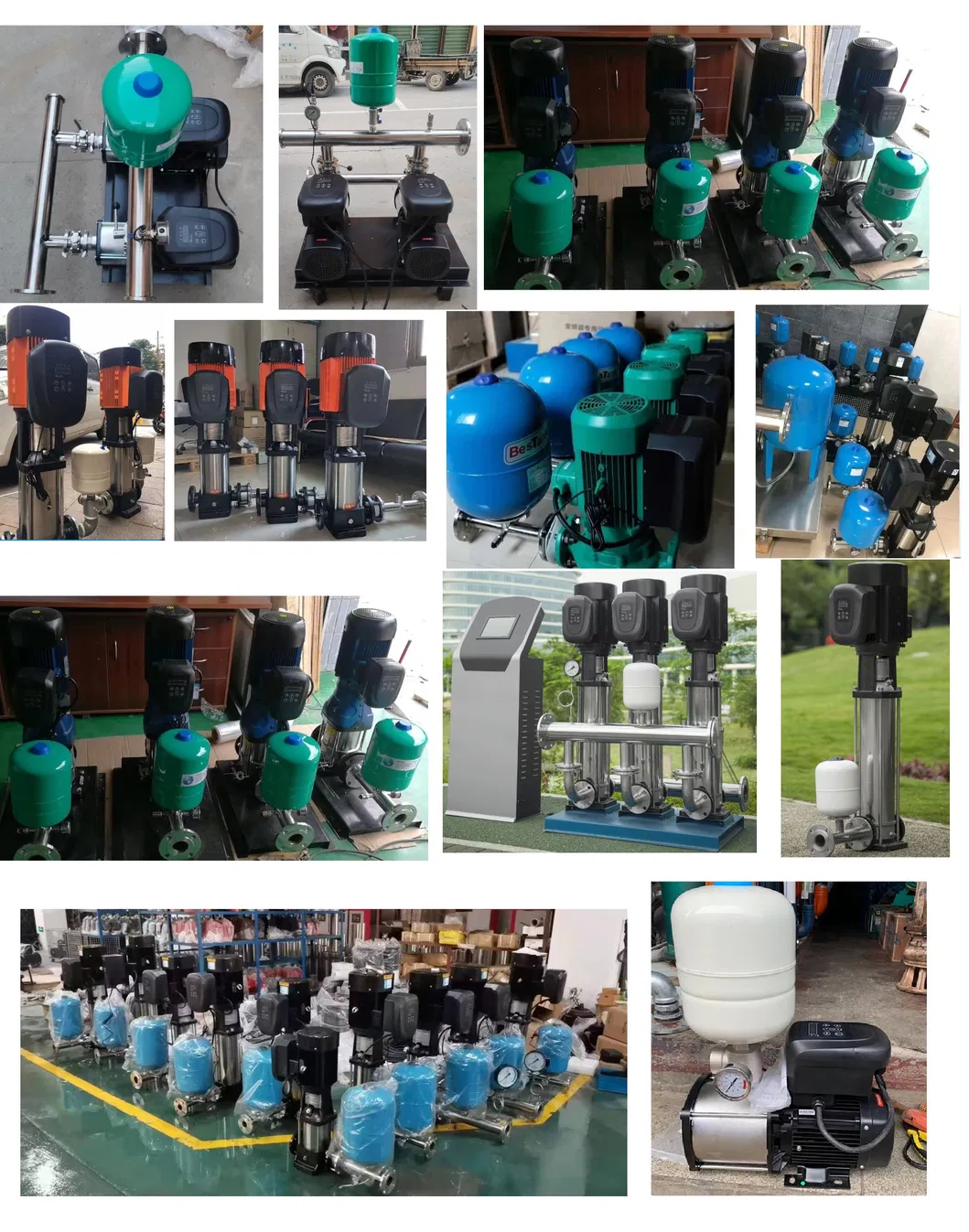

The high performance IP54 smart Y620 water pump drive is a single phase and three phase variable frequency drive designed specially to manage water pump's performance. It matches a wide range of water supply system conditions and requirements, allowing your pump to work more efficiently, safely, and smartly. This solution significantly reduces energy consumption and prolongs the lifetime of your pumps using the latest microprocessor technology.
| Control Characteristic | Specifications | |
|---|---|---|
| Control Mode | Starting Torque | 0.5Hz±100% |
| Speed Range | 1:100 | |
| Precision | ±1.0% | |
| Overload | 150% for 60s; 180% for 1s | |
| Input & Output | ||
| Input Voltage | 220VAC±15%, 380V±15% | |
| Input Frequency | 50/60Hz, fluctuation ±5% | |
| Output Frequency | 0-200Hz | |
| Environment Conditions | ||
| Temperature | -10ºC to +40ºC (derated up to 50ºC) | |
| Humidity | ≤95%RH, no condensation | |
| Vibration | <5.9m / S2(0.6G) | |
| Service Type | 0.4KW-3.7KW | 0.75KW-37KW | Above 37KW |
| Return Period | 1 Month | 1 Month | N/A |
| Exchange Period | 3 Months | 3 Months | N/A |
| Warranty | 18 Months | 18 Months | 18 Months |
