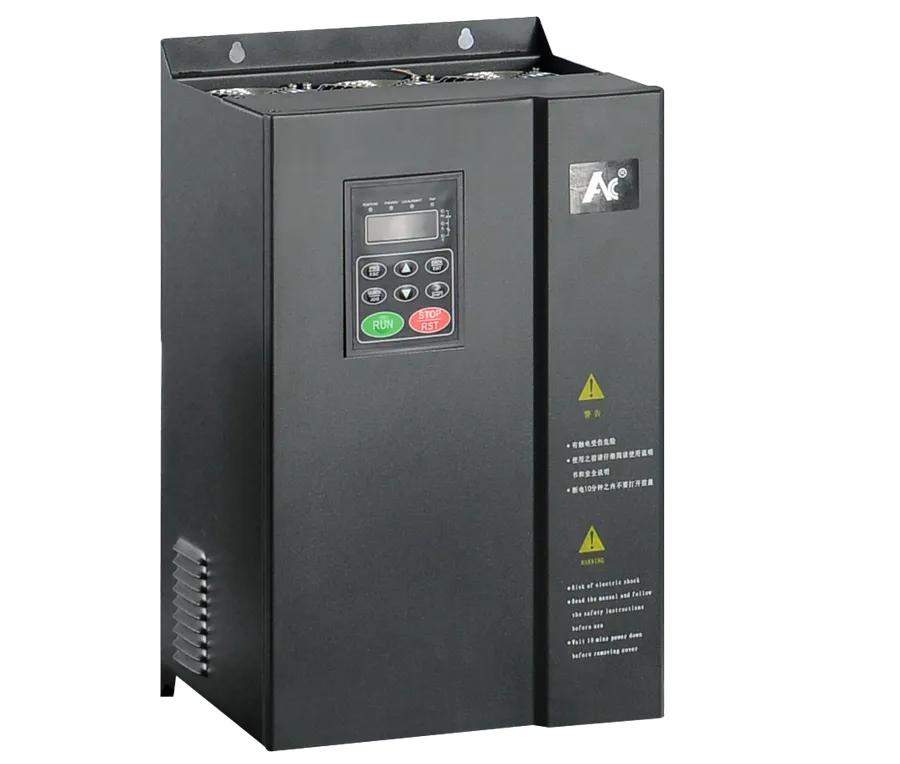

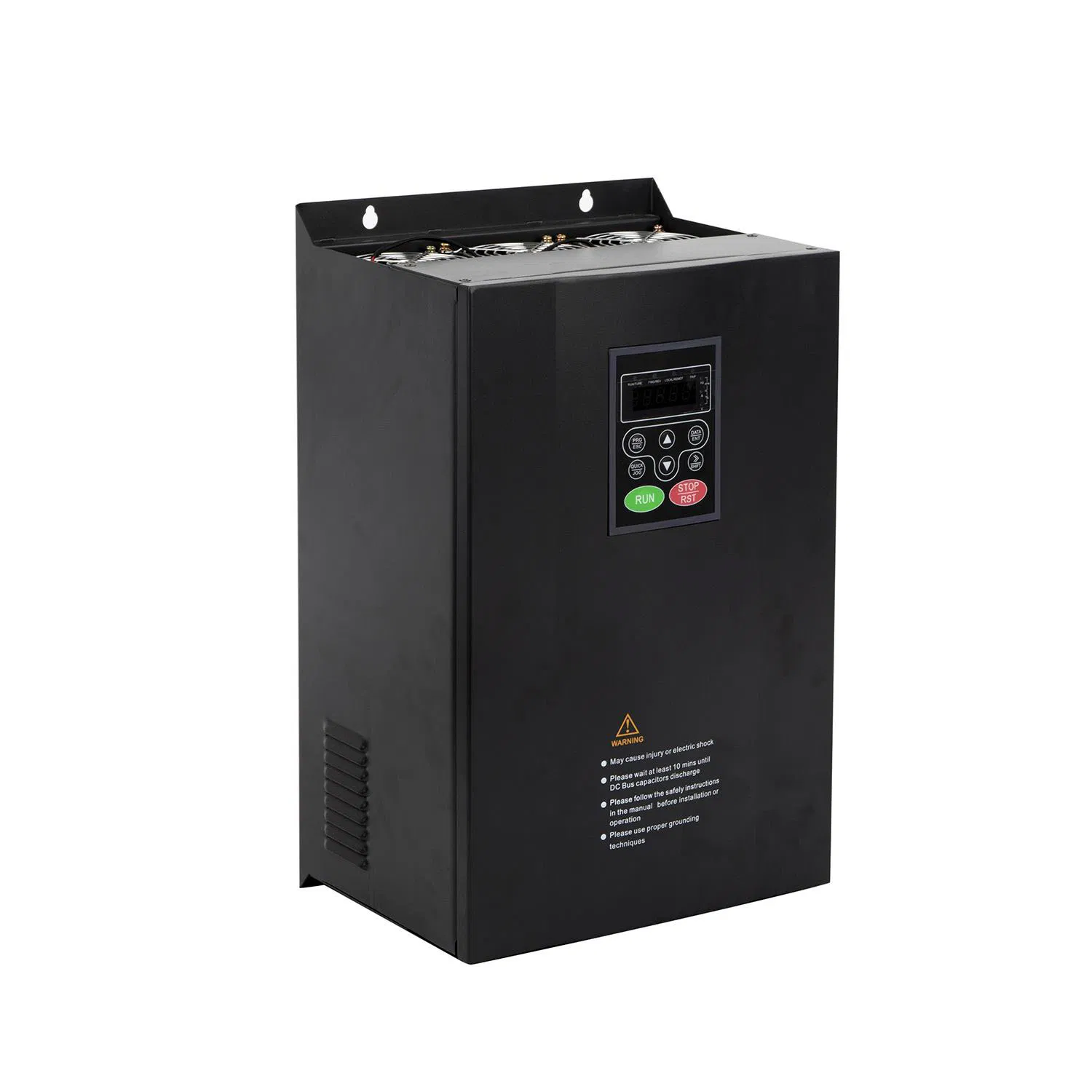

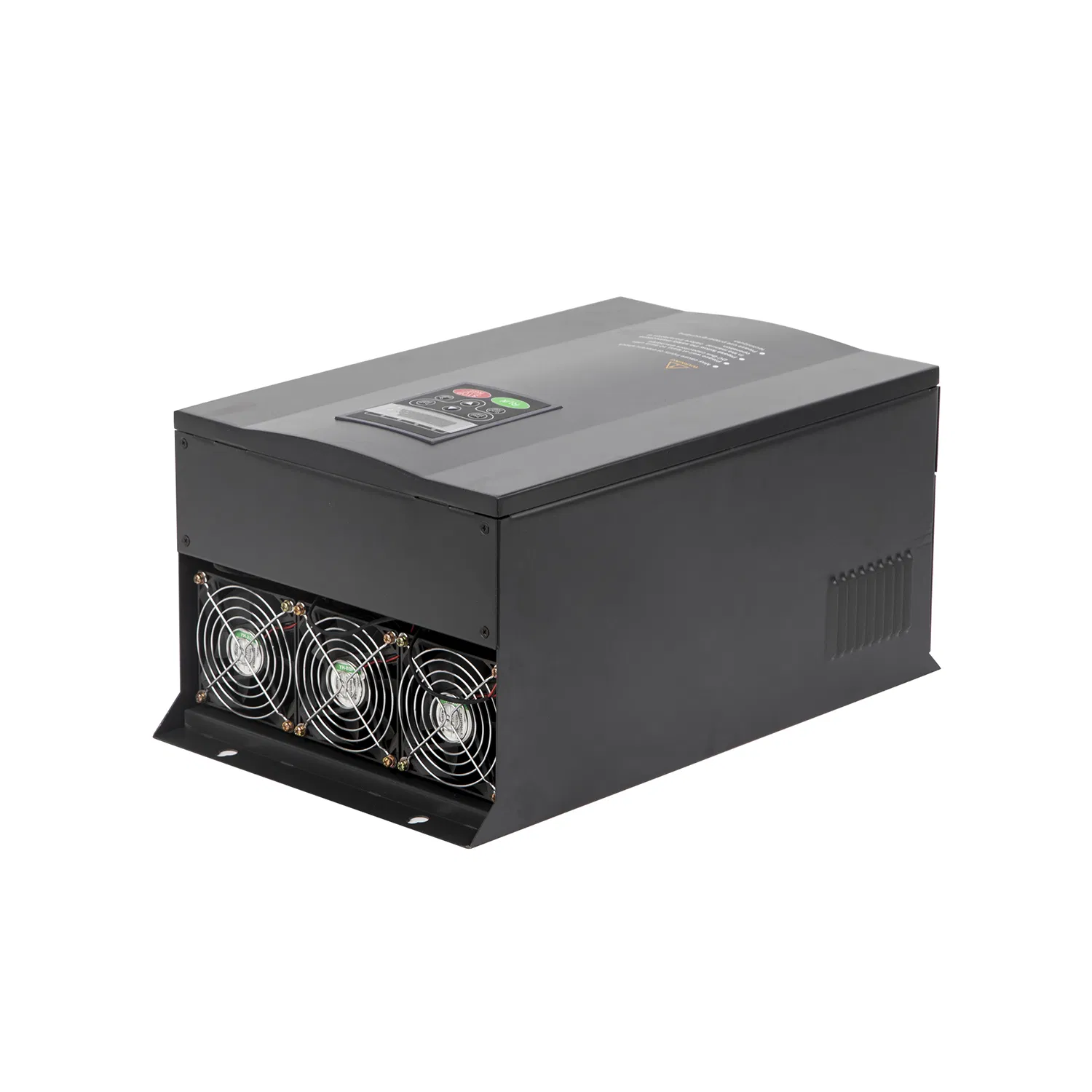

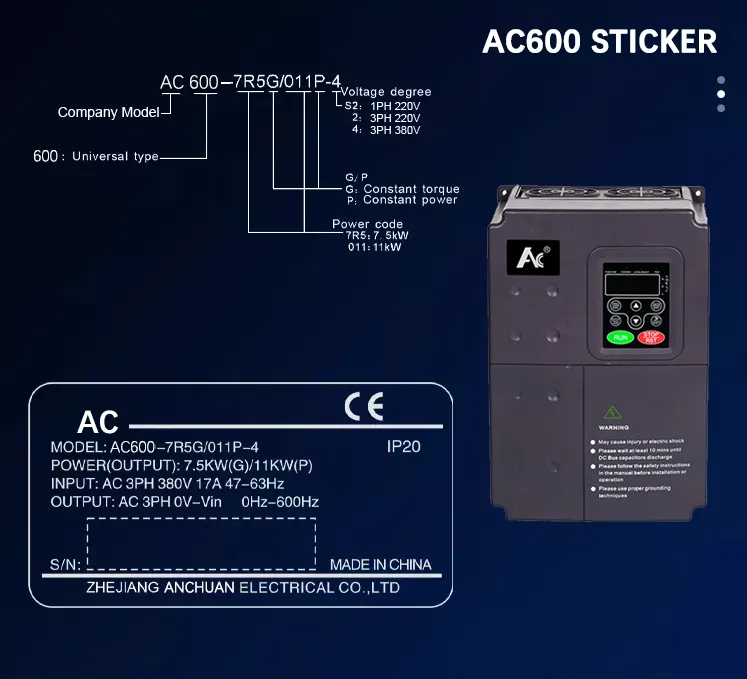

AC600 series high performance universal inverter single 3 phase frequency inverter 7.5/11Kw
The AC600 uses a DSP control system to realize vector control without velocity sensor, effectively suppressing low frequency oscillations. Abundant terminals make the application more flexible. It is mainly applied to fan and pump loads and has high requirements on speed control accuracy, torque response speed and low frequency output.
| Model No. | Input Voltage | Rated Power(kw) | Rated Input Current(A) | Rated Output Current(A) | Compatible Motor(kw) |
|---|---|---|---|---|---|
| AC600N0.75G | 1-Phase 230V +/- 15% | 0.75 | 8 | 4 | 0.75 |
| AC600N1.5G | 1.5 | 14.2 | 7.0 | 1.5 | |
| AC600N2.2G | 2.2 | 23.0 | 10 | 2.2 | |
| AC600NS0.75G | 3-Phase 230V +/- 15% | 0.75 | 5.0 | 4.5 | 0.75 |
| AC600NS1.5G | 1.5 | 7.7 | 7 | 1.5 | |
| AC600NS7.5G | 7.5 | 31.0 | 30 | 7.5 | |
| AC600NS11G | 11.0 | 43.0 | 42 | 11.0 | |
| AC600L0.75G | 3-Phase 400V +/- 15% | 0.75 | 3.4 | 2.5 | 0.75 |
| AC600L4.0G | 4.0 | 10 | 9 | 4.0 | |
| AC600L7.5G | 7.5 | 20 | 17 | 7.5 | |
| AC600L11G | 11.0 | 26 | 25 | 11.0 | |
| AC600L15G | 15.0 | 35 | 32 | 15.0 | |
| AC600L55G | 55.0 | 105 | 110 | 55.0 |

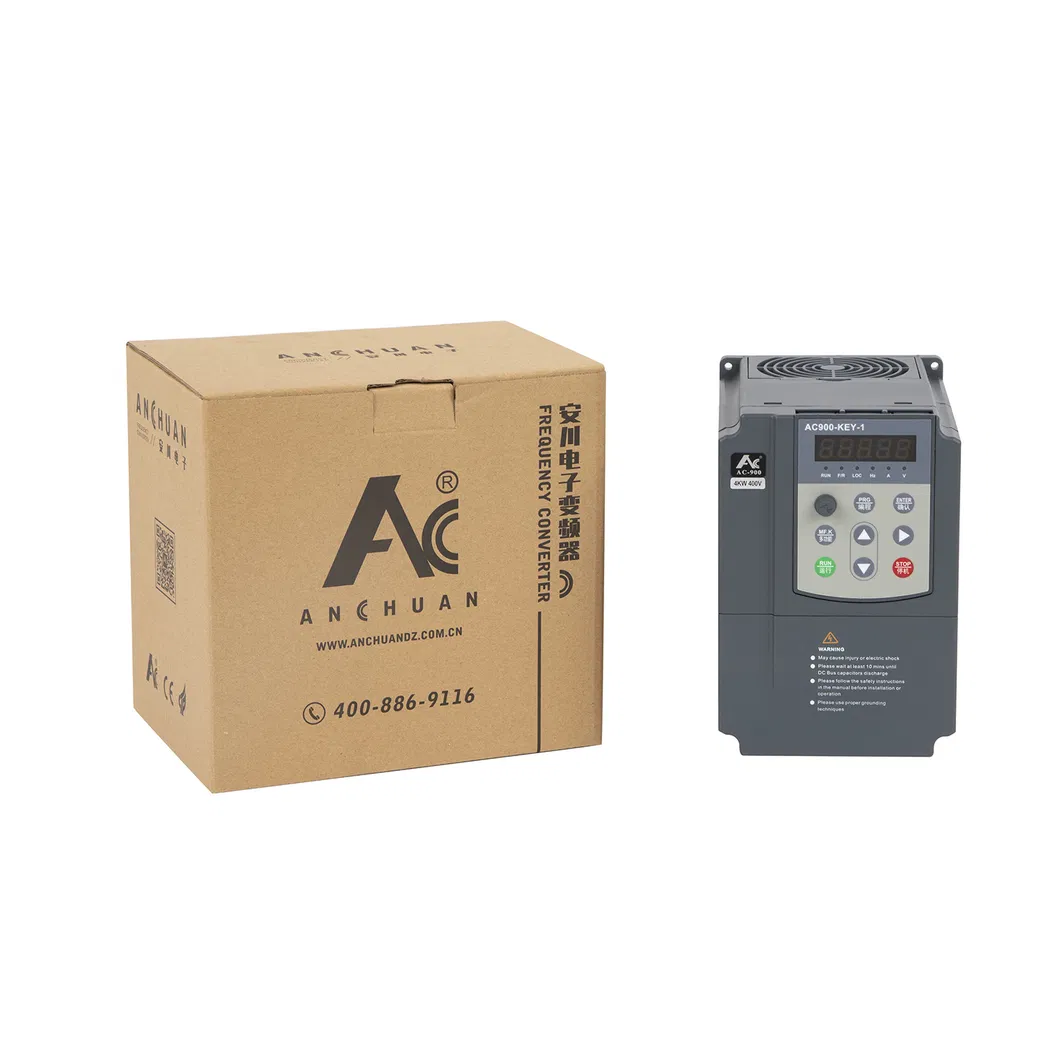

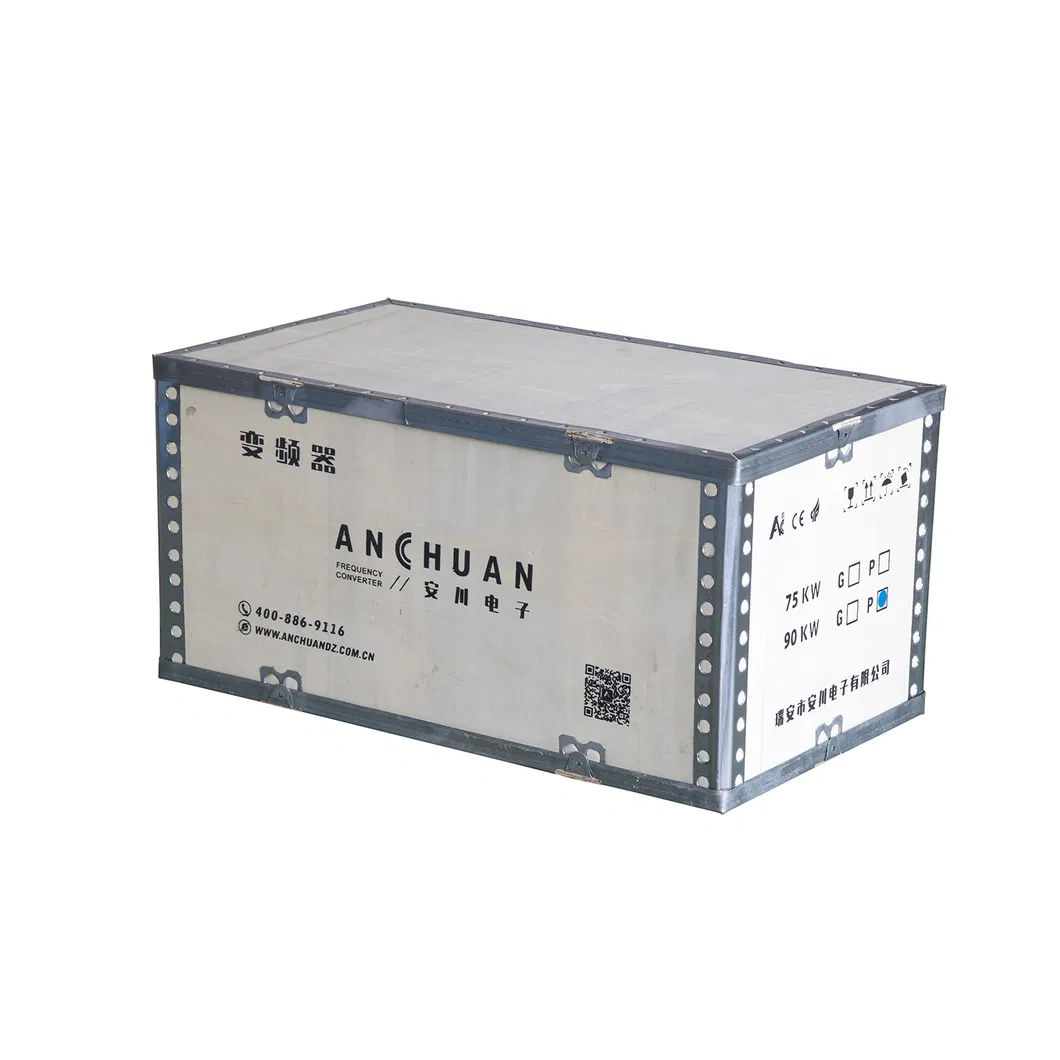

Package: Standard carton package or reinforced wooden case.
Shipment: Available via Sea, Air, or Express carriers such as DHL and FedEx.

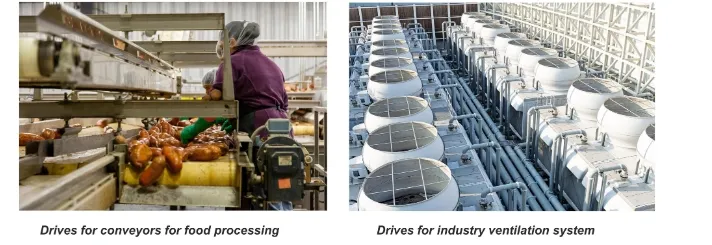

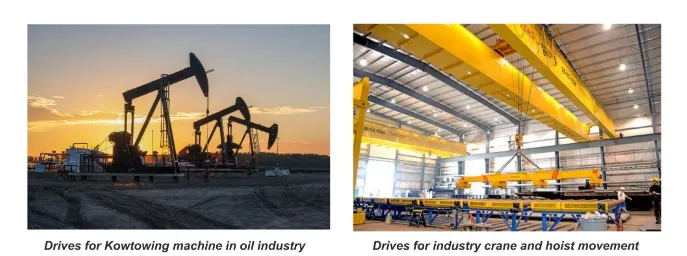

Our VFDs are widely used in drive automation production, involving:
