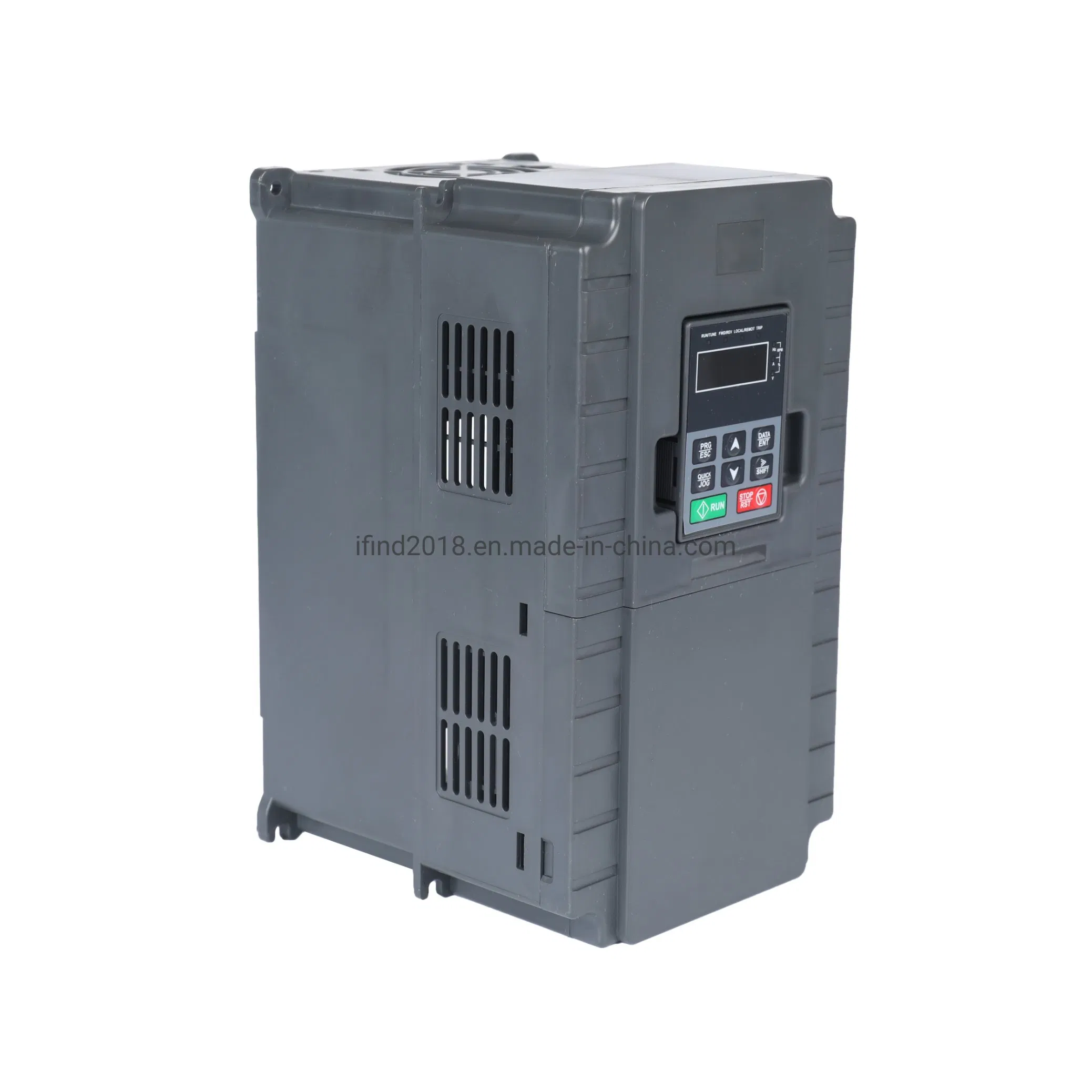

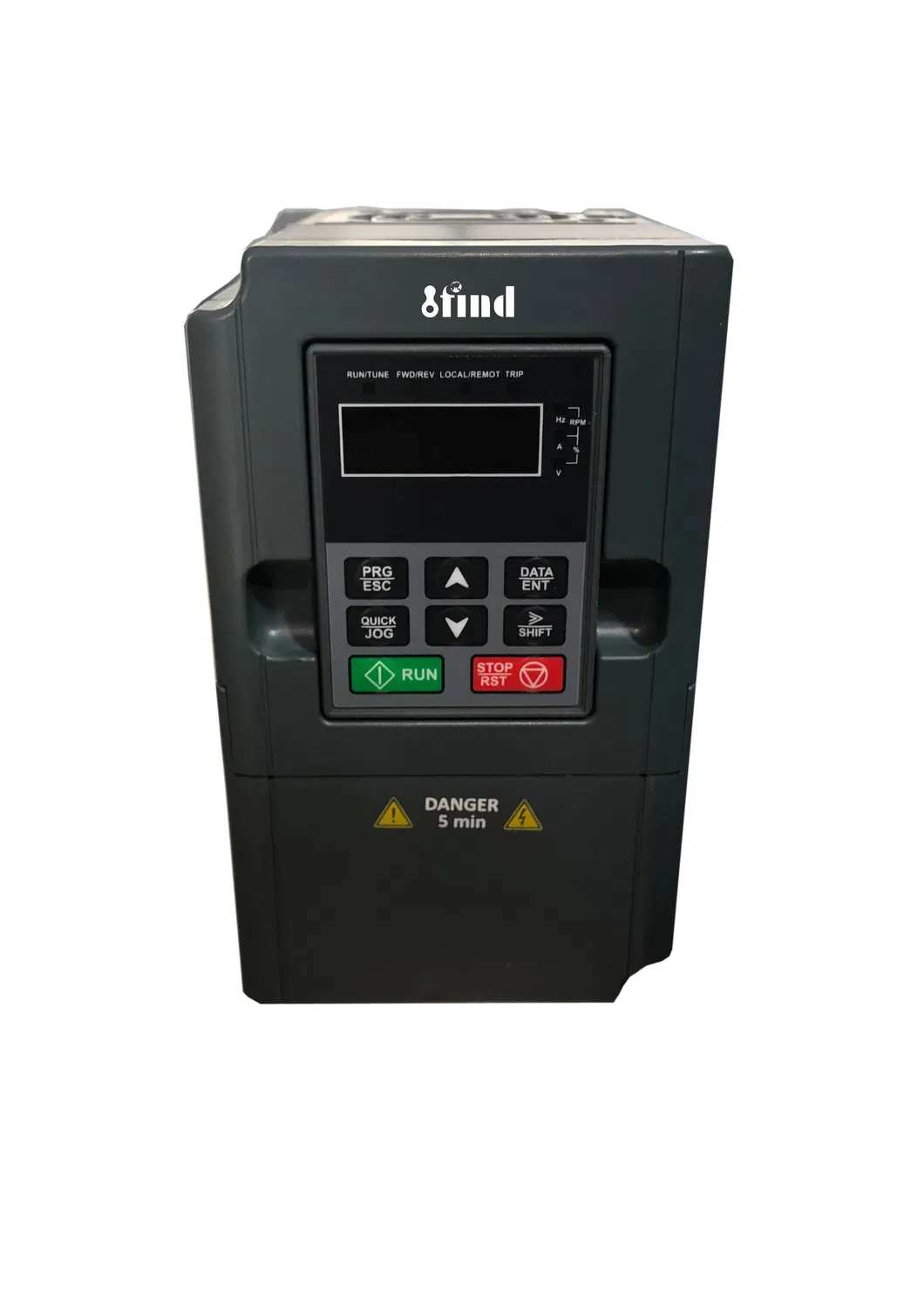

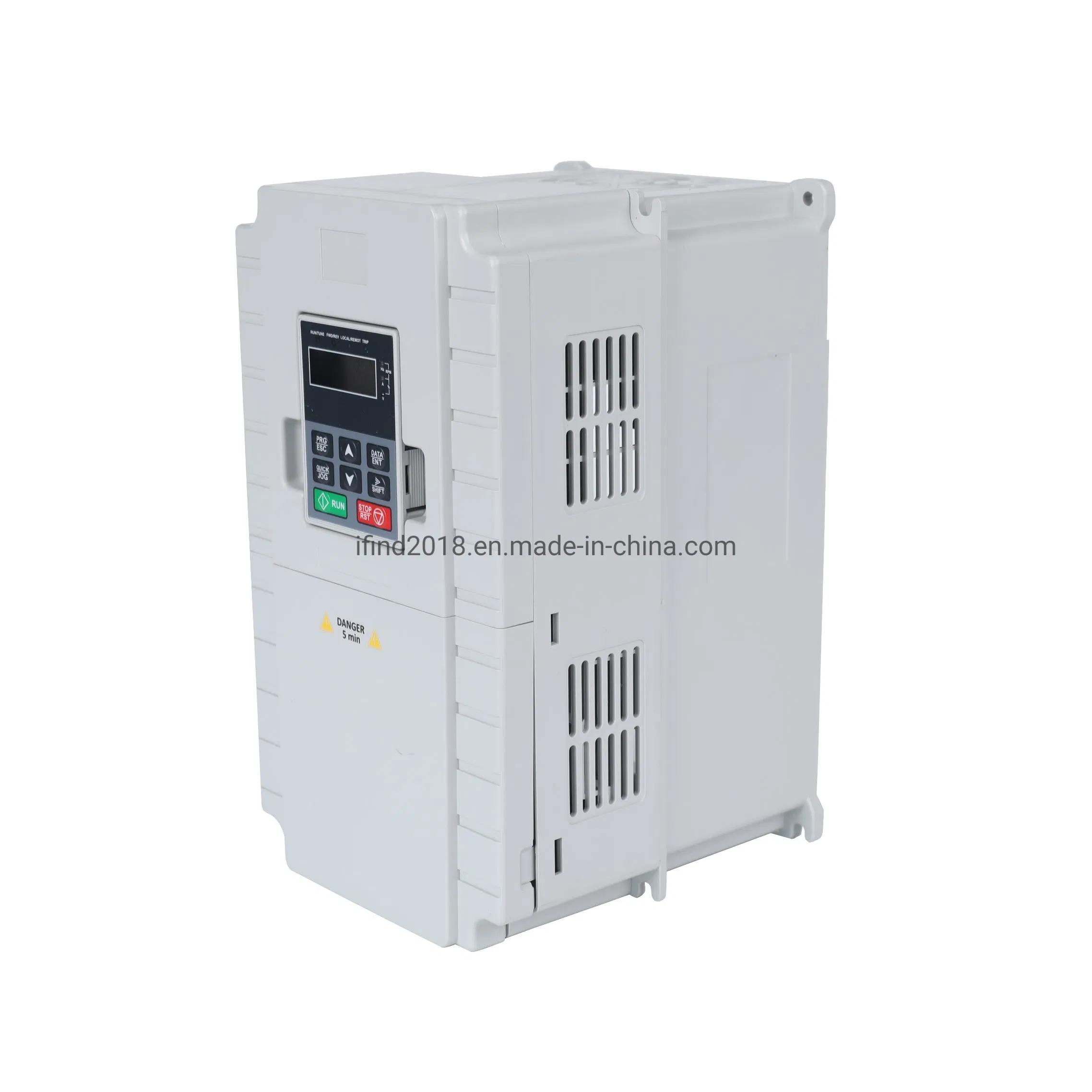

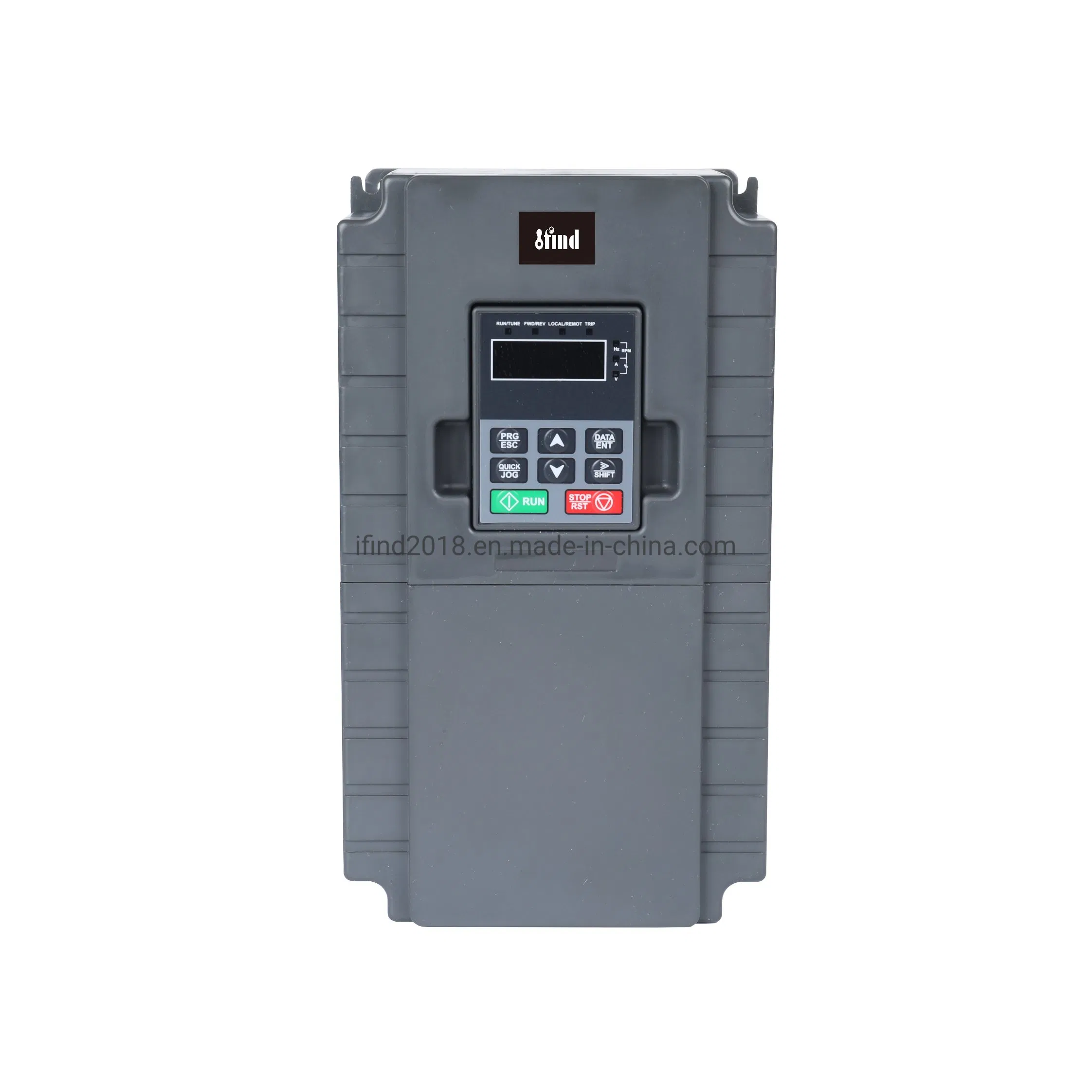

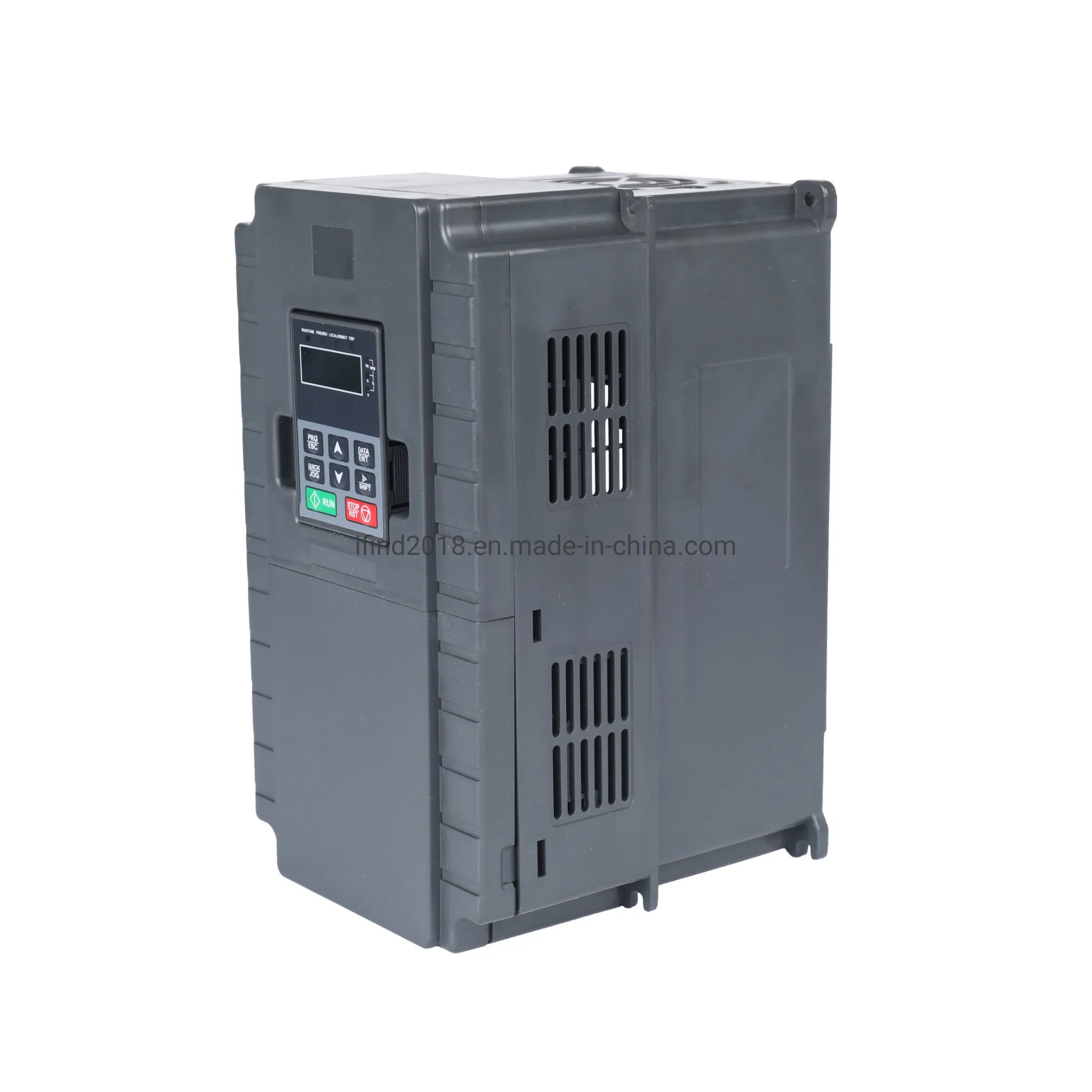

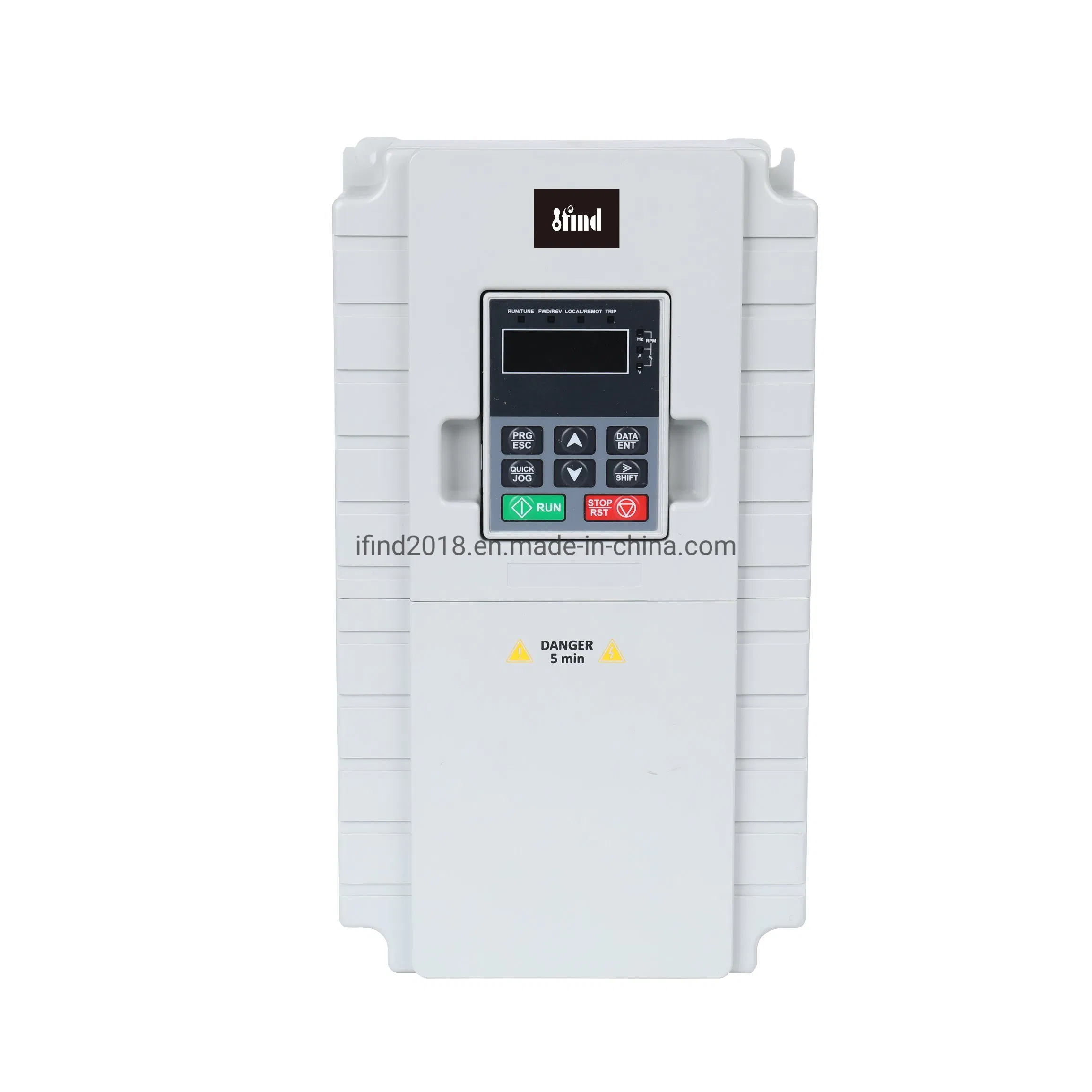

In regions with abundant sunlight, solar systems for agricultural irrigation are becoming increasingly essential. Our solar pump inverter serves as a critical component, enabling direct connection with solar panels for efficient, energy-saving operations. It transforms DC power from solar modules into AC power to drive various submersible deep well pumps.
| Category | Terminal Symbol | Terminal Name | Function Description |
|---|---|---|---|
| Power Supply | 24V / COM | 24V Power Supply | Provides 24V±10%, max 200mA for digital I/O or sensors. |
| Digital Input | S1 - S4 | Control Inputs | Includes forced switch to mains, full-water alarm, and empty-water alarm. |
| Communication | RS485+ / 485- | ModBus Protocol | Standard 485 communication terminals for system integration. |
| Relay Output | RO1A / RO1B / RO1C | Relay Contacts | Contact capacity: 3A/AC250V. Used for auto mains & PV switching control. |

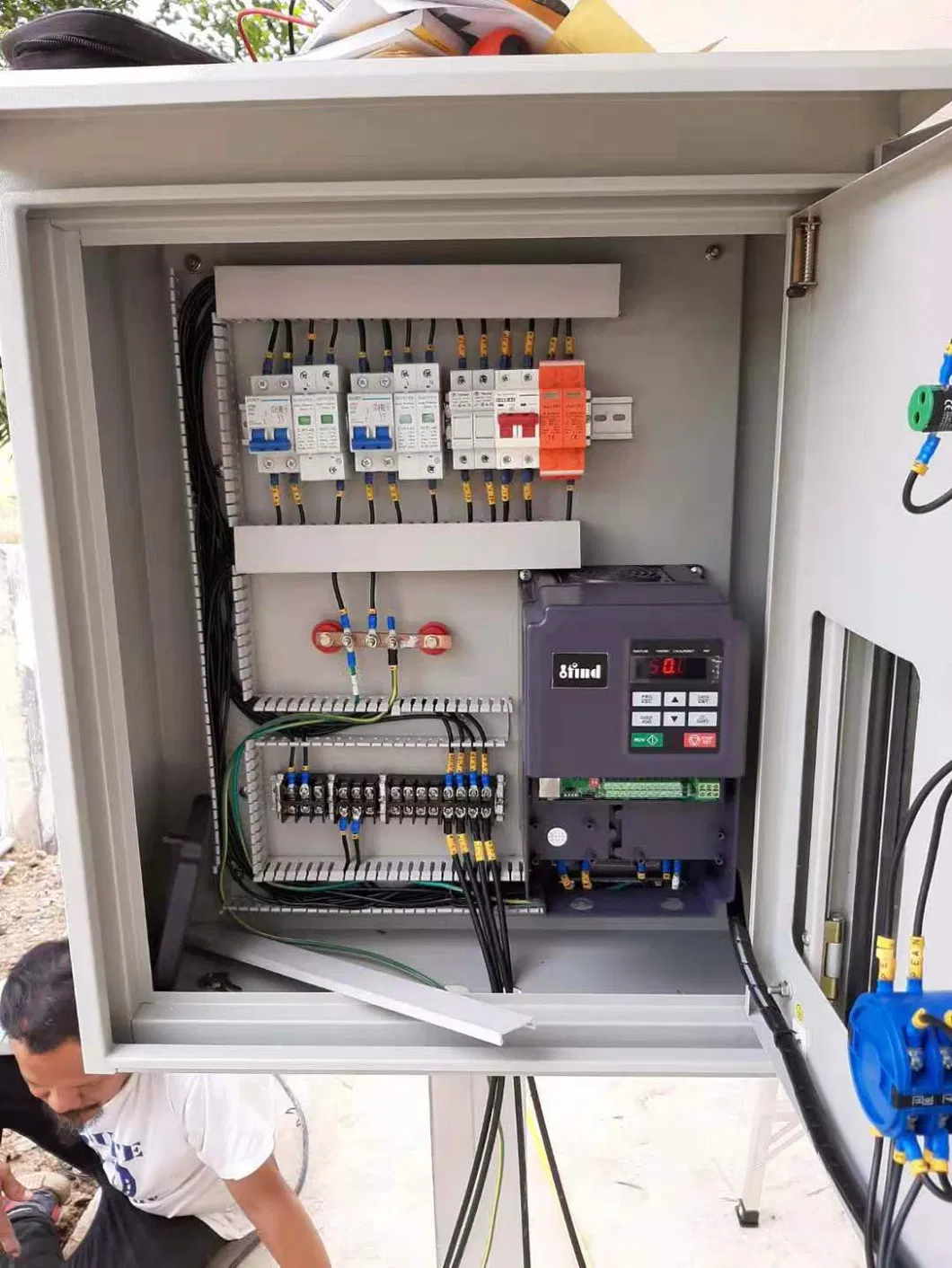

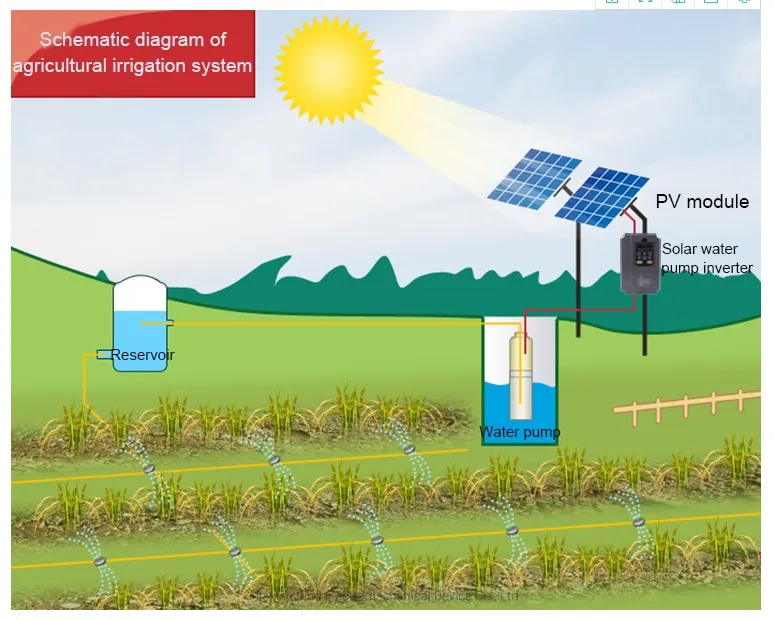

Ideal for remote areas lacking stable electricity. This system continuously pumps water from rivers, lakes, or wells into conservation pools during daylight hours, eliminating the need for expensive battery storage.

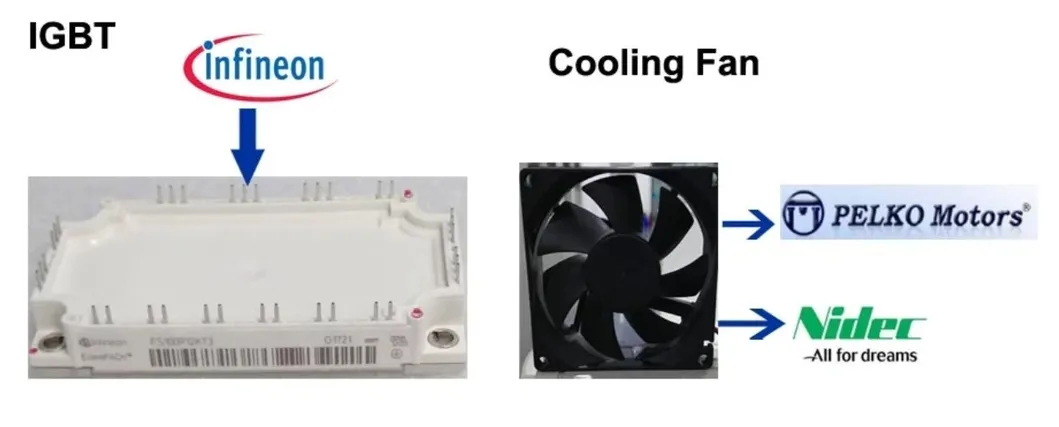

| IGBT | Starpower / Infineon / Fuji |
| Cooling Fan | Pelko / Nidec |
| Capacitors | Rubycon / Jianghai |
