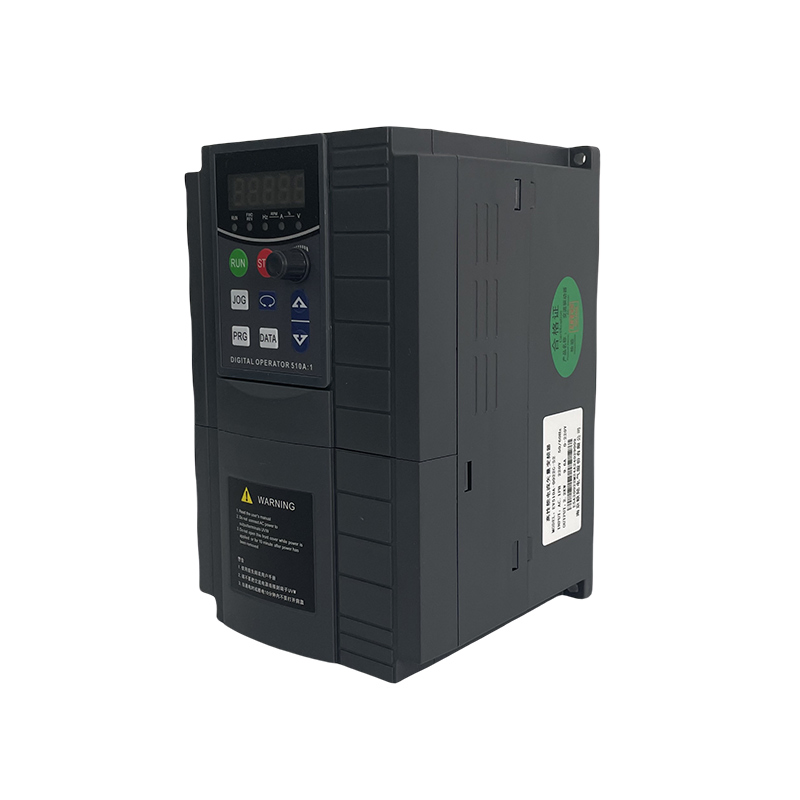

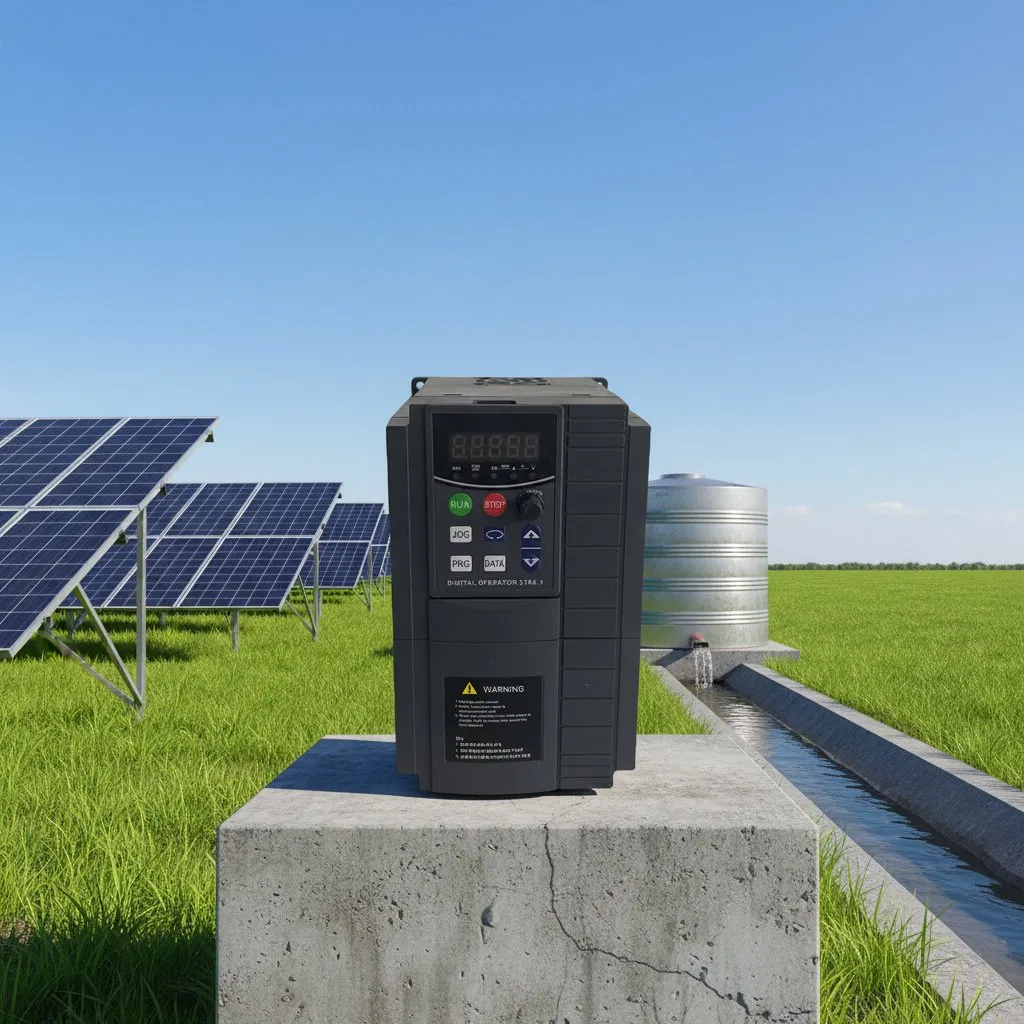

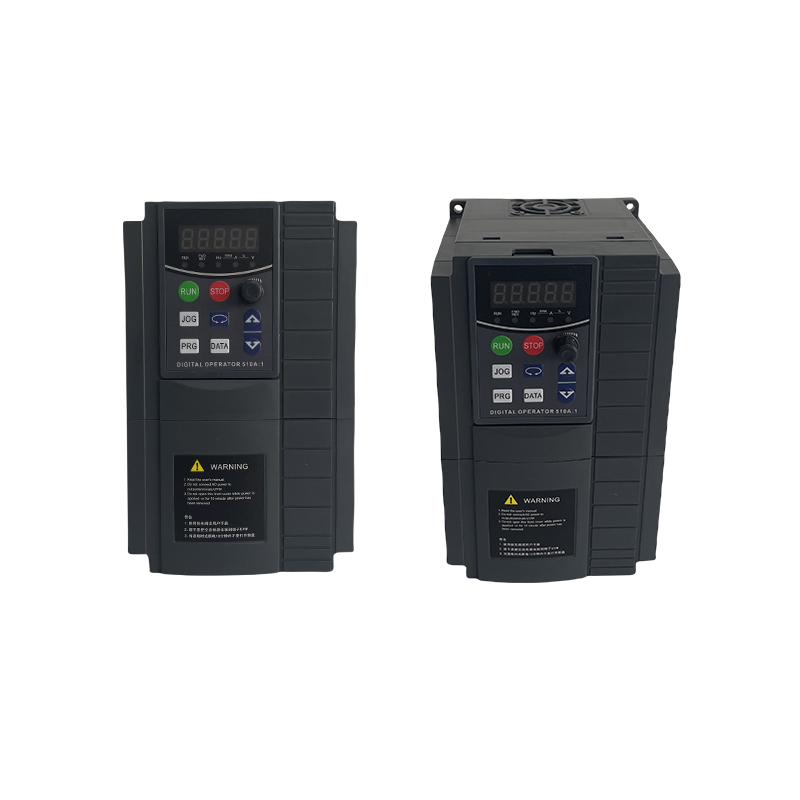

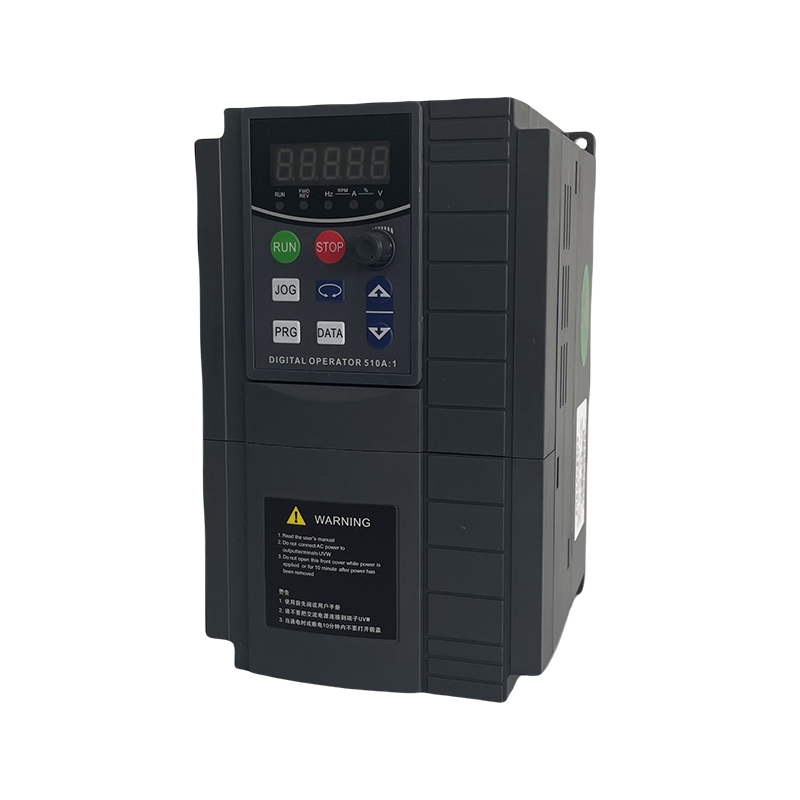

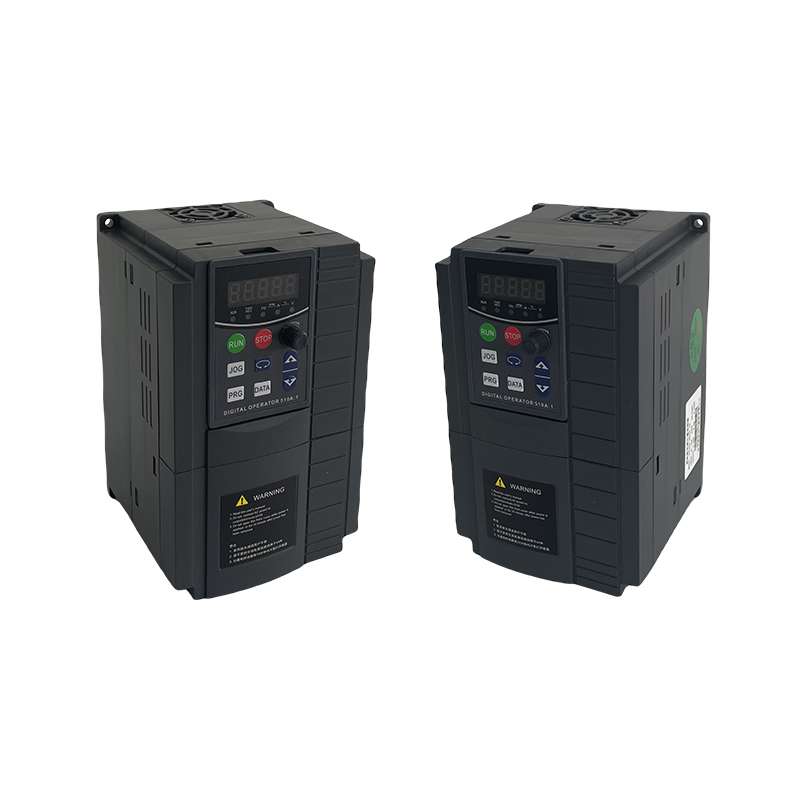

0.75kw Water Pump VFD AC 200V~240V Single Phase High-Efficiency MPPT Solar Pump Inverter for Farmland Irrigation

Basic Specifications

Model NO.

EV510-0007G-S2-PV

Principle of Work

Vector Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage/Current

Nature of DC Power

Voltage Variable-Frequency Drive

Function

Simple Type, Constant Torque Universal Type

Highest Frequency

0~500Hz

Output Current

4.0A

Power Specification

750W

Control Mode

SVC, V/F

Key Features & Highlights

★

Wide Power & Voltage Range: Supports 0.4kW to 1400kW (220V, 380V, 660V).

★

Plug & Play: Connect solar panels directly; starts automatically without complex settings.

★

Advanced Protection: Includes PV overvoltage, polarity reversal alarm, and high-temperature derating.

★

Superior Efficiency: MPPT algorithm ensures solar power tracking efficiency up to 99.8%.

★

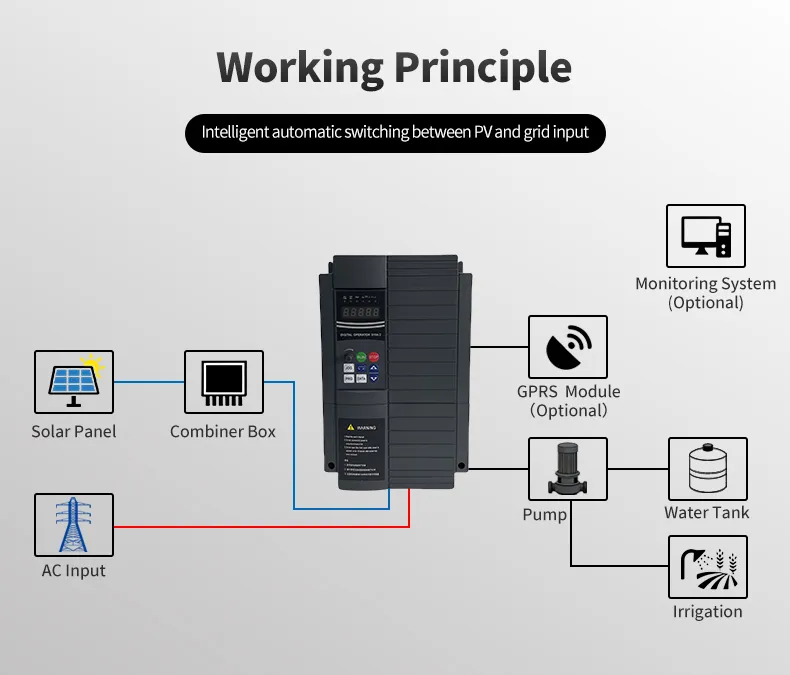

Hybrid Input: Supports automatic switching between PV input and grid power for 24-hour operation.

Product Description

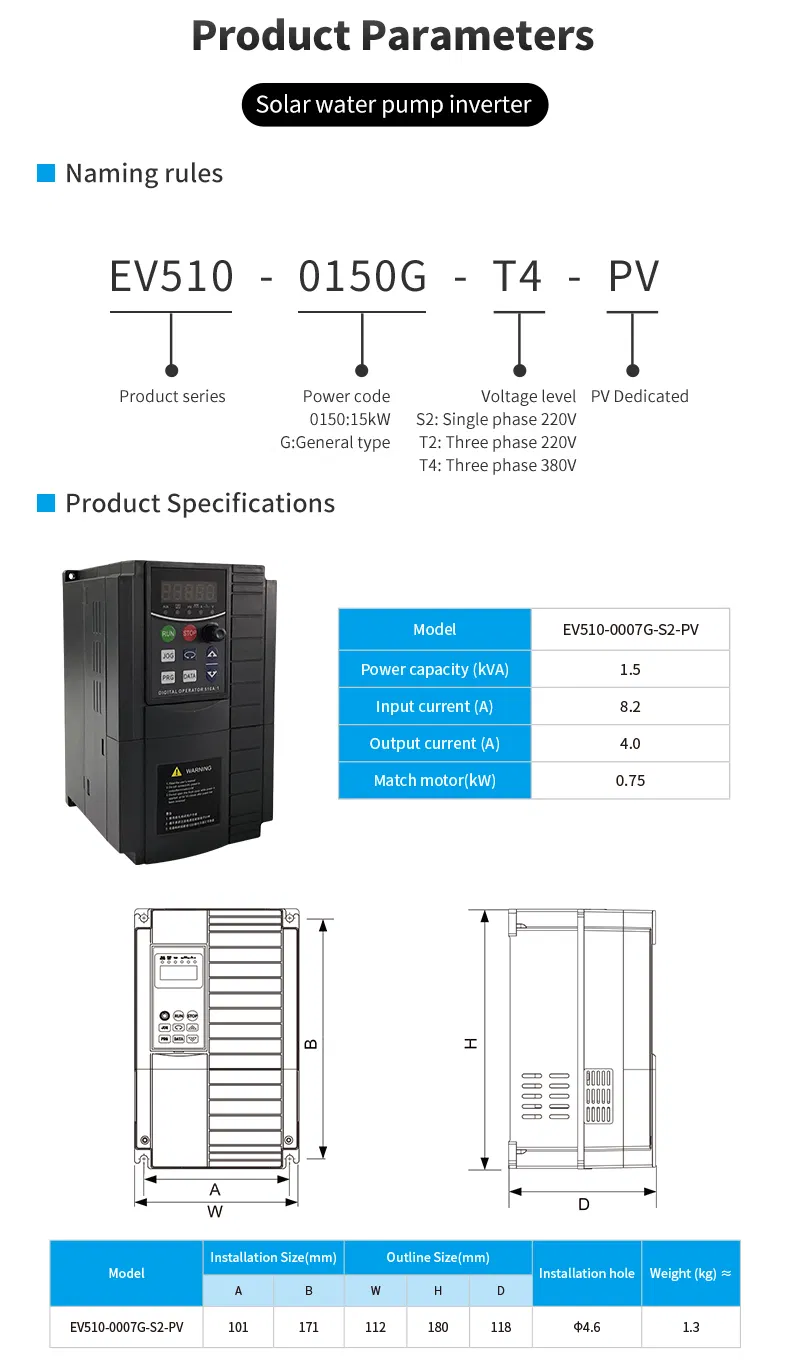

Technical Specifications

Category	Item	Specification
Control Characteristics	Control Mode	Open-loop vector control (SVC); V/F control
	Starting Torque	0.5Hz/150%(SVC)
	Overload Capacity	150% rated current 60s; 180% rated current 3s
	Carrier Frequency	0.8kHz ~ 12kHz (Auto-adjustment based on temp)
Operation	Input Terminals	5 Digital, 3 Analog (0-10V/0-20mA)
Operation	Output Terminals	1 Digital, 2 Relay, 2 Analog

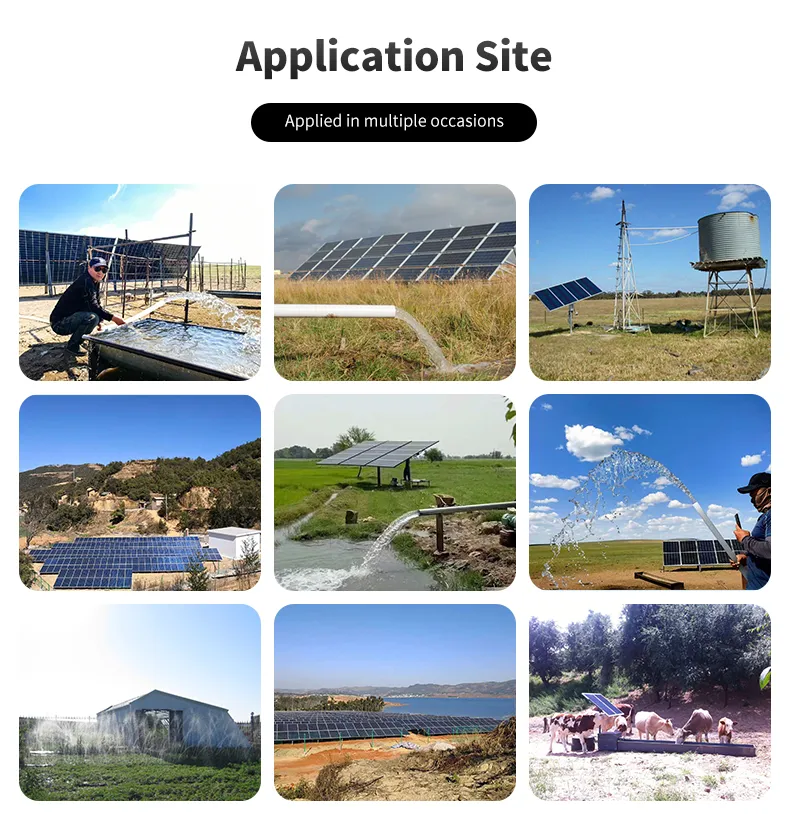

Wide Applications

Our solutions provide green power for irrigation, off-grid households, and industrial water supply, ensuring sustainable energy in every corner.

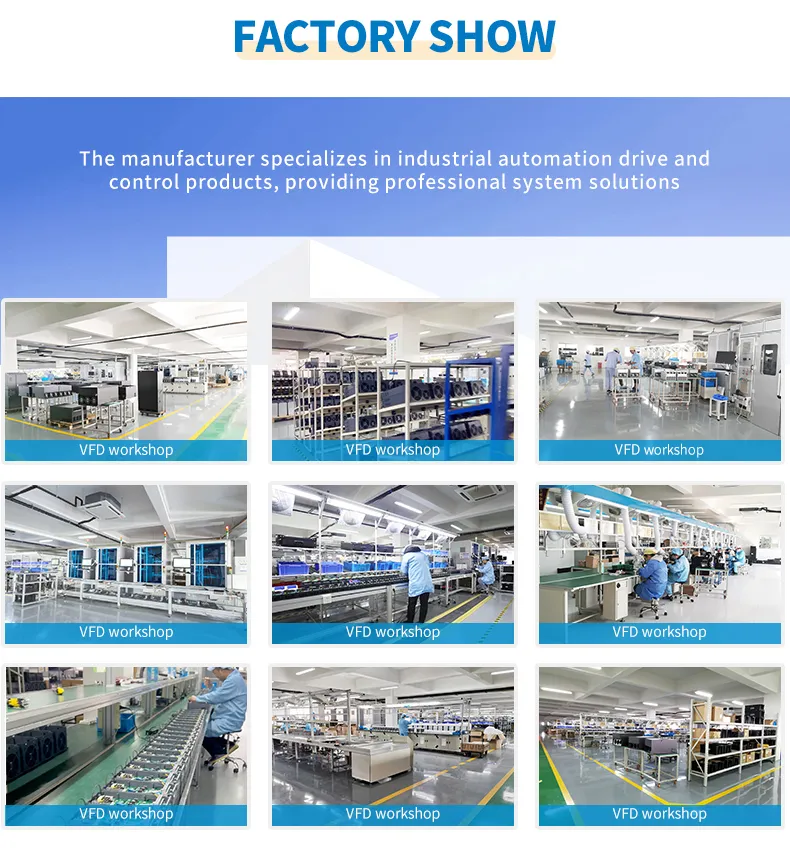

Professional Manufacturing

Specializing in new energy micro-grid power generation and industrial automation drive control, our smart manufacturing base covers 50,000 square meters. Featuring six core workshops, we enable integrated production from chip-level SMT to complete system assembly, with an annual capacity exceeding 500,000 units.

Our portfolio includes wind turbines, energy storage inverters, lithium batteries, and frequency converters, all certified to international standards. We are committed to driving the intelligent transformation of industrial operations and renewable energy deployment.

Advantages & Certifications

Packing & Delivery

Package Size

24.00cm * 17.00cm * 19.00cm

Gross Weight

1.300kg

Transport Package

Carton Box / Wood

Frequently Asked Questions

Do I need to set parameters before using the solar pump inverter?

No, you can simply connect the solar panels to the inverter without any initial parameter settings. The system will start automatically once powered on.

What is the efficiency of the MPPT algorithm?

The advanced MPPT algorithm ensures that solar power tracking efficiency reaches up to 99.8%, maximizing the energy harvested from your PV panels.

Can this inverter run 24 hours a day?

Yes, it supports automatic switching between PV (solar) input and grid input, enabling 24-hour unattended operation.

What safety protections are built into the device?

It is equipped with PV overvoltage protection, PV polarity reversal alarms, output phase loss protection, over-current, under-voltage, and automatic derating at high temperatures.

What is the supported power range for this series?

The series offers a wide power range from 0.4kW up to 1400kW, supporting 220V, 380V, and 660V voltage requirements.

Is the product certified for international markets?

Yes, the products are CE certified and manufactured in an ISO-certified facility to ensure durability and international quality compliance.
