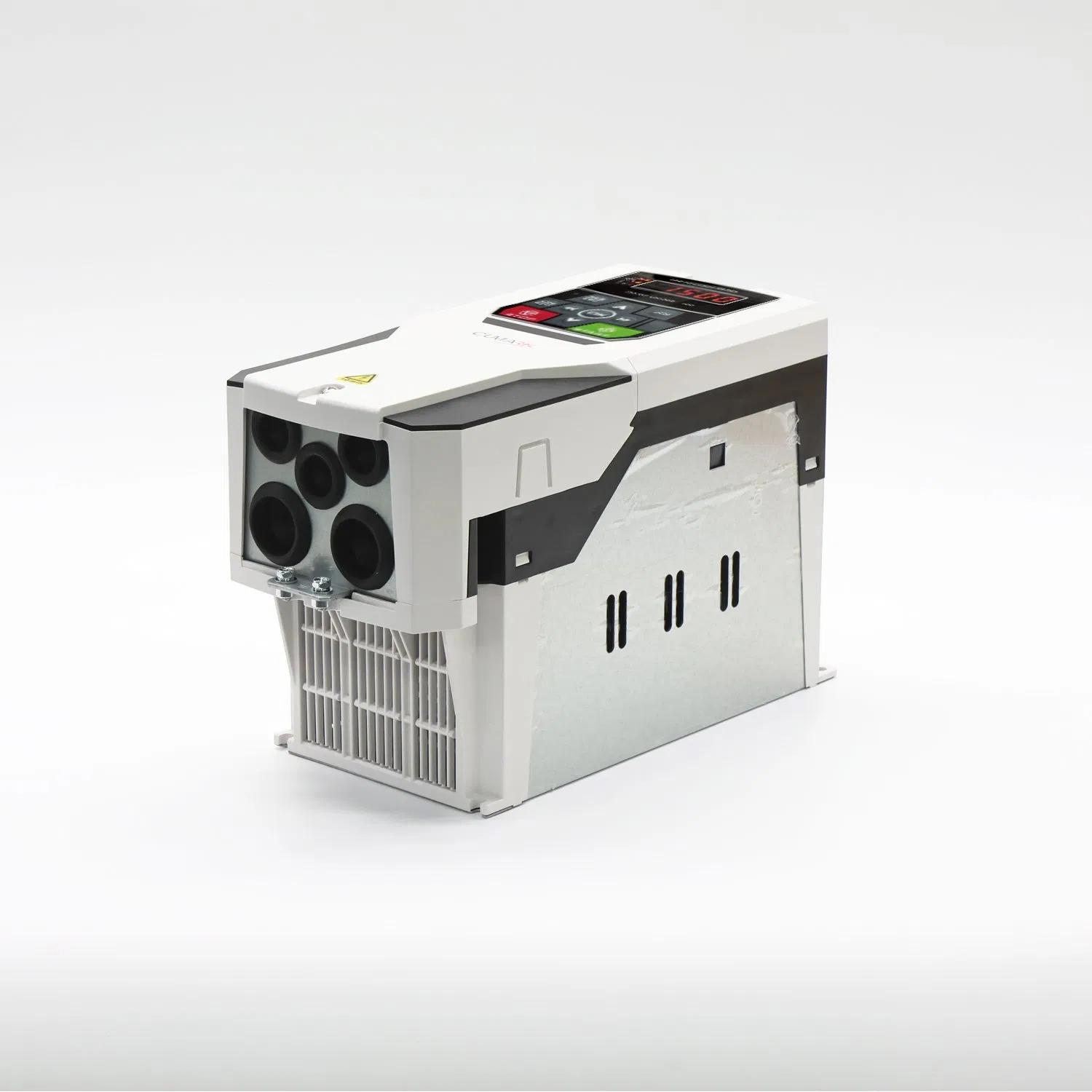

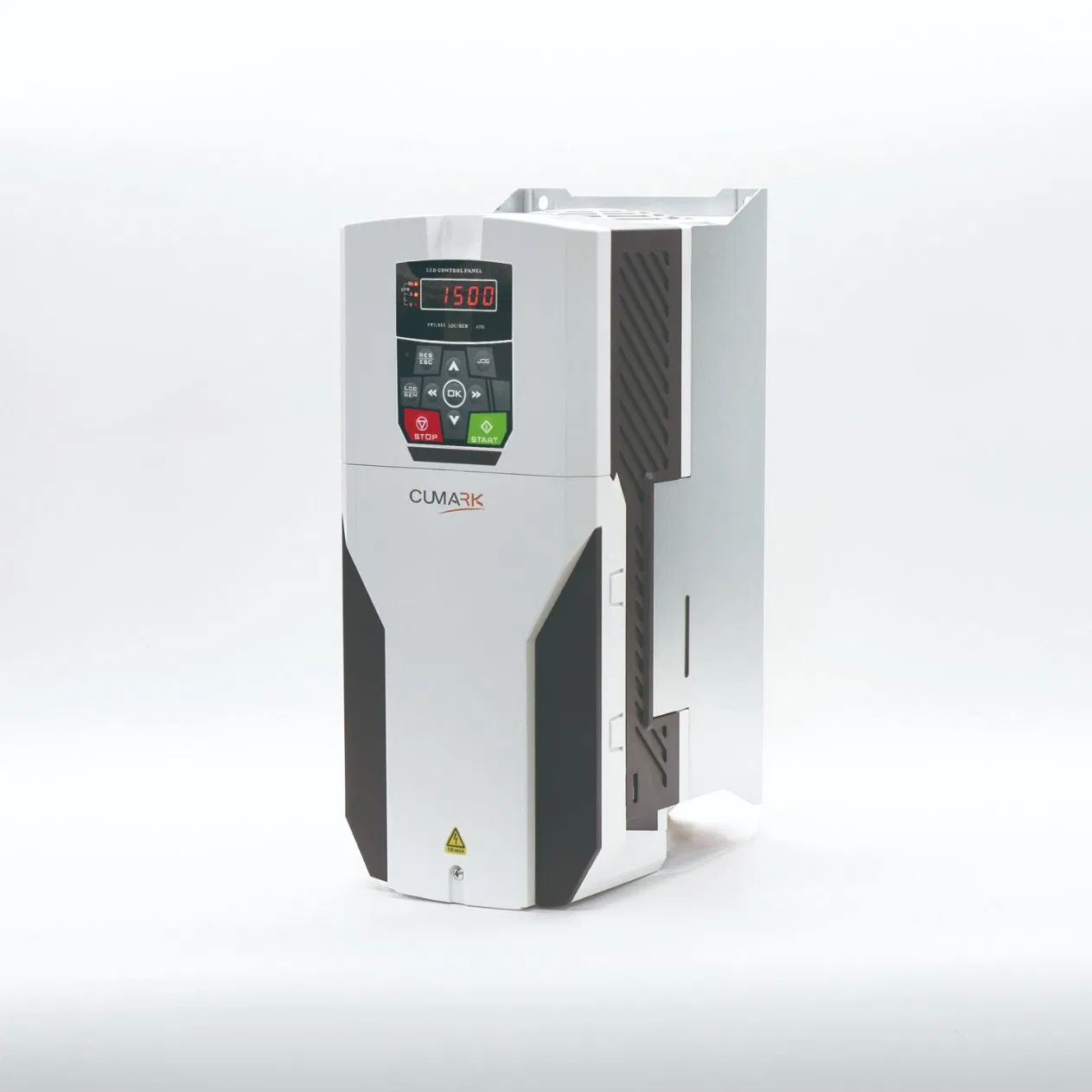

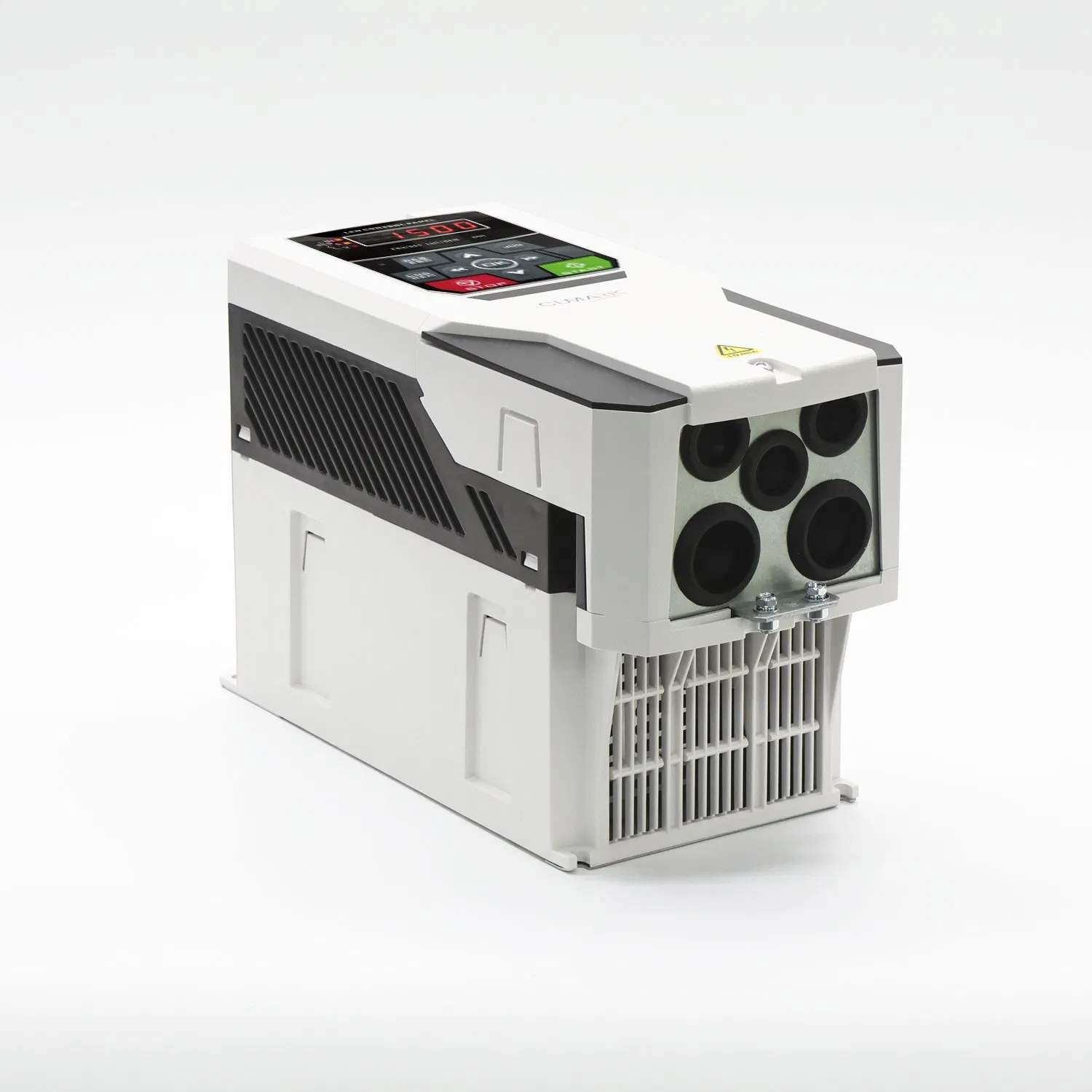

MPPT Solar Pump Frequency Inverter VFD AC Drive 380V 18.5kw for Irrigation

1 / 5

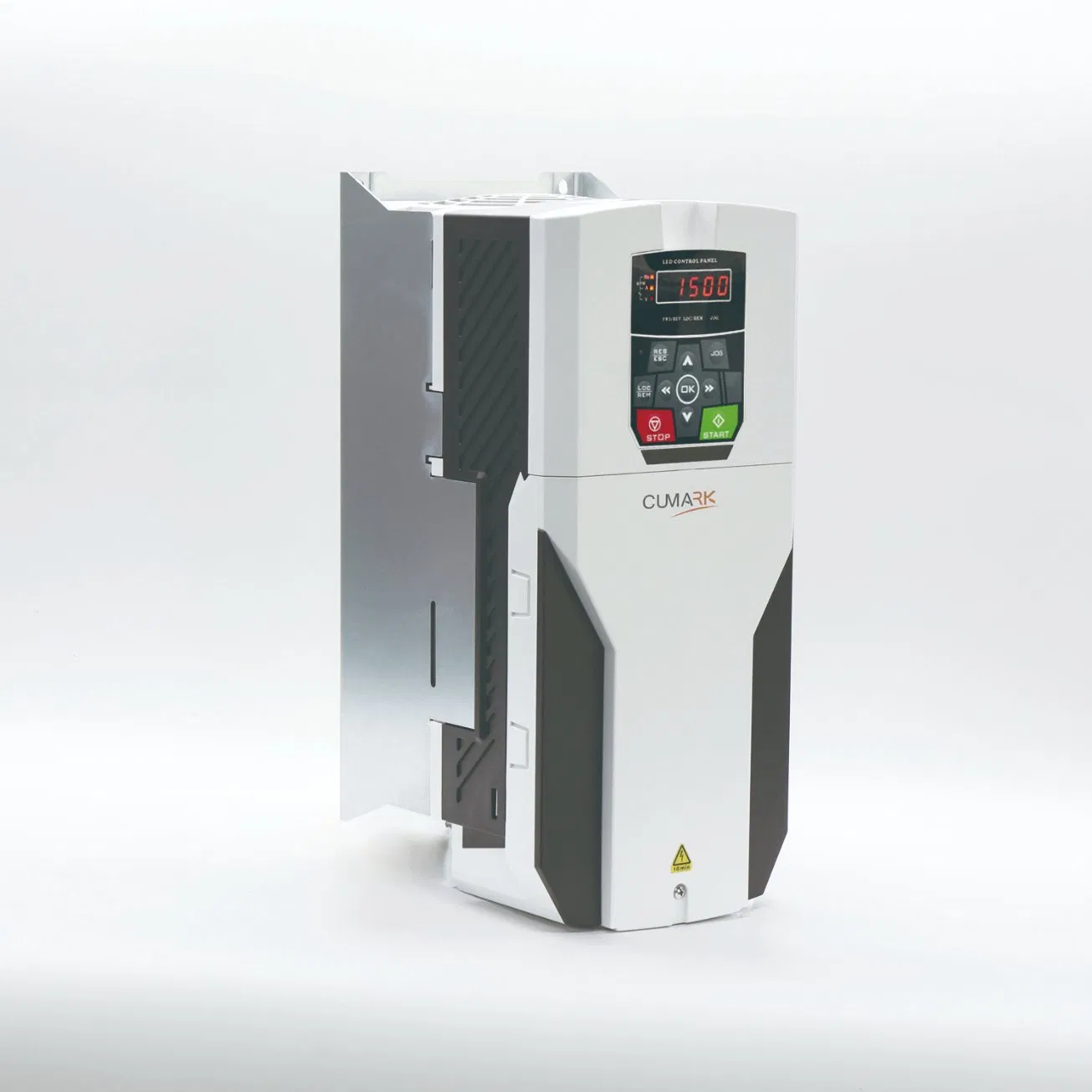

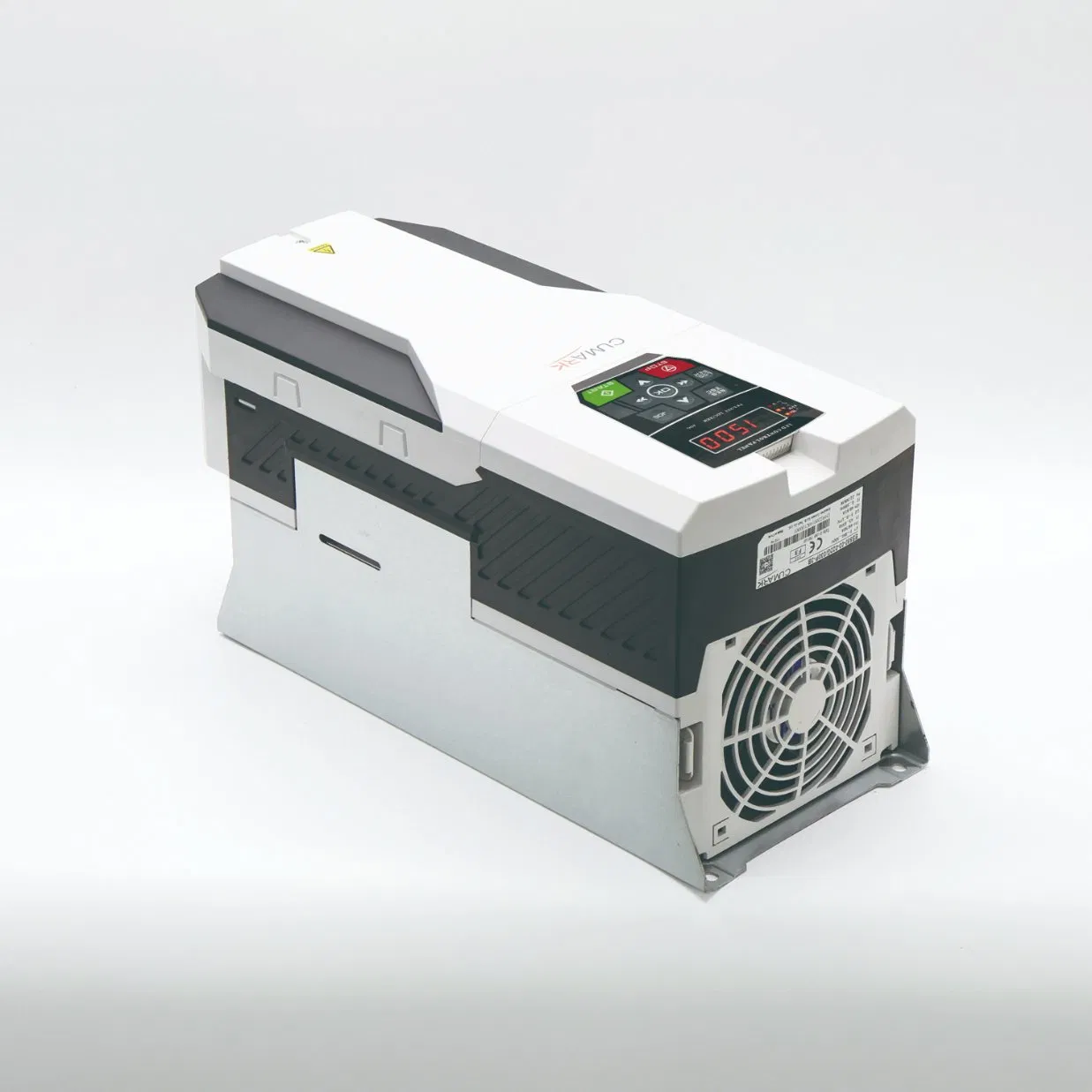

MPPT Solar Pump Frequency Inverter VFD AC Drive 380V 18.5kw for Irrigation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

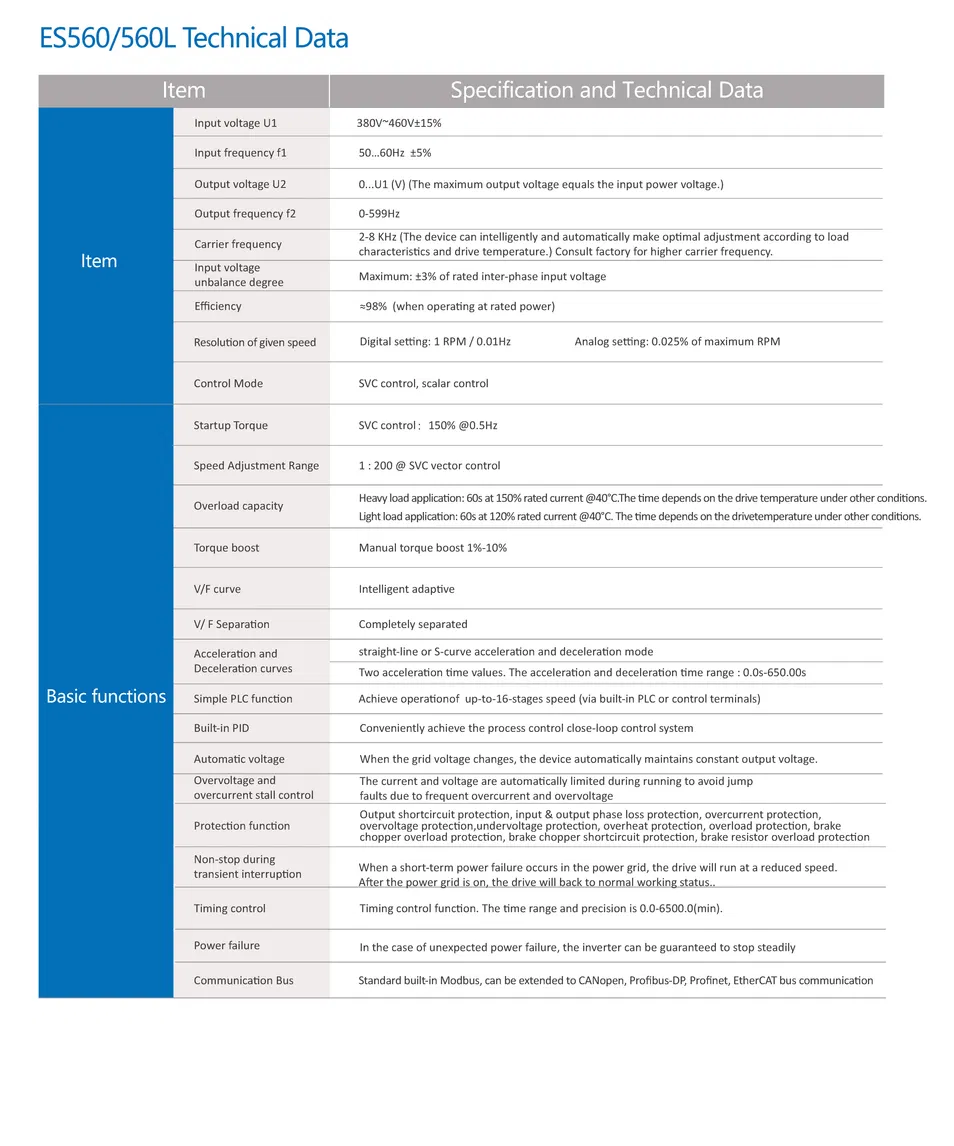

Technical Specifications

Model NO.

ES560PV

Principle of Work

V/F Control Transducer

Switch Mode

PAM Control

Main Circuit Type

Voltage

Power Supply

Low Voltage VFD

Transformation

AC-DC-AC Drive

Function

Solar Water Pump

Condition

100% Original

Warranty

18 - 20 Months

Package

Carton / Wooden Case

Quality

100% Tested Workable

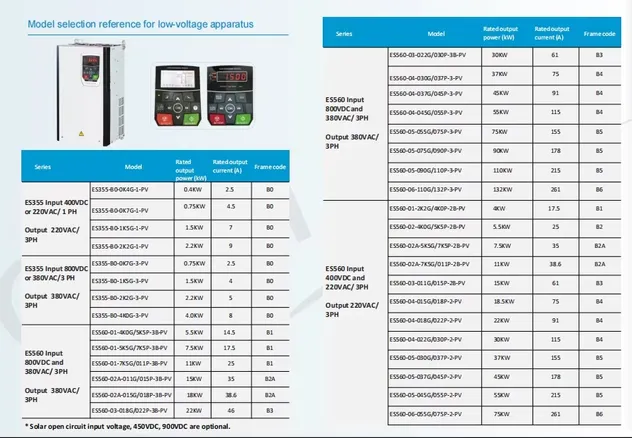

Power Range

5.5 - 560kW

Input Voltage

3pH AC380V / Solar DC

Certificate

ISO9001, CE, CCC

MPPT Efficiency

Up to 99%

Origin

China

Product Description

ES560PV Series Solar Pump Inverter is a dedicated MPPT solar VFD designed for photovoltaic water pump systems. It efficiently converts solar DC power into AC power to drive water pumps.

Widely used in agricultural irrigation, water supply, deep well and remote area pumping projects, it supports both solar DC input and hybrid operation to ensure stability.

Key Features & Advantages

⚡ Advanced MPPT

Maximizes solar energy utilization and improves pump efficiency even in weak sunlight conditions.

🔄 Hybrid Power

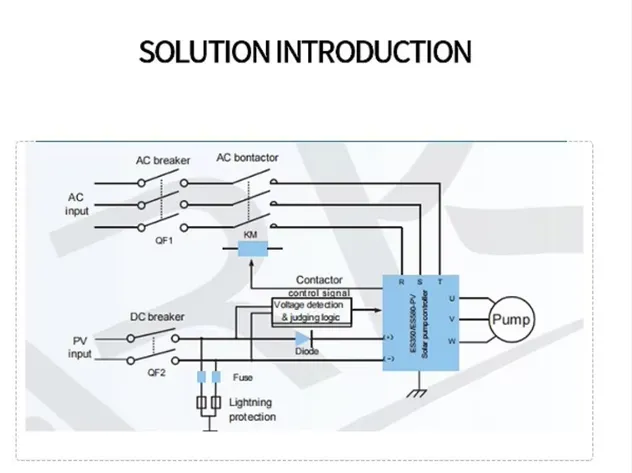

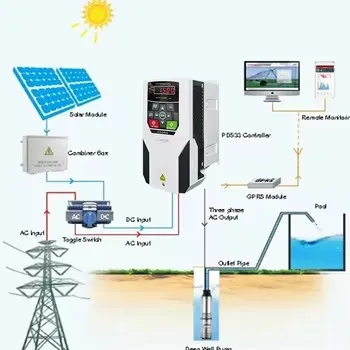

Supports DC solar input + AC grid / diesel generator, ensuring 24-hour continuous water supply.

🛡️ Motor Protection

Features soft start to reduce mechanical stress and built-in protection for dry-run, over-voltage, and over-temperature.

Typical Applications

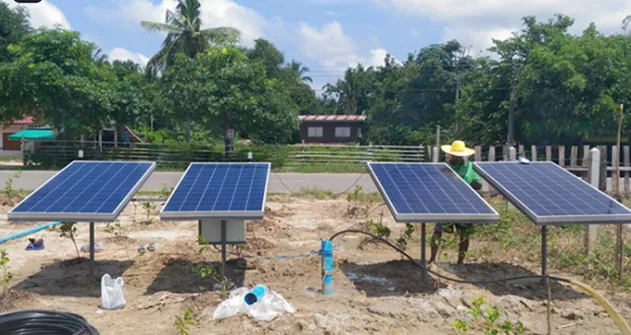

✓ Agricultural Irrigation Systems
✓ Solar Water Supply Projects

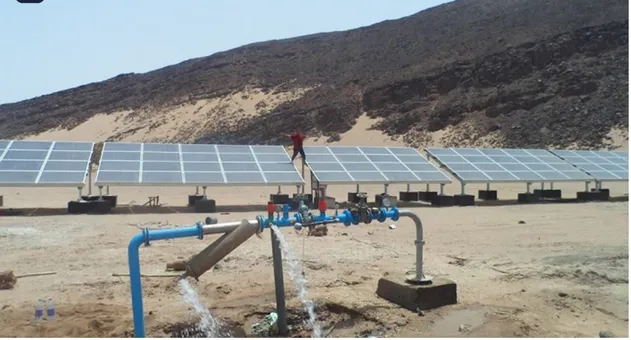

✓ Desert & Remote Area Pumping
✓ Rural Drinking Water Systems
✓ Industrial Water Pump Control

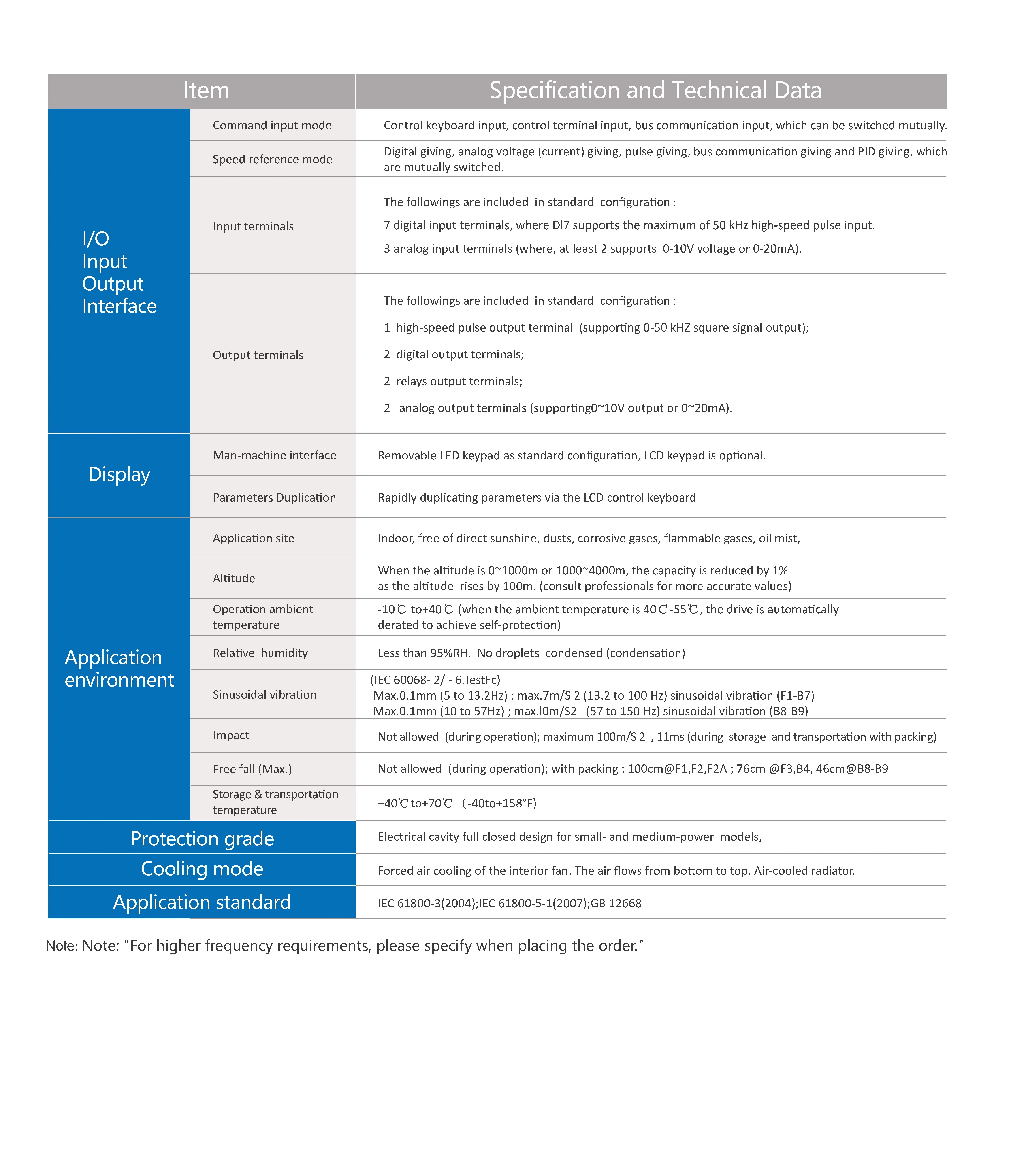

Technical Highlights

Control Mode: V/F Control
MPPT Efficiency: Up to 99%
Motor Type: AC Induction Motor
Cooling: Forced Air Cooling
Protection Level: IP20/IP40

Designed for reliable operation in harsh outdoor environments with competitive pricing for OEM cooperation.
