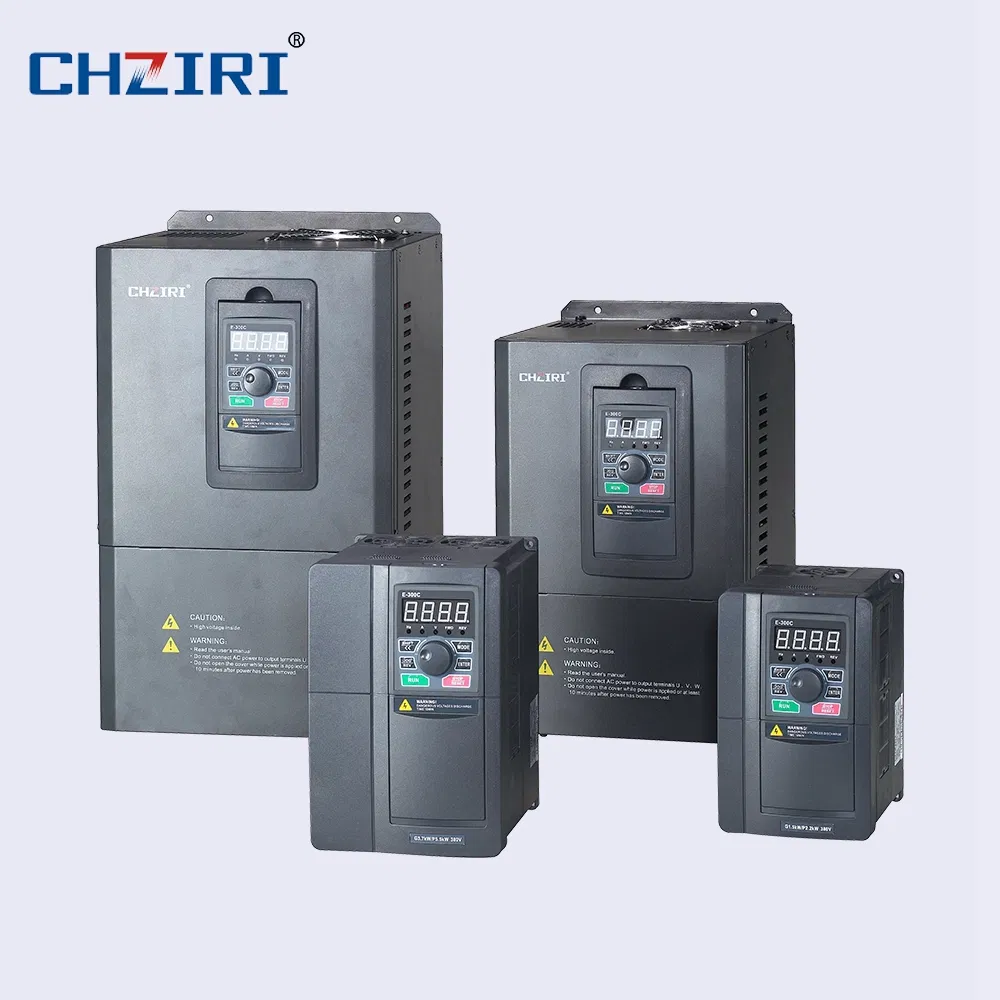

Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
1 / 5
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation
Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation

Low Cost 90kw Solar VFD DC to AC Input for Water Pumping and Irrigation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Technical Specifications
Model NO.
ZSI800-090T4
Principle of Work
AC Inverter
Switch Mode
V/F Control
Main Circuit Type
Voltage
Power Supply
Low Voltage VFD
Function
Sewage Treatment, Irrigation
Power Range
0.4-160kw
Input Voltage
Three Phase 440V±15%
Control Mode
SVC, V/F, Torque Control
Packing Size
222*164*245mm
HS Code
8504409999
Capacity
5000PCS/Month
Product Overview
Solar Inverter

ZSI800 Solar Inverter Series

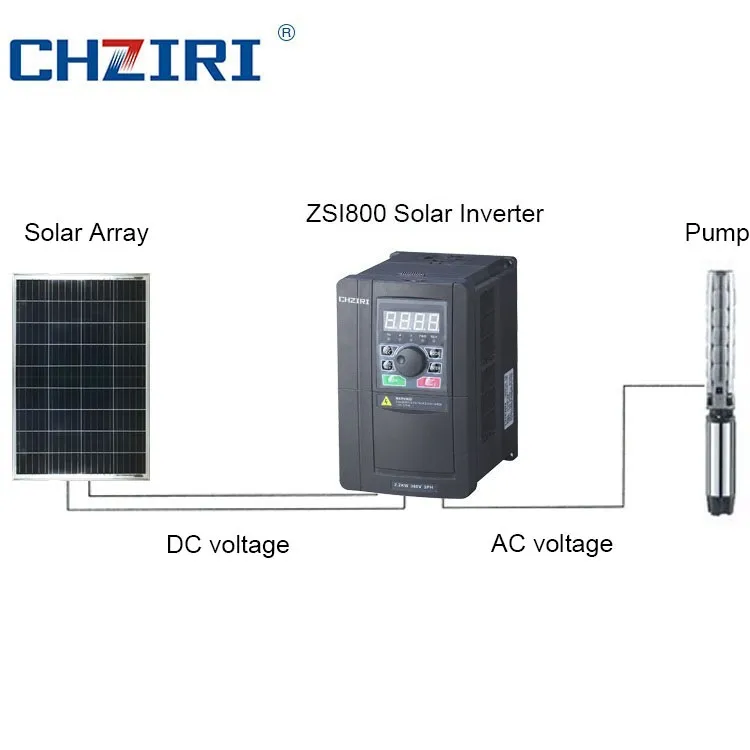

VFD DC to AC

✓Main Features:

The ZIS800 series pump control inverter is a high-degree protection solution. The shell is dustproof and splash-water resistant, suitable for various water pump motor junction boxes. It adapts to multiple sensor signals with simple operation, high reliability, and low noise. Supports both individual pump control and multi-on-line operation.

Technical Indications

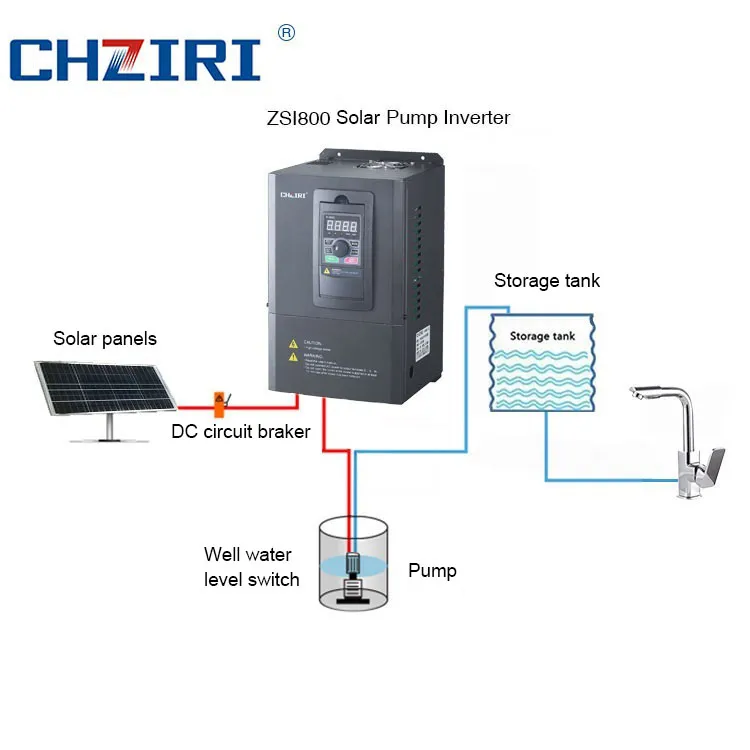

Technical Specifications
Item Item Description
Input Rated Voltage Single/Three phase 220VAC; Three phase 400V, 50Hz/60Hz
Allowable Range Voltage: -20%~+20%; Unbalance: <3%; Frequency: ≤5%
Output Rated Voltage Three phase 0 ~ Input AC Voltage
Frequency 0.00 ~ 600.00Hz
Control Accuracy Digital: ±0.01%; Analog: ±0.2%
V/F Curve Linear, Quadratic, User defined
PID Control Built-in PID for pressure and flow process control
Protection Phase loss, Over current, Overload, Over voltage, Over heat, etc.
Application Range

This series is widely applied in:

  • ● Agricultural and Forestry Irrigation
  • ● Desert Control and Pasture Husbandry
  • ● Island Water Supply Systems
  • ● Waste Water Treatment Engineering

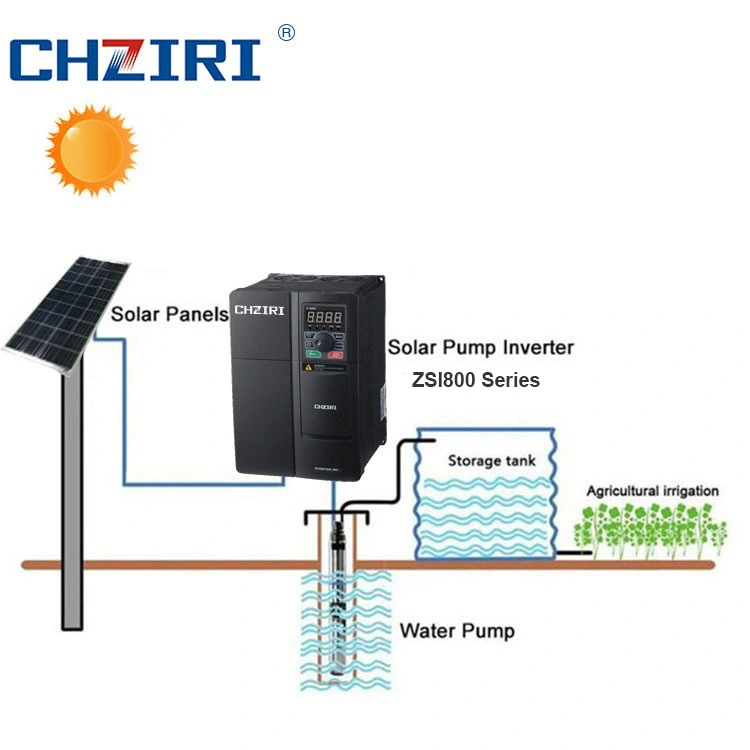

Application 1
Application 2

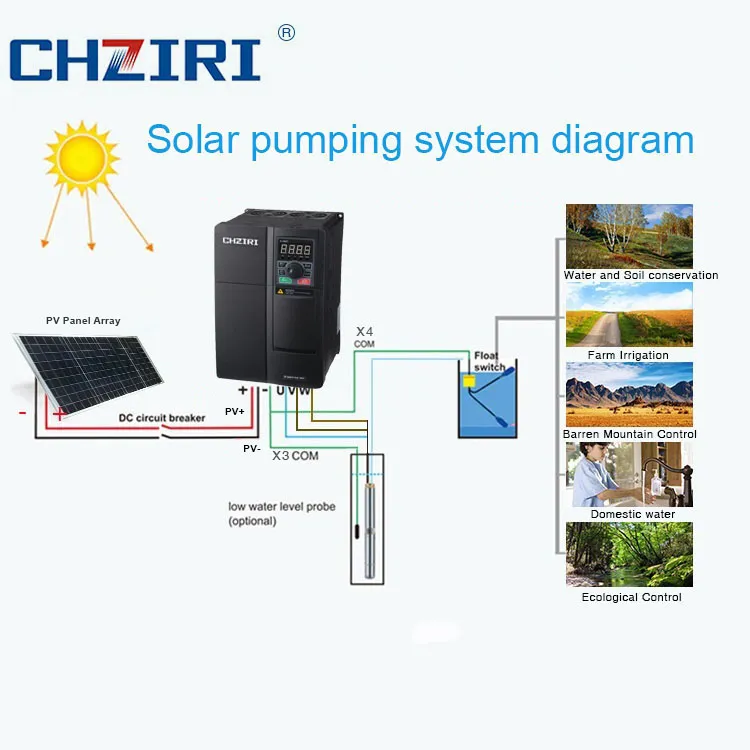

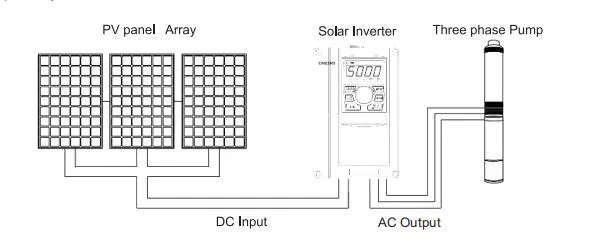

Solar Pump System
Manufacturing & Quality

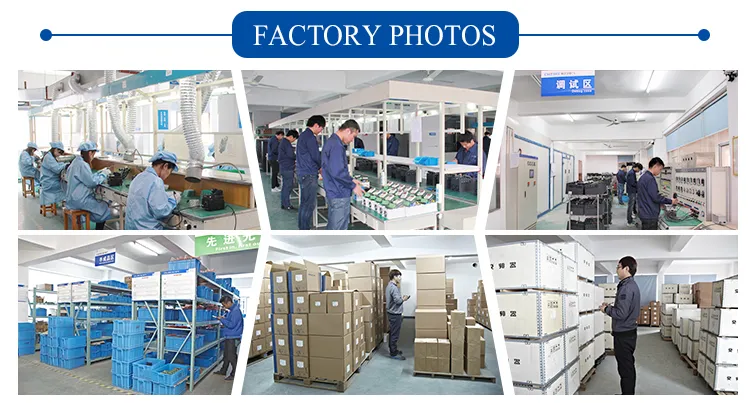

Production Line 1

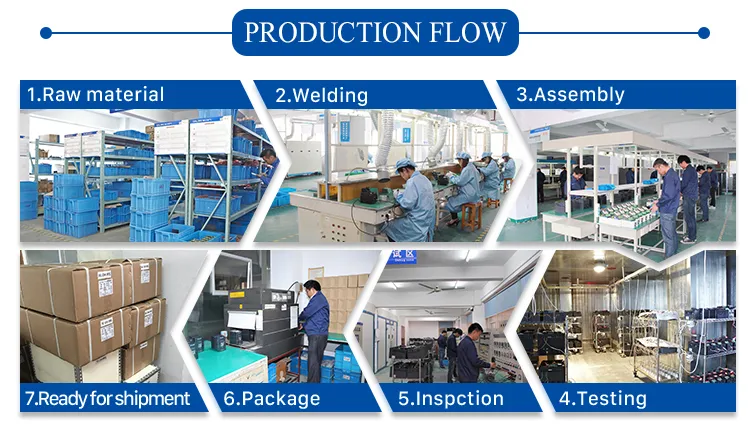

Production Line 2
Testing 1
Testing 2
Quality Certificate
Workshop
Frequently Asked Questions
?What is the main purpose of the ZSI800 Solar Inverter?
It is designed to convert DC power from solar panels into AC power to drive water pumps for irrigation, desert control, and waste water treatment.
?Can this inverter handle outdoor environments?
Yes, the ZSI800 series features a dustproof and splash-water resistant shell, making it highly reliable for outdoor pump motor installations.
?Does it support both single and three-phase inputs?
Yes, it supports single-phase and three-phase 220VAC, as well as three-phase 400VAC inputs with a 50Hz/60Hz frequency range.
?What built-in protections are included?
The device includes comprehensive protection against input phase loss, over-current, overload, over-voltage, under-voltage, and over-heating.
?Is the frequency range adjustable?
Absolutely. The output frequency can be set between 0.00Hz and 600.00Hz, providing precise control for different pumping requirements.
?Does the inverter support OEM services?
Yes, OEM services are available to meet specific branding or technical requirements for large-scale projects.
