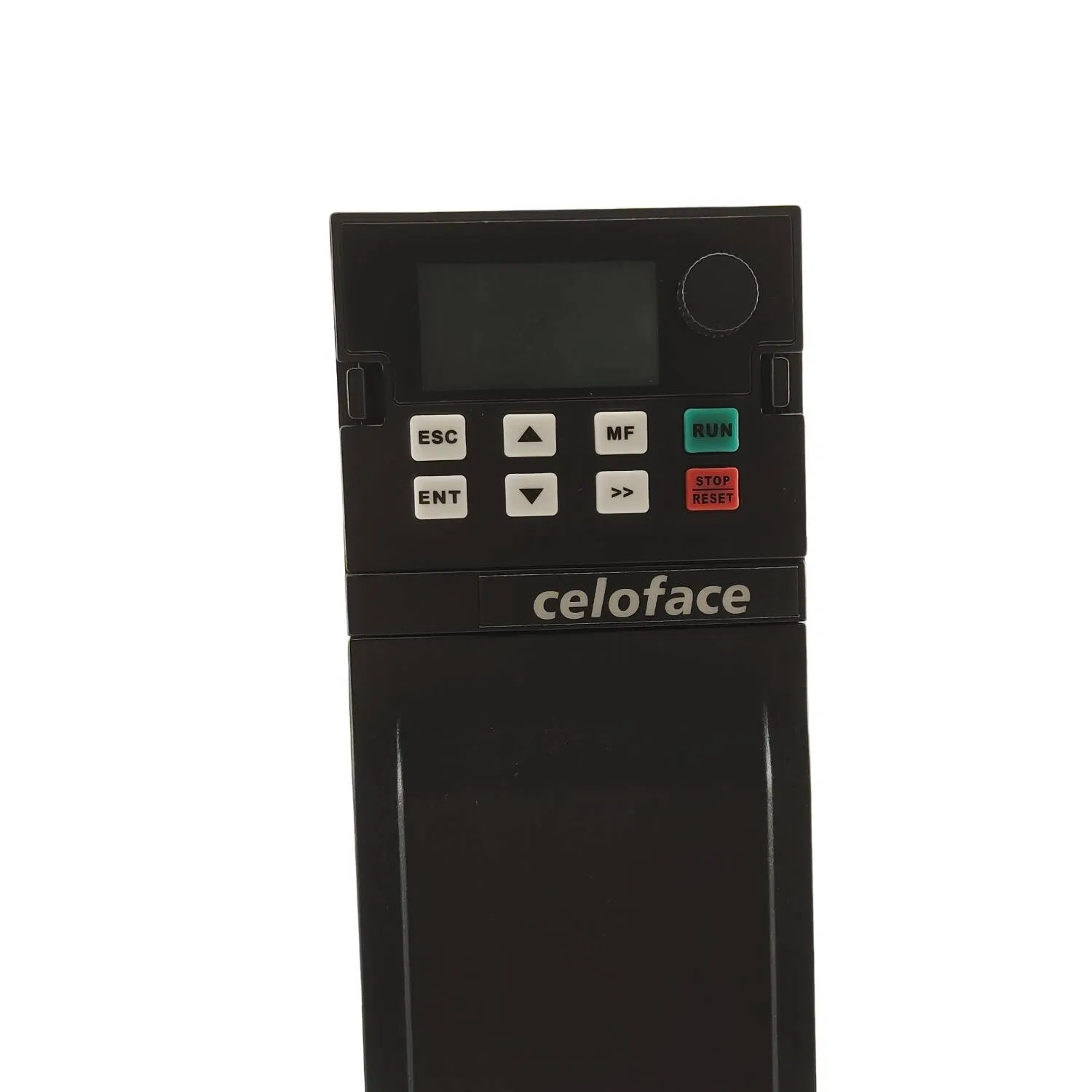

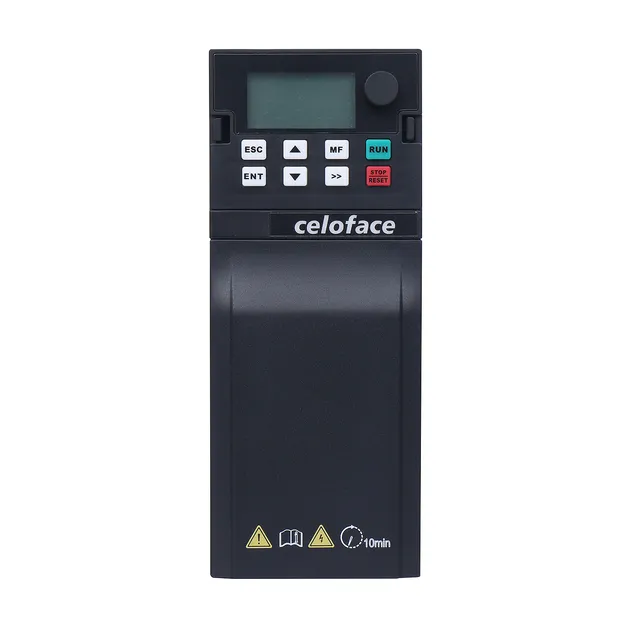

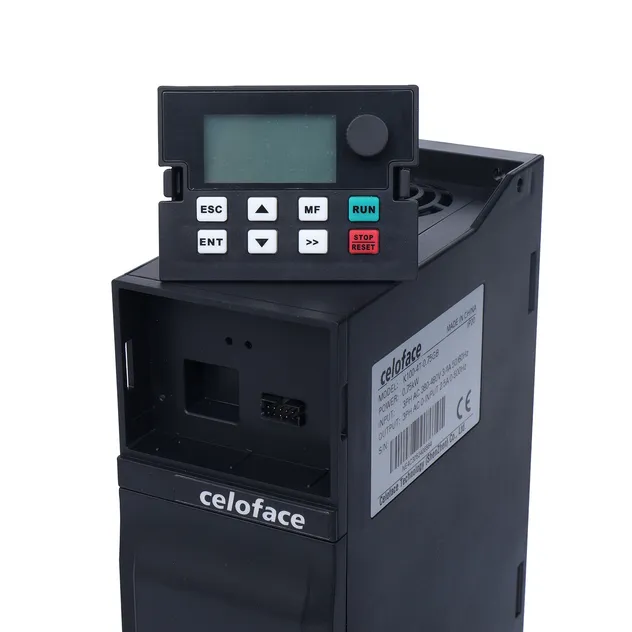

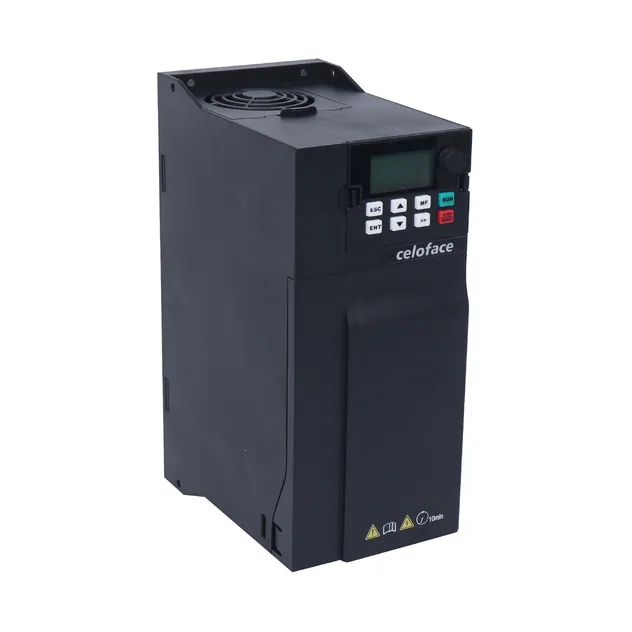

The K100 Series VFD inverter features a classic black design with 3-phase 380V input and output, ensuring stable performance, easy installation, and wide compatibility for industrial drives. The dual-display model offers flexibility with two selectable parameter modes to show key operating data, enabling precise monitoring and debugging for diverse work scenarios.
| Model | Voltage Level | Rated Power (kW) | Input Current (A) | Output Current (A) | Compatible Motor (kW) |
|---|---|---|---|---|---|
| K100-2S-0.75GB | Single-phase 220V | 0.75 | 9.3 | 4.2 | 0.75 |
| K100-2S-1.5GB | 1.5 | 15.7 | 7.5 | 1.5 | |
| K100-2S-2.2GB | 2.2 | 24 | 10 | 2.2 | |
| K100-2S-4.0GB | 4.0 | 35 | 17 | 4.0 | |
| K100-4T-0.75GB | Three-phase 380V | 0.75 | 3.4 | 2.3 | 0.75 |
| K100-4T-1.5GB | 1.5 | 5 | 3.7 | 1.5 | |
| K100-4T-2.2GB | 2.2 | 6 | 5 | 2.2 | |
| K100-4T-4.0GB | 4.0 | 11 | 9.5 | 4.0 |

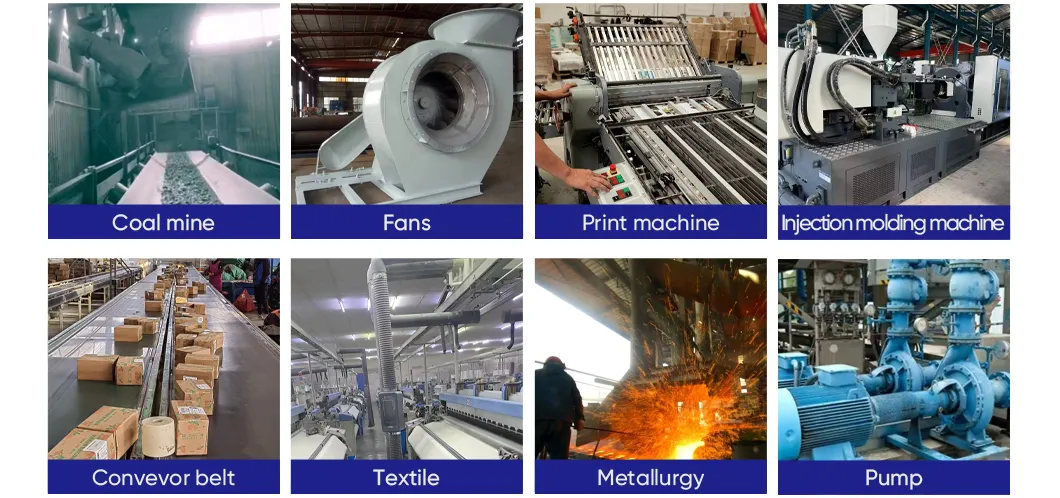

CNC machine tools, textiles, fans and pumps, food machinery, woodworking machinery, packaging and transportation, printing machines, etc.

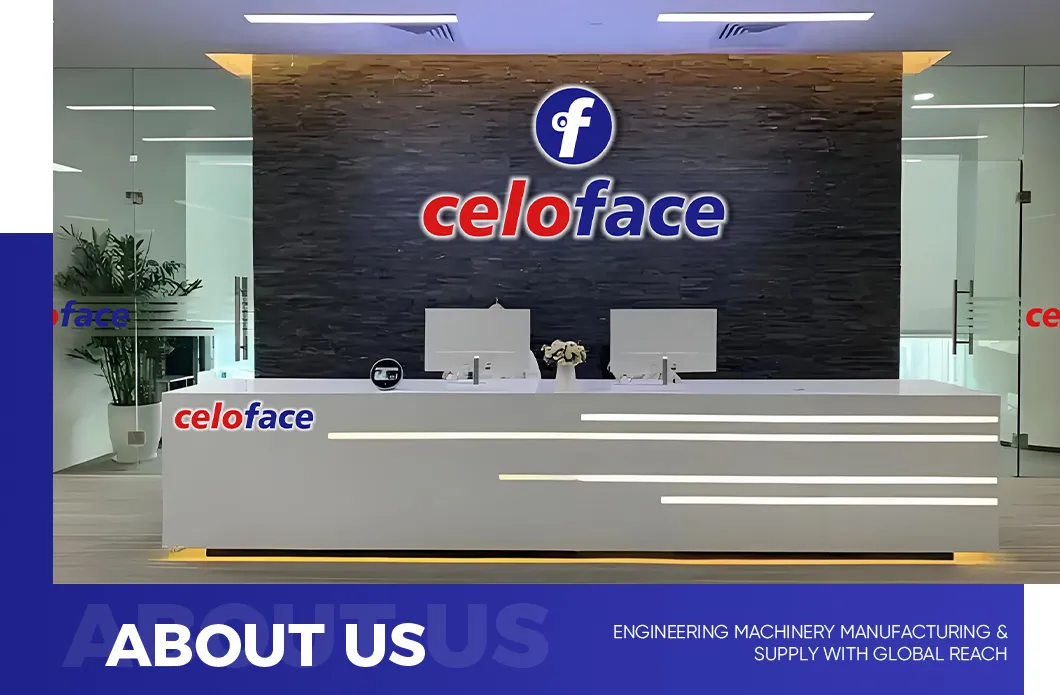

We focus on the field of electrical transmission and industrial control, operating as a high-tech enterprise engaged in R&D, production, and sales of industrial automation products. With multiple production bases and R&D centers, we have established a global network of service centers to respond promptly to customer needs. Our business provides competitive, safe, and reliable products to industries worldwide.

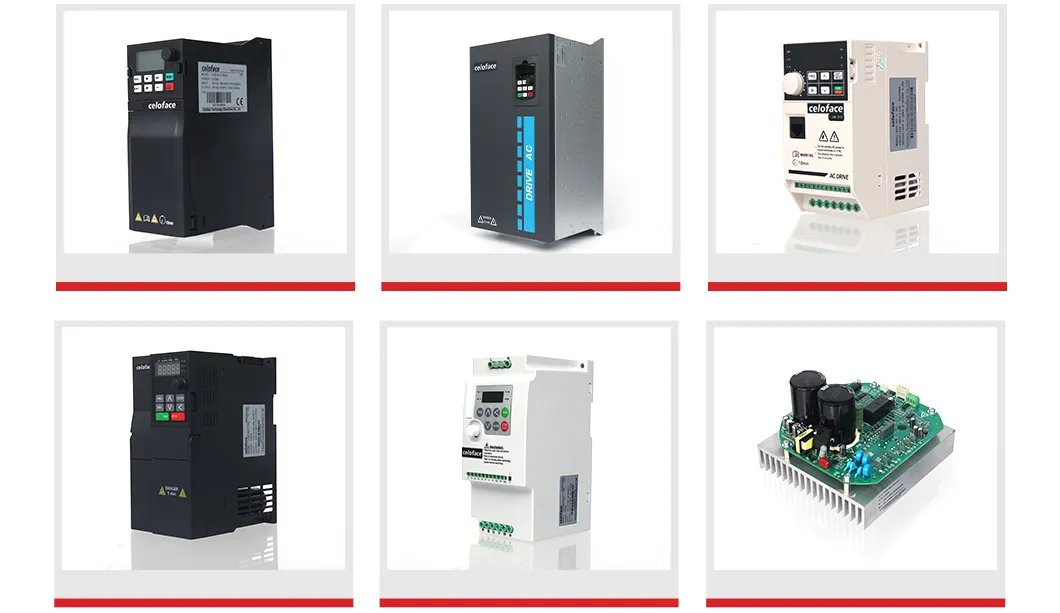

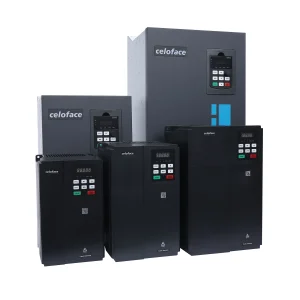

Our product range includes variable frequency drives, servo systems, control systems, pneumatic systems, motors, and sensors. These are widely applied in sectors such as compressors, cranes, photovoltaic pumps, printing machinery, and new energy fields like robotics and healthcare. Through sustained independent innovation, we hold advanced technologies in vector control, silicon carbide application, and high-frequency motor control.
