V9 Series General purpose Inverter
Easy Control / Friendly Interface / Multifunction Operation / Brilliant Succession

✔About Product

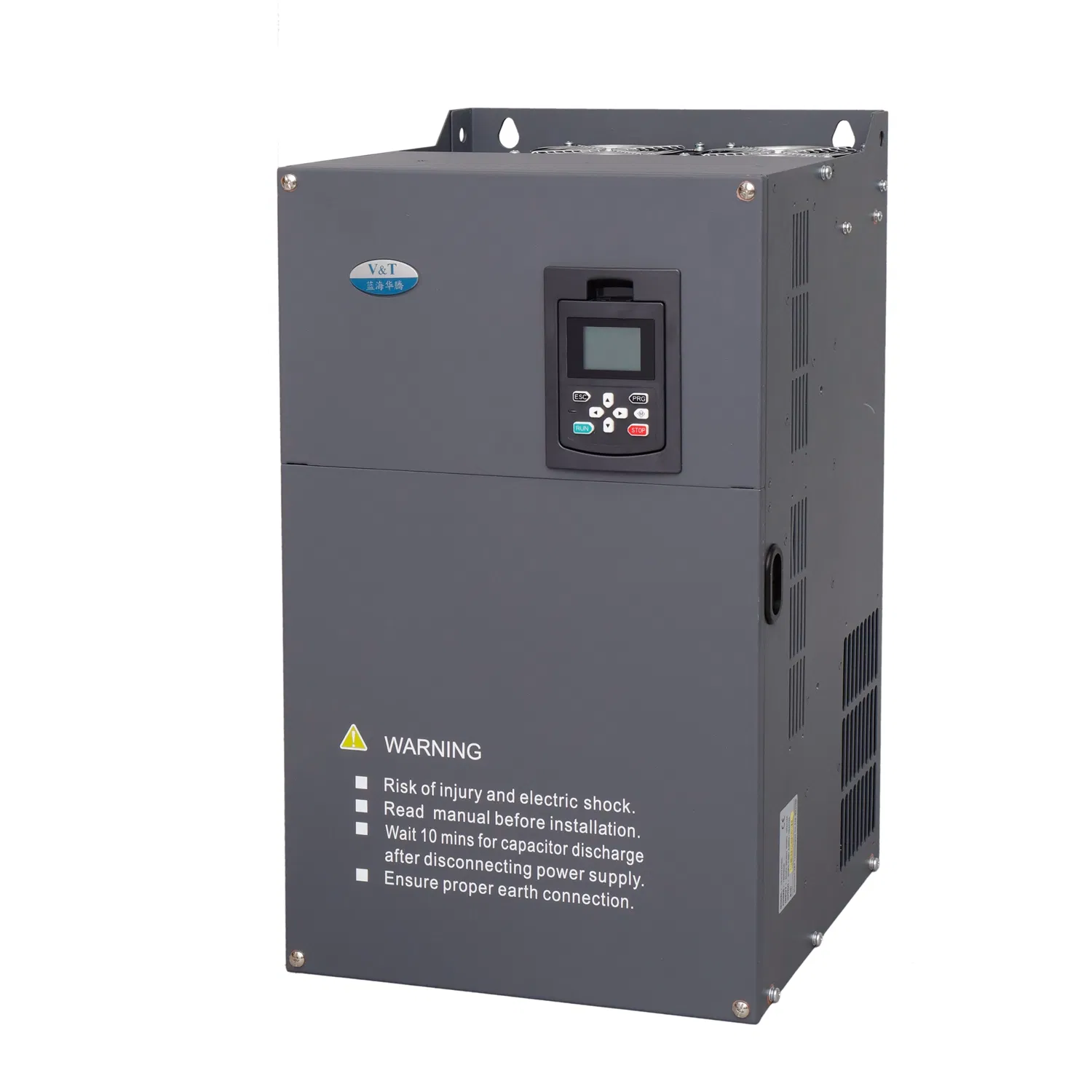

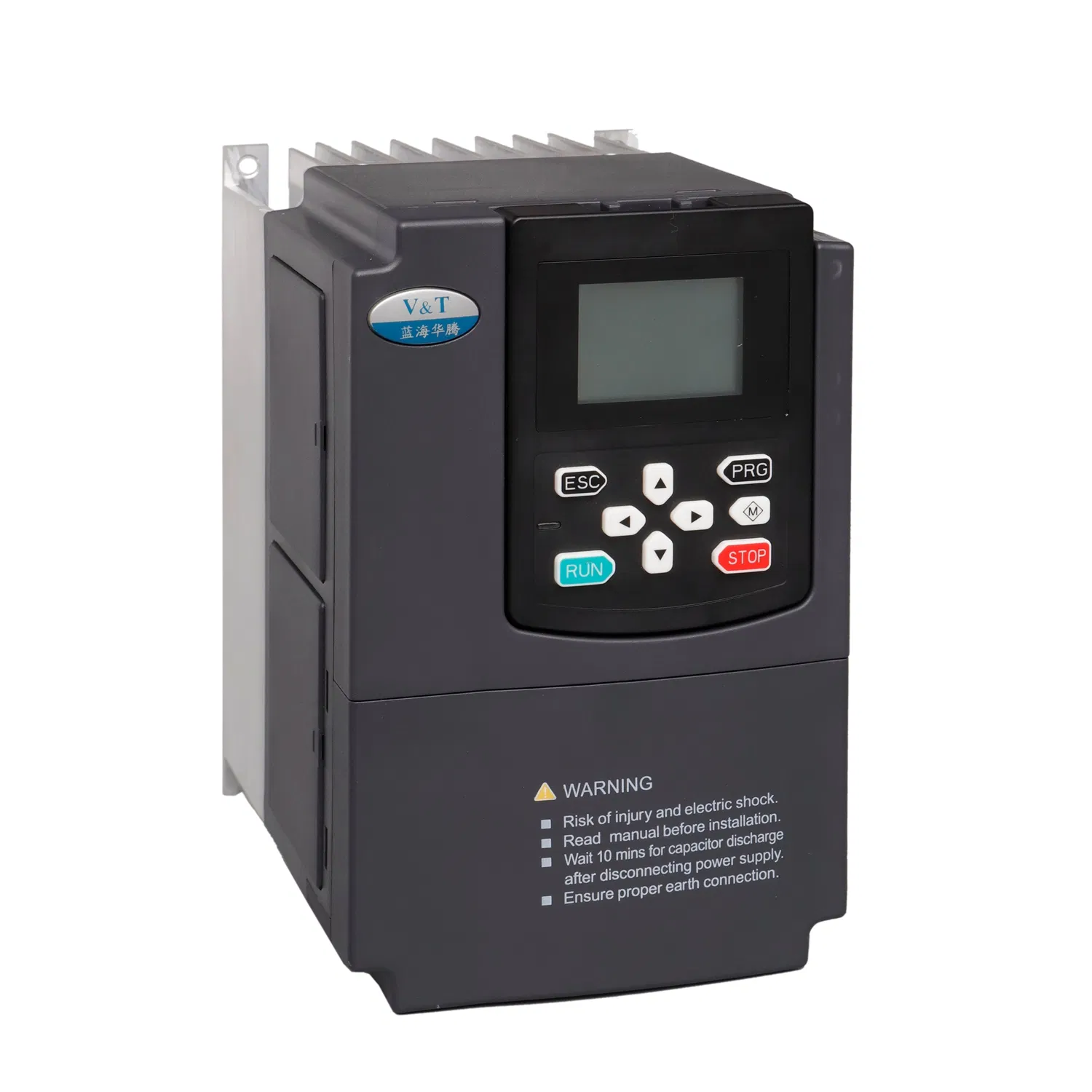

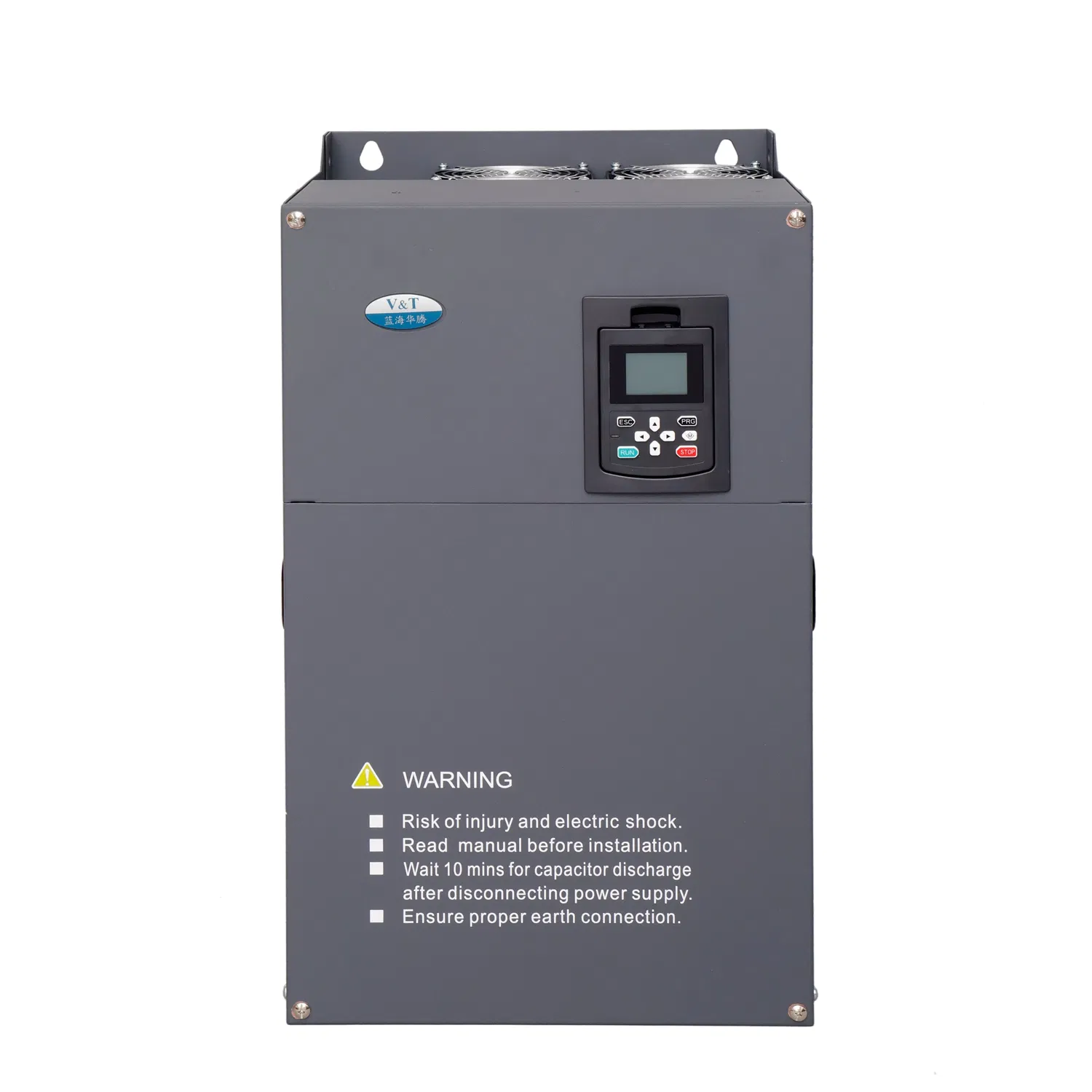

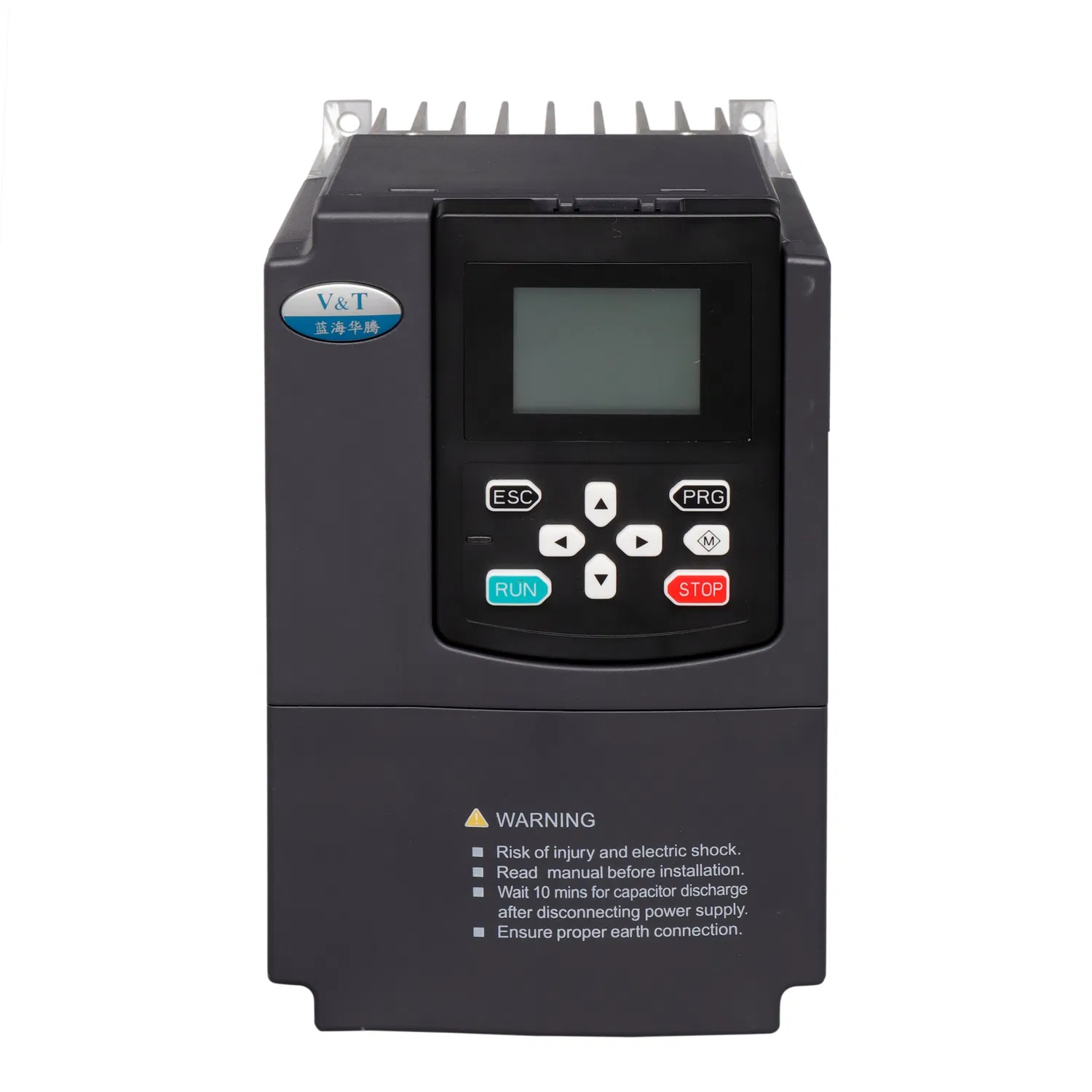

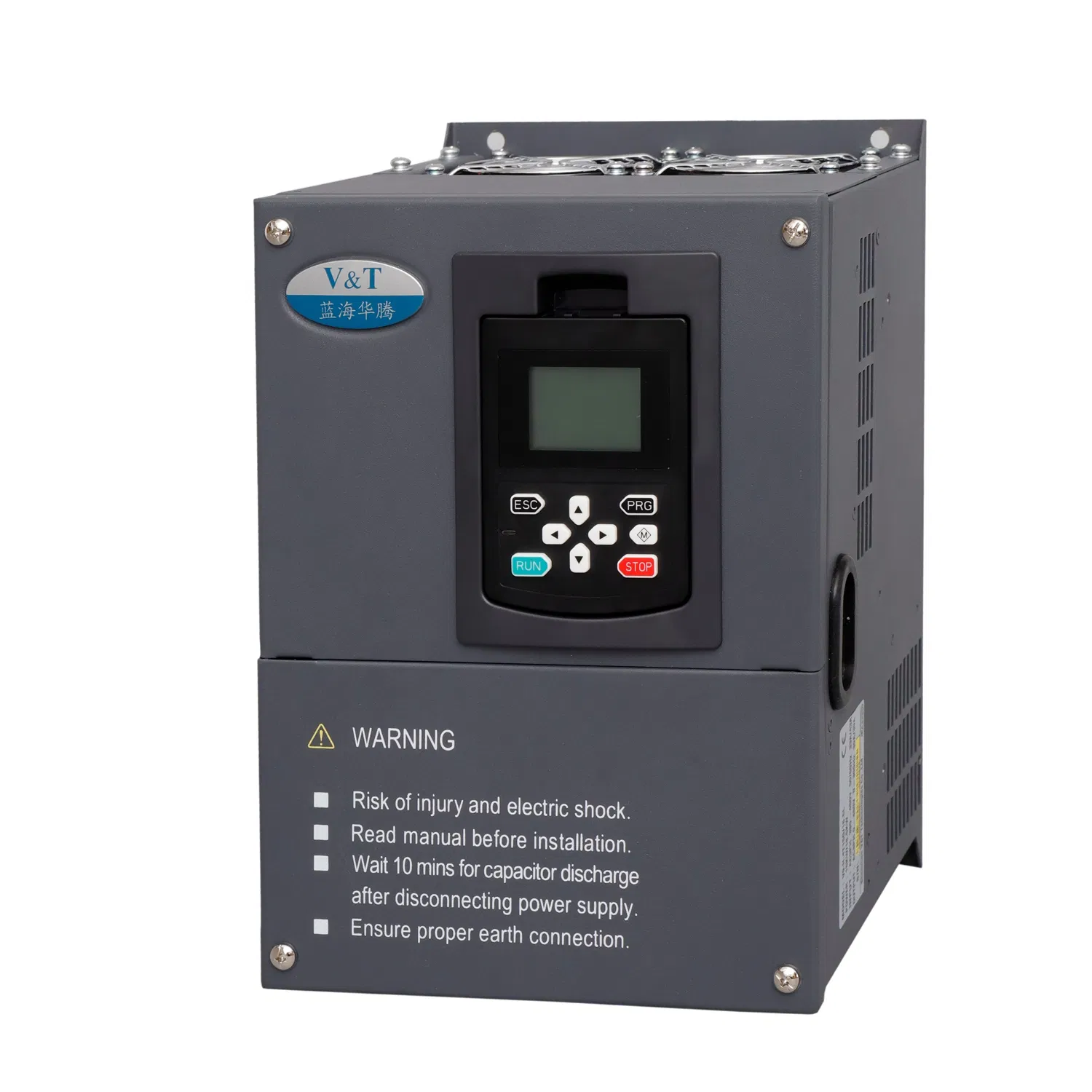

The V9−H Series General Purpose Inverter is a high-performance vector control and torque-controlled inverter. Vector control techniques and torque control techniques are employed. The V9−H product voltage range 220V and 380V, Power range 0.75Kw to 630Kw. It can suit synchronous and asynchronous motor. Synchronous open loop, Synchronous closed loop, Asynchronous V/F, Asynchronous closed loop, Asynchronous vector, these control modes can meet various needs.

✔Representative Industry
Machine tool industry, Lift, Crane industry, Air compressor industry, Papermaking industry, Oilfield, Plastic industry, Metal processing, Municipal engineering, Textile industry, Printing and packaging, Industrial mining, Processing center, Wood processing, Cable Machinery, Food Packaging, Electric Vehicles, Centrifuges and High-end applications ect.

• Multiple System Loop Control Modes: Position loop, Speed loop, Torque loop.
• Flexible Speed Command Selection: Modbus communication, Keyboard, Analog, Multi-segment speed, Terminal UP/DN, Process PID, Simple PLC speed.
• Multiple Running Instructions: Modbus communication, Keyboard, Terminal given.
• Optional Operation Panels: LED Operation Panel / LCD Liquid Crystal Operation Panel are optional. Standard network port connections, ergonomic button layout, one-button parameter entry, and parameter copy function (remote control up to 500m). Features a password lock to prevent accidental changes.

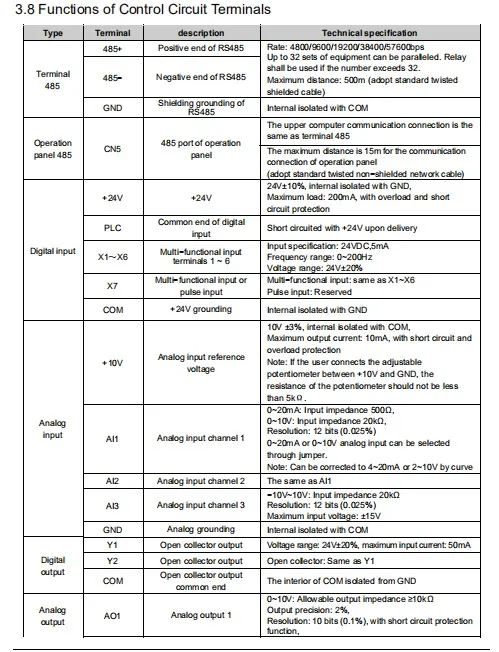

• Upper Computer Communication: Provides 485 communication interface via Modbus protocol for parameter upload and download.
