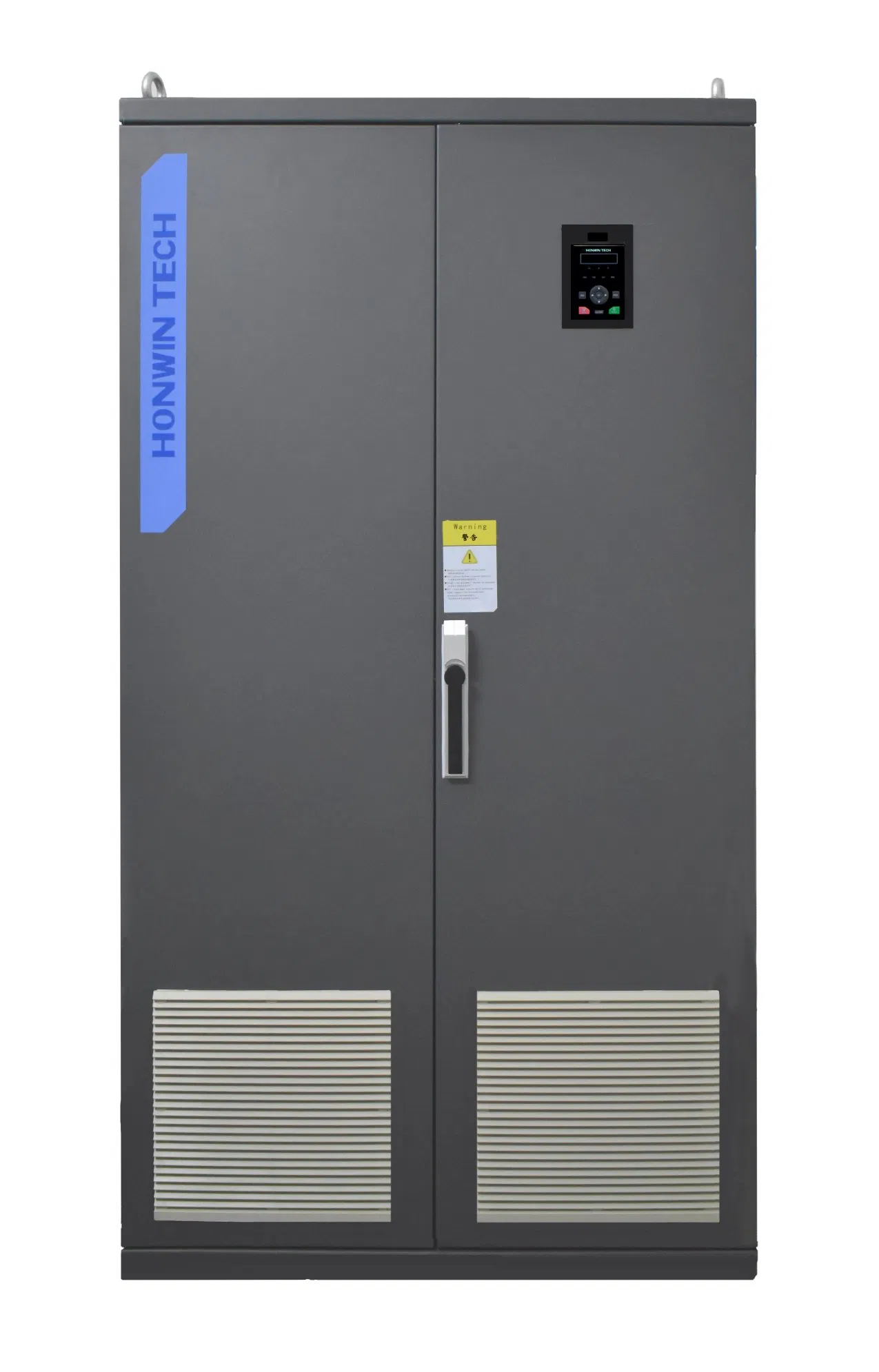

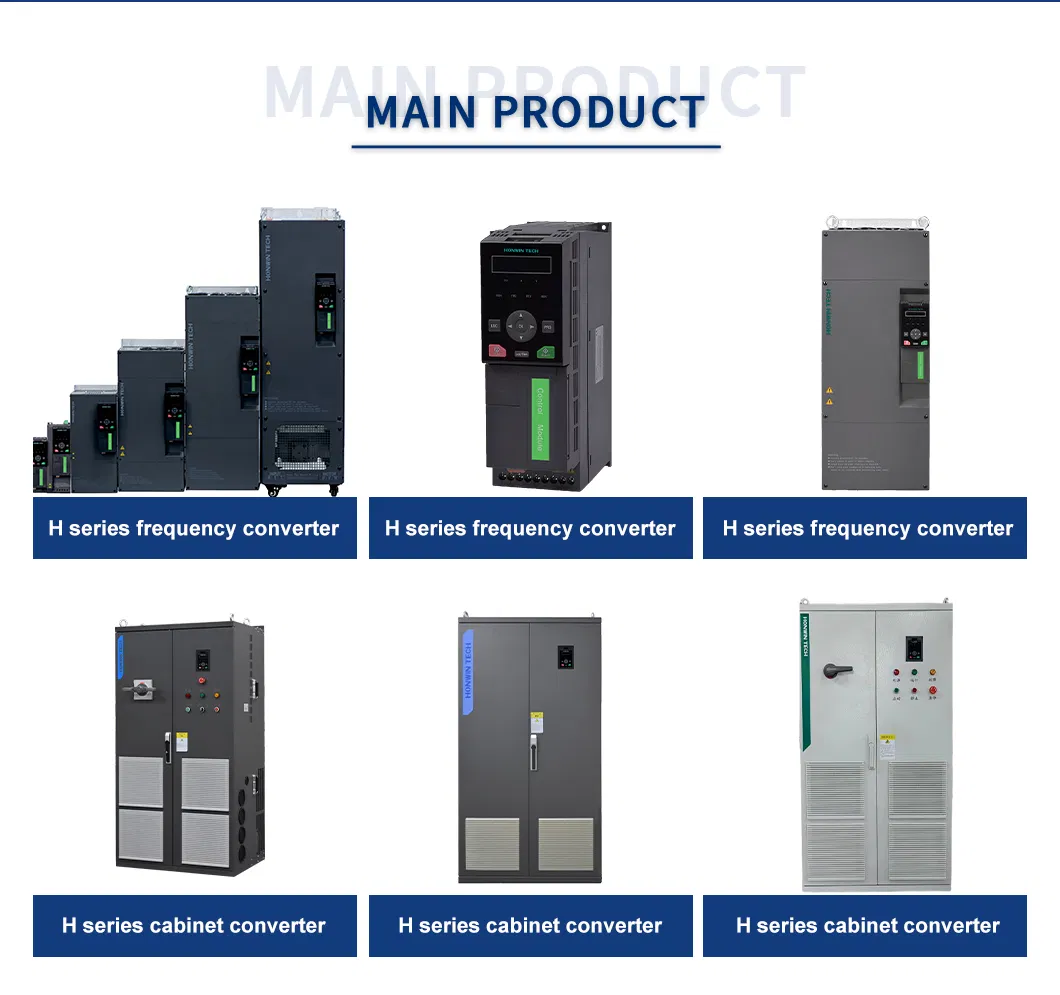

H150 series variable frequency drive is a high-performance current vector control motor drive, which can be used for controlling AC asynchronous motor and synchronous motor. H150 series adopt high-performance vector control technology to realize high torque output at low speed and has good dynamic characteristics and super overload capability. It can be used in dedicated industries such as CNC high speed main spindle, flying shearing/tension control, hydraulic servo, and direct driving.
| Item | Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Adapted Motor Power (kW) | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | |
| Output Rated Current (A) | 3.8 | 5.1 | 9.0 | 13.0 | 17.0 | 24.0 | 32.0 | 41.0 | |
| Output | Voltage | Three phase 0V ~ Rated input voltage | |||||||
| Frequency | 300.00Hz (Adjustable) | ||||||||
| Overload | G: 150% 60s, 180% 10s | L: 130% 60s, 147% 1s | ||||||||
| Feature | Technical Specifications |
|---|---|
| Control Mode | Advanced scalar control, No-PG vector control (SVC), With-PG vector control (VC) |
| Starting Torque | SVC: 0.25Hz 150%, VC: 0.00Hz 180% |
| Speed Range | SVC: 1:200, VC: 1:1000 |
| Torque Response | SVC: ≤10ms, VC: ≤5ms |
| Protection | Short circuit, Over-current (2.2x), Over-voltage (800V), Under-voltage (320V), Phase loss |
| Environment | -10~+40℃, Humidity 5~95%, Altitude < 3000m |
