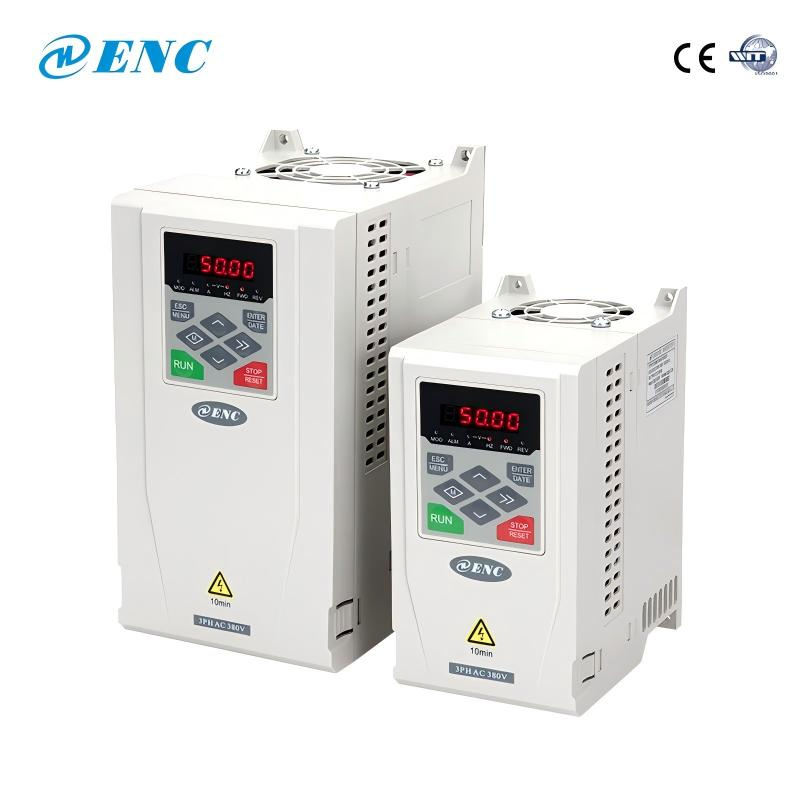

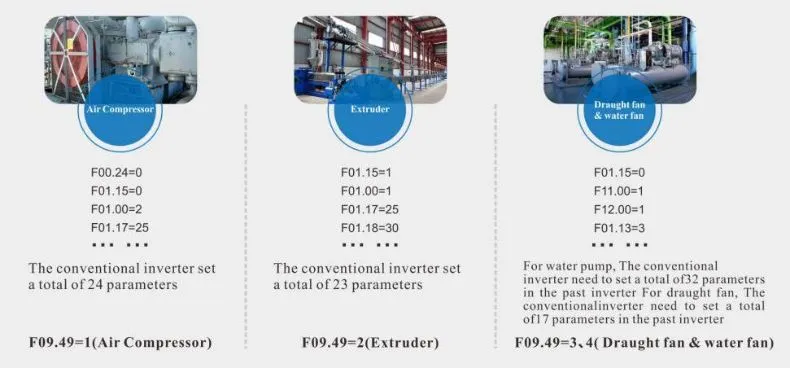

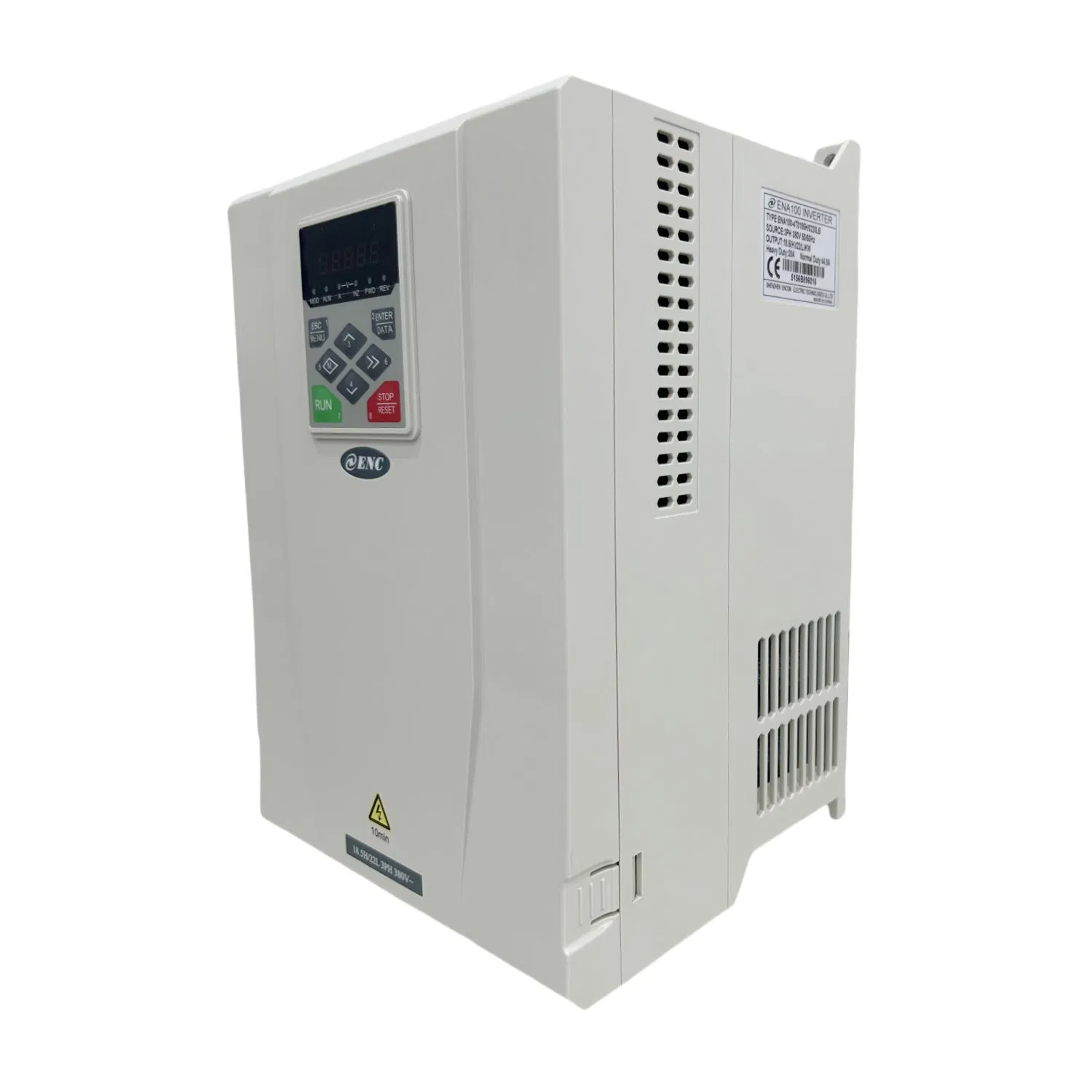

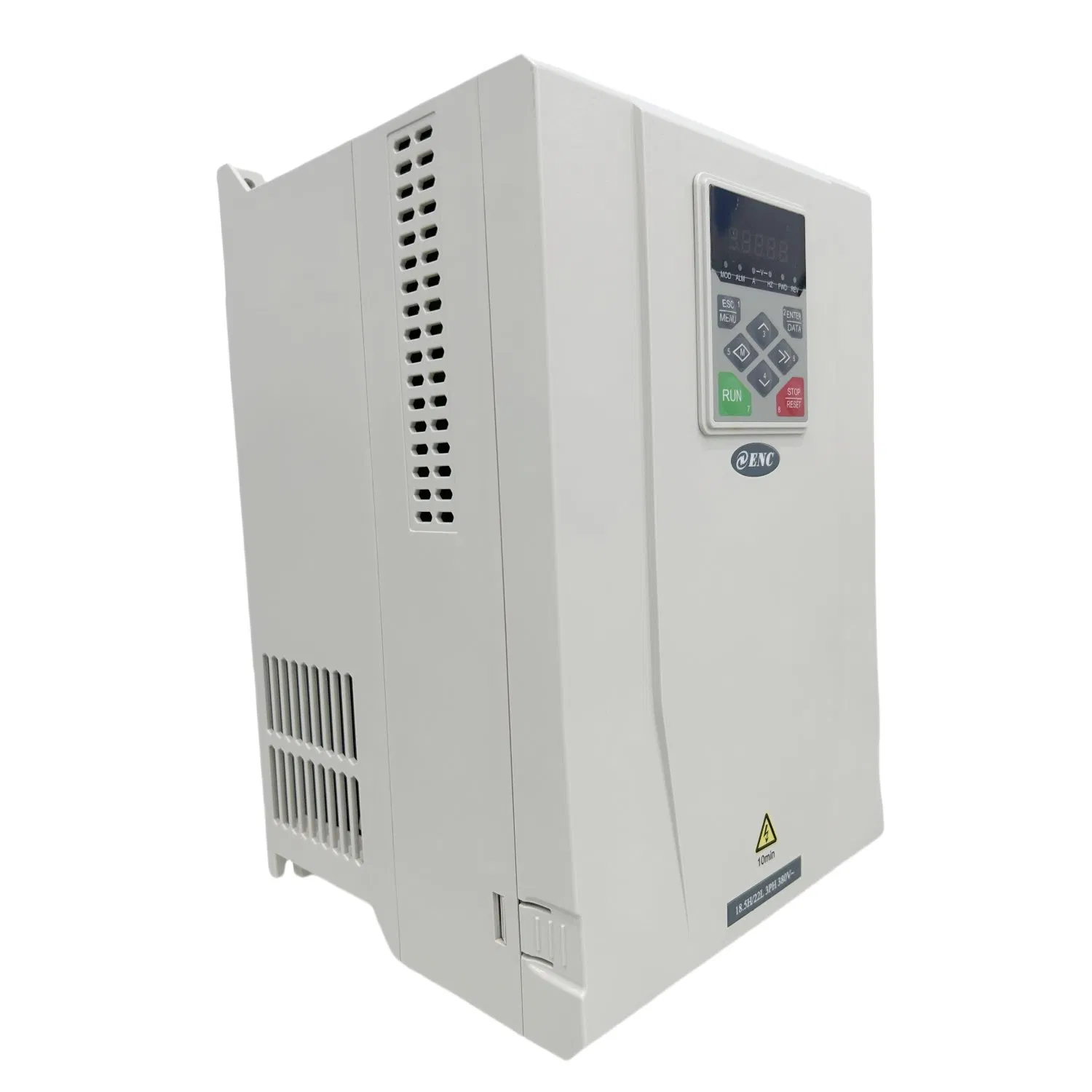

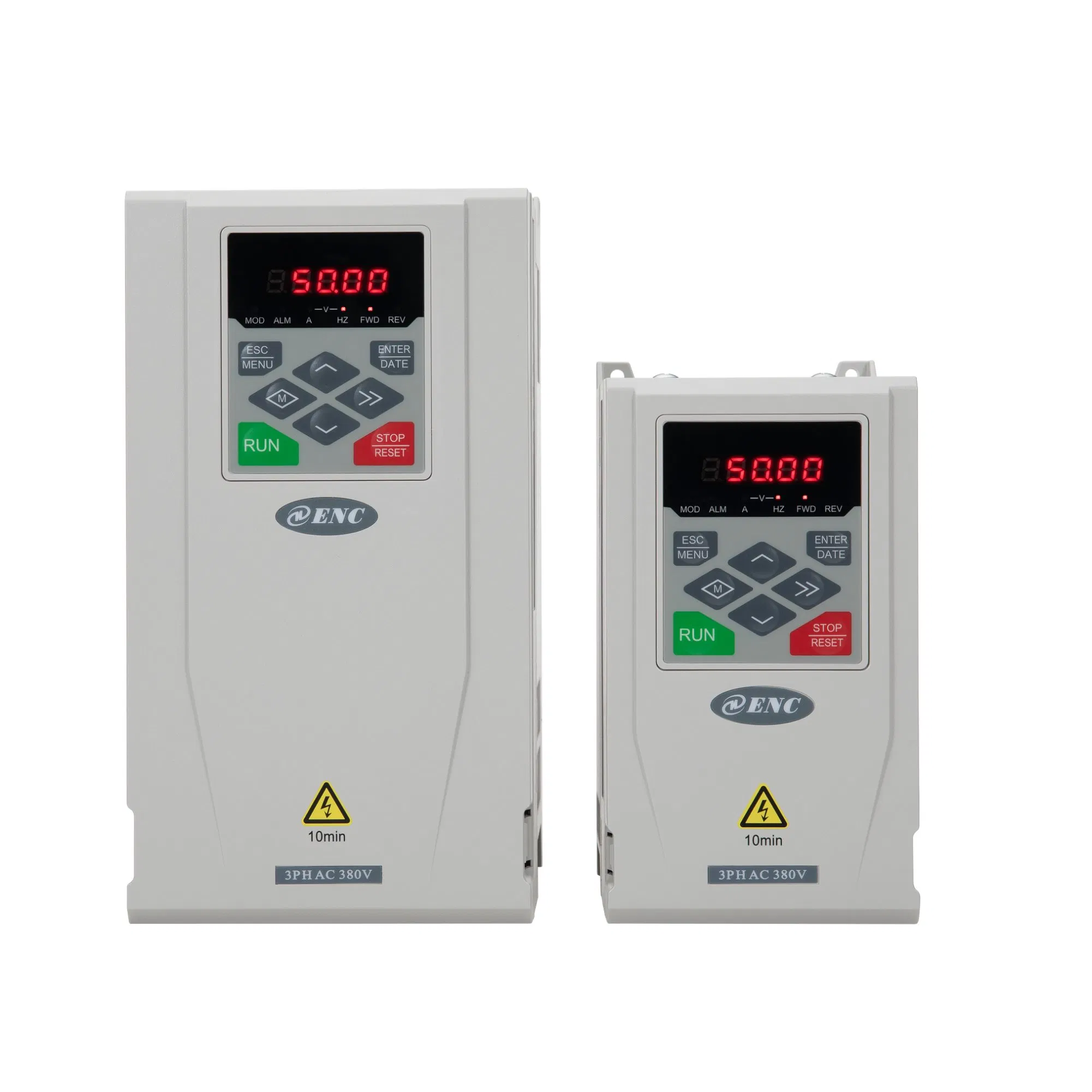

ENA100 is a cost-effective general vector inverter with a power range from 0.4kW to 160kW. Built-in macro functions for typical industry applications greatly facilitate customer operations. Models below 30KW are equipped with a built-in braking unit as standard. It is specifically designed to perform reliably even in higher ambient temperature situations.

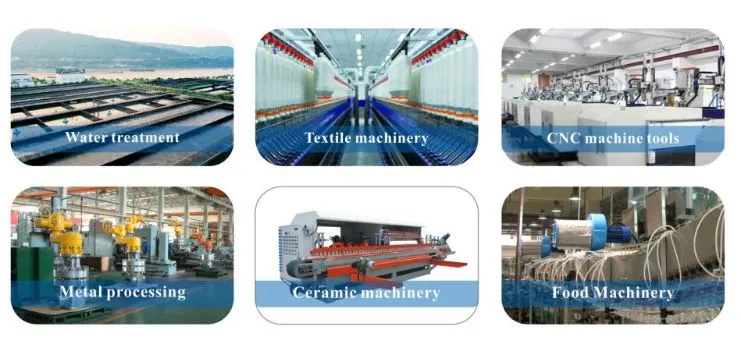

Typical application industries: Suitable for metal processing, plastic machinery, CNC machine tools, printing equipment, textile industry, paper making, water supply engineering, sewage treatment, refrigeration, cement, and stone processing.
Performance & Structural Design:

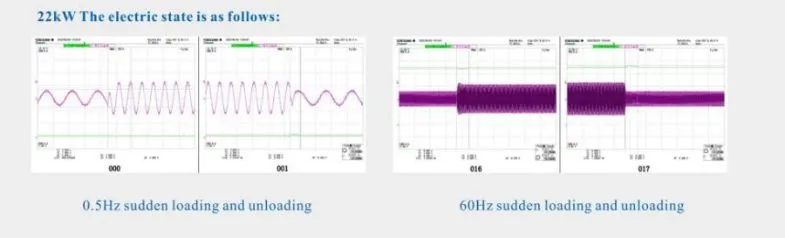

Dynamic torque response is less than 20ms. Starting torque reaches 150% at 1.0Hz (V/F) and up to 180% at 0.5Hz (Open loop vector). The ENA100 series expands the power section to 0.4KW~160KW, surpassing conventional series.
| Item | Detail | Description |
|---|---|---|
| Input | Rating Voltage | 1 Phase 220V / 3 Phase 380V (50Hz/60Hz) |
| Allowable Range | 220V Grade: 200~260V; 380V Grade: 320~460V | |
| Output | Voltage | 0 ~ Input Voltage |
| Frequency | 0 ~ 600Hz | |
| Overload Capacity | Heavy Load: 150% (1 min); Light Load: 120% (1 min) | |

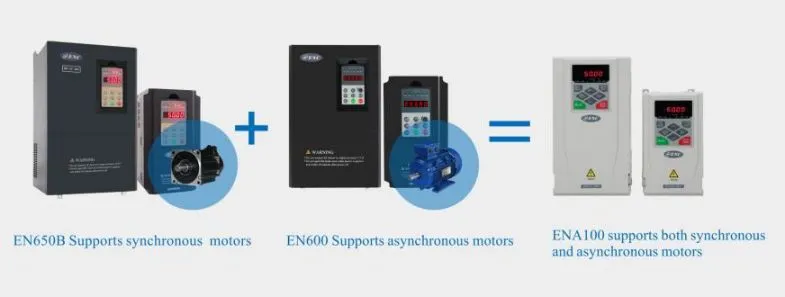

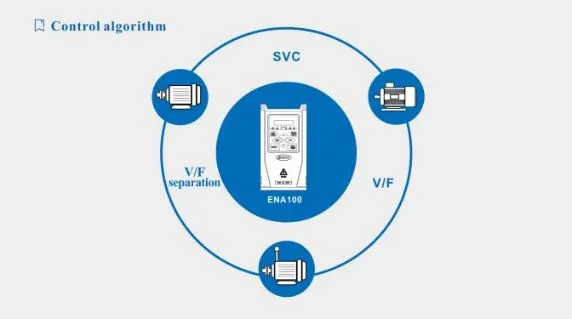

| Control Performance | Control Mode | Vector Control (No PG), Open Loop V/F, Torque Control |
| Speed Precision | ±0.3% (Vector), ±1% (V/F) | |
| Start-up Torque | 0.5Hz: 150% (Vector Control) | |
| PID Controller | Built-in for closed-loop systems | |

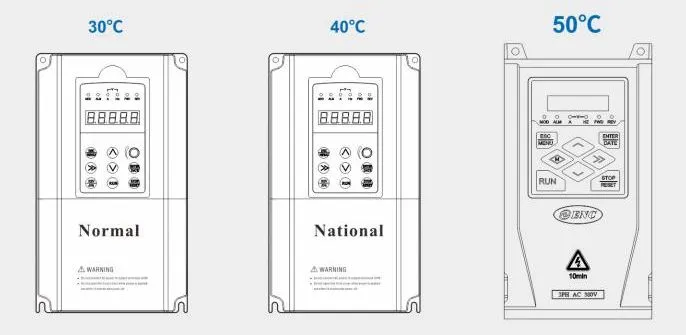

| Environment | Temperature | -10ºC to +50ºC |
| Humidity | < 95% RH (non-condensing) | |
| Protection | IP20 Grade |
