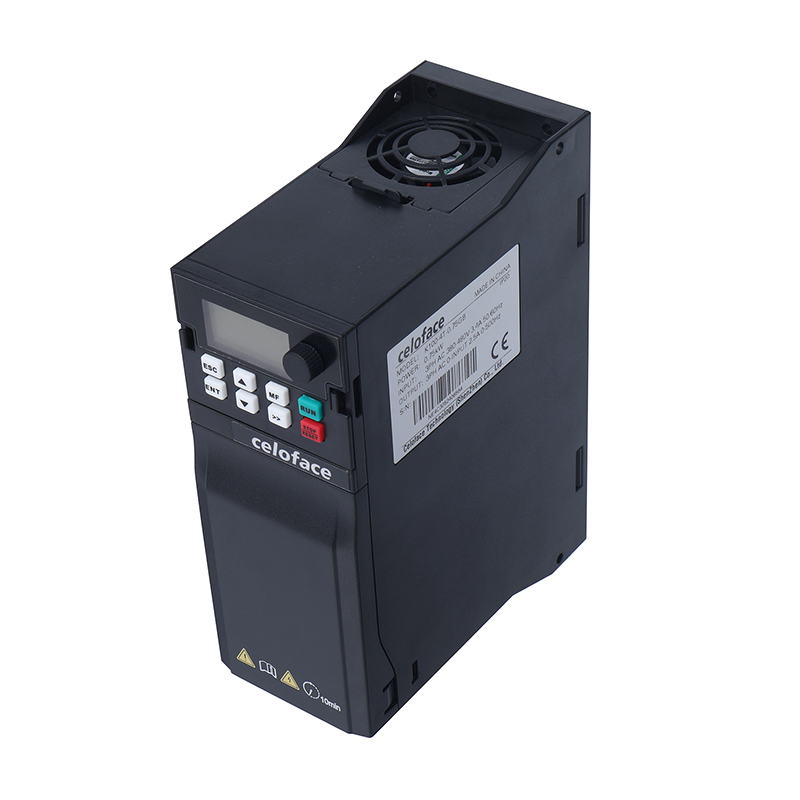

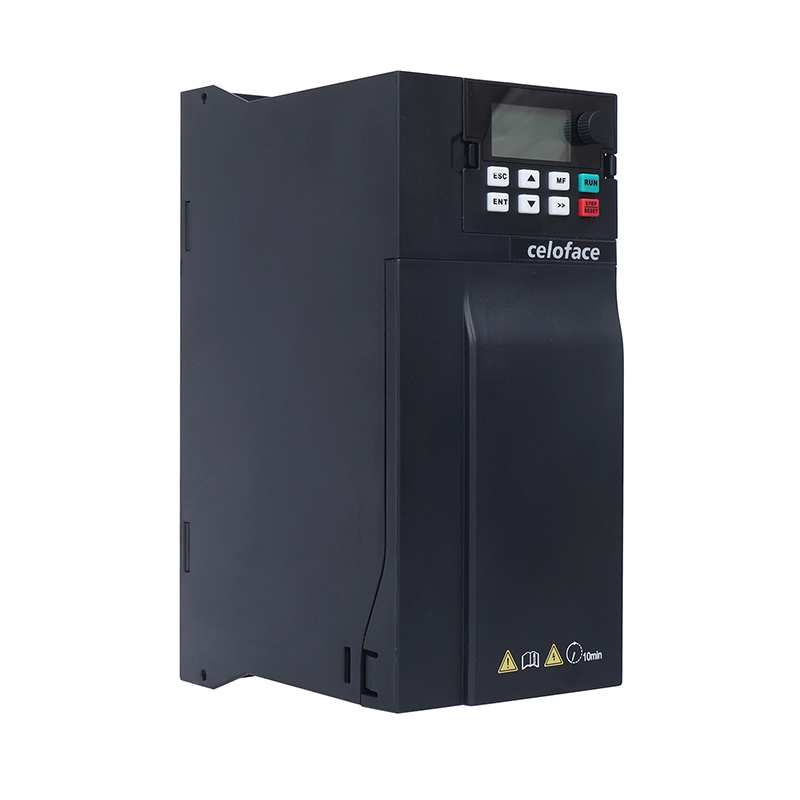

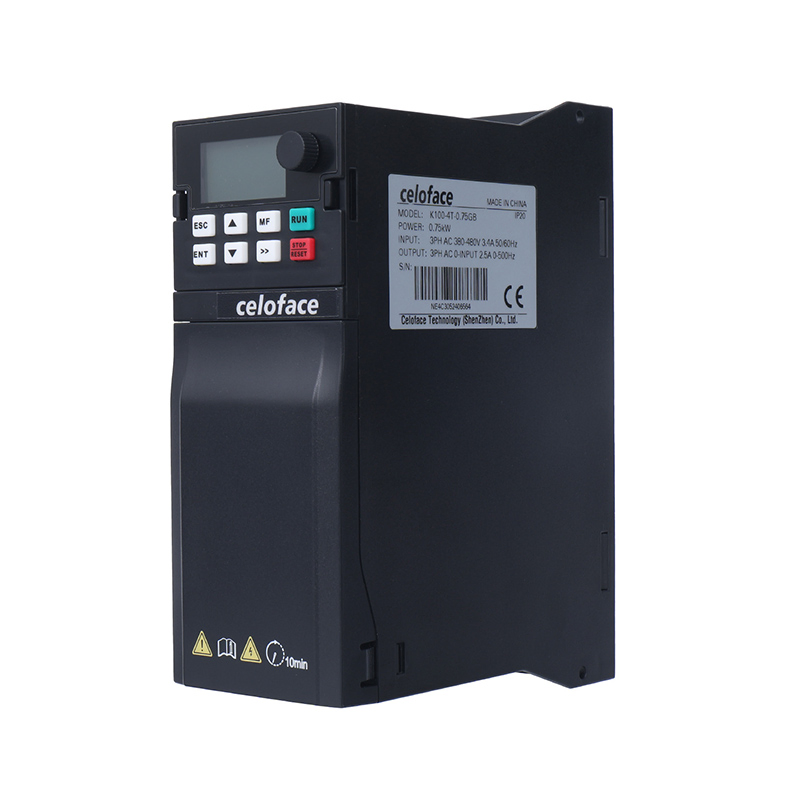

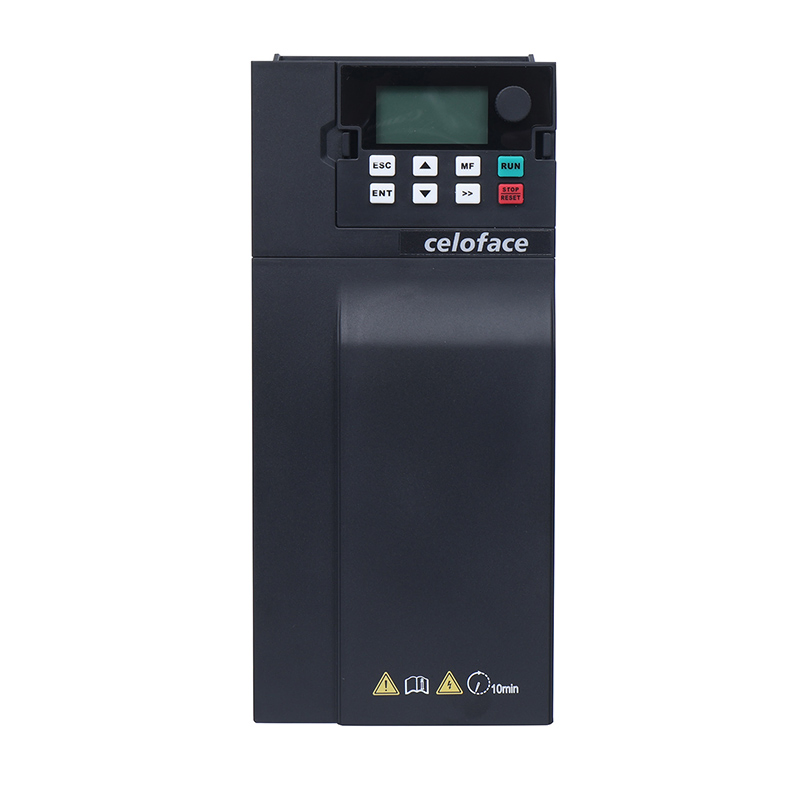

380V 7.5kw General Purpose VFD Inverter for Elevators with CE

⚡ Basic Information

Model NO.

K100-4T-1.5GB

Principle of Work

V/F Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Current

Voltage

Low Voltage Variable-Frequency Drive

Control Mode

V/F Control, Vector Control

Frequency

50/60Hz ±5%

HS Code

8504409999

📦 Product Description

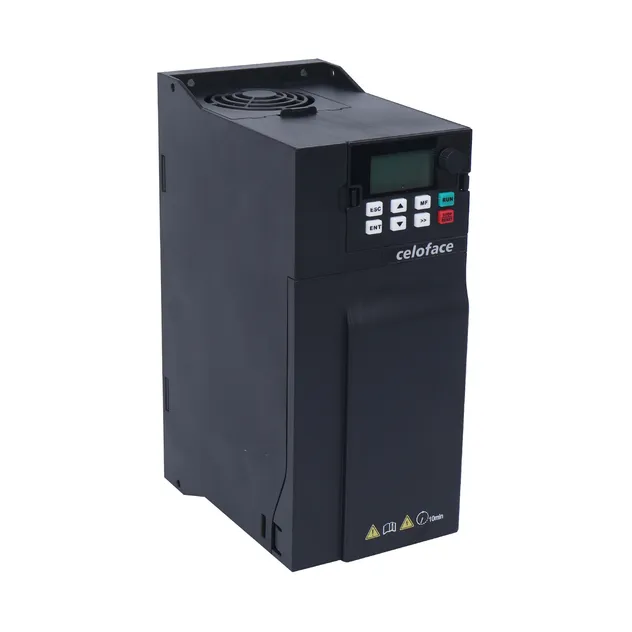

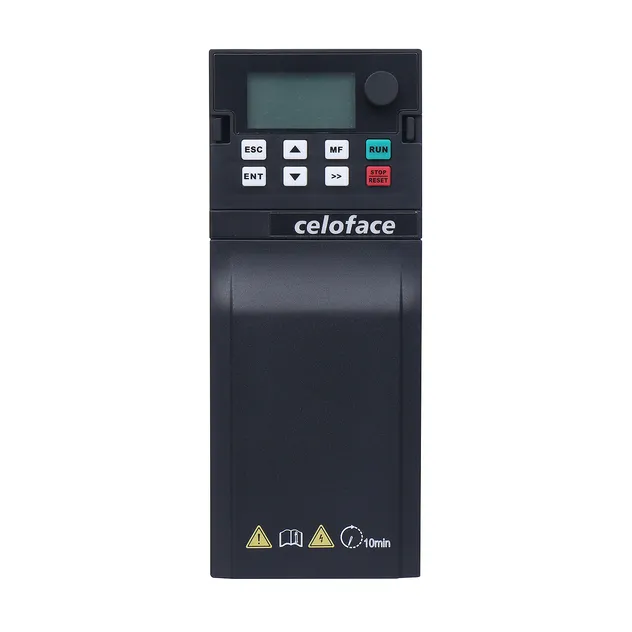

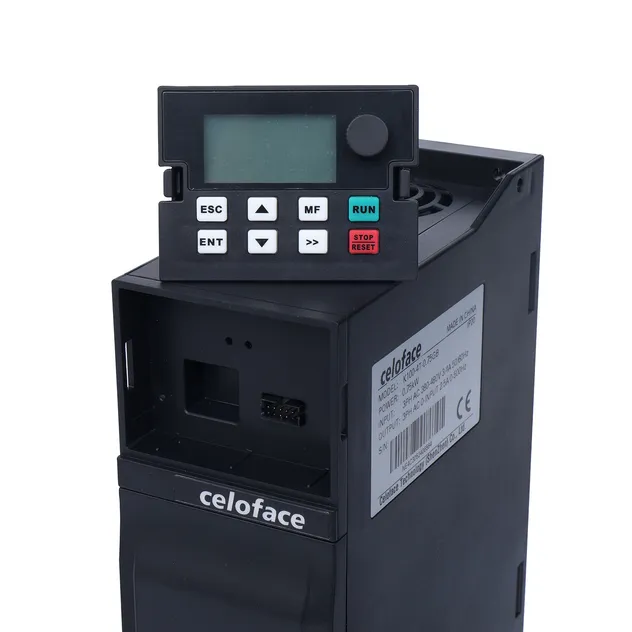

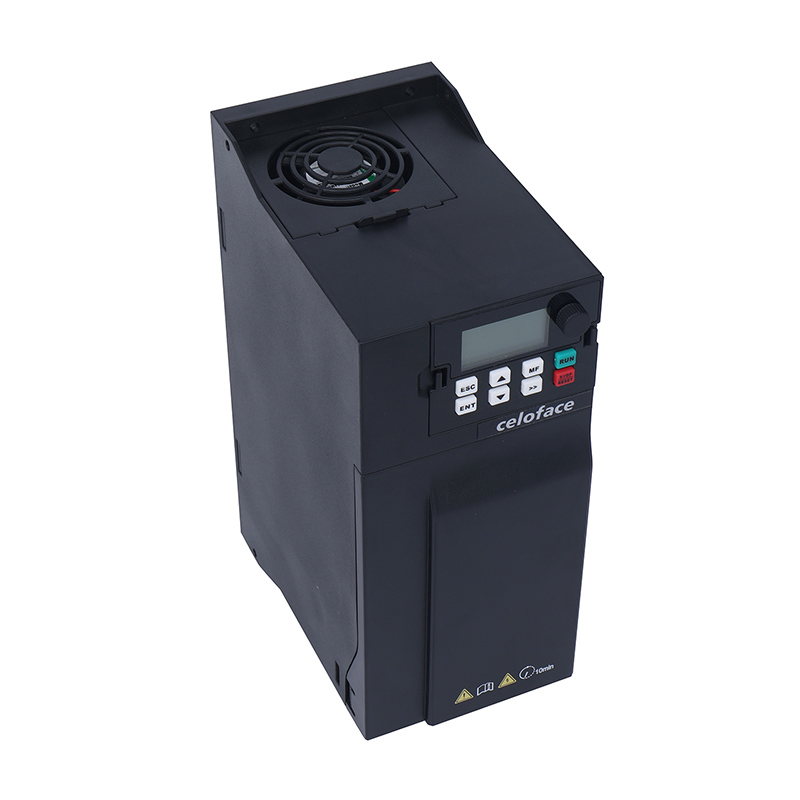

This is K100 Series VFD inverter. Its regular model features a classic black design, with 3-phase 380V input and output, ensuring stable performance, easy installation, and wide compatibility for most industrial drives. The dual-display model adds flexibility—offering two selectable parameter modes to show key operating data as needed.

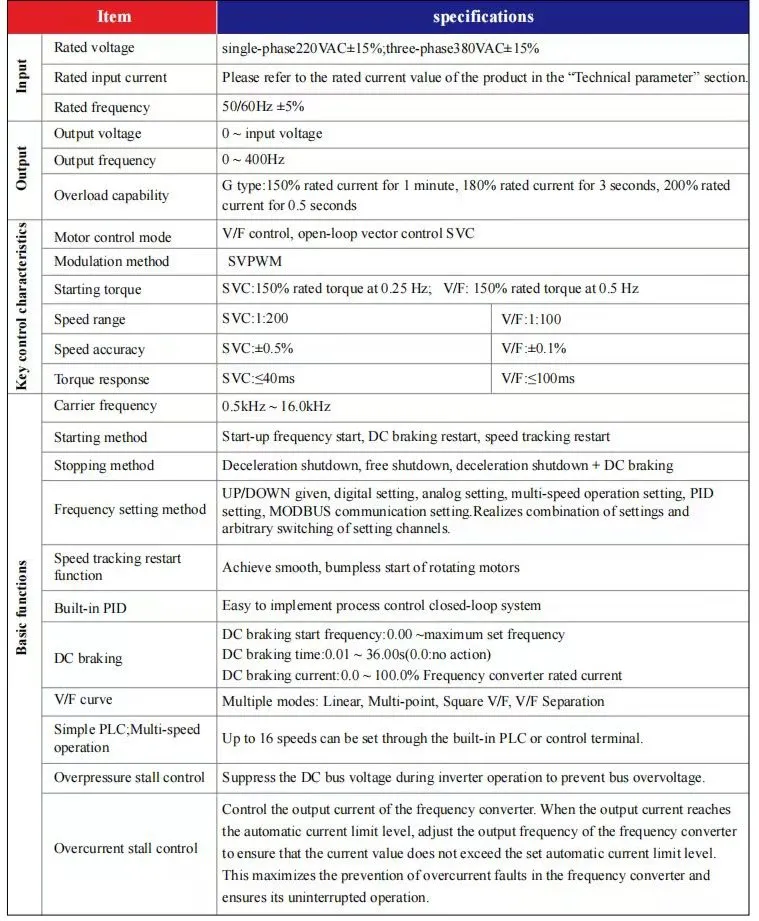

📋 Technical Parameters

Model	Voltage Level	Rated Power (kW)	Input Current (A)	Output Current (A)
K100-2S-0.75GB	Single-phase 220V	0.75	9.3	4.2
K100-2S-1.5GB		1.5	15.7	7.5
K100-2S-2.2GB		2.2	24	10
K100-2S-4.0GB		4.0	35	17
K100-4T-0.75GB	Three-phase 380V	0.75	3.4	2.3
K100-4T-2.2GB		2.2	6	5
K100-4T-5.5GB		5.5	15	13
K100-4T-15GB		15	35	32

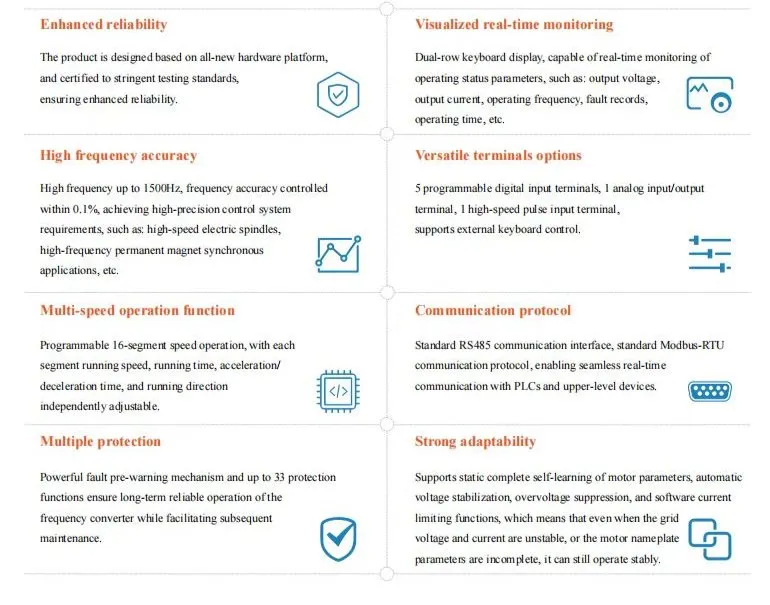

⭐ Product Advantages

Enhanced Reliability
High Frequency Accuracy
Multi-speed Operation Function
Visualized Real-time Monitoring

⚙️ Application Fields

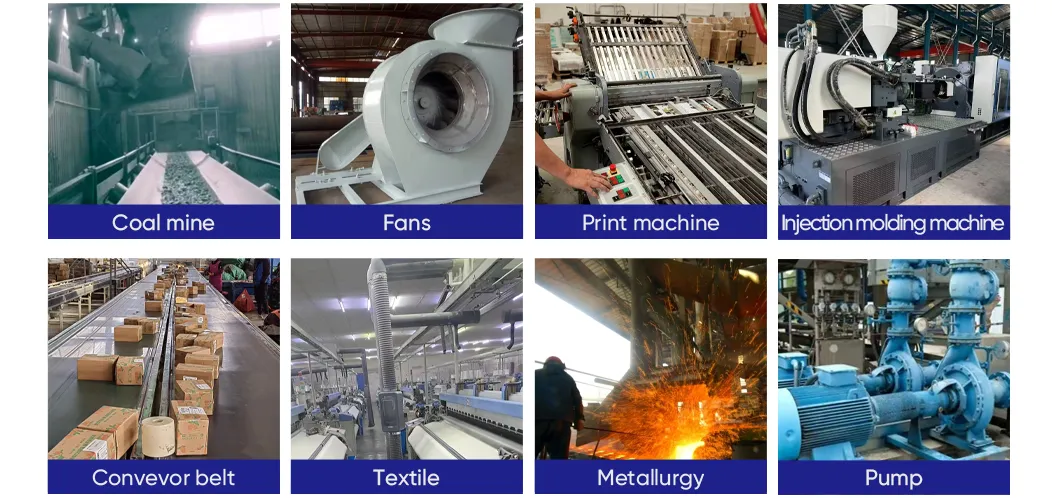

CNC machine tools, textiles, fans and pumps, food machinery, woodworking machinery, packaging and transportation, printing machines, etc.

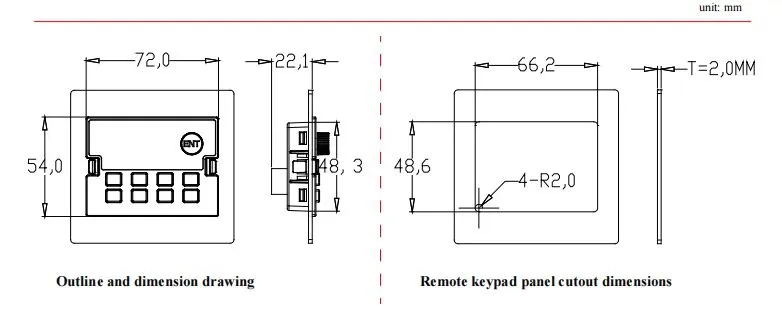

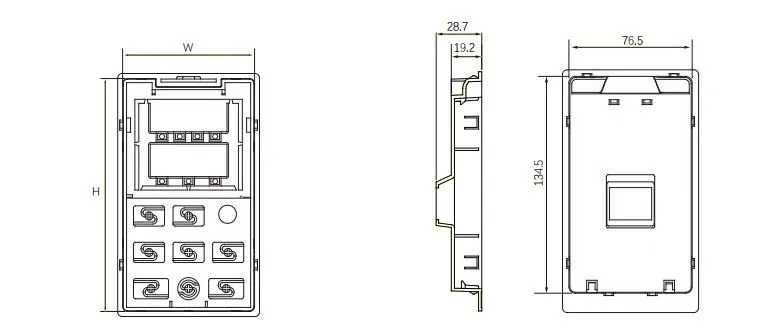

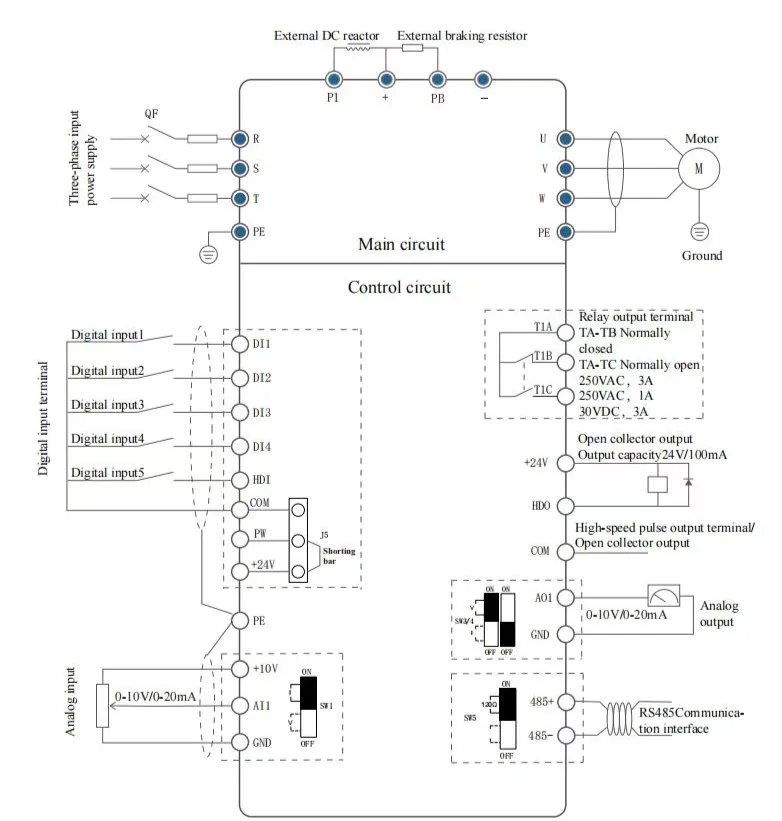

🔌 Wiring Diagram & Features

🏭 Industrial Application

🏢 Company Profile Summary

Focusing on the field of electrical transmission and industrial control, we are a high-tech enterprise engaged in R&D, production, and sales of industrial automation products. Our business covers many countries and regions, providing competitive, safe, and reliable products including variable frequency drives, servo systems, and integrated solutions.

📜 Certifications & Shipping

❓ Frequently Asked Questions

How to choose the right VFD for my machine?

Please provide the detailed information of your machine (motor power, voltage, application type), and we will recommend the most suitable model.

What's your warranty terms?

We offer a 12-month warranty period for our VFD products.

How do you guarantee product quality?

We always provide a pre-production sample before mass production and perform a final inspection before shipment.

What is the typical delivery time?

Small orders usually take 3-5 working days, while large orders take approximately 10-15 days.

Do you support OEM services?

Yes, we accept OEM, ODM, and OBM orders with proper authorization. Some items may have a Minimum Order Quantity (MOQ).

What is the shipment procedure after payment?

Goods are dispatched within 1 day of payment. It usually takes 3-5 working days to reach the destination. Tracking numbers are provided immediately upon dispatch.
