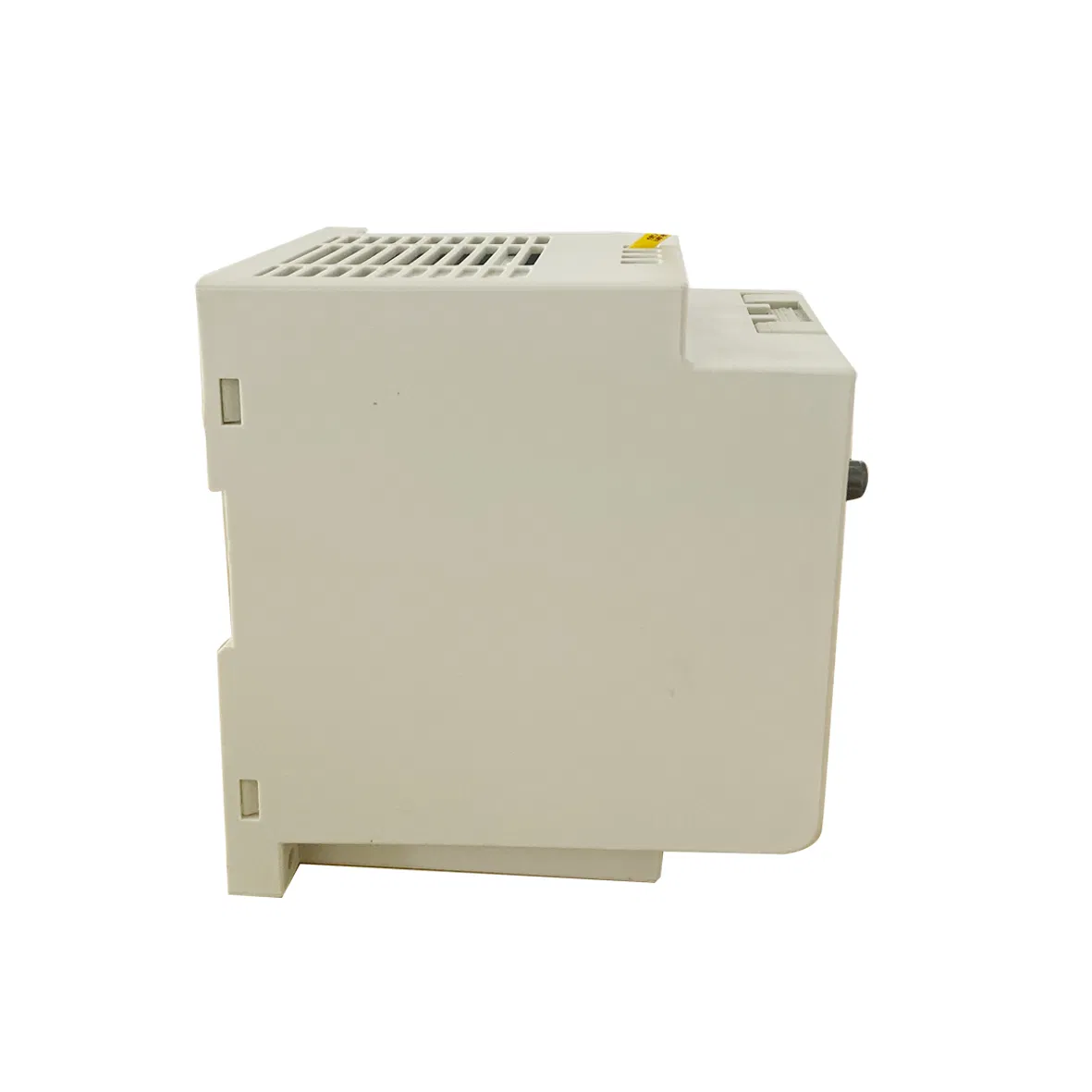

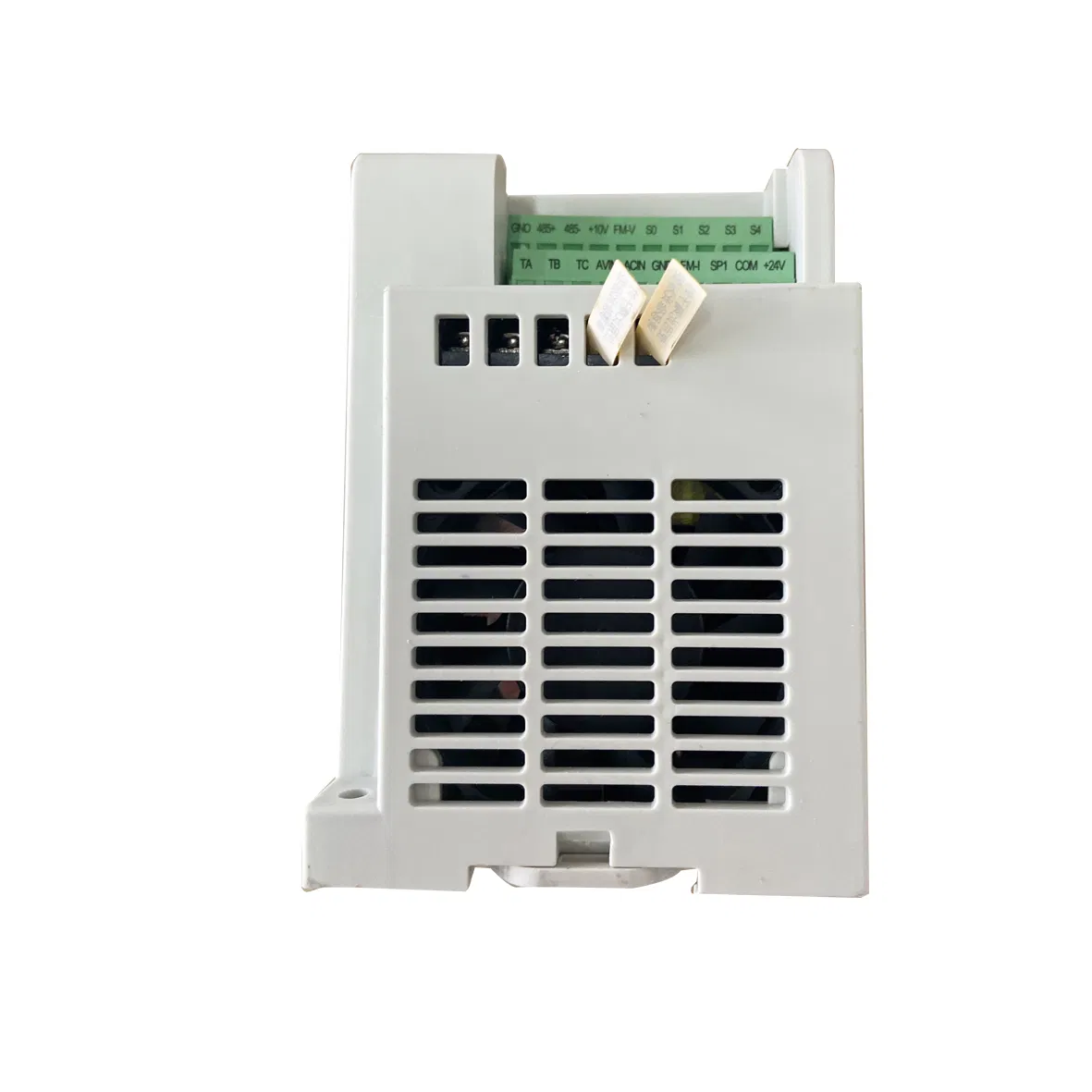

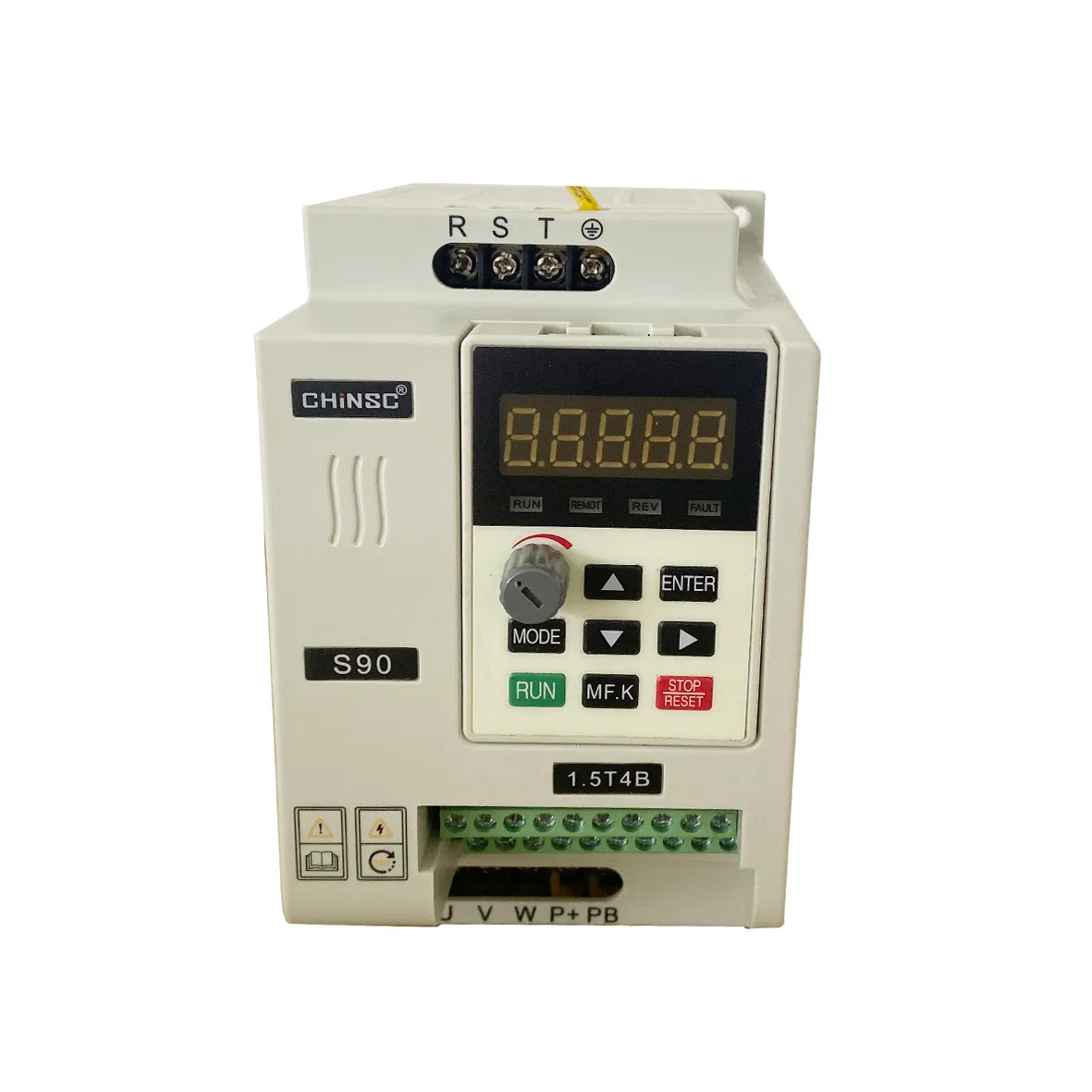

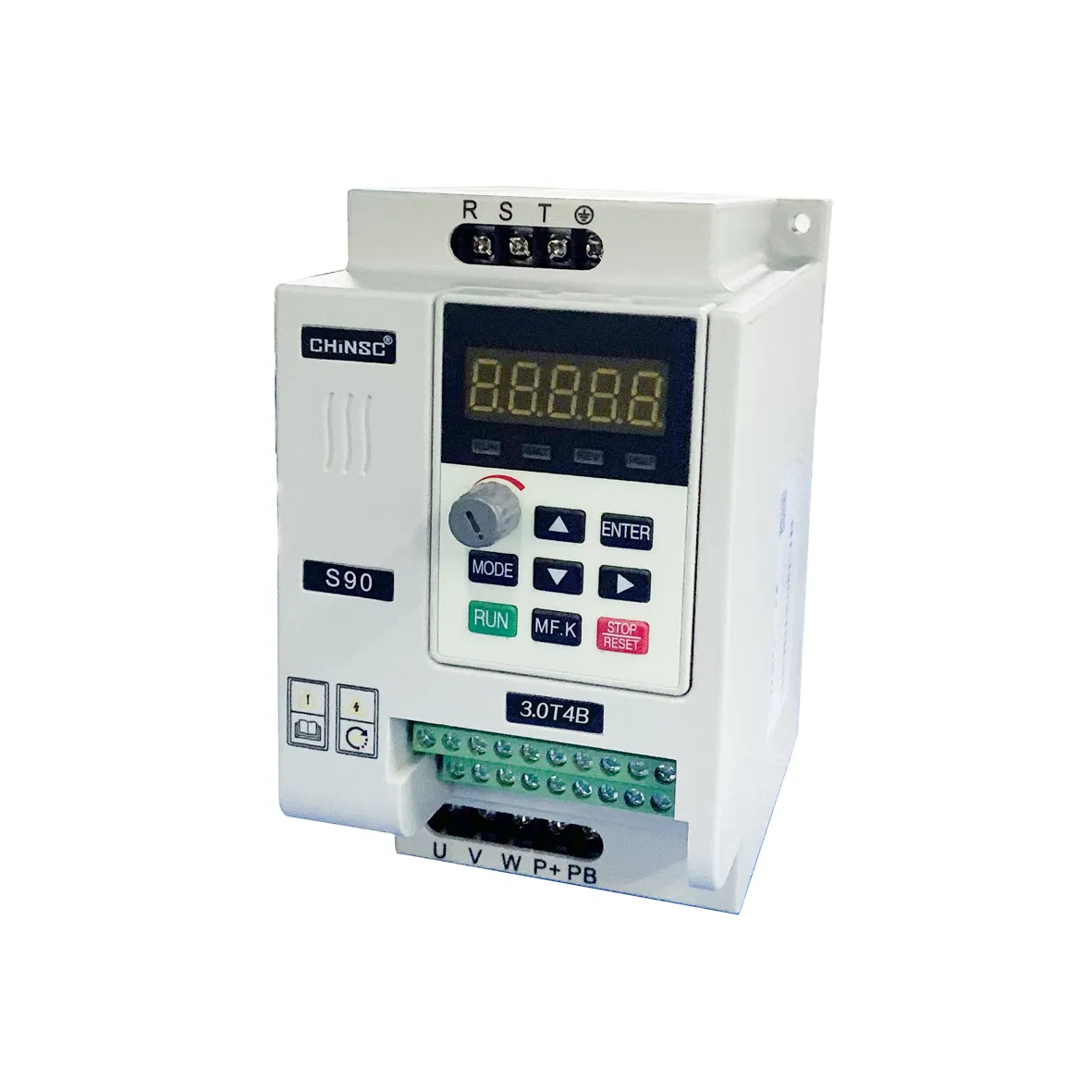

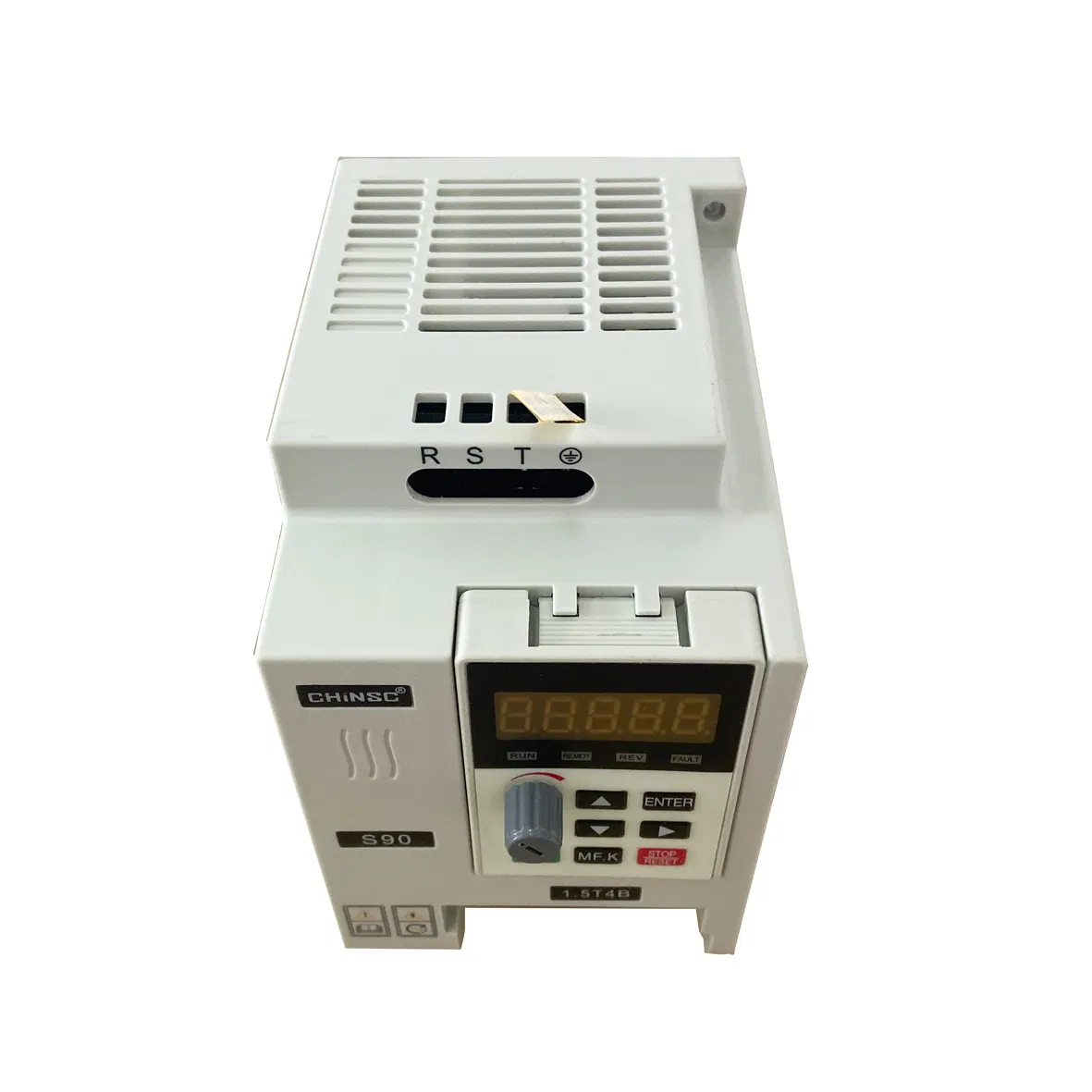

S90 Economical Type VFD for General Purpose Use

1 / 5

S90 Economical Type VFD for General Purpose Use

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.

S90-0.75T4B

Principle of Work

Vector Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Current

Voltage Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Nature of DC Power

Current Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type

Origin

China

HS Code

8504409999

📦

Packaging & Delivery

Package Size

14.20cm * 8.50cm * 12.15cm

Gross Weight

1.100kg

Transport Package

Carton

📝

Product Description

S90 Economical Type VFD: The S90 series general purpose ac drive adopts brand-new software, hardware, and structural design. While ensuring product reliability, it is more flexible in application, more compact in structure, and more adaptable to the industry.

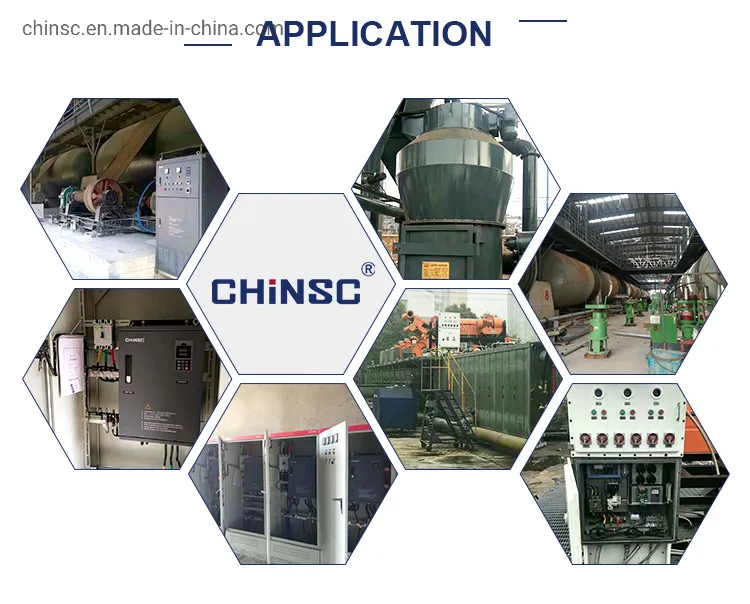

It can be widely used in industries such as CNC machine tools, fans, water pumps, food, packaging, knitting, engraving machines, washing machines, offset printing machines, and rolling doors.

Three Phase Input and Three Phase Output 380V ± 15%
Model	Adapted Motor (kW)	Rated Output Current (A)	Gross Weight (kg)	Size (L×W×H mm)
S90-0.4T4B	0.4	1.2	1.1	142×85×121.5
S90-0.75T4B	0.75	2.5
S90-1.5T4B	1.5	3.7
S90-2.2T4B	2.2	5
S90-3.7T4B	3.7	9	1.6	180×95.5×126
S90-5.5T4B	5.5	13	1.6	180×95.5×126
S90-7.5T4B	7.5	17	3.5	220×125×169.2
S90-11T4B	11	25	3.5	220×125×169.2
S90-15T4B	15	32	6.5	290×170×175
S90-18.5T4B	18.5	37
S90-22T4B	22	45

❓

Frequently Asked Questions

What are the primary applications for the S90 series VFD?

The S90 series is designed for general-purpose use, including CNC machine tools, fans, water pumps, packaging machinery, textile equipment, and engraving machines.

What control principle does this drive use?

It utilizes Vector Control and PWM (Pulse Width Modulation) control modes to ensure stable and efficient motor performance.

What is the input voltage requirement for the S90-0.75T4B?

The S90 series supports a three-phase input of 380V with a tolerance of ±15%.

Is the S90 VFD suitable for small installation spaces?

Yes, the S90 features a brand-new compact structural design, making it highly adaptable for space-constrained industrial applications.

Does this VFD support constant torque applications?

Yes, it is a constant torque universal type VFD, making it versatile for various industrial loads.

What is the protection rating for transport?

The products are securely packaged in sturdy cartons to ensure safety during transport and delivery.
