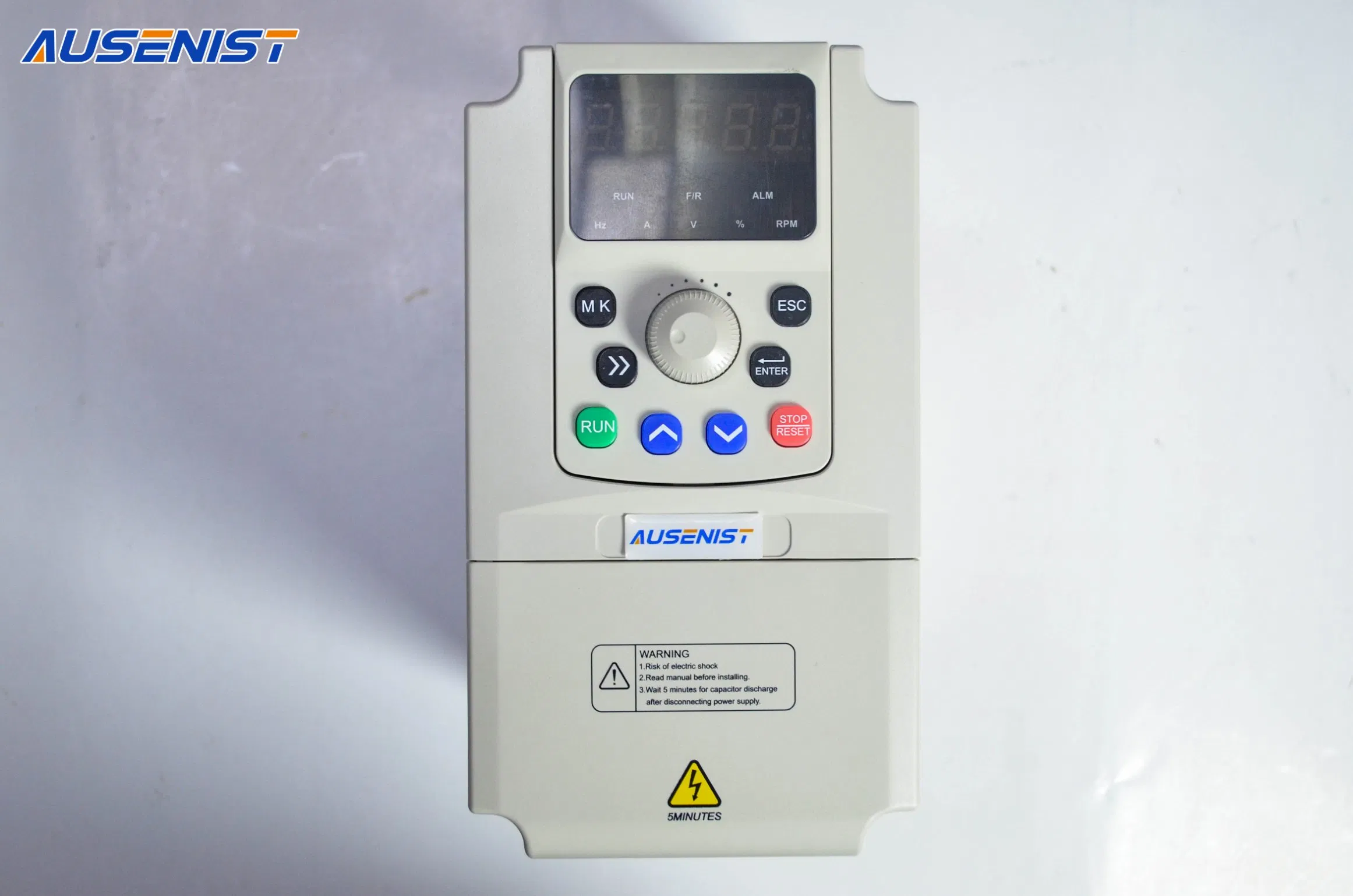

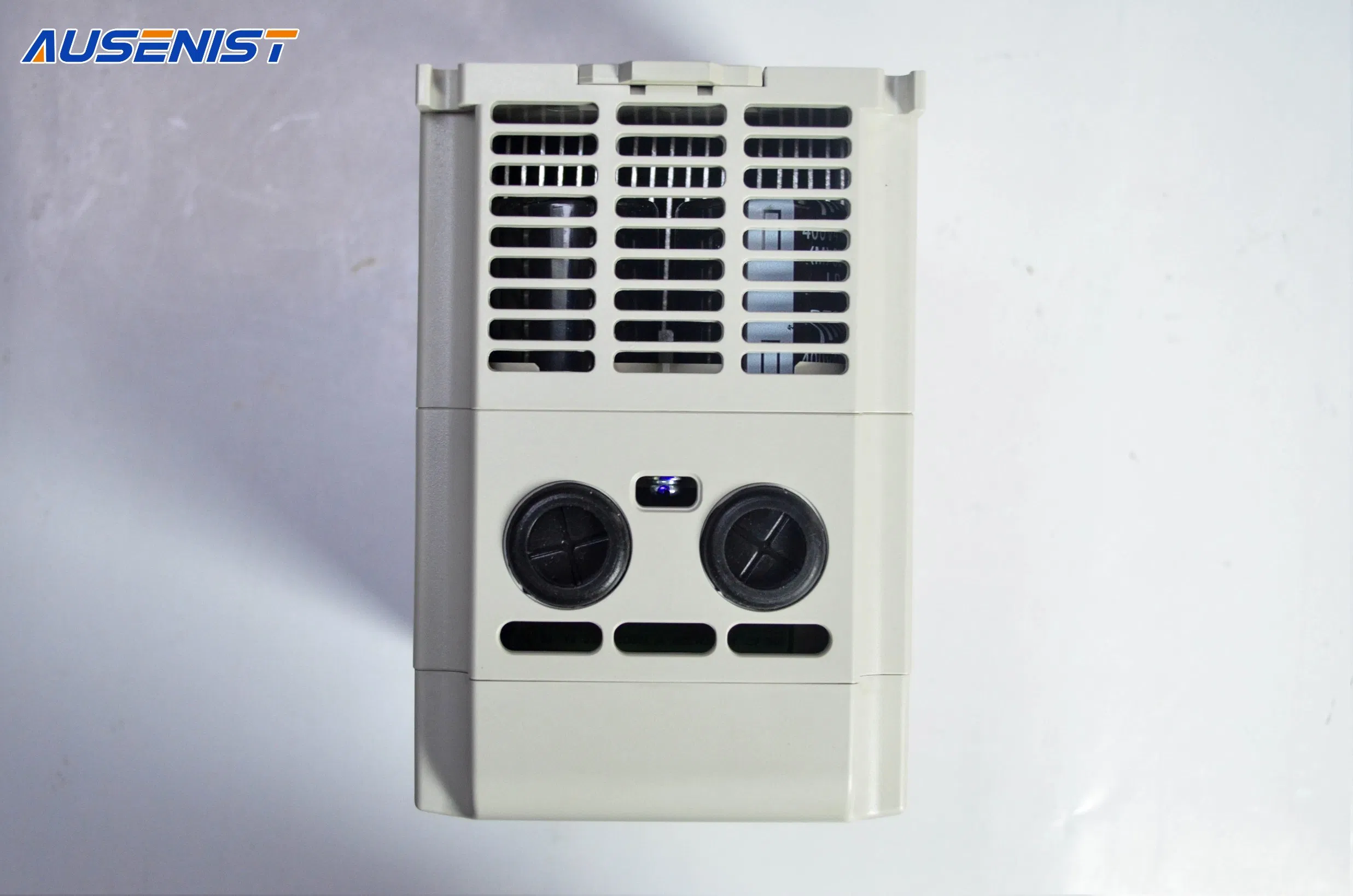

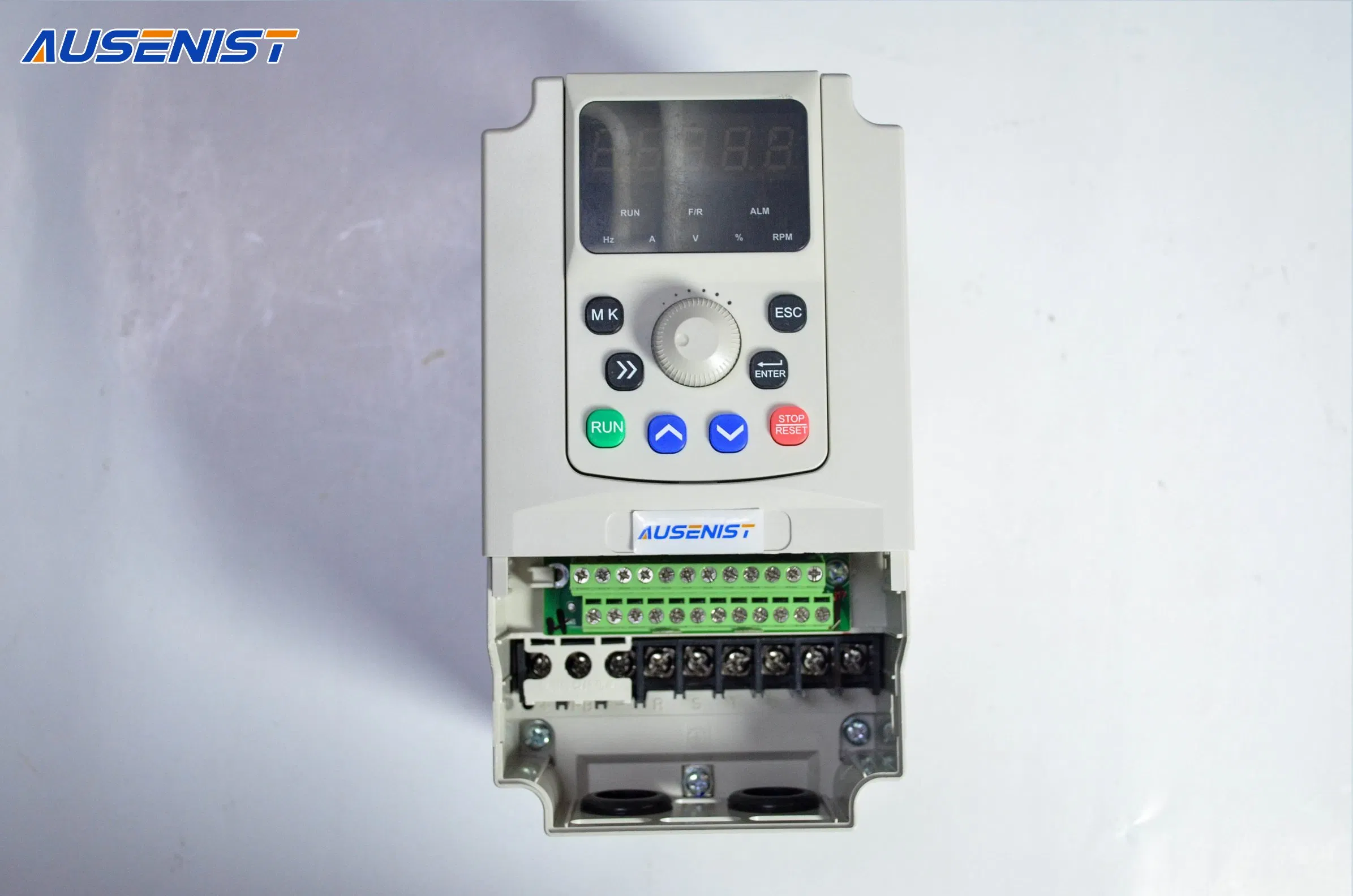

Solar Water Pump High Power VFD 132kw 180HP for Irrigation Systems

📋

Basic Information

Model NO.:JT550

Principle of Work:Vector Control Transducer

Switch Mode:High Carrier Frequency PWM Control

Main Circuit Type:Voltage

Function:Universal Type, Elevator/Textile Special

Control Type:Close/Open Loop Vector, V/F Control

Power Range:0.75kw~1000kw

Certification:CE, SGS, TUV, 3C

🚀

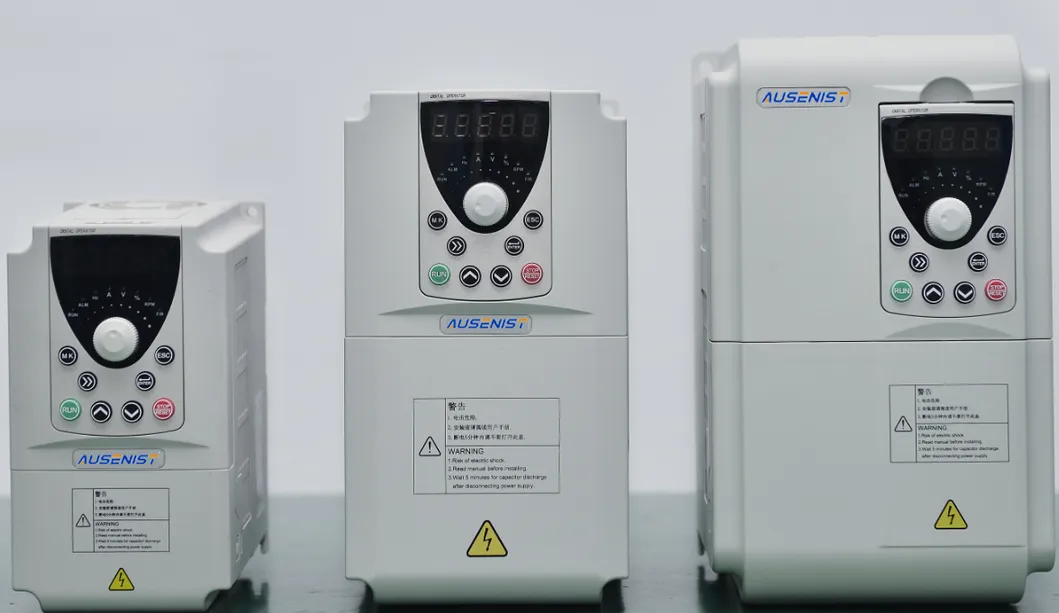

Product Description

JT550 series inverter is a high-performance vector and torque control inverter. With speed sensorless vector control technology synchronized with international leading standards, it offers excellent control performance, high reliability, and environmental adaptability for various transmission applications.

📊

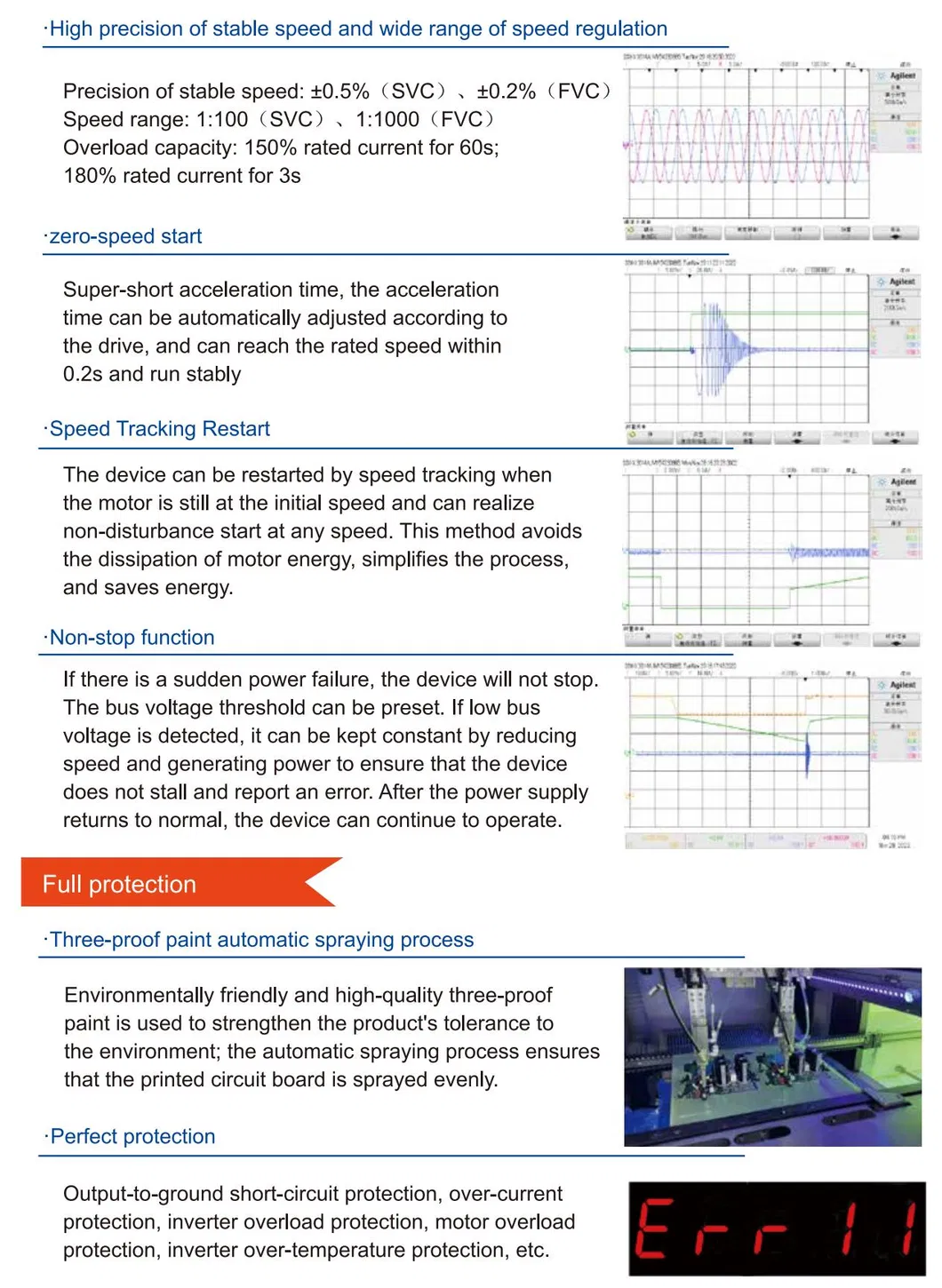

Technical Specifications

Item	Specifications
Maximum Frequency	320Hz
Carrier Frequency	0.5kHz~16.0kHz (Auto-adjusted by temperature)
Control Mode	V/F Control, Sensorless Vector (SVC), Feedback Vector (FVC)
Startup Torque	G type: 0.5Hz/150% (SVC); P type: 0.5Hz/100%
Overload Capacity	G type: 150% for 60s; P type: 120% for 60s

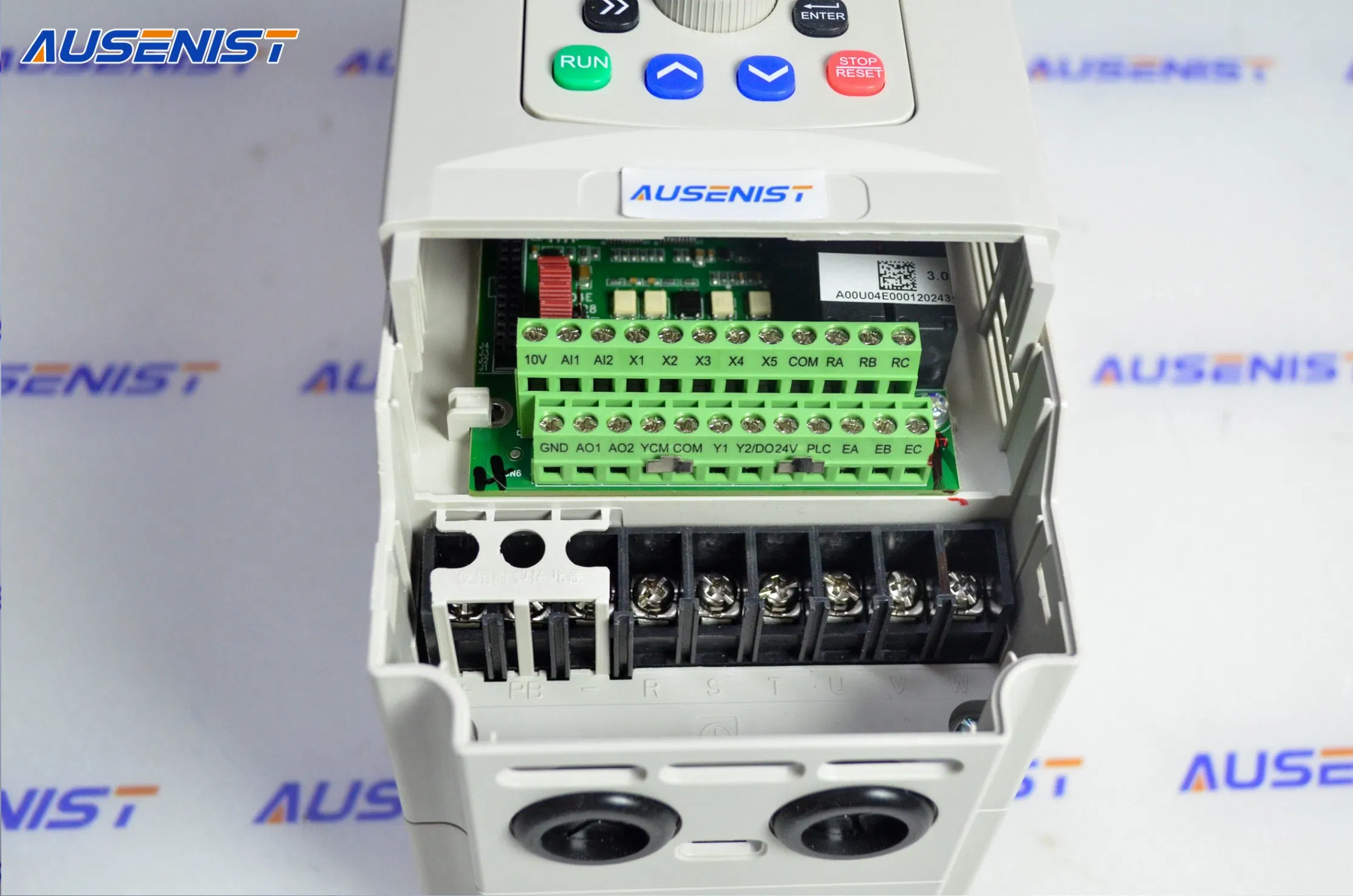

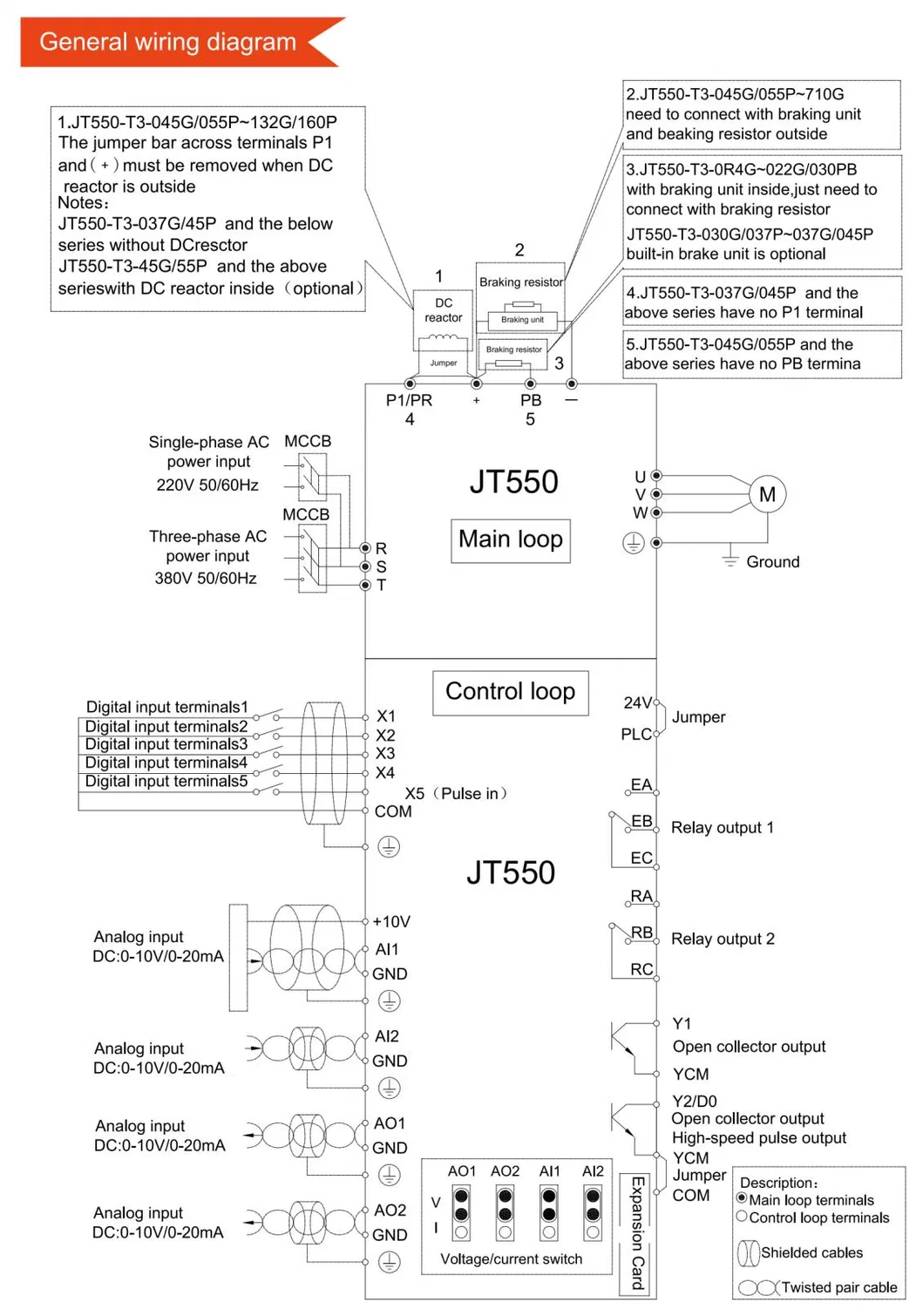

Input Terminals	5 Digital (DI), 2 Analog (AI)
Output Terminals	1 High-speed pulse, 1 Digital (DO), 2 Relay, 2 Analog (AO)
Protection	Phase loss, Overcurrent, Overheat, Short-circuit, Overvoltage

🏆

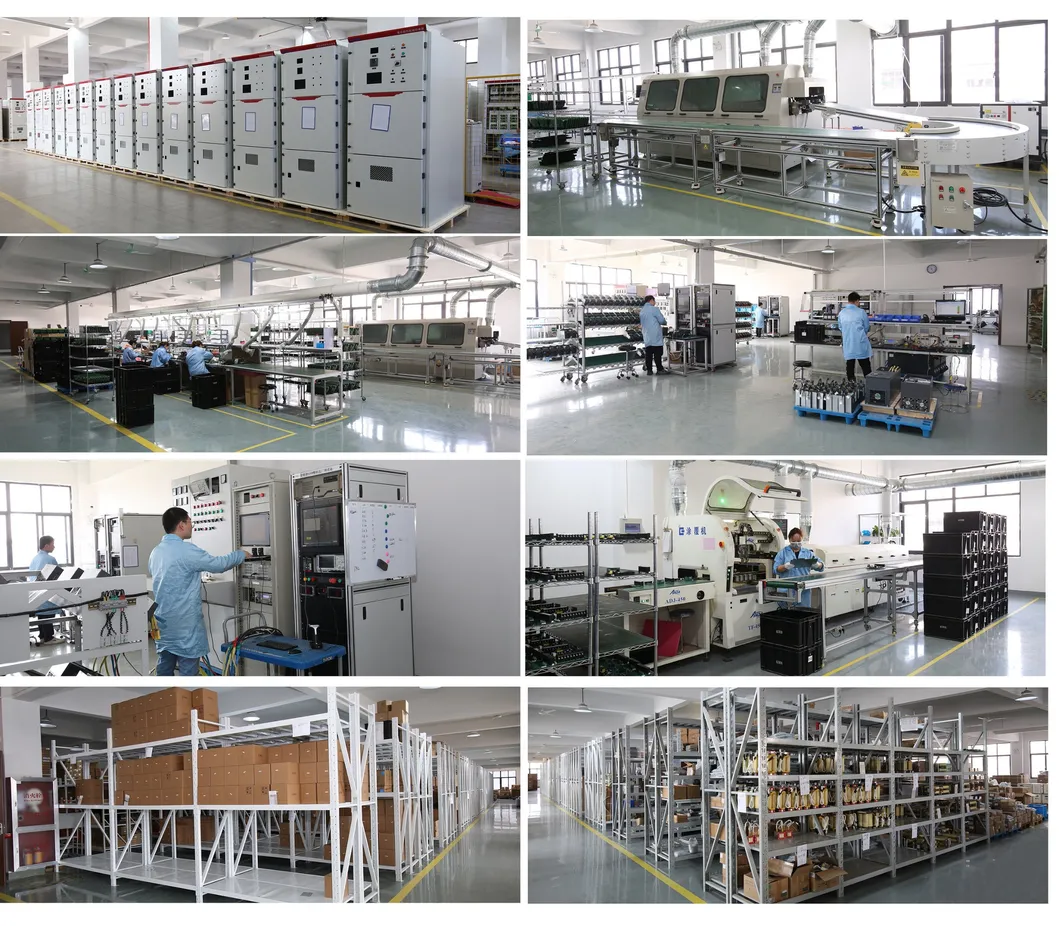

Manufacturing Advantages

Professional manufacturer engaged in the research, development, and production of inverters, providing tailored products and comprehensive solutions for various industries.

✅ Over 20 years of frequency inverter manufacturing

✅ Exported to more than 100 countries

✅ 100,000+ pcs monthly production capacity

✅ Strict QC: IQC, IPQC, FQC, OQC & Aging Tests

🛠️

Service & Warranty

Service Type	0.4KW-3.7KW	0.75KW-37KW	Above 37KW
Return Period	1 Month	1 Month	N/A
Exchange Period	3 Months	3 Months	N/A
Warranty Period	18 Months	18 Months	18 Months

❓

Frequently Asked Questions

What voltage ranges are supported?

We support Single-phase 220V input to 220V output, Single-phase 220V input to Three-phase 220V/380V output, and Three-phase 220V input to Three-phase 220V output.

How do I choose the correct power for the frequency inverter?

You should select the inverter based on your motor's rated power. Our technical team can provide specific solutions based on your equipment requirements.

How is product quality ensured?

Production strictly follows the ISO9001 quality control system. Each unit undergoes four rounds of quality inspection and high-temperature testing before receiving a "QA Pass" mark.

What is the lead time for orders?

Sample orders typically take 3-5 days. Mass production generally requires 1-2 weeks depending on the quantity.

Do you offer a guarantee for the products?

Yes, we provide a standard 18-month warranty for our frequency inverters to ensure long-term reliability.
