Principle of Work
Vector Control Transducer
Supply Voltage
Low Voltage VFD
Function
Special for Water Pump
Package Size
22.50cm * 11.00cm * 16.50cm

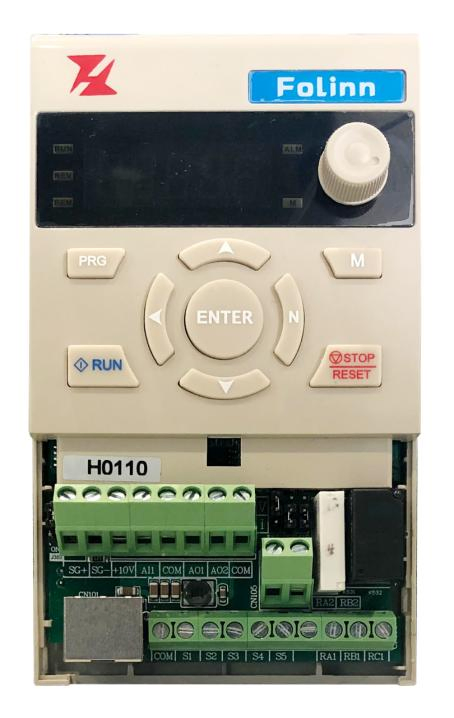

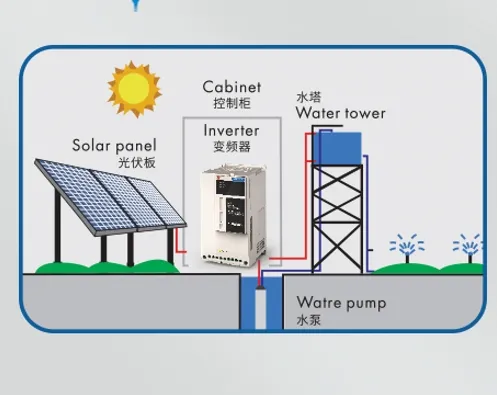

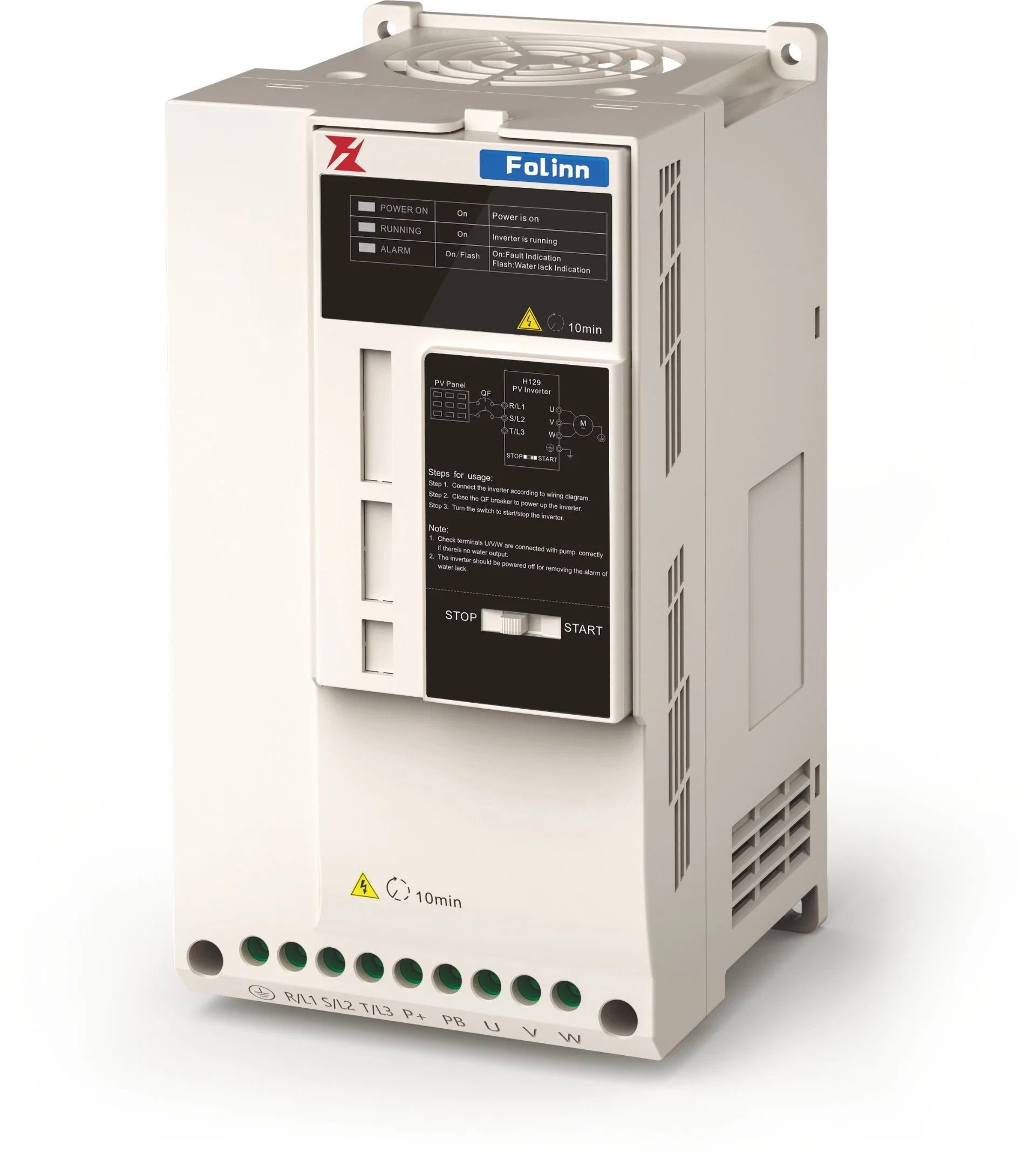

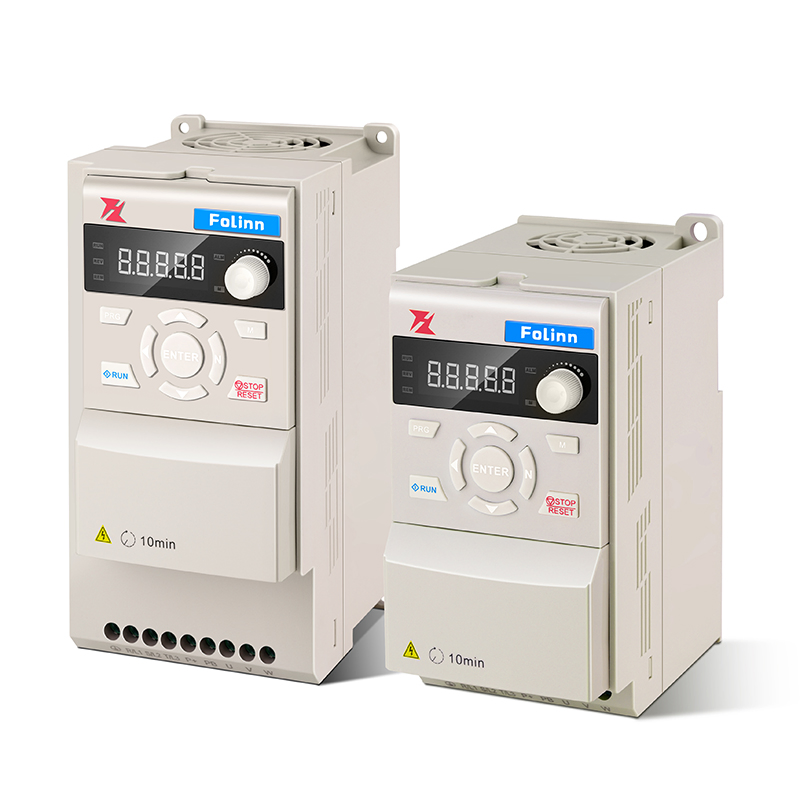

The H129 series photovoltaic water pump special inverter is a high-performance vector control technology developed for the photovoltaic water pump industry. It features a maximum power point tracking (MPPT) function, intelligent sleep and wake-up functions, and comprehensive protection against under-load and water shortages. It is designed for easy wiring and seamless operation.
✓Flexible application for 3-phase asynchronous and synchronous motors.
✓Support for various water level switches and sensors.
✓Programmable application macros to simplify custom function calls.
✓Capability to switch to the power grid for cost-effective operation.
✓Zero-distance side-by-side installation thanks to its compact size.
✓Built-in motor and pump protection; no battery design required.
✓Remote monitoring via standard RS-485 or optional GPRS module.
✓Smart IGBT module with over-voltage and dry-running protection.
Frequently Asked Questions
1. What motors are compatible with the H129 inverter?
The H129 is suitable for both three-phase asynchronous motors and three-phase synchronous motors used in photovoltaic pump systems.
2. Does it support both DC and AC voltage input?
Yes, it is designed to work with both DC (from solar modules) and AC power supply inputs for flexible operation.
3. How does the MPPT function benefit the water pump?
The Maximum Power Point Tracking (MPPT) ensures that the system extracts the maximum possible power from the solar panels at all times, optimizing water output.
4. Can I monitor the system remotely?
Absolutely. It comes with a standard RS-485 interface and can be equipped with an optional GPRS module for remote monitoring of historical parameters.
5. What protection features are included?
The inverter includes built-in protections for over-voltage, over-load, over-heating, and dry-running to ensure the safety of both the motor and the pump.
6. Is a battery required for the system to work?
No, the H129 is designed to work without a battery, which simplifies the system and reduces maintenance costs.
