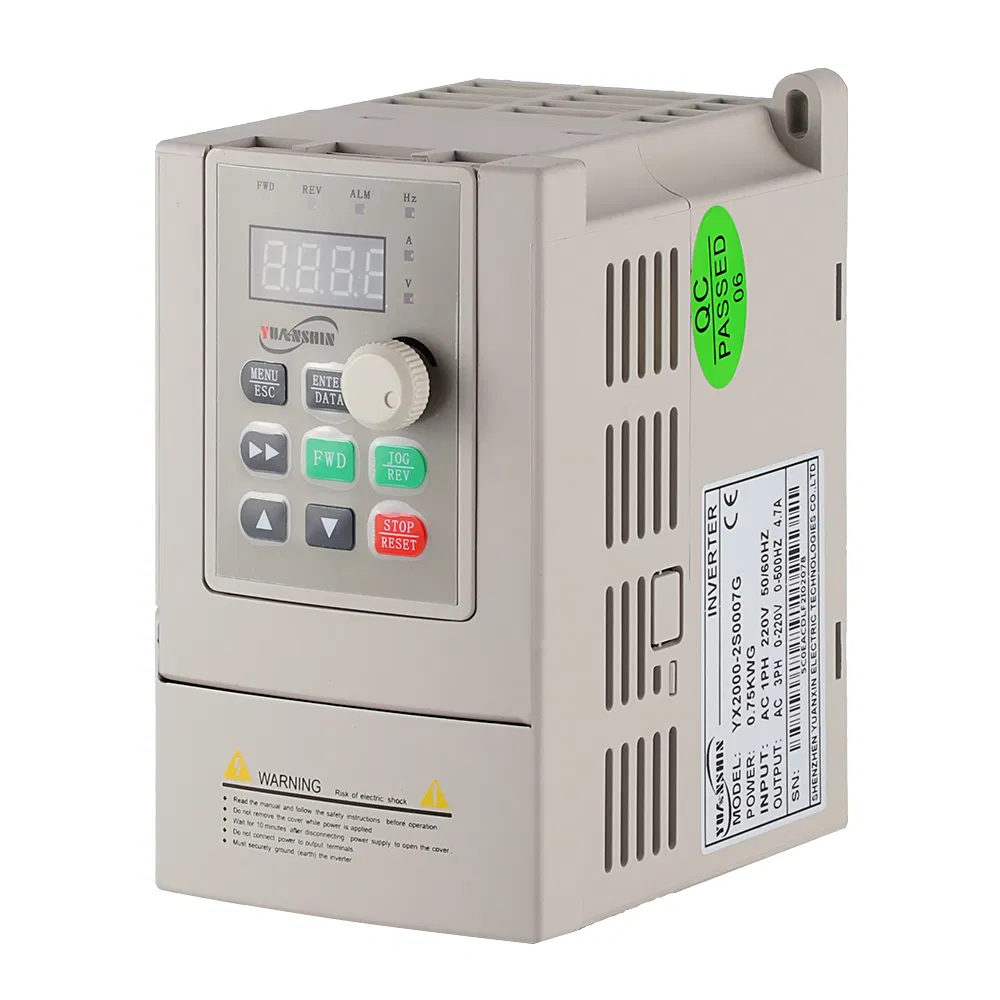

Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
1 / 5
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter
Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter

Factory High Performance 0.75kw 1.5kw 2.2kw Single Phase Mini Inverter VFD DC AC Solar Water Pump Inverter

Customization: Available
Application: Three Phase Transducer, High Frequency Converter Transducer
Output Type: Triple
Send Inquiry

Product Description

Basic Specifications
Model NO.
YX9900
Work Principle
Vector Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Voltage Type
Low Voltage Variable-Frequency Drive
Transformation
DC-AC
Warranty
18 Months
HS Code
8504409990
High Performance Inverter Series

Professional grade 0.75kw, 1.5kw, and 2.2kw Single Phase Mini Inverters. Engineered for DC to AC conversion, specifically optimized for solar water pump systems and industrial motor control.

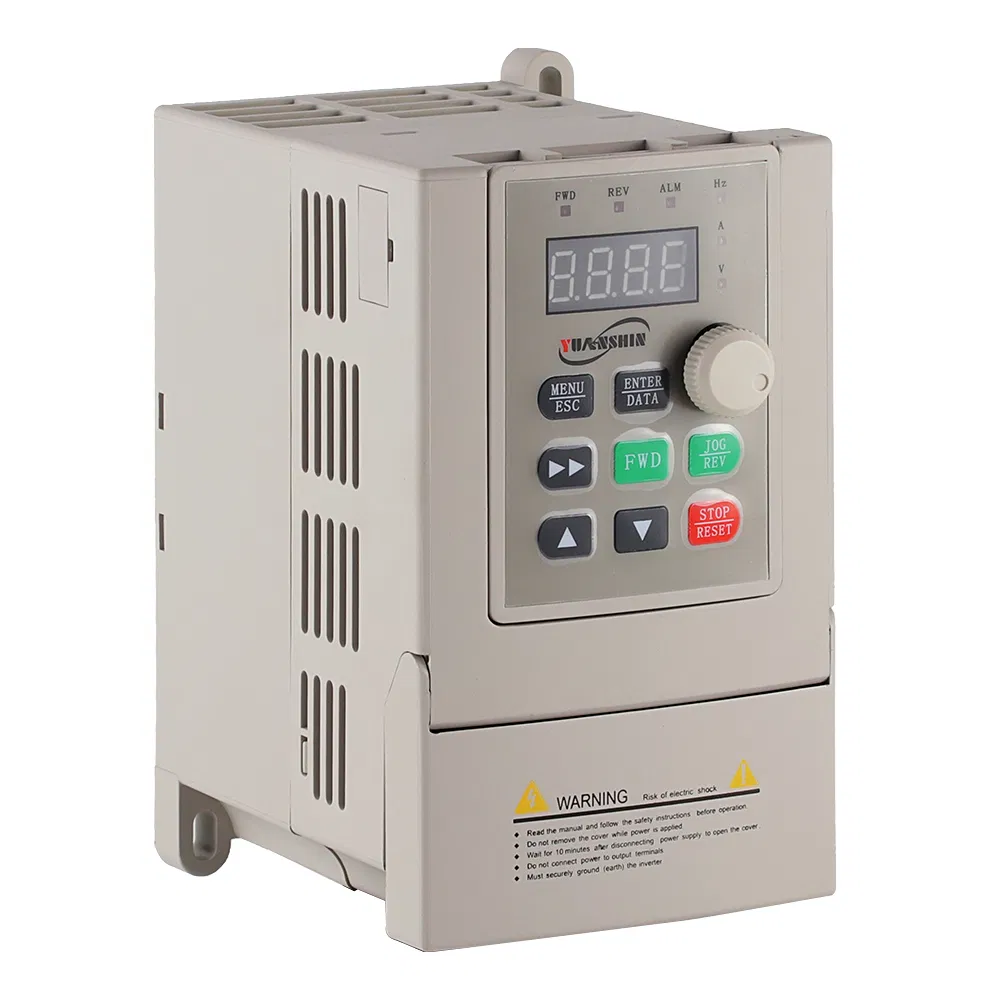

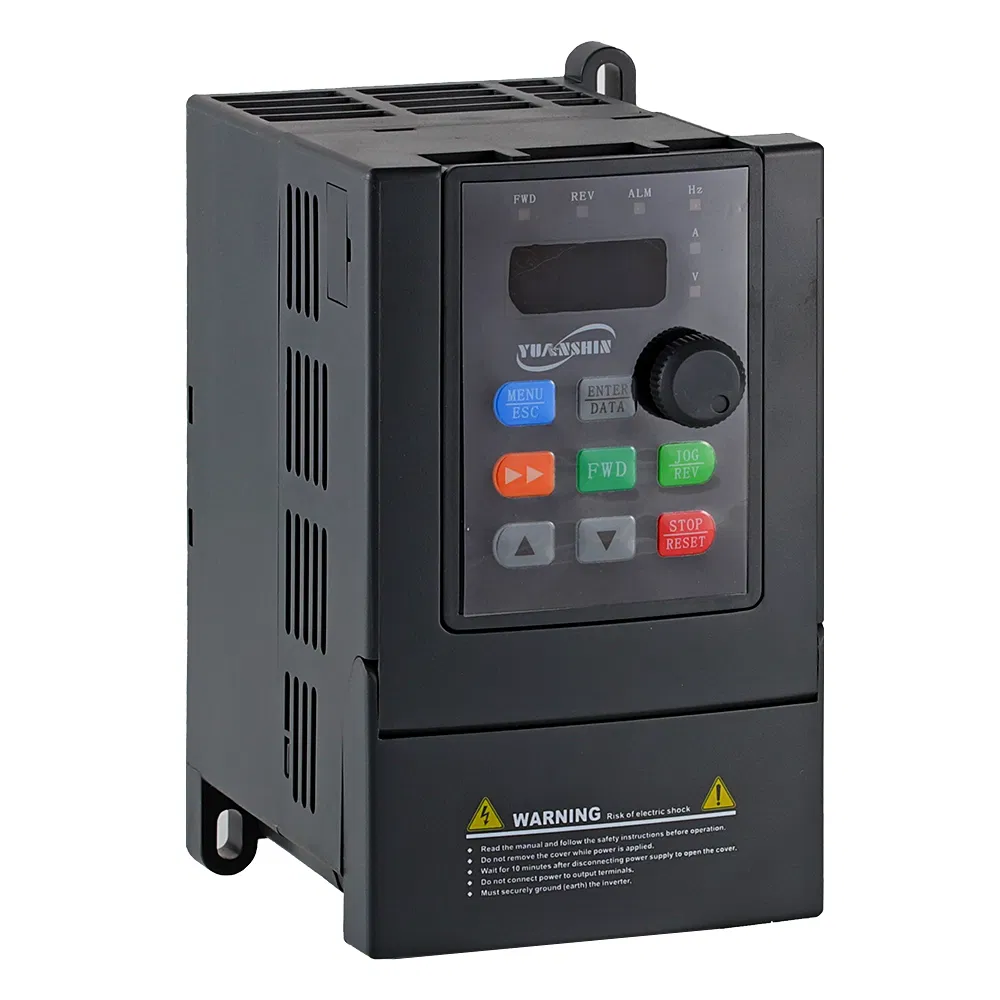

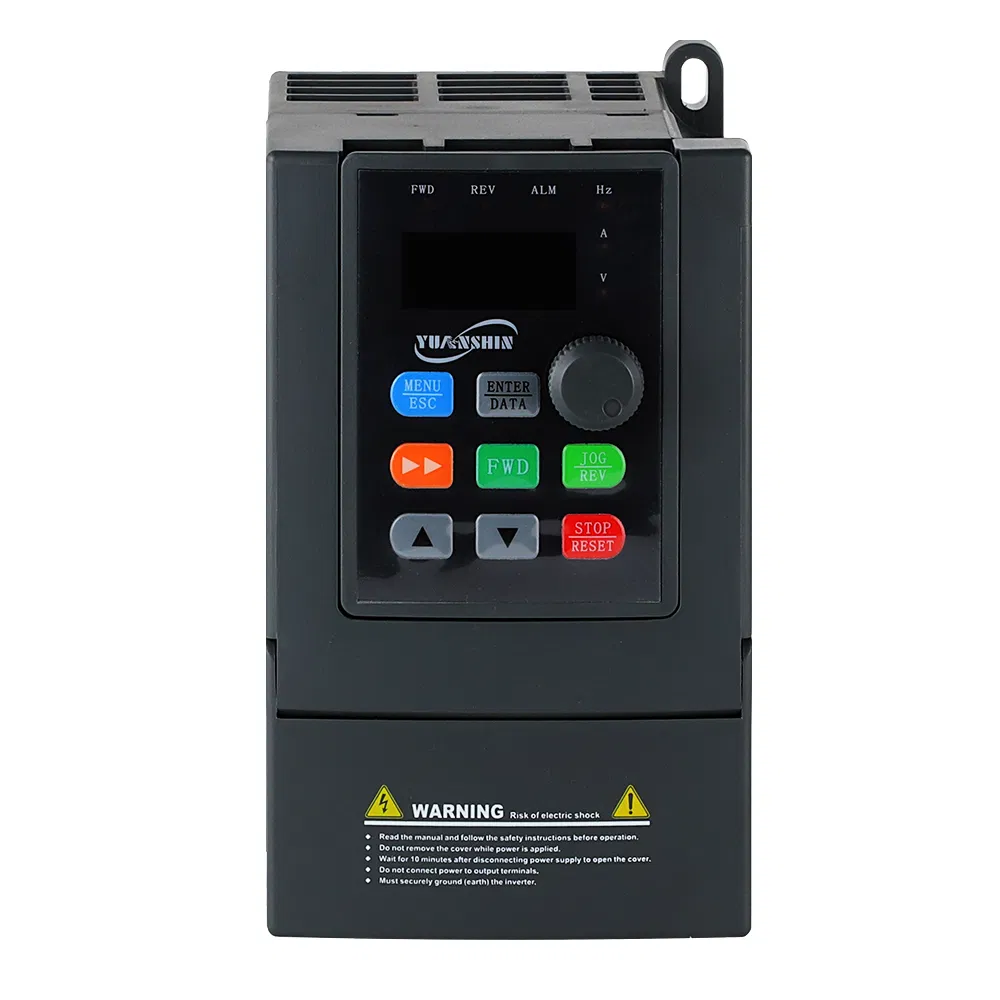

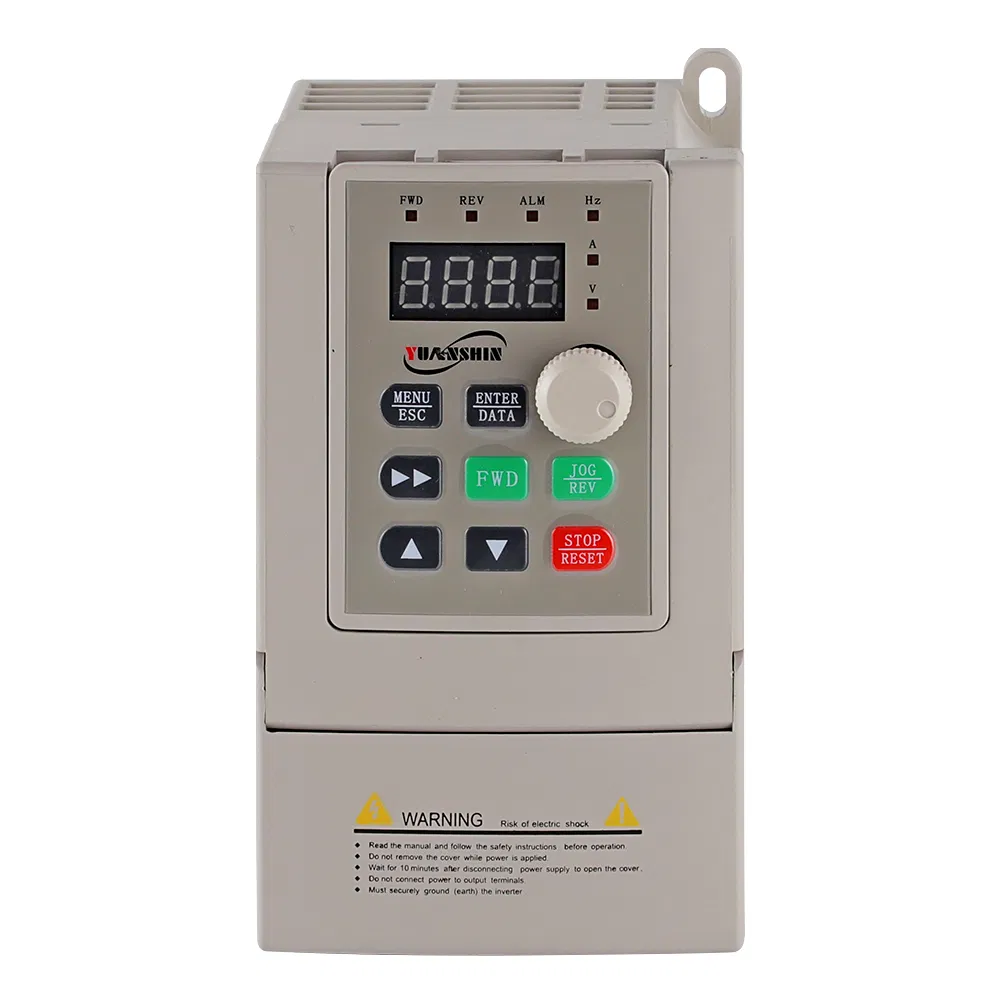

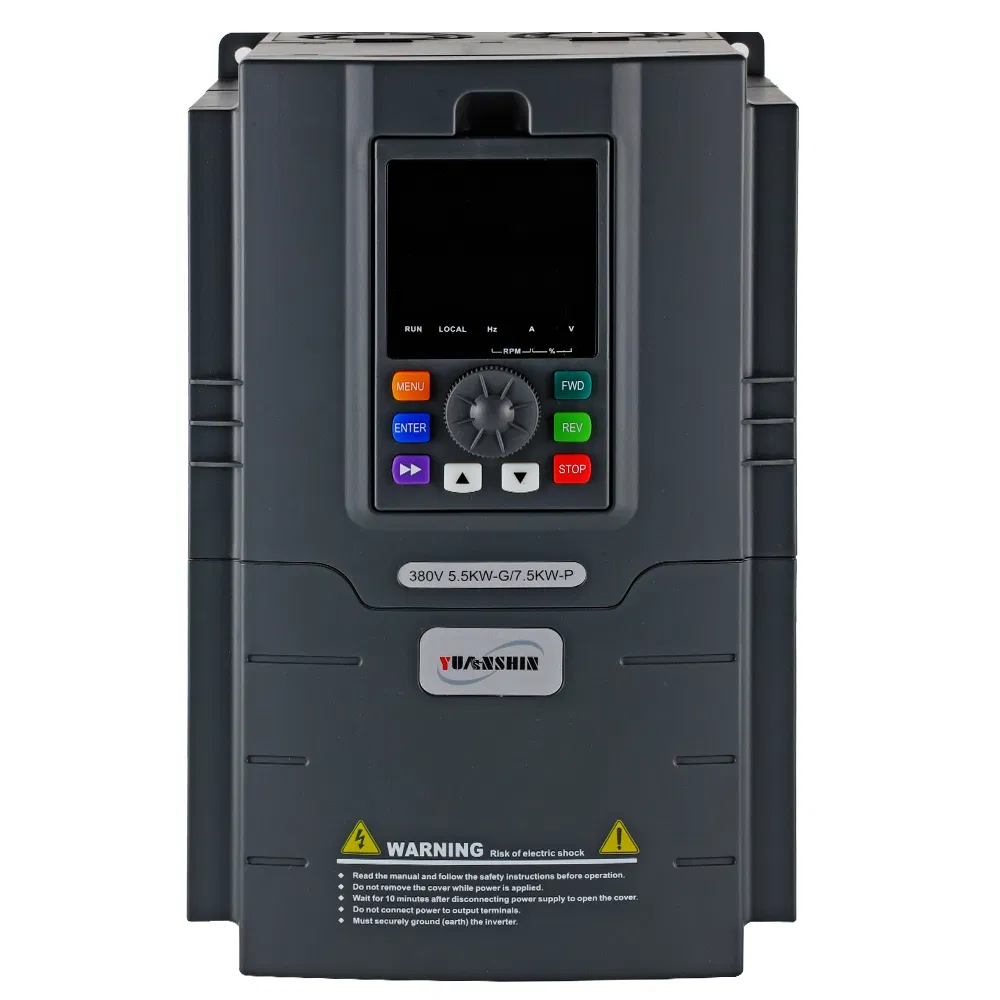

Inverter Appearance
Core Features
◈
Multi-Power Input Support: Three-phase AC output with flexible input switching between multiple power sources for enhanced stability.
◈
PV Compatibility: Direct support for photovoltaic array DC power input.
◈
Battery & Grid Support: Compatible with both battery DC input and standard AC power grid input.
◈
Seamless Switching: Intelligent switching between different input sources to ensure continuous operation.
Technical Specifications
Items Parameters Specifications
Input Rated Voltage Single phase 220V, three phase 200V/380V; 50Hz/60Hz
Range Voltage: ±20%; Frequency: ±5%
Output Rated Voltage 0 ~ 200V / 220V / 380V
Frequency Range 0Hz ~ 500Hz
Overload Ability 150% rated current for 1 min, 180% for 3 seconds
Control Control Mode V/F, Sensor-less vector, Closed loop vector
Modulation Optimized space voltage vector SVPWM
Torque Boost Auto torque boost, manual boost 0.1% ~ 30.0%
Communication Built-in RS485; Modbus, Profibus, CANlink
Environment Temperature -10ºC to +40ºC (Storage: -20ºC to +60ºC)
Protection IP20; Overcurrent, Overvoltage, Undervoltage, Overheating
Applications & Production
Application Scenarios

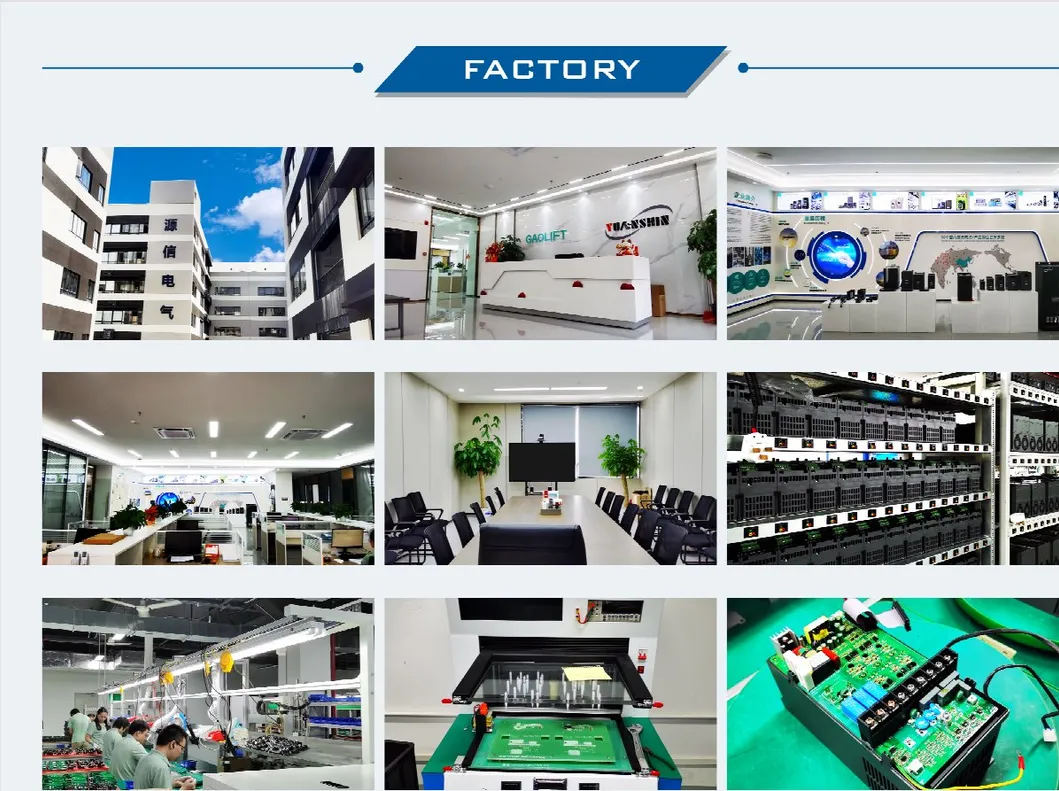

Factory Facility
Global Exhibition
Quality Assurance
Certificates
Package and Delivery
Frequently Asked Questions
Can I get samples for testing?
Yes, sample orders are available for quality checks and market testing. Please note that sample costs apply.
What is the typical delivery timeframe?
Small orders usually take 3-5 working days, while large-scale orders require approximately 10-15 days.
What are your standard warranty terms?
We offer a comprehensive 18-month warranty period on all our inverter products.
How is quality control managed at the factory?
Quality is our priority. Every product undergoes full assembly and rigorous testing before being cleared for packing and shipping.
Can these inverters connect to a computer system?
Yes, all inverters feature a built-in RS485 port and support the standard Modbus communication protocol for system integration.
Are different power models mixable in one shipment?
Yes, we allow different models and power specifications to be mixed within a single container or order.
