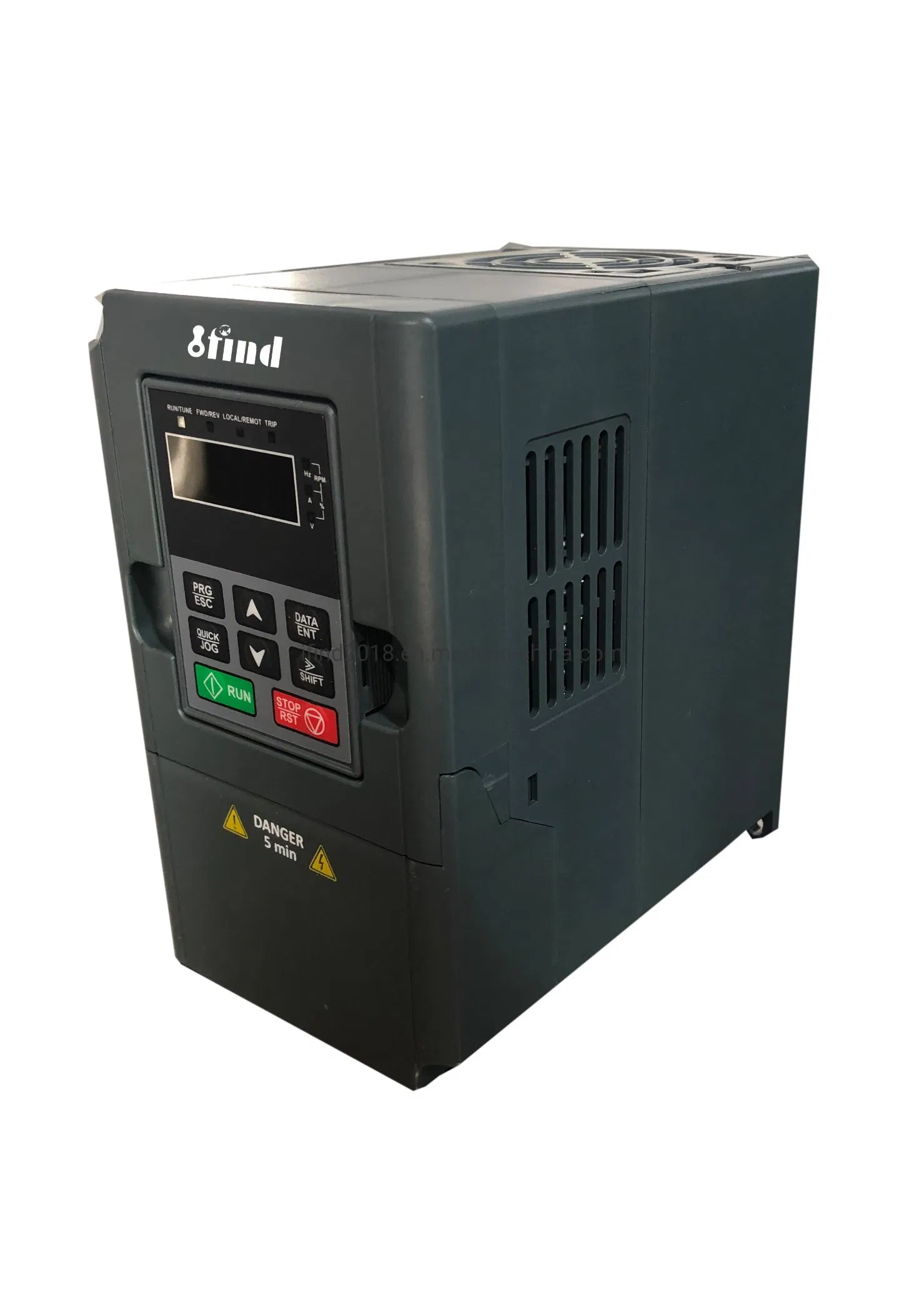

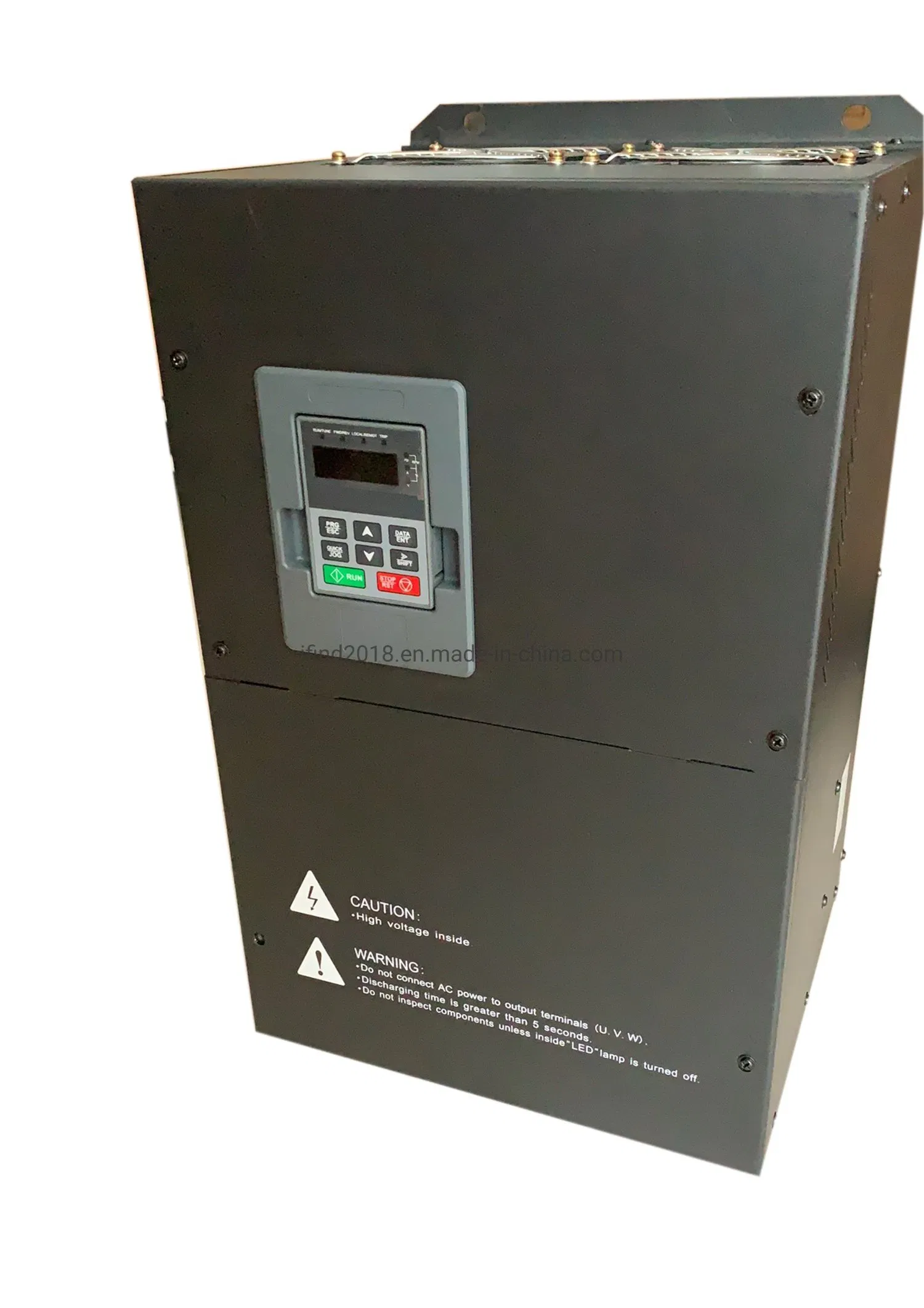

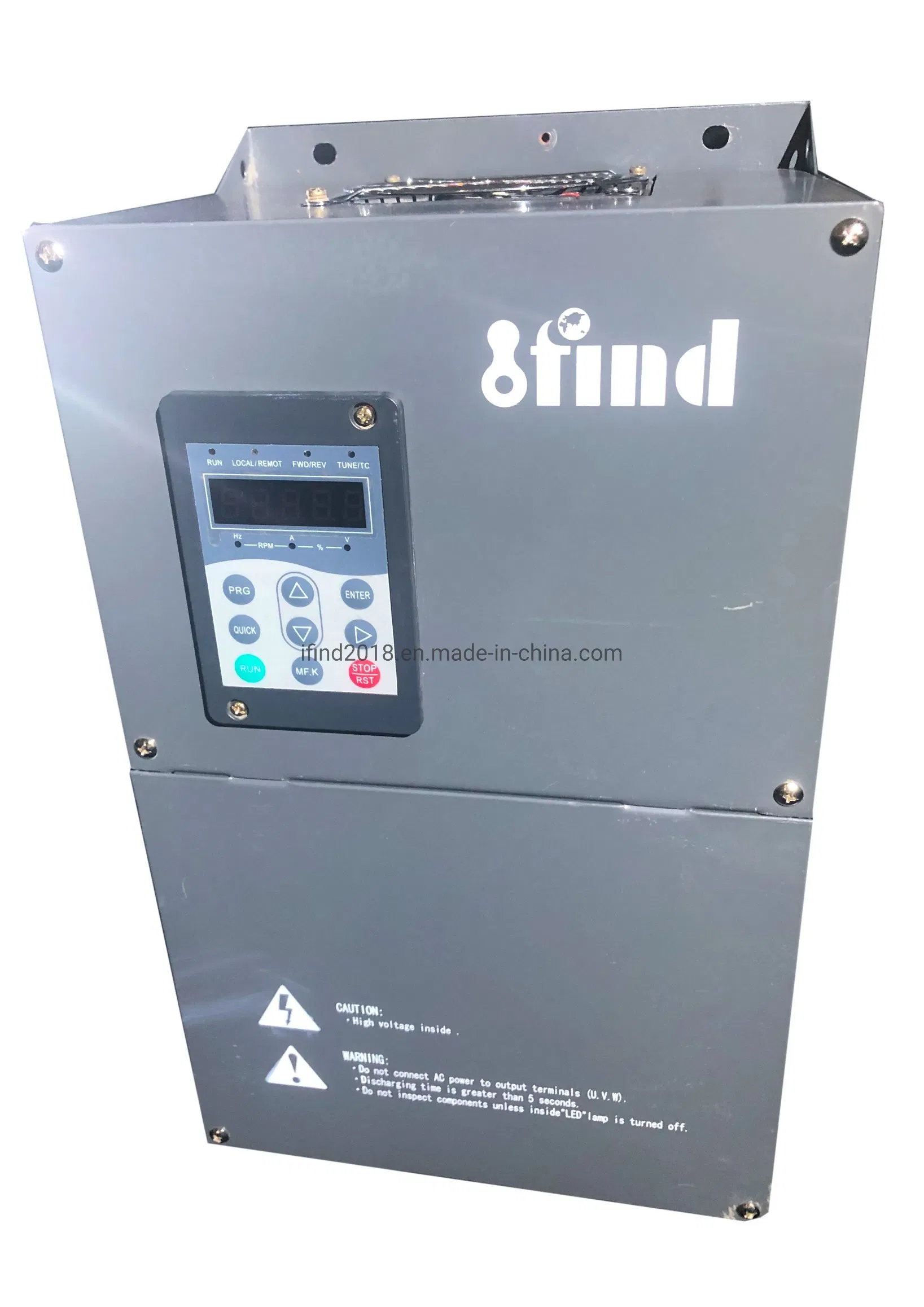

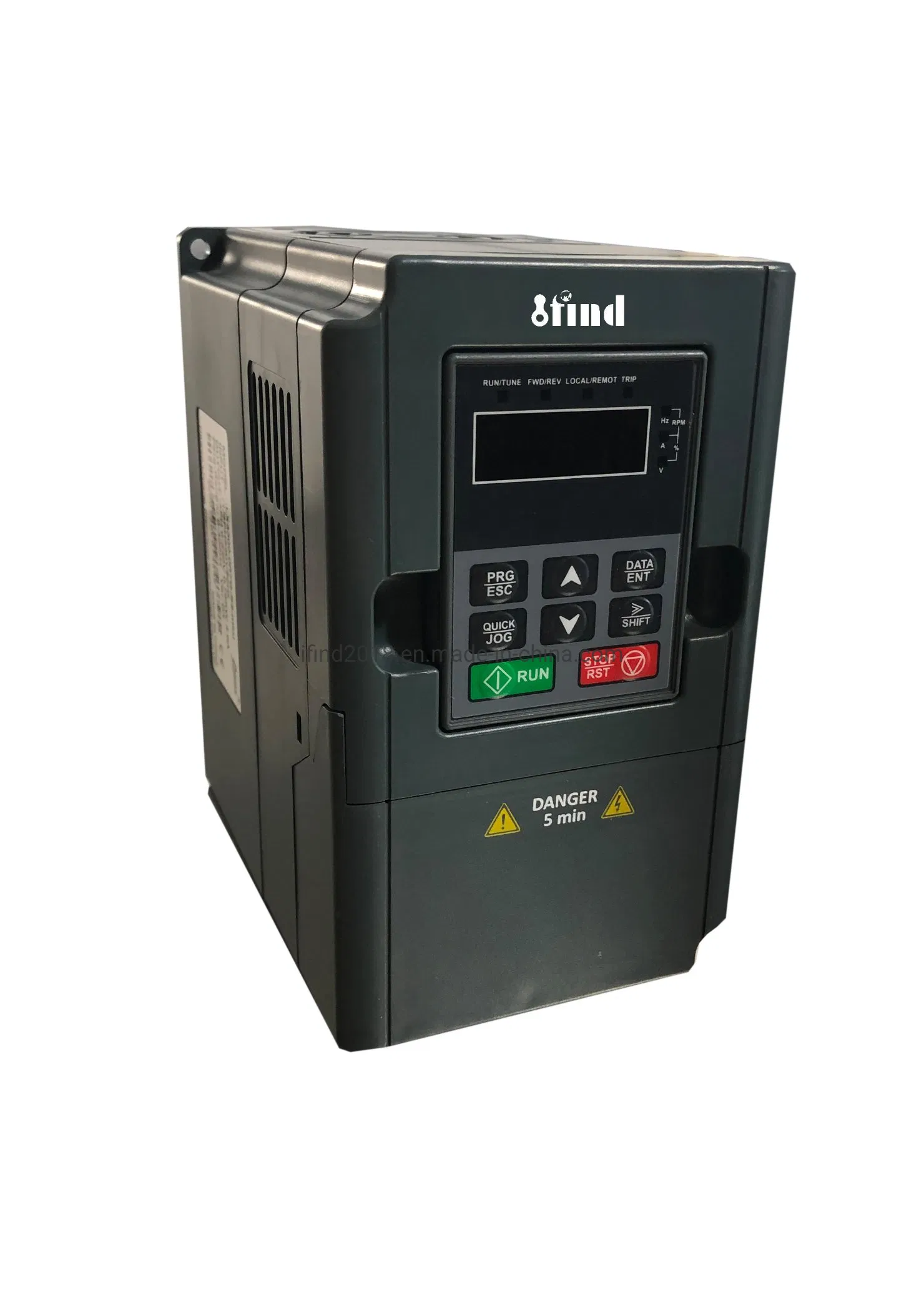

DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
1 / 5
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter
DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter

DC to AC Drive VFD Solar Water Pump Inverter Popular in Middle East IP65 Frequency Inverter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SD100
Principle of Work
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Main Circuit Type
Voltage/Current
Voltage Supply
Low Voltage Variable-Frequency Drive
Link of Transformation
AC-DC-AC Drive
Function
Simple, Constant Torque, Solar Type
OEM
Available
Phase
Single Phase/Three Phase
Production Capacity
78000 PCS/Year
Product Overview
Solar Water Pump Inverter

In regions with abundant sunlight, solar systems for agricultural irrigation are becoming increasingly popular. The solar pump inverter is a critical component of the system, allowing direct connection to solar panels for convenient operation and energy saving. Our SD100 and SD500 series apply to transforming three-phase 380V or single-phase 220V submersible deep well pumps into efficient solar water pump systems.

Main Features

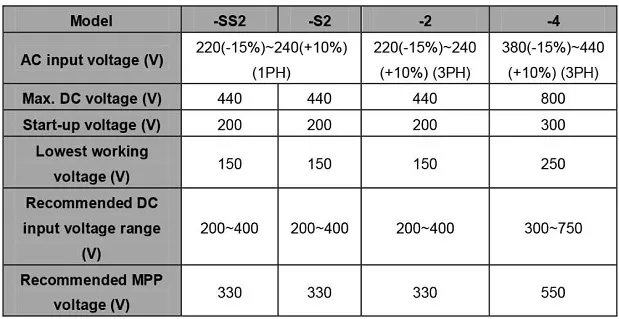

Feature 1
Feature 2
  • ◈Start or sleep automatically after connection to solar panel without complex parameter setting.
  • ◈Includes PV over-voltage protection and PV polarity reverse warning.
  • ◈Solar power tracking efficiency reaches up to 99%.
  • ◈Supports auto switch or hybrid function between solar input and grid input for 24-hour work.
  • ◈Optional GPRS module for remote monitoring via mobile APP.
Technical Specifications
Category Terminal Symbol Terminal Function
Power Supply 24V / COM Provides 24V±10% power, max 200mA for digital I/O or sensors.
Digital Input S1 - S4 Forced switch to mains, water level alarms, and phase algorithm selection.
Communication RS485 / 422 Standard ModBus protocol and special boost module communication.
Relay Output RO1A/B/C Contact capacity: 3A/AC250V. Used for auto mains & PV switching control.

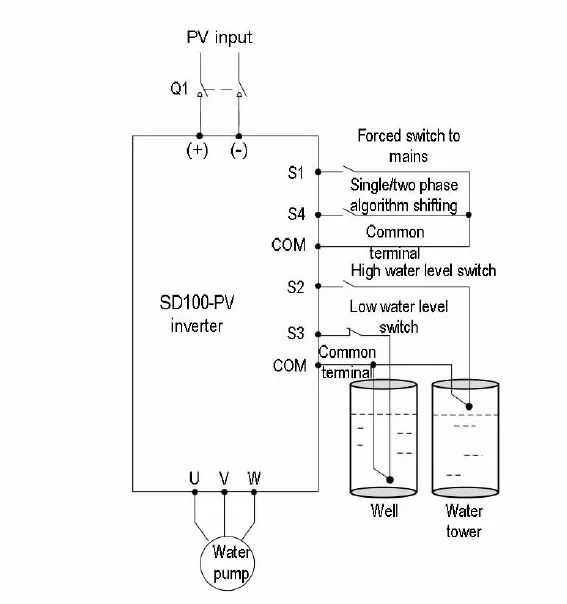

System Diagram
Hardware Excellence

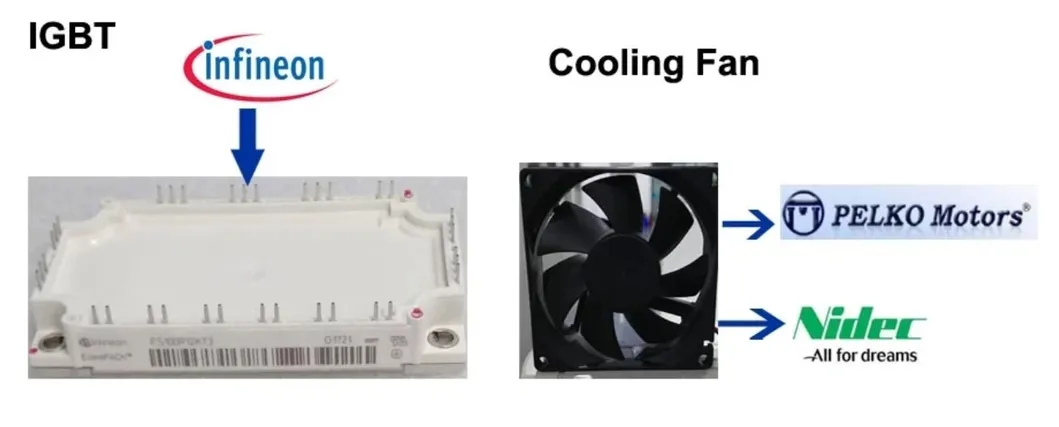

Hardware Components

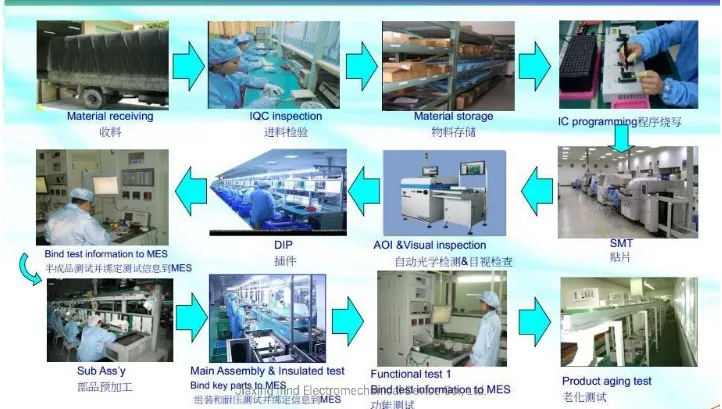

Process
IGBTSTARPOWER / INFINEON / FUJI
FansPELKO / NIDEC
CapacitorsRUBYCON / JIANGHAI
ElectronicsDELTA
Application & Environment

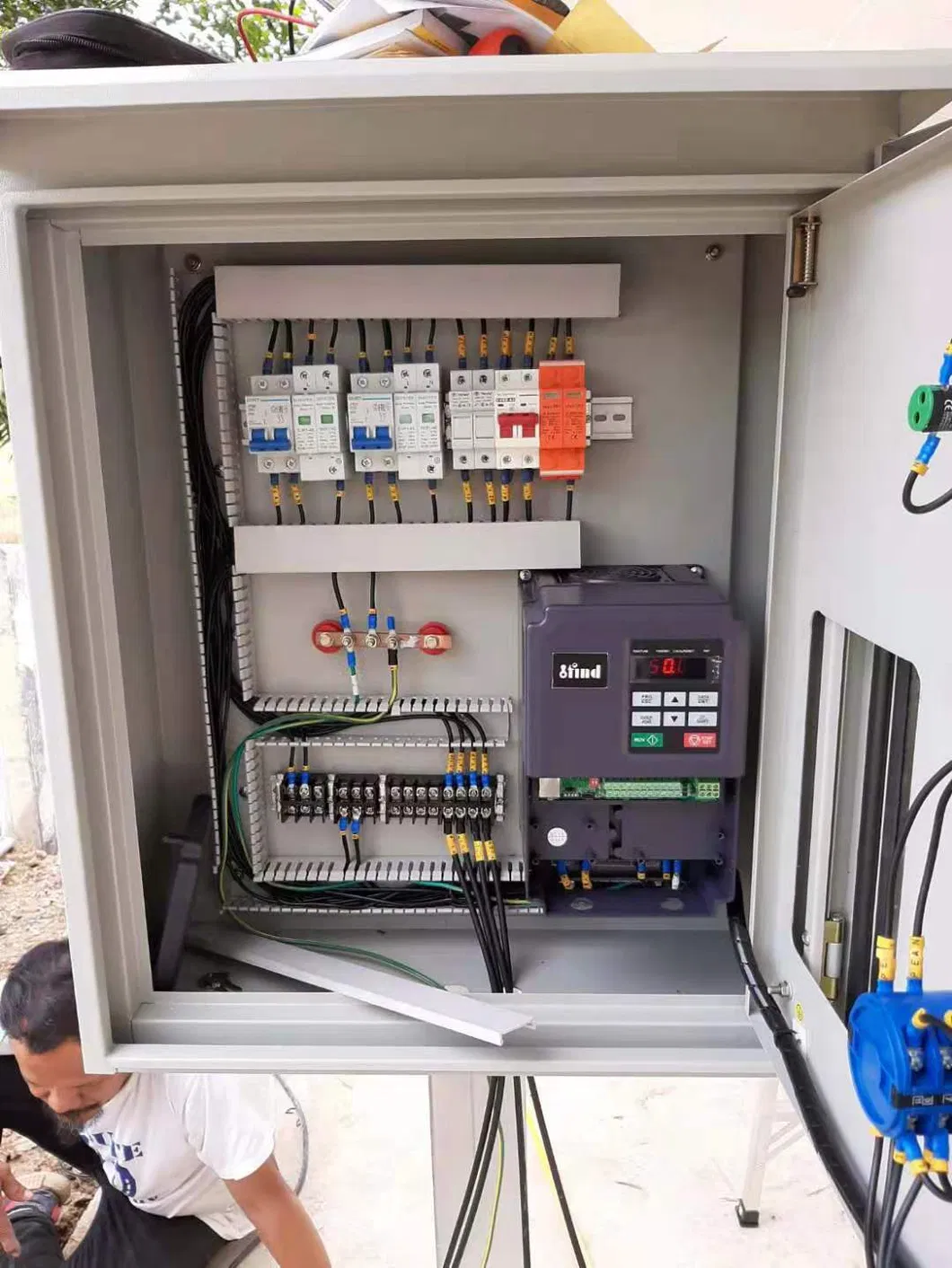

Application Case
Production Workshop
Frequently Asked Questions
Orange Icon ➔ Can I get some samples?
Yes, sample orders are available for quality check and market testing.
Orange Icon ➔ What is the typical delivery time?
It usually takes about 3-5 working days for small orders and 10-15 days for bulk orders.
Orange Icon ➔ What are your payment terms?
We accept various payment terms including T/T, L/C, Western Union, PayPal, and Cash.
Orange Icon ➔ What is the warranty period?
We offer an 18-month warranty period for our solar pump inverters.
Orange Icon ➔ How is quality control managed?
Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping, adhering to ISO9001 and CE standards.
Orange Icon ➔ Can the inverter work 24 hours a day?
Yes, by implementing the auto switch or hybrid function between solar and grid input, the system can achieve 24-hour unattended work.
