Basic Info

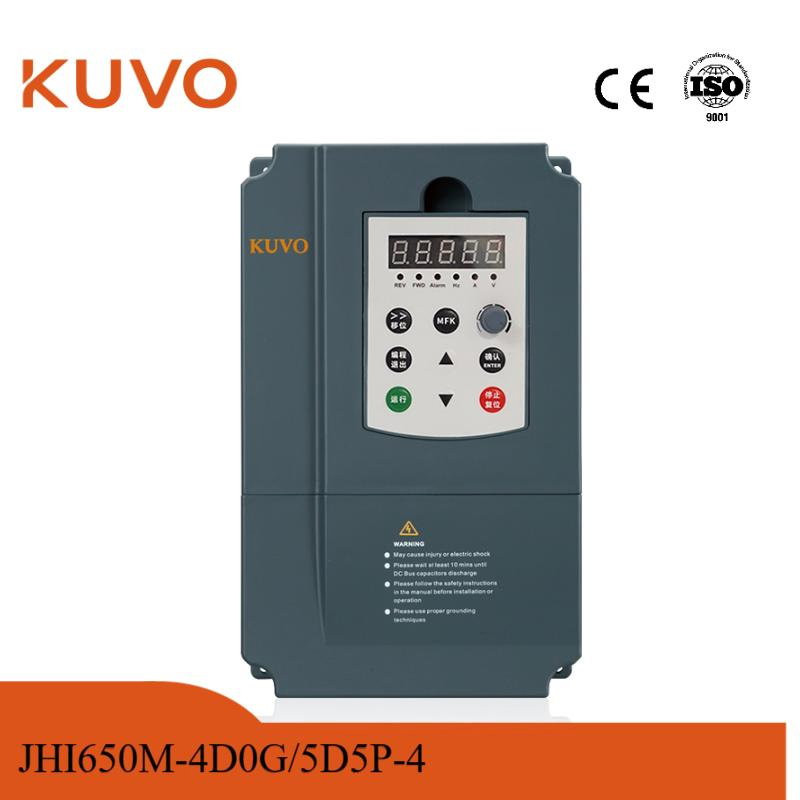

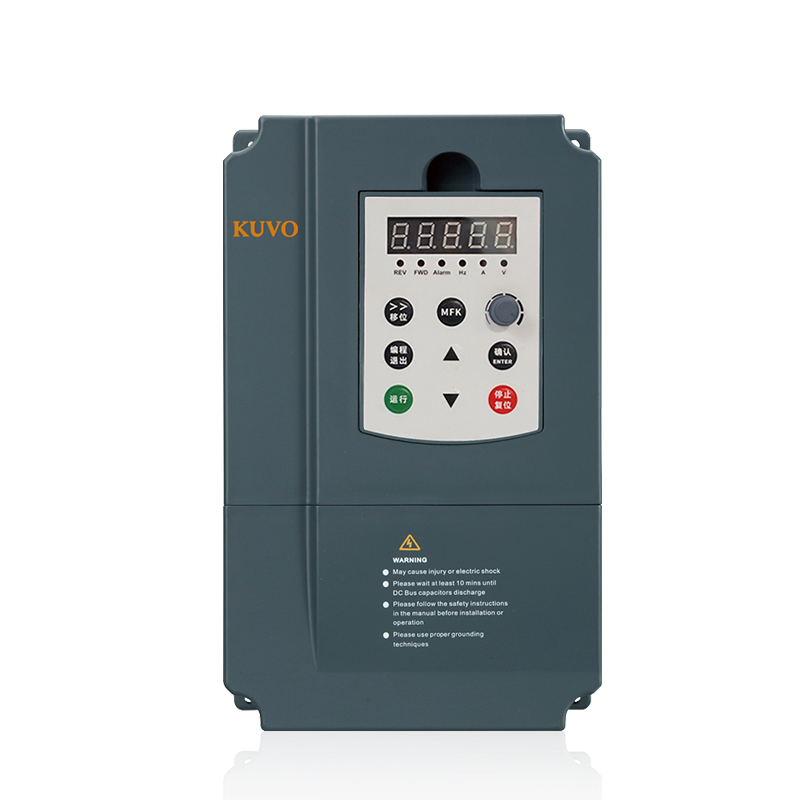

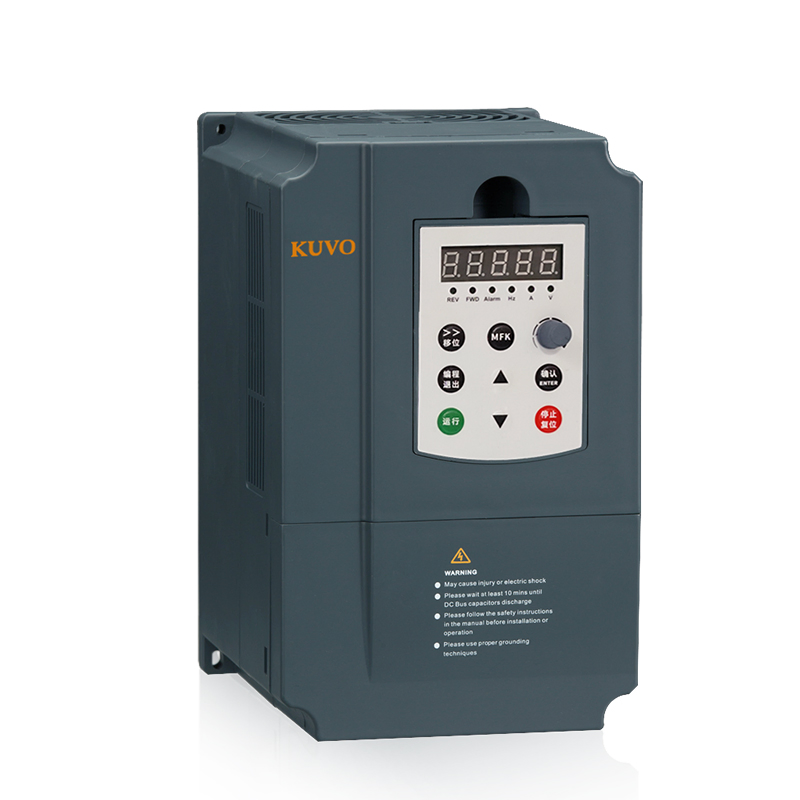

Model NO.
JHI650M-4D0G/5D5P-4
Type
DC/AC Inverters & AC/AC Inverters
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Output Voltage
380V AC 3phase
Input Voltage
180-450V DC 3phase

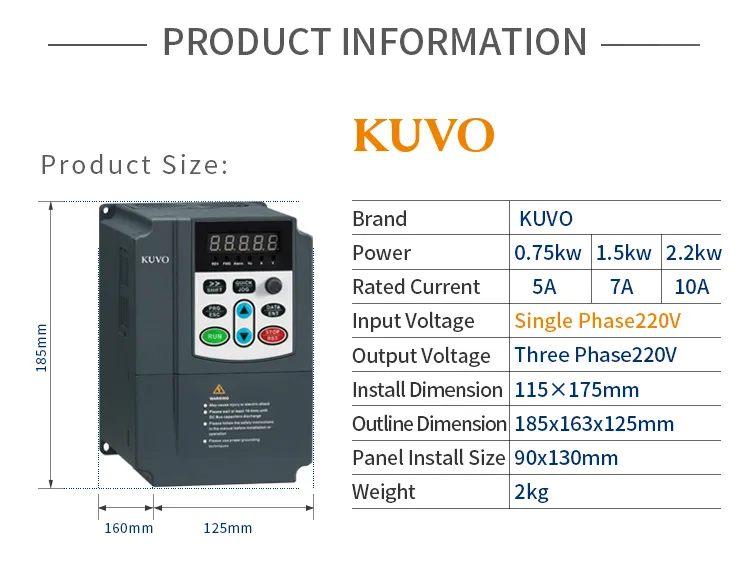

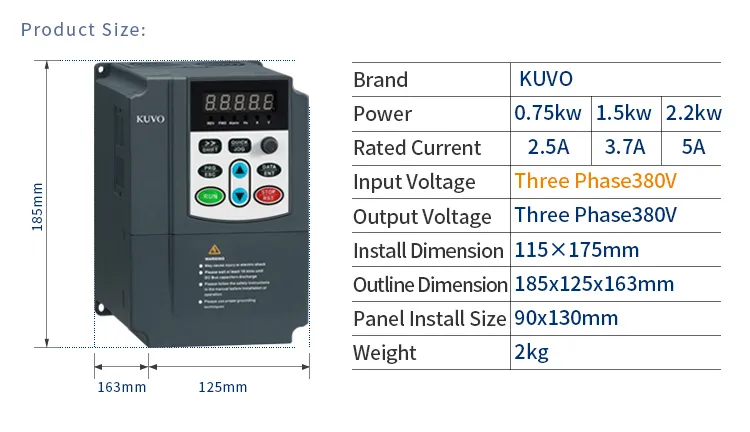

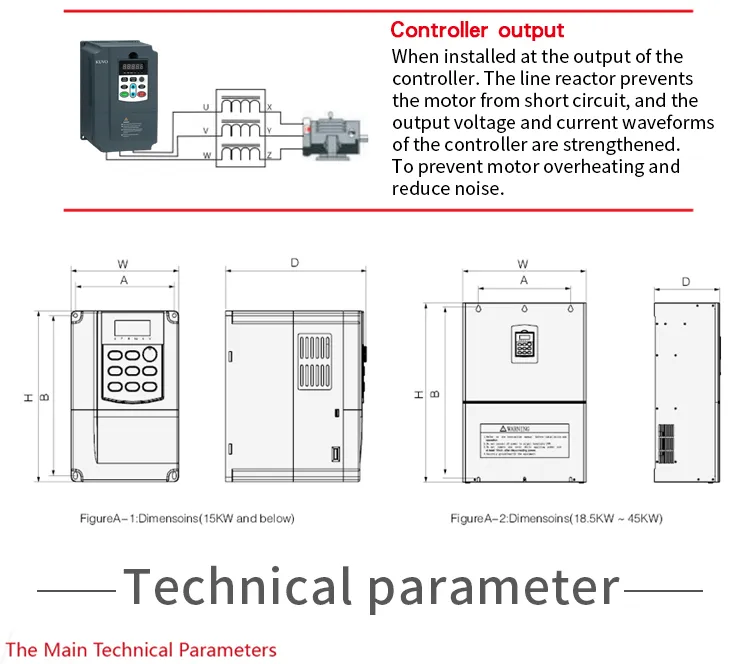

Product Size
185*125*160mm
Production Capacity
10000PCS/Year
📦
Packaging & Delivery
Package Size
340.00cm * 280.00cm * 250.00cm
Package Gross Weight
4.500kg
⚙️
Technical Features
Flexibility
- Compatible with IEC standard three-phase asynchronous induction motors
- Compatible with popular PV arrays
- Grid supply option
Reliability
- 10-year market proven experience of leading motor and pump drive technology
- Soft start feature to prevent water hammer and increase system life
- Built-in overvoltage, overload, overheat and dry-run protection
Cost Effectiveness
- Plug-and-play system design
- Embedded motor protection and pump functions
- Battery-free for most applications
- Effortless maintenance
Smartness
- Self-adaptive maximum power point tracking technology up to 99% efficiency
- Automatic regulation of pump flow
- Self-adaption to the motor used in the installation
📱
Remote Monitoring
- Standard RS485 interface equipped for each solar pump inverter
- Optional GPRS/WIFI/Ethernet RJ45 modules for remote access
- Spots value of solar pump parameters monitoring available from anywhere
- History of solar pump parameters and events lookup support
- Android/iOS monitoring APP support

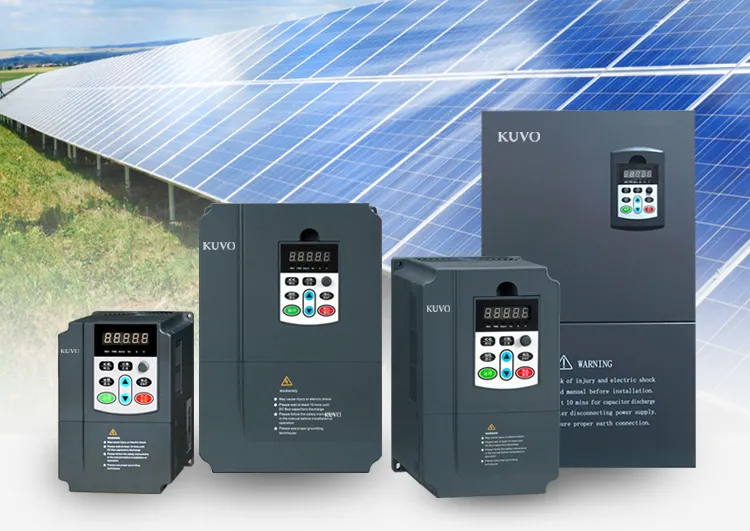

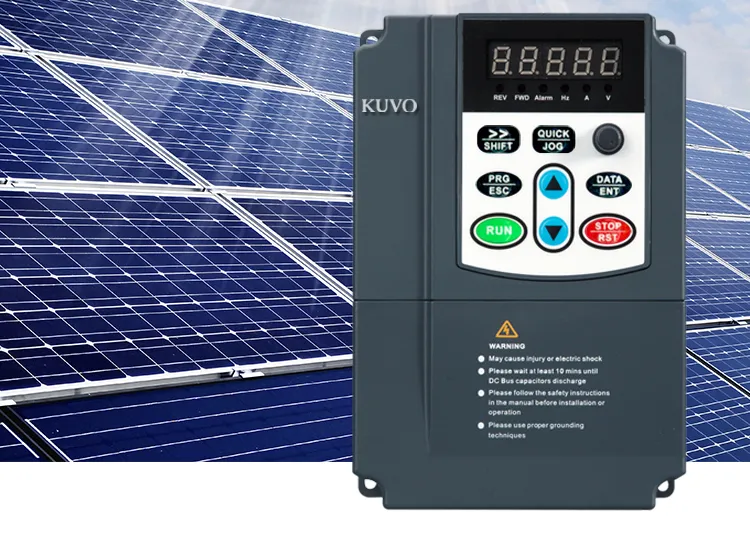

Solar photovoltaic water pump inverter
Photovoltaic water pump system experts around you
☀️

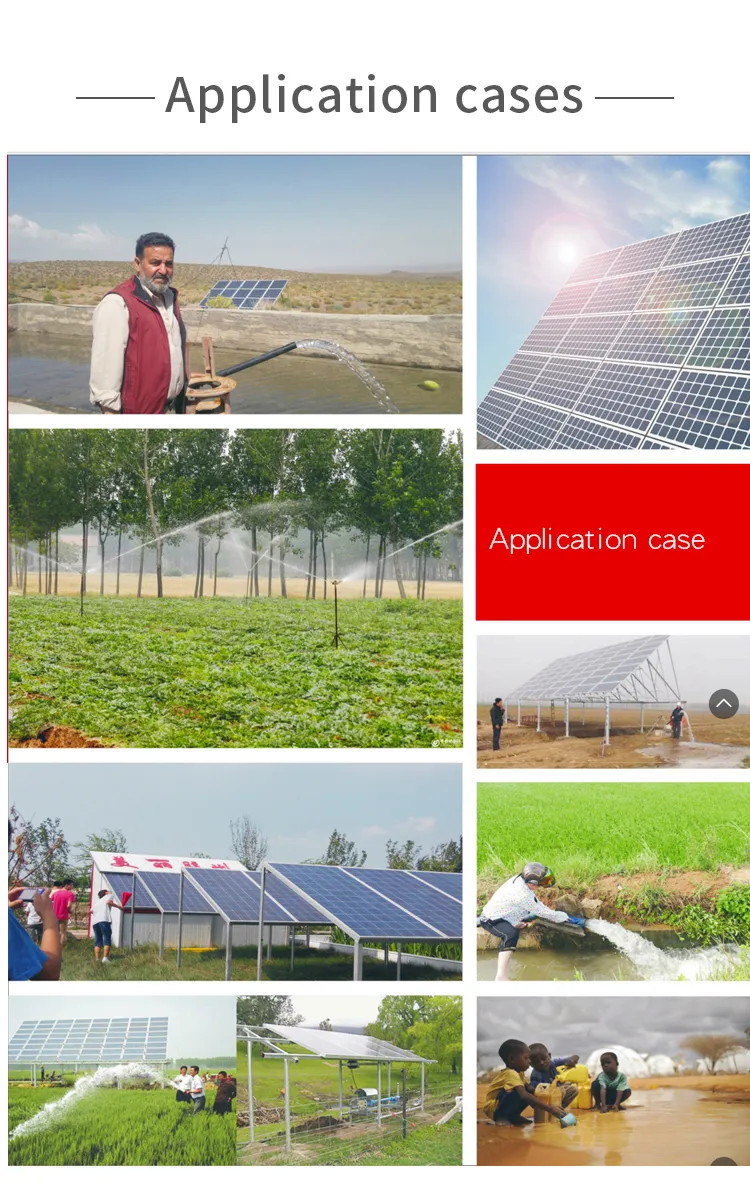

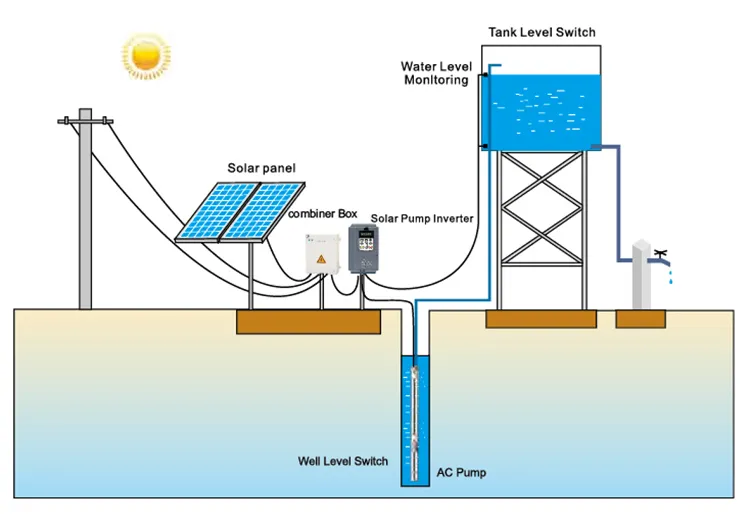

Solar Water Pump System Introduction
Solar water pumping systems are used in remote areas where there is no power supply or power shortage. Provide water solution, the system uses DC power output from photovoltaic array to pump water. The system does not need to install batteries, and can store water in the reservoir for subsequent use. Other water sources, such as water storage of rivers and lakes, can replace water storage.
✅
Product Advantages
1. No fuel is required
2. Suitable for poor environment such as lack of power
3. Compatible with various pumps
4. Suitable for all types of three-phase asynchronous motor
5. Support various conventional solar modules
6. Support system wide power segment design
7. Compatible with brushless DC motor, adaptive parameters working principle
⚡
Working Principle & Operation
The system adopts automatic control technology, such as starting and closing automatically in the morning and at night. When the pool is full and the well is short of water, the system adopts protective measures to prevent the pump from stalling and ensure the three-phase balance, so as to prolong the service life of the pump and the controller.
❓
Frequently Asked Questions
1. Does this solar pumping system require batteries?
No, the system is designed to be battery-free for most applications. It uses DC power directly from PV arrays to pump water, which is more economical and reliable.
2. What types of motors are compatible with this inverter?
It is compatible with IEC standard three-phase asynchronous induction motors and also supports brushless DC motors with adaptive parameters.
3. How efficient is the MPPT technology in this controller?
The system features self-adaptive maximum power point tracking (MPPT) technology with an efficiency rating of up to 99%.
4. Can I monitor the system performance remotely?
Yes, each inverter is equipped with a standard RS485 interface. Optional GPRS, WIFI, or Ethernet RJ45 modules are available for remote access via Android or iOS APPs.
5. What safety protections are built into the device?
The inverter includes built-in protection for overvoltage, overload, overheat, and dry-run scenarios to ensure system longevity.
6. Is it suitable for areas with unstable grid supply?
Absolutely. It is specifically designed for remote areas with no power or power shortages and includes a grid supply option for hybrid flexibility.
